BOTTLE UNSCRAMBLER

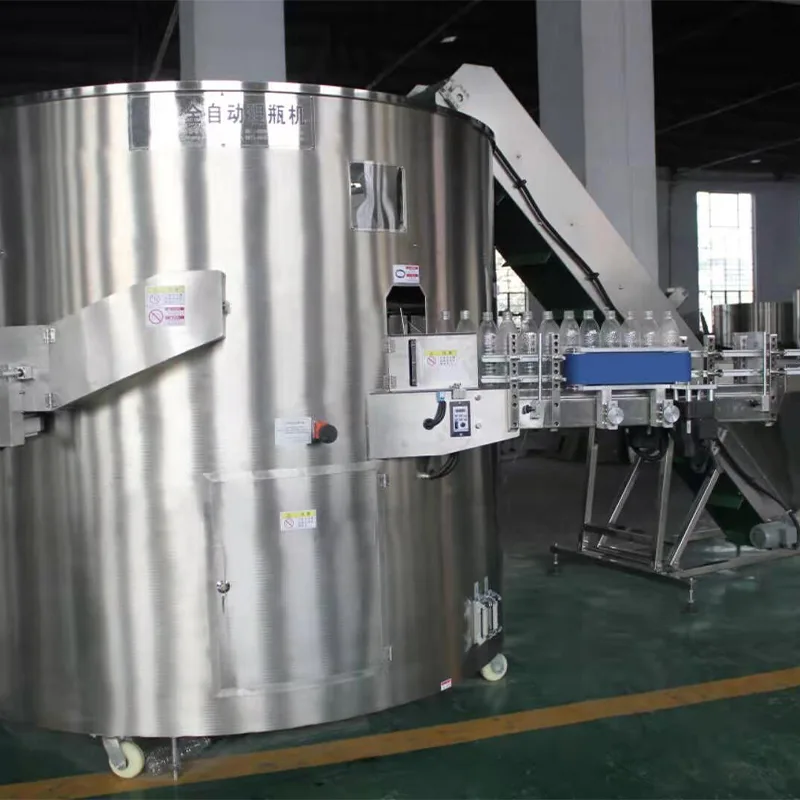

15,000 BPH New Plastic Bottle Unscrambling Machine
productivity: 8000~15000 bottle/hour
LP-16 Model Push type unscrambler are national advanced bottle unscrambling equipment, which are based on world advanced technology, designed and developed according to our country’s developing trend of high speed and automation of drink’s filling equipment.
8000~15000 bottle/hour
productivity
380V，50Hz
Power
1.5KW
Main motor’s power
φ2240(D)×2200(H)
Dimension
MACHINE SELECTION GUIDE
Which Model To Choose
Bottle size: Diameter 50－90，height 65－290
SELECTION FACTOR
VALUE
productivity
8000~15000 bottle/hour
Air source
Pressure 0.7MPa，air consumption，1500 L/min
Power
380V，50Hz
Main motor’s power
1.5KW
Lifting device’s power
0.75KW
Bottle size
Diameter 50－90，height 65－290
Dimension
φ2240(D)×2200(H)
Find the Right Machine
Get a Machine Recommendation
TECHNICAL DATA
Machine Parameters
Main features :
FEATURE
VALUE
productivity
8000~15000 bottle/hour
Air source
Pressure 0.7MPa，air consumption，1500 L/min
Power
380V，50Hz
Main motor’s power
1.5KW
Bottle size
Diameter 50－90，height 65－290
Lifting device’s power
0.75KW
Dimension
φ2240(D)×2200(H)
NO.
MAIN FEATURES
1

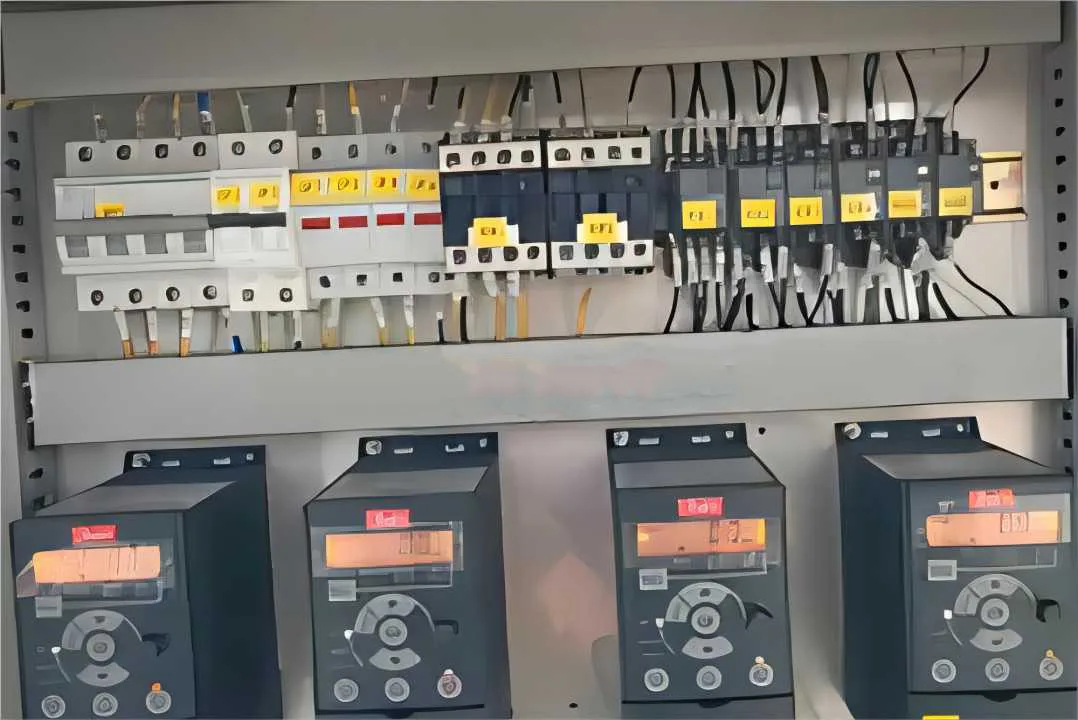

Main motor is the frequency speed changing method.
2
Applying two-time pushing and unscrambling device will reduce amount of empty working position and improve efficiency of output bottle.
3

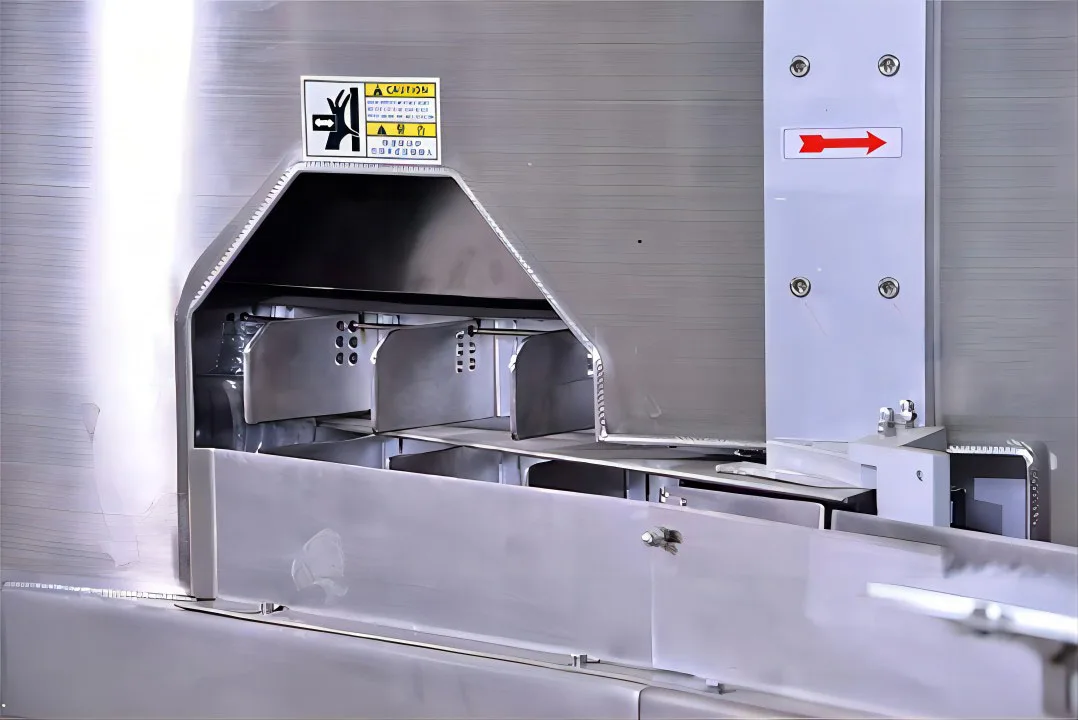

Special designed dropping bottle slot can suit bottles with different length. It needn’t change bottle slot and just adjust slot properly.
4

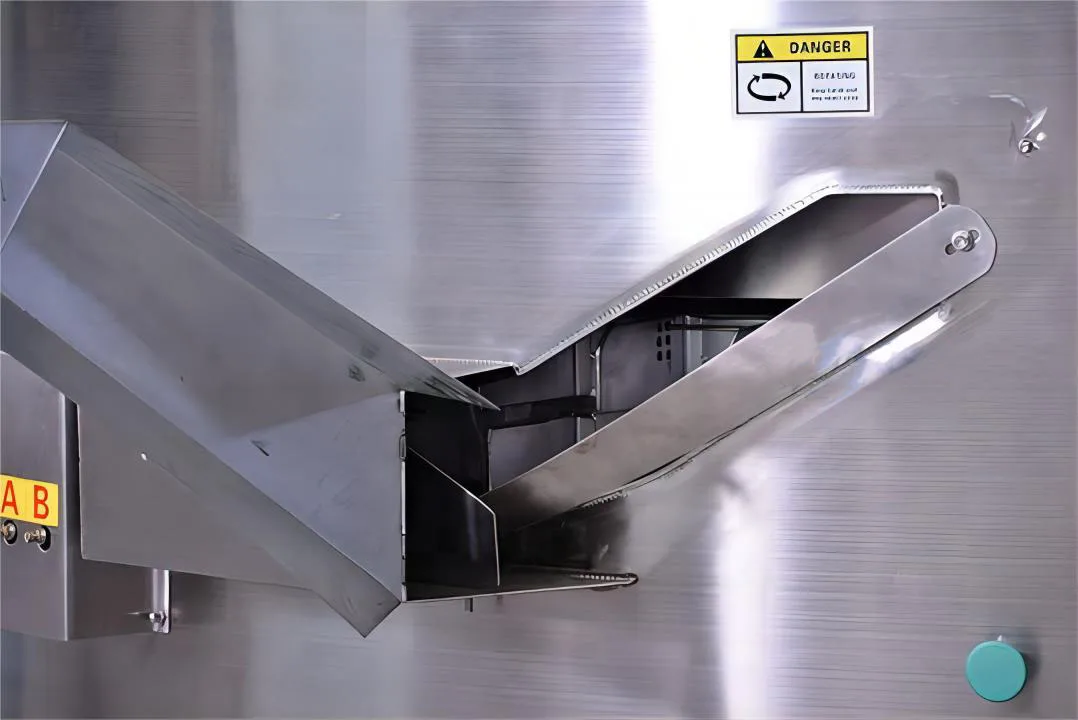

The middle of cylinder has a door for mould exchange, this makes it convenient disassemble and assemble bottle slot and treat clog.
5
The bottom of cylinder has a door for maintenance, this makes it convenient for workers entering bottom of machine.
6
This machine is equipped with manual operator for easy maintenance.
7
It has complete safety measure. When maintenance door and mould exchange door are open, machine can’t start, then you can use manual operator to control machine.
8
The outputbottle poking wheel of unscrambler is equipped with block bottle detector that can protect machine effectively.
9
On the umbrella shape tower at the center of unscrambler, there is a bottle detector to control stop and start of lifting machine that supplies bottle.
10
The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.
HOW IT WORKS
How It Works
The main machine has cylinder appearance with adjustable feet at the bottom for changing machine’s height and level.
01
LIFTING DEVICE
In the cylinder, there is a rotating cylinder, and outside of rotating cylinder, there is the dropping bottle slot
the inner side is equipped with lifting device, which the amount is the same with dropping bottle slots
When the lifting device send out short of bottle message according to the bottle detecting device on the tower
02
BOTTLE SLOT

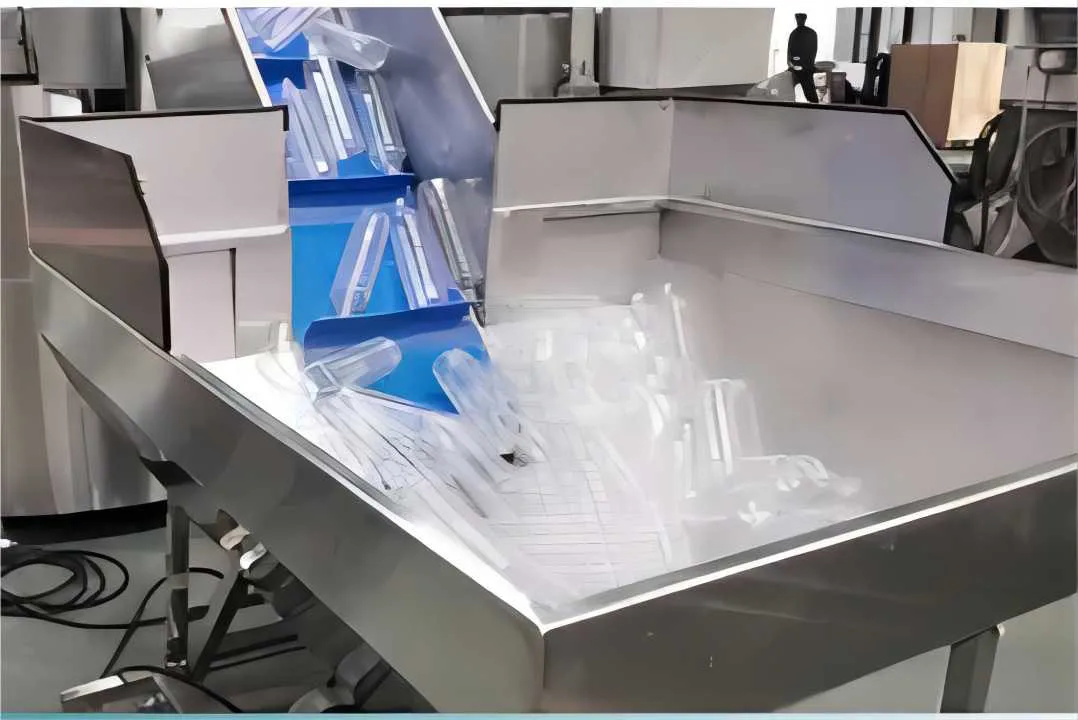

bottle will drop onto umbrella shape tower from top center of the machine, then enter lifting device from the edge of tower
Under the action of cam, the lifting device pushes bottle into the bottle slot
After unscrambling in the slot, the bottle rotates along with bottle slot to the exit of unscrambler
03
AIR CONVEY WAY
The poking bottle starwheel at the exit will push the bottle into air convey way
The starwheel joins shaft of main motor through time geared belt.
WHY SinoPAK
Why Choose US
SinoPAK equipment includes a 12-month warranty. Lifetime technical support is available for the supplied equipment.
Direct manufacturer
We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
Exporting team
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
Custom manufacturing
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Tested before loading
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
BEYOND THE UNSCRAMBLER
Complete Production Line
The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.
