Water Bottling Line
Complete Bottled Water Production Line Solutions
From water treatment and bottle blowing to filling, capping, labeling and packaging, SinoPAK configures complete water filling lines for purified water, RO water, mineral water and drinking water.
Water Bottling Solutions by Package Type
Start with bottle size and water type. SinoPAK then configures water treatment, filling method, bottle handling and downstream equipment around your actual project.

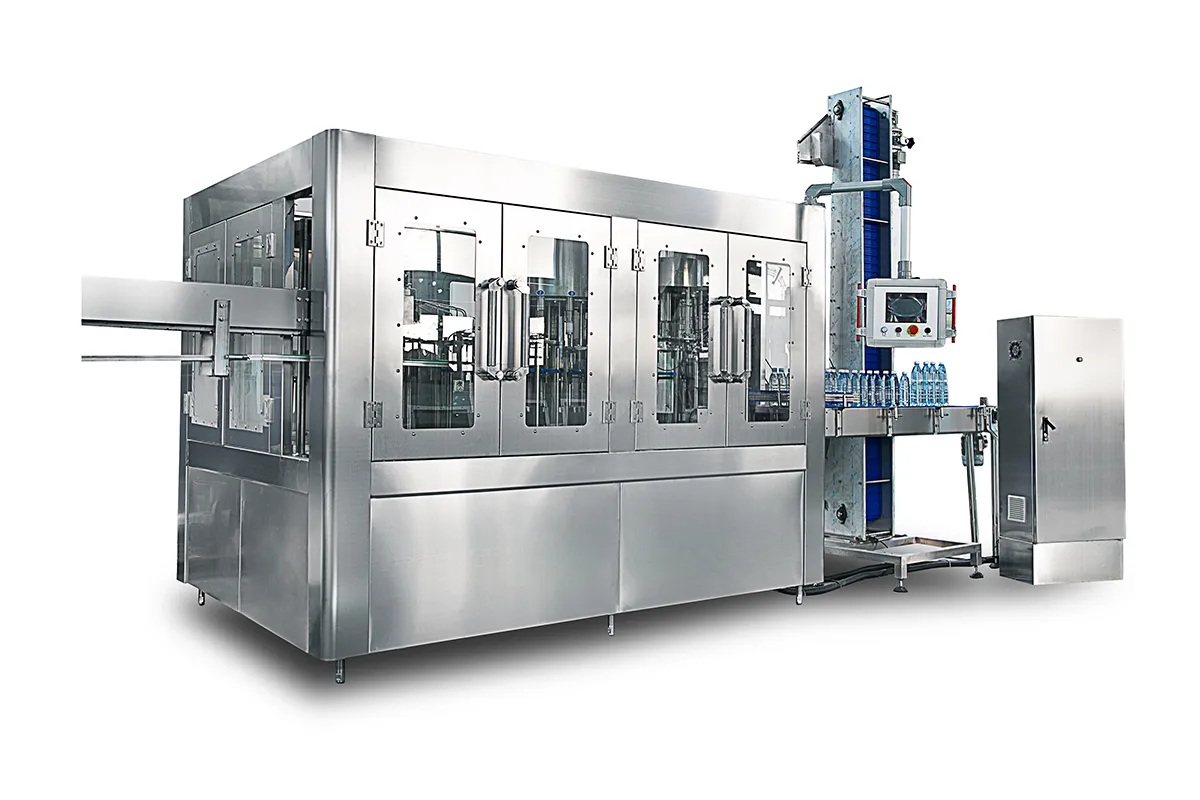

200ml-2L PET Bottle Water Filling Line
For standard bottled mineral, purified, RO and drinking water. 2,000-36,000 BPH with 3-in-1 rinsing, filling and capping.

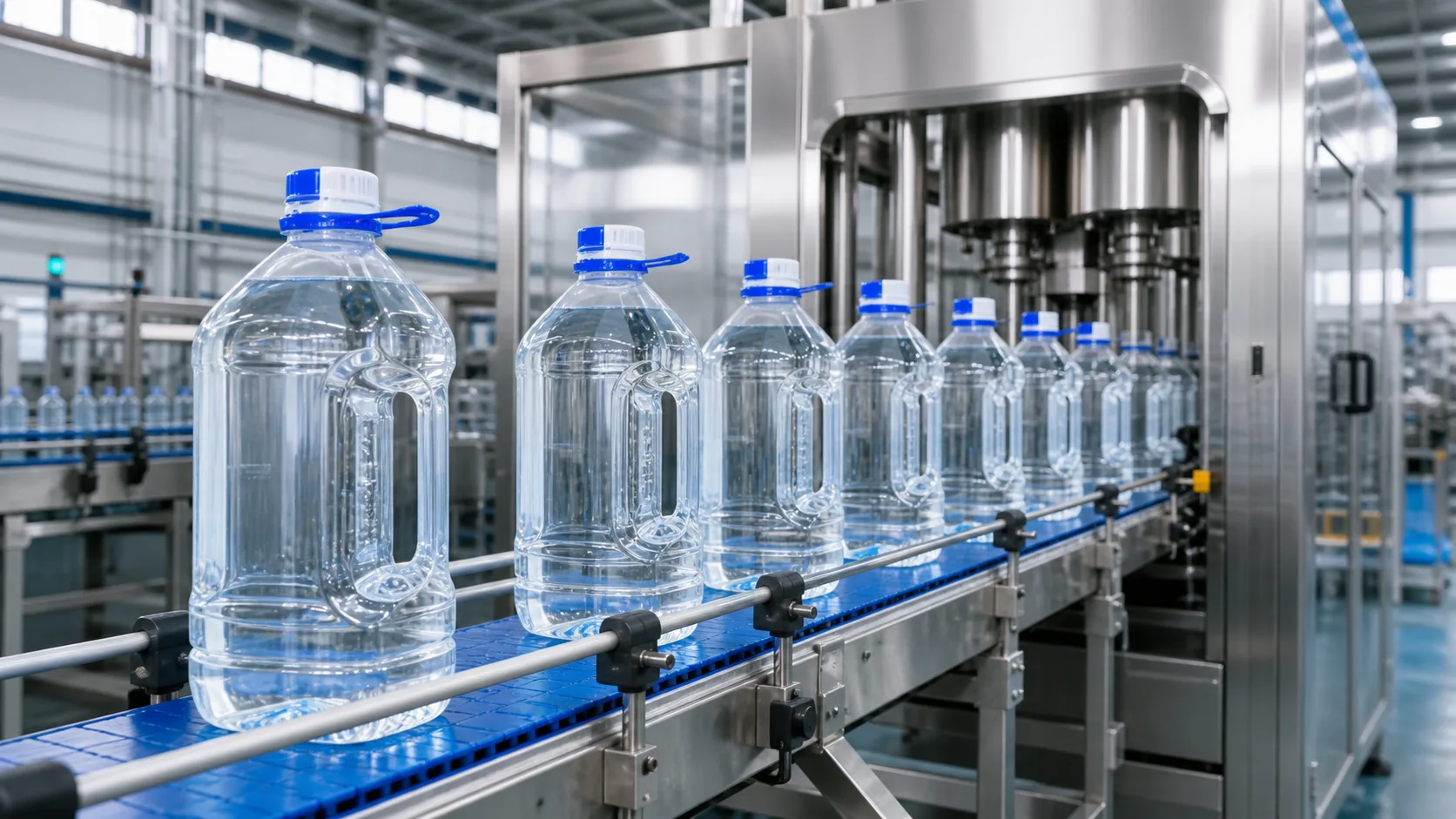

3L-10L Water Filling Line
For 3-10L plastic bottled mineral and purified water. 400-1,200 BPH with stable filling, capping and packing.

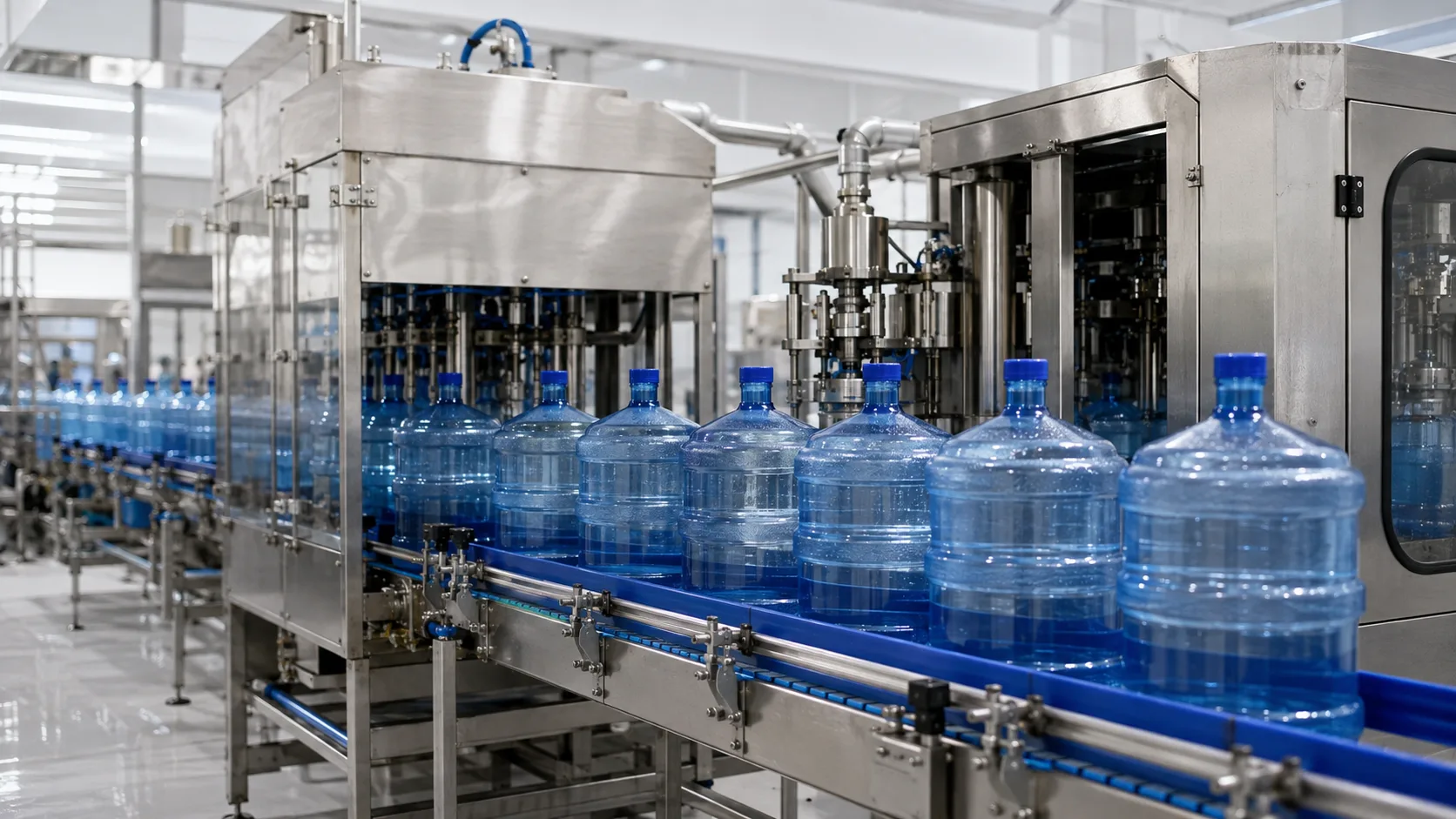

3-5 Gallon Water Filling Line
QGF series line for reusable 3-5 gallon barrels. 100-1,200 BPH with washing, sterilizing, filling, capping and discharge.
Your Complete Water Production Line
From water treatment and bottle blowing to filling, capping, labeling and packaging, each process is configured as part of one coordinated water line.
Build the Line Around Water Quality
Different source water and finished water standards require different filtration, softening, RO or UF configuration before filling.
- Multi-media pre-filter: PP sediment, activated carbon and high-precision filtration, 1-200 m³/hour
- Water softener: hardness control for stable downstream treatment and production, 1-200 m³/hour
- RO pure water equipment: reverse osmosis for purified and RO water projects, 1-100 m³/hour
- UF mineral water equipment: ultrafiltration option for mineral water applications, 1-200 m³/hour
Configure Your Water Filling Line
Not sure about every detail? Send the basics first. Talk to our engineers →
Machines Integrated Into Your Water Line
SinoPAK combines water treatment, bottle forming, filling and downstream equipment into one coordinated production system.
Water Treatment System
Multi-media filtration, activated carbon, softening, RO, UF, UV or ozone configured around source water quality.

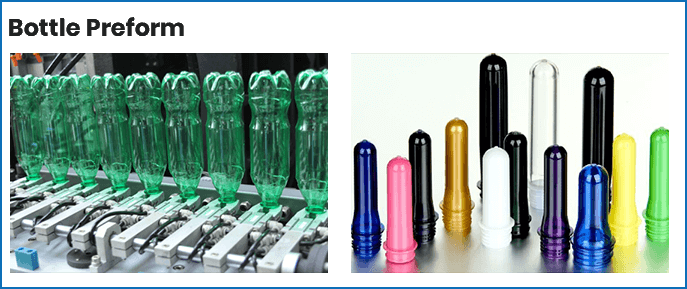

PET Bottle Blowing Machine
Automatic or semi-automatic PET blow molding machines available for complete bottled water lines.

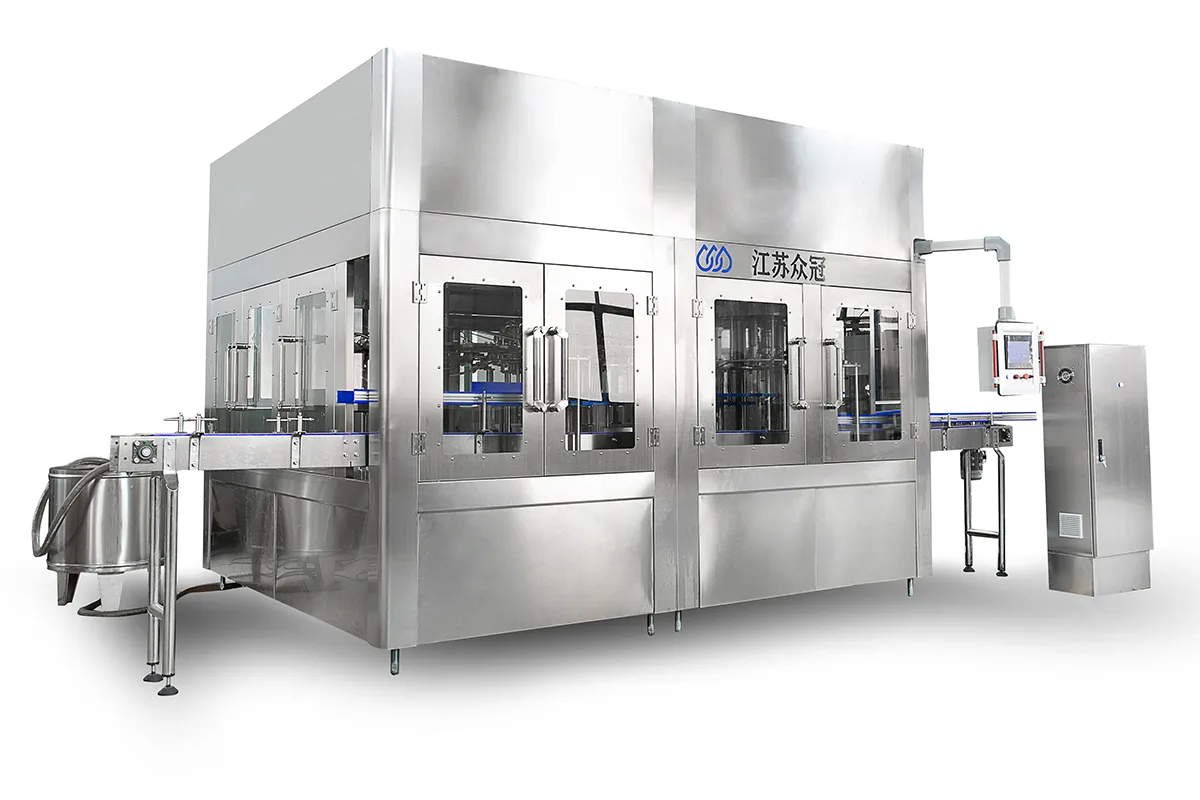

Water Filling Machine
3-in-1 rinsing, filling and capping for mineral water, purified water and drinking water in PET bottles.
View Machine →
Large Bottle Filling Unit
Customized filling and handling configuration for 3L-10L plastic bottles.
QGF Barrel Water Line
Washing, sterilizing, filling and capping integrated for 3-gallon and 5-gallon barreled drinking water.
View Machine →

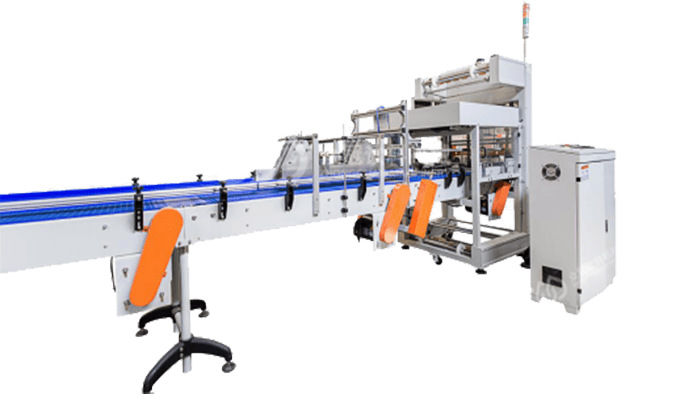

Labeling & Packaging
Labeling, drying, shrink wrapping and case packing integrated with the line layout.
More Than a Water Filling Line
SinoPAK combines water process engineering, filling equipment and project integration to help you build a reliable bottled water production system around your real production requirements.
Talk to a SinoPAK Engineer →Water Process Planning
Configure treatment equipment around source water, finished water type and required capacity.
Line Engineering
Match bottle blowing, filling, capping and packaging according to bottle size and output.
Layout Integration
Plan equipment placement, conveyors and operator access around your factory conditions.
Installation Support
Support equipment delivery, commissioning, training and production start-up.

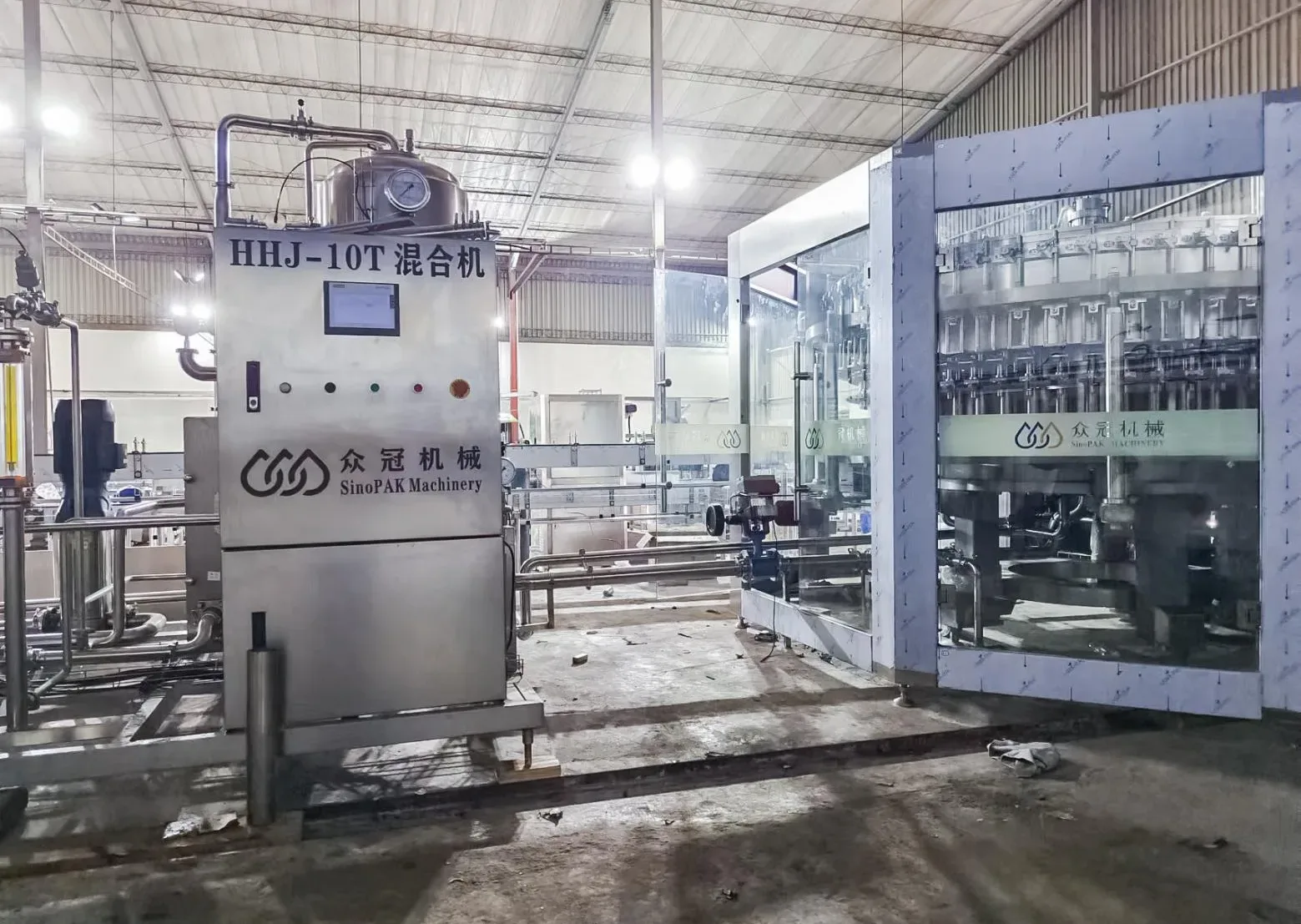

Water Filling Lines Running Worldwide
Use project references to understand complete water-line delivery, filling performance and downstream integration.

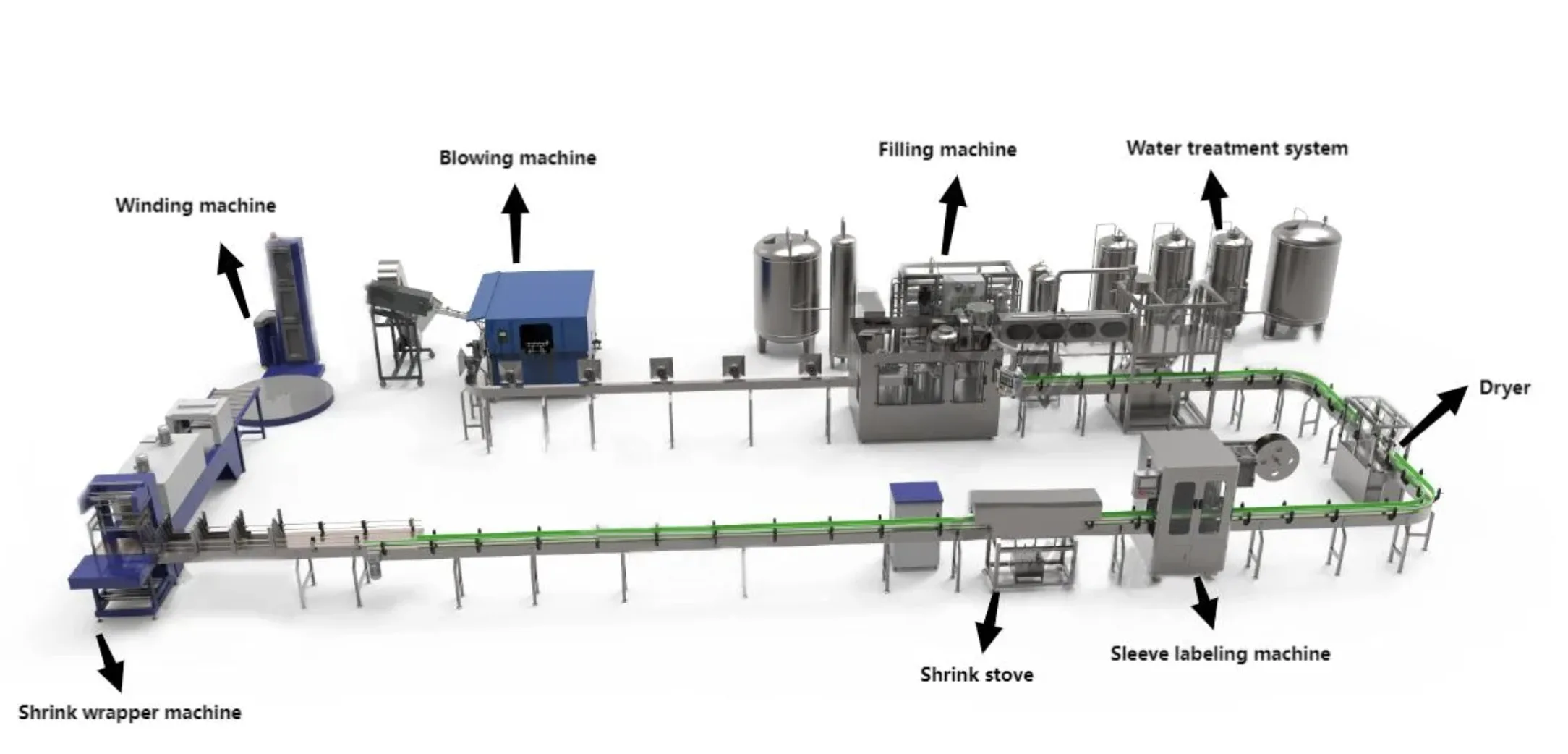

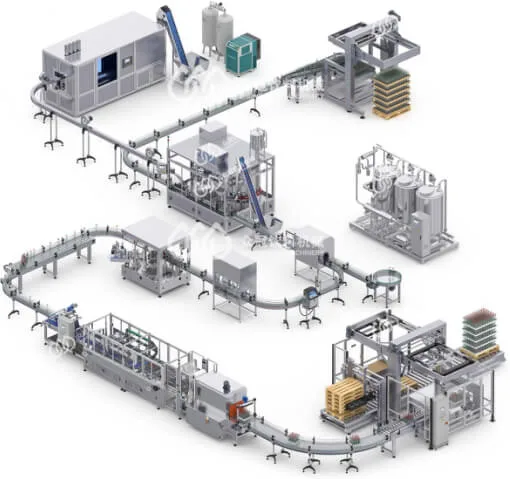

3D Layout Reference for Bottled Water Production
Use the layout reference to understand how water treatment, blowing, filling, labeling and packaging are connected into one production line.
Reference Layout for Bottled Water Line
Request Layout →
Layout Notes
- Upstream preparation: water treatment and bottle blowing can be arranged before the filling section.
- Filling center: the filling machine becomes the core equipment connecting clean bottles and downstream handling.
- Downstream flow: drying, sleeve labeling and shrink packaging are planned according to factory flow.
- Project fit: the final layout changes according to capacity, bottle size, site dimensions and utilities.
