Carbonated Soft Drink Filling Line

We are devoted to supplying complete solution for the carbonated beverage filling plant ,including Water treatment system /Carbonated Beverage Processing , Mixing , Carbonation System / Washing filling capping machine / liquid nitrogen dosing system / Auto Bottle Checker / Bottle Spraying Warmer  /Bottle Blow Dryer / Laser Inkjet Printer / Automatic labeling machine / Automatic packing machine / Automatic Conveyor System / Automatic Palletizer system…..etc.

Why Choose Us

Customized By Your Thoughts

One complete CSD line solution from SINOPAK TEC takes into account every step of your  carbonated soft drink process, from minimising resource waste to determining your bottle’s ideal look and weight. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment,fast ramp-up and beyond.

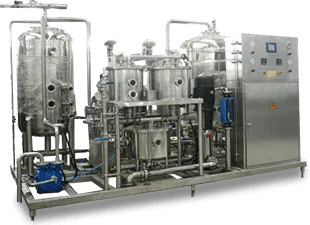

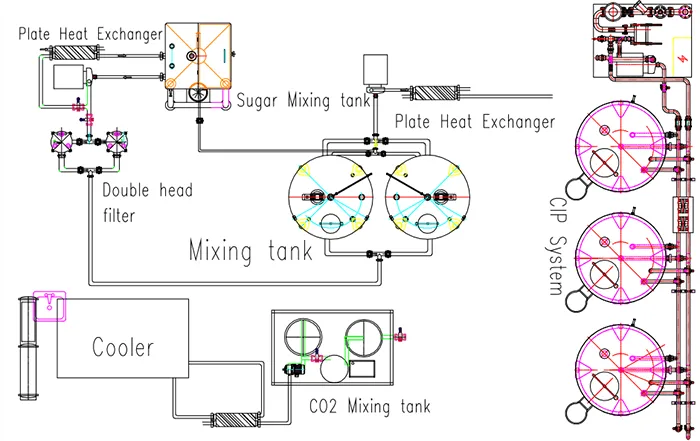

CSD Pre-mixing Part

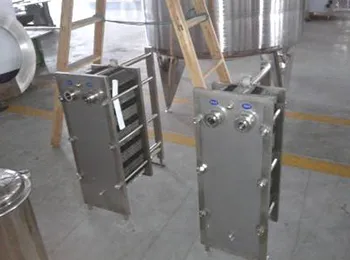

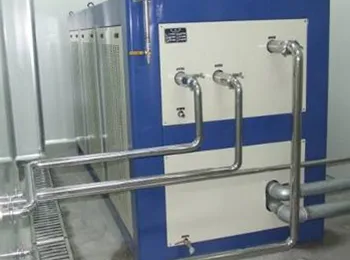

Carbonated beverage mixing system with reasonable & high efficiency structure , high mix precision , CO2 mixing fully, two stage of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink’s mix processing and carbonation, also may use in the paste drink, the fermentation drink and so on other soft drinks’ mix processing.

Technical:

  • Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;
  • High efficiency deaeration;
  • Simplified, user-friendly, operator interface;
  • Automated “no-dump” start-up capability;
  • Complete product recipe management;
  • Ingredient usage trending and totalling;
  • Improved product yields and consistency;
  • Reduced B.O.D. cost;
  • Fast, favorable return-on-investment.

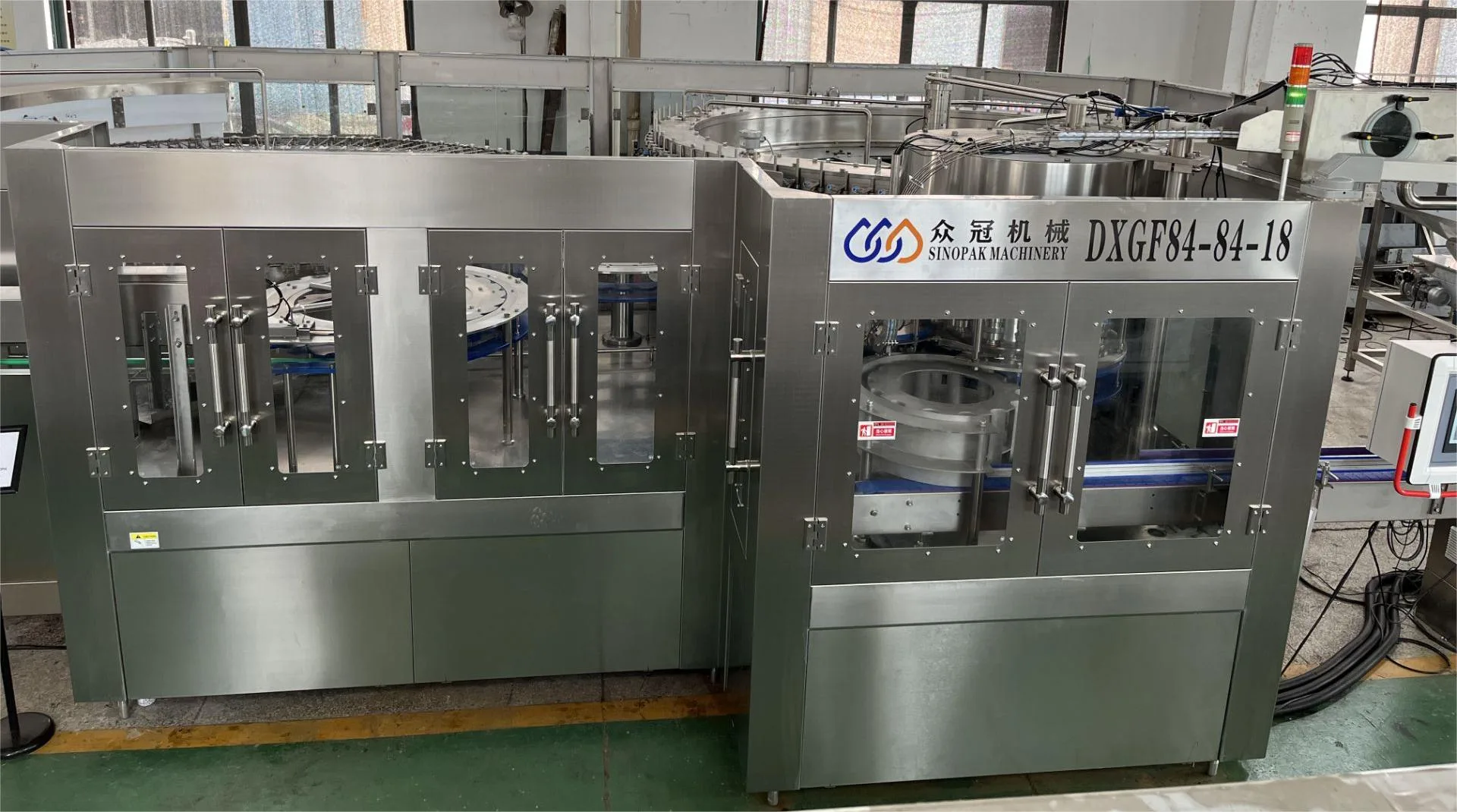

CSD 3 in 1 Filling Machine

It is mainly used for carbonated soft drink, such as cola, soda water and so on. The final filling temperature will be around 0-5℃. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition throughout economy benefit.

  • All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean;
  • 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing;
  • 304 stainless steel washing pumps.
  • Isobaric filling, & filling smoothly & steadily
  • The centering oriented adopts guide rod with special bottle neck holding
  • Filling temperature:0~4℃
  • All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean
  • Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
  • All 304 stainless steel construction
  • No bottle no capping and Automatic stop when lack of bottle

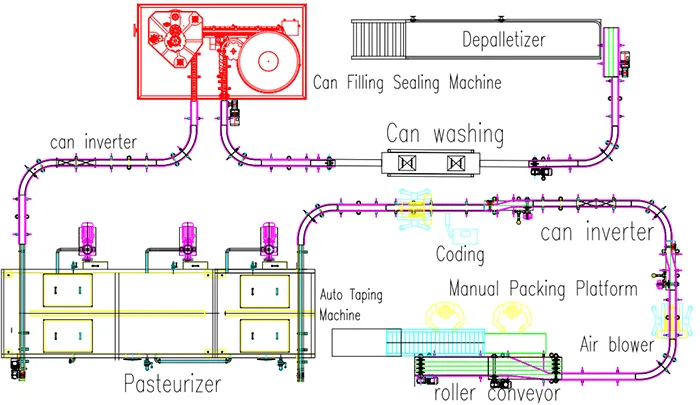

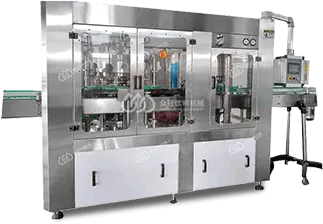

Can Filling Machine

Electric Part & Safe Device & Automation:

  • When accident system automatic stop & alarm;
  • Emergency switch when accident;
  • PLC control full-automatic working, inverter in-build, speed adjustable;
  • Touch-screen Control Panel, easy operate;
  • Famous Omron brand sensor & other electric parts adopted, ensure system heavy duty running.

Machine Base & Machine Construction:

  • 304 stainless steel frame;
  • Excellent start wheel design, easy change over parts;
  • Machine Base with anti-rust process, ensure the forever antirust;
  • All seal where liquid may Leakage & base neck come with rubber, water proof;
  • Manual lubrication system.
  • High precision filling nozzle , ensure high filling precision & filling smoothly & steadily,
  • Isobar Pressure filling nozzles which ensure minimal loss of CO2 from the drink
  • All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
  • CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean
  • Electromagnetic sealing heads
  • All 304stainless steel construction
  • No cans no sealing and Automatic stop when lack of sealer

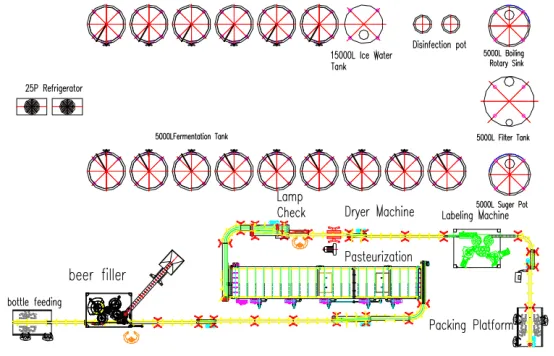

Beer Filling Machine

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BXGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

  • Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
  • The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE;
  • The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
  • Rinsing time can be guaranteed for 4 seconds.
  • Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
  • Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
  • Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
  • Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
  • The capper is equipped with inlet bottle detection switch.
  • Centrifugal way of cap arranging is adopted to reduce damage of caps.

Bottle Warmer

Because carbonated beverages are filled at low temperature (commonly 4-10℃), and the room temperature in summer is much higher than this, in such an environment, the moisture in the air is very easy to condense and dew on the outer surface of the bottle, which is used for subsequent packaging and operation. Inconvenience such as labeling.

Especially if it is packed in a cardboard box, dew soaks the cardboard, which can cause serious damage. Therefore, a bottle warmer must be set after the filling machine to heat the bottle body to room temperature.

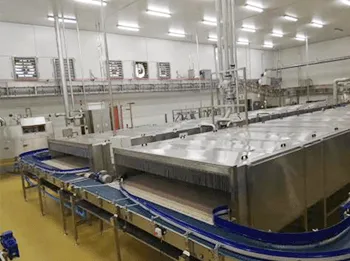

The bottle warmer is a tunnel-type spraying equipment. The bottle body is heated by the heat exchange method of circulating spraying hot water, and it has three temperature zones (more temperature zones can be designed). After the stage heating, the temperature of the beverage center reaches room temperature.

Laser Printer

The function of the laser coder to print random codes or anti-counterfeiting codes can also make each bottle of wine or each small wine bottle cap have a separate code, which can be directly identified, fast and easy, and can also spray price, promotion and other information. Printed on the wine box can effectively control the sales price of wine and prevent market fluctuations.

High-quality laser printers can also code various non-modifiable graphics, characters, numbers and other information at high speed and clearly on various materials packaging (such as wine bottles, bottle caps, etc.); on products or packaging Print special symbols (graphics, text, encoding).

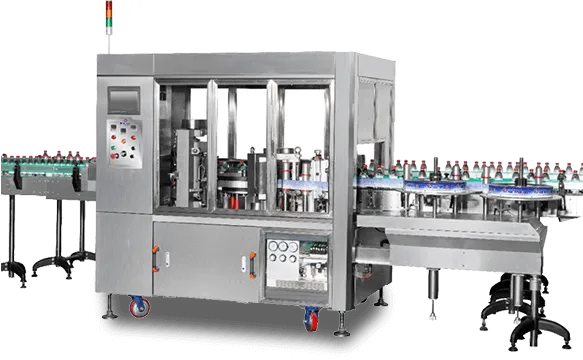

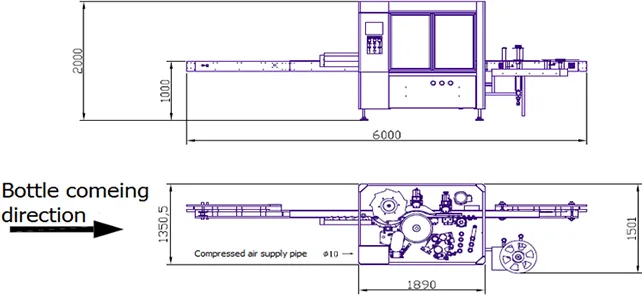

Hot Melt Glue Label Machine
