SELF-ADHESIVE LABELER

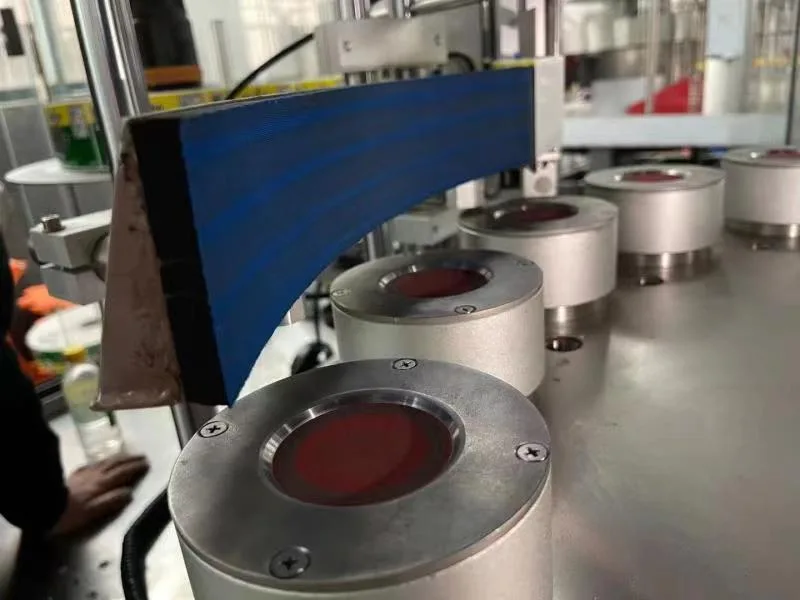

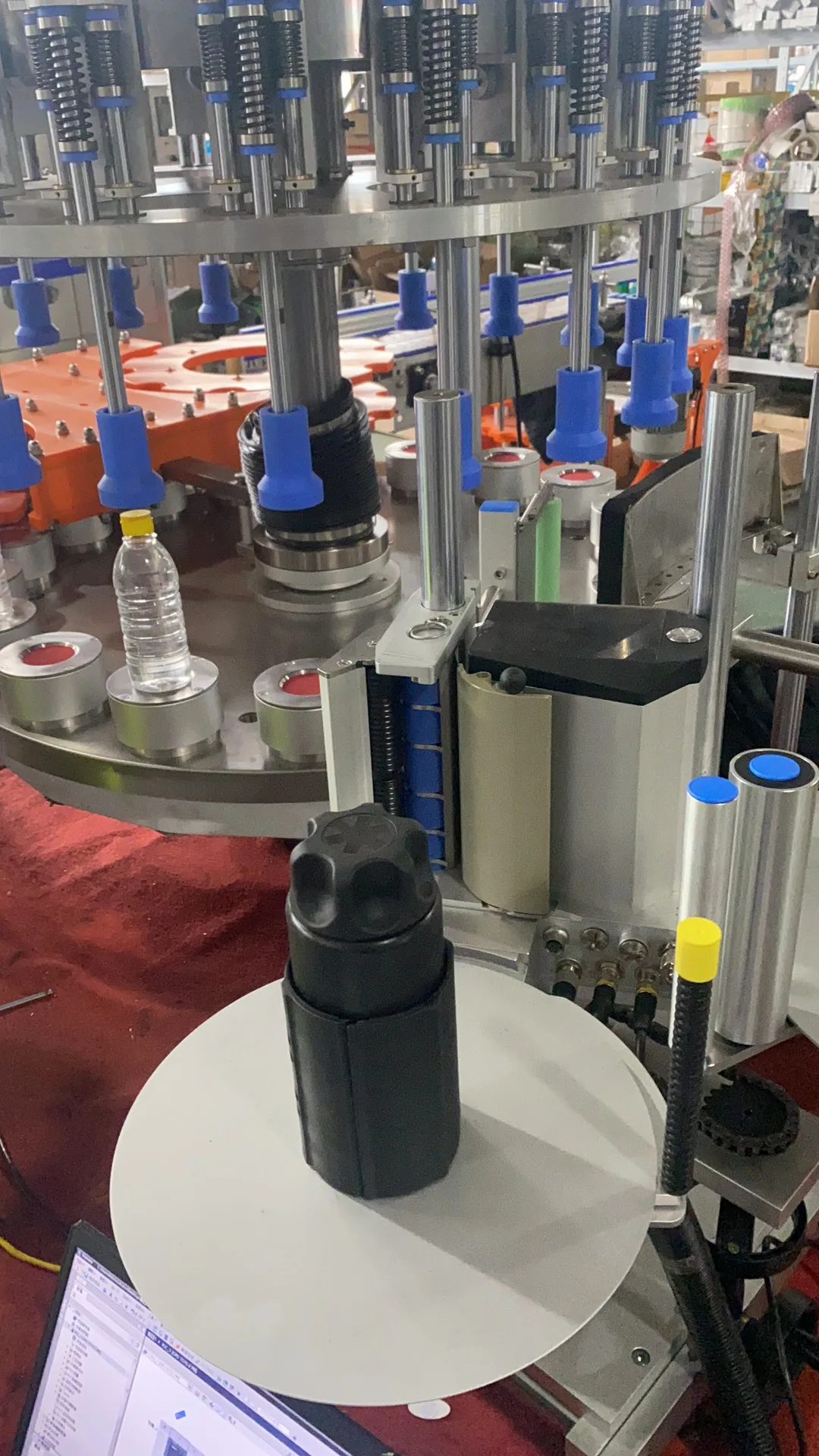

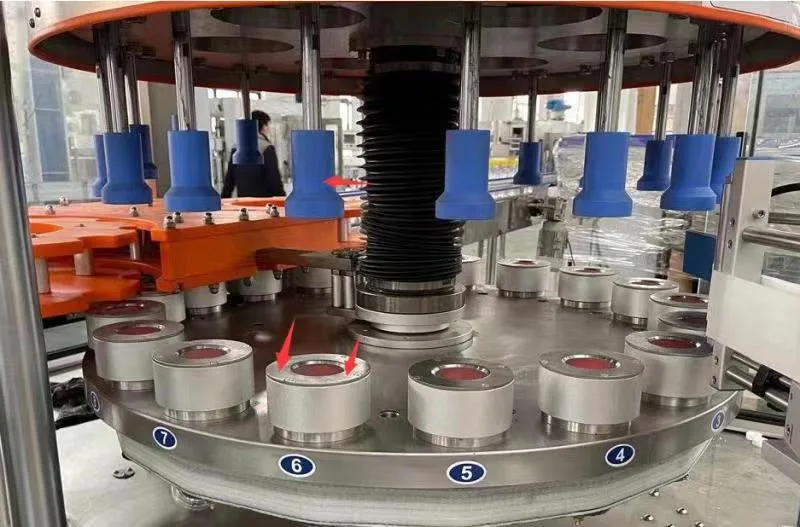

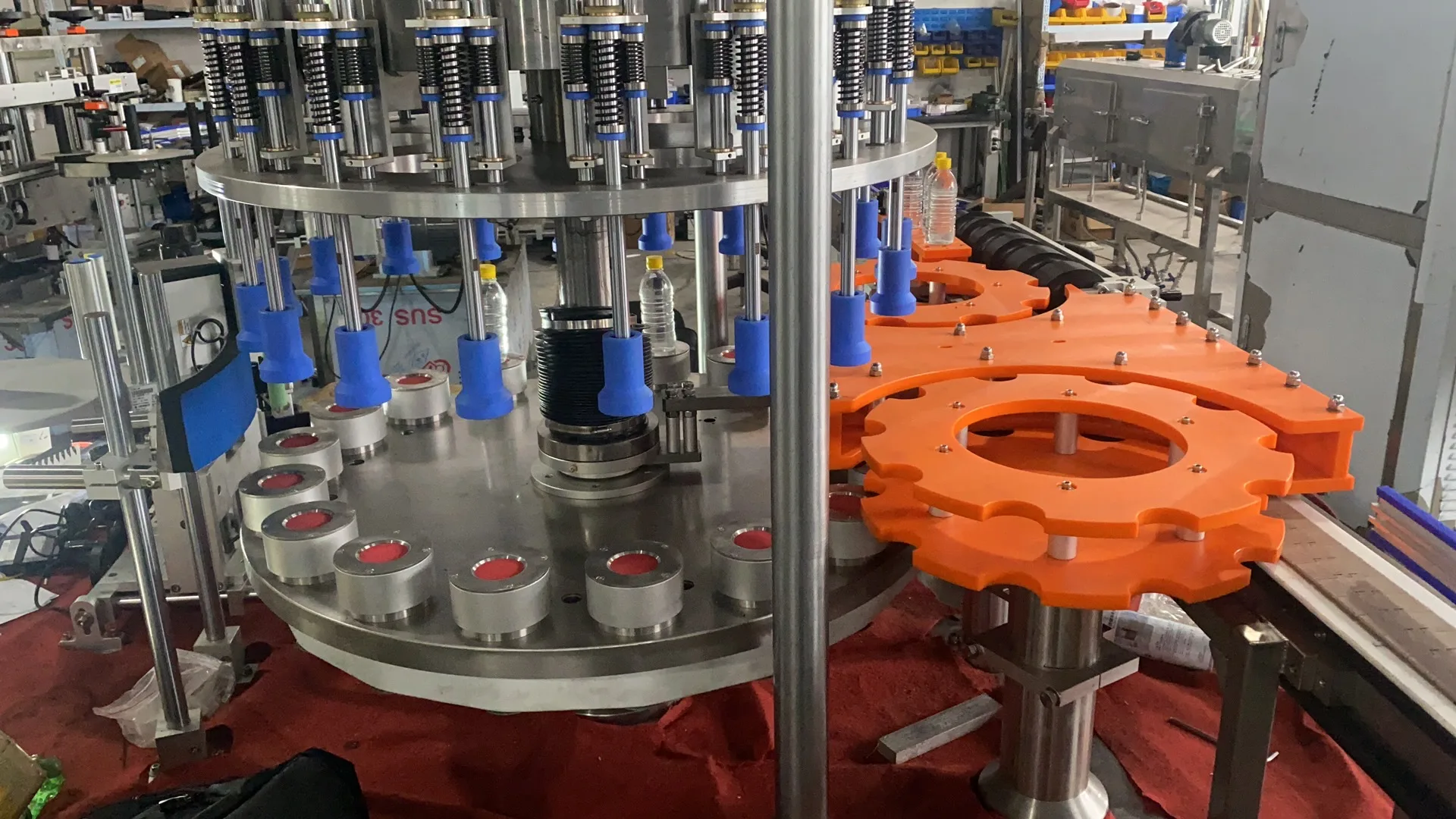

Automatic Rotary type Self-Adhesive Labeling Machine
Adhesive Rotary type Labeling Machine
For high speed labeling use.The machine features to satisfy the flat bottles, square bottles,special shape of bottles,and bottle label single-sided,double side labeling(front and back), three labels (front back and neck) and even top of cap label. Widely used cosmetics industry, drinking production line,various food, paper box packaging and other fields.
500 pcs/min
LABELING SPEED
36 labeling heads
LABELING HEADS
±1mm
ACCURACY OF LABELING
30-280mm
HEIGHT OF OBJECT
TECHNICAL SPECIFICATIONS
Technical data
Main features :
NAME
ADHESIVE ROTARY TYPE LABELING MACHINE
Labeling Speed
200 pcs/min ;250 pcs/min ;300 pcs/min ;350 pcs/min ;400 pcs/min ;500 pcs/min
Labeling Speed
8 labeling heads;12 labeling heads;18 labeling heads;24 labeling heads;30 labeling heads;36 labeling heads
Labeling Speed
(Depending on label length and bottle thickness)
Height of Object
30-280mm Customizable beyond scope
Height of Label
15-140mm Customizable beyond scope
Length of Label
25-300mm Customizable beyond scope
Label Roller Inside Diameter
76mm
Label Roller Outside Diameter
380mm
Accuracy of Labeling
±1mm
Power Supply
220V 50/60HZ 1.5KW
Gas Consumption of Printer
5Kg/cm^2
FEATURE
DETAIL
Control system
SIEMENS PLC control system, with high stable operation and extremely low failure rate;
Operation system
SIEMENS touch screen, with Chinese and English language, rich with help function and fault display function,easy operation;
Check system
German LEUZE check label sensor, automatic check label position, stable and convenient don’t have much higher requirement for the workerskill;
Send label system
American AB servomotor control system, stable with high speed；
Alarm function
such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
Machine Material
The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
Low voltage circuit
all use the FranceSchneider brand.
