INVERSE STERILIZING

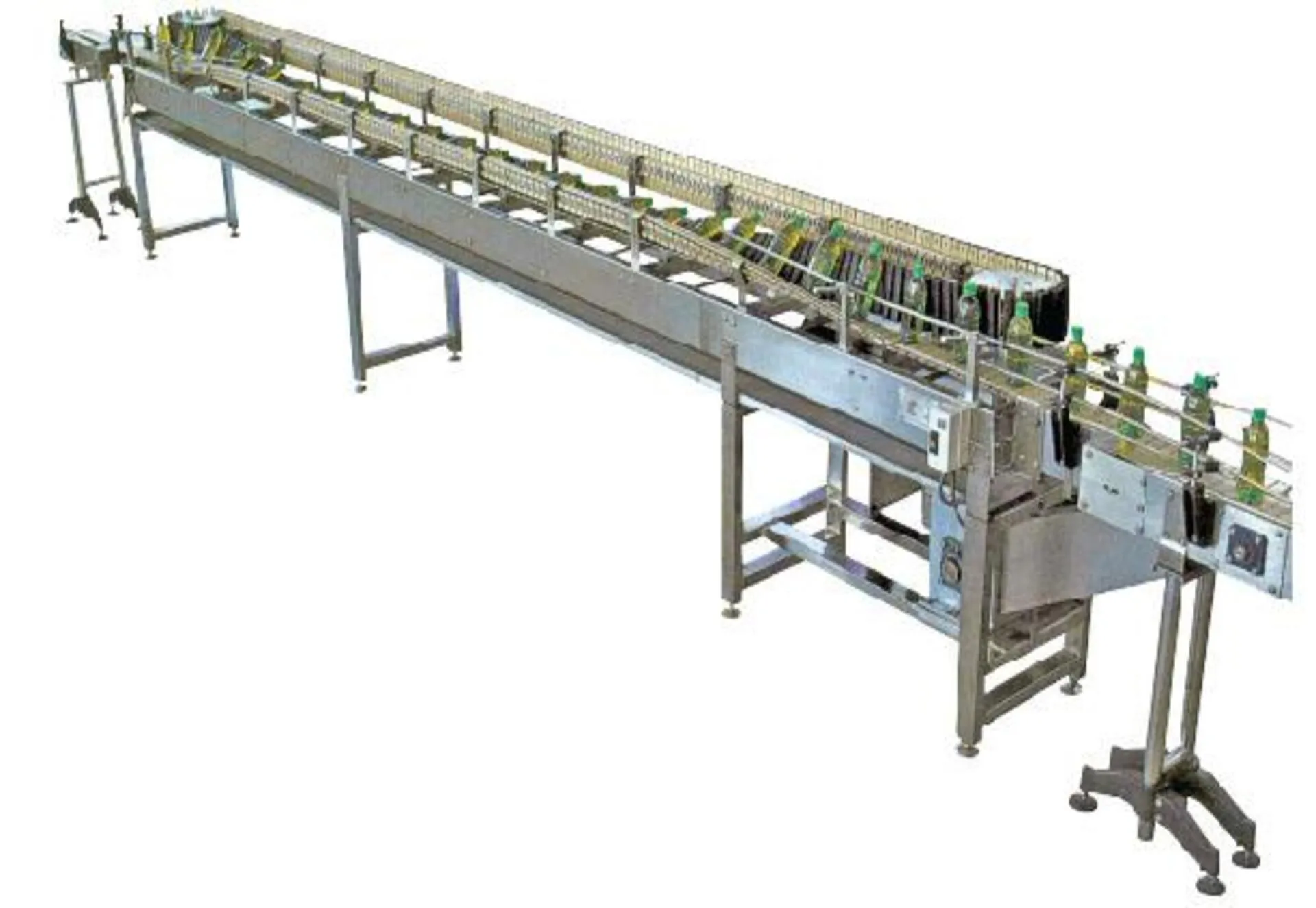

Bottle Inverse Sterilize Machine

It is mainly used in sterilizing PET bottles mouth and inside surface of caps

It is mainly used in sterilizing PET bottles mouth and inside surface of caps in which haven’t been disinfected by thermal tea or juice which having been filled in PET bottle.

Find the Right Machine →
Bottle Inverse Sterilize Machine Bottle Inverse Sterilize Machine Bottle Inverse Sterilize Machine Bottle Inverse Sterilize Machine Bottle Inverse Sterilize Machine
3000-8000 Production capacity(b/h) · DP-8
8000-15000 Production capacity(b/h) · DP-12
15-20s Bottle reversing time(s)
4-20 Belt speed(m/min)
MACHINE SELECTION GUIDE

Which Model To Choose

This machine is a necessary machinery for juice, tea and other hot filling beverage production line.

SELECTION FACTOR
VALUE
Production capacity(b/h)
3000-8000
Production capacity(b/h)
8000-15000
Bottle reversing time(s)
15-20s
Belt speed(m/min)
4-20
Power(kw)
3.8
Power(kw)
5.6
Sterilizing target
sterilizing PET bottles mouth and inside surface of caps
Heat source
Using its inner thermal medium to disinfect bottle mouth and caps without any other heat sourceto save energy.
Find the Right Machine Get a Machine Recommendation
TECHNICAL DATA

Machine Parameters

Main features :

Get Technical Proposal → Target: data-spk-open-form
DP-8
3000-8000
15-20s
4-20
3.8
DP-12
8000-15000
15-20s
4-20
5.6
HOW IT WORKS

How It Works

It mainly consist of chief conveyor chain system, body frame, bottle reversing chain system, bottle reversing guiding rod and bottle repositioning rod.

01 AFTER FILLING AND SEALING
the bottles will be auto turned 90°C by this machine to flat
02 BOTTLE REVERSING
It mainly consist of chief conveyor chain system, body frame, bottle reversing chain system
03 INNER THERMAL MEDIUM
the mouth and caps will be sterilized by its own inner thermal medium
MATERIAL

Machine Parameters

Main features :

Bottle Inverse Sterilize Machine
SUS 304 The machine is fully made of SUS 304, more convenient in operation.
Bottle Inverse Sterilize Machine
IMPORT CHAIN It uses the import chain which is stable and reliable without damage to the bottle, the speed of transmission can be adjustable.
Bottle Inverse Sterilize Machine
ENERGY SAVING Using its inner thermal medium to disinfect bottle mouth and caps without any other heat sourceto save energy.
WHY SINOPAK

Why Choose US

All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.

Direct manufacturer We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
Exporting team We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
Custom manufacturing We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Tested before loading Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
BEYOND THE STERILIZER

Complete Production Line

After filling and sealing, the bottles will be auto turned 90°C by this machine to flat,the mouth and caps will be sterilized by its own inner thermal medium .
