HOT FILLING LINE

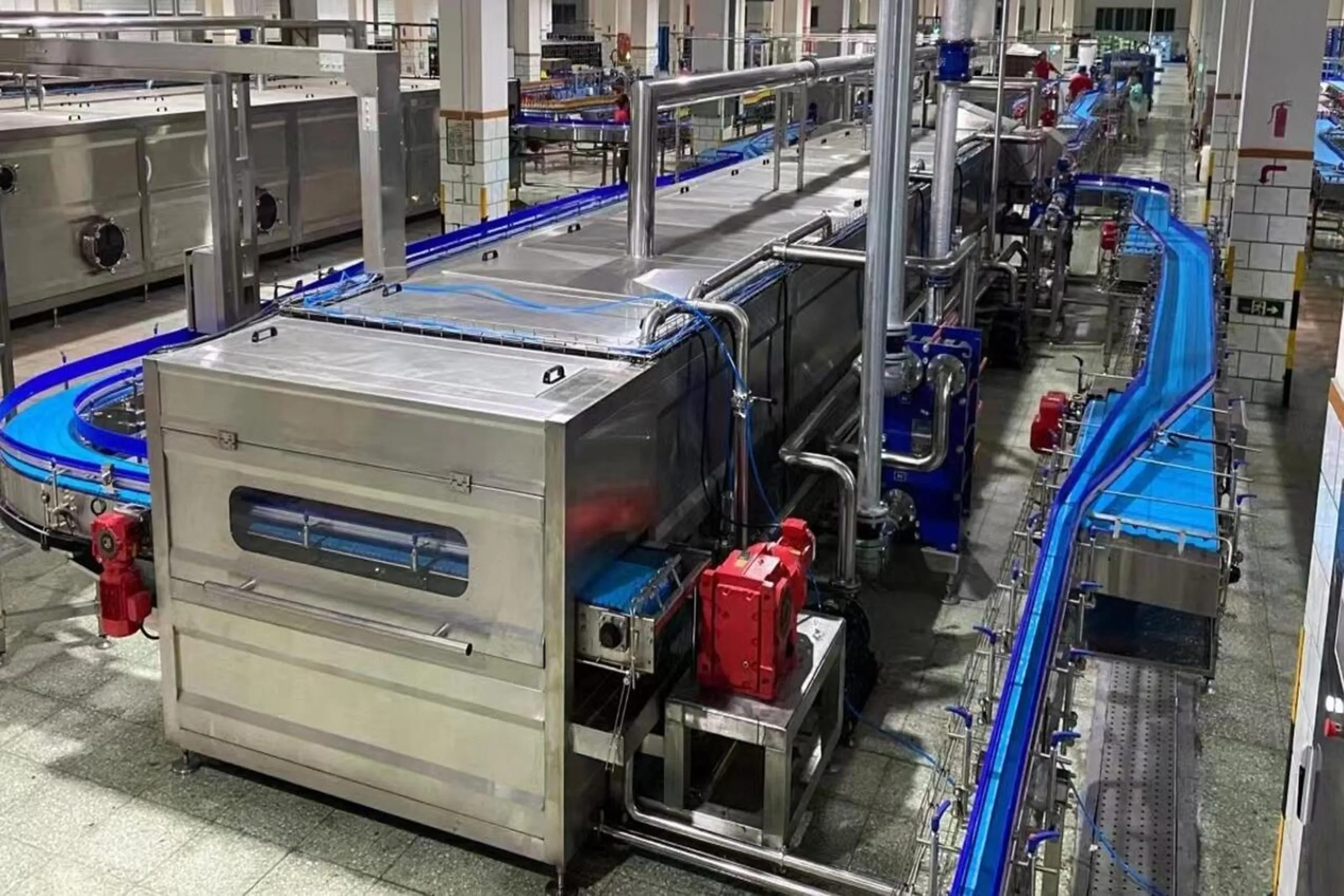

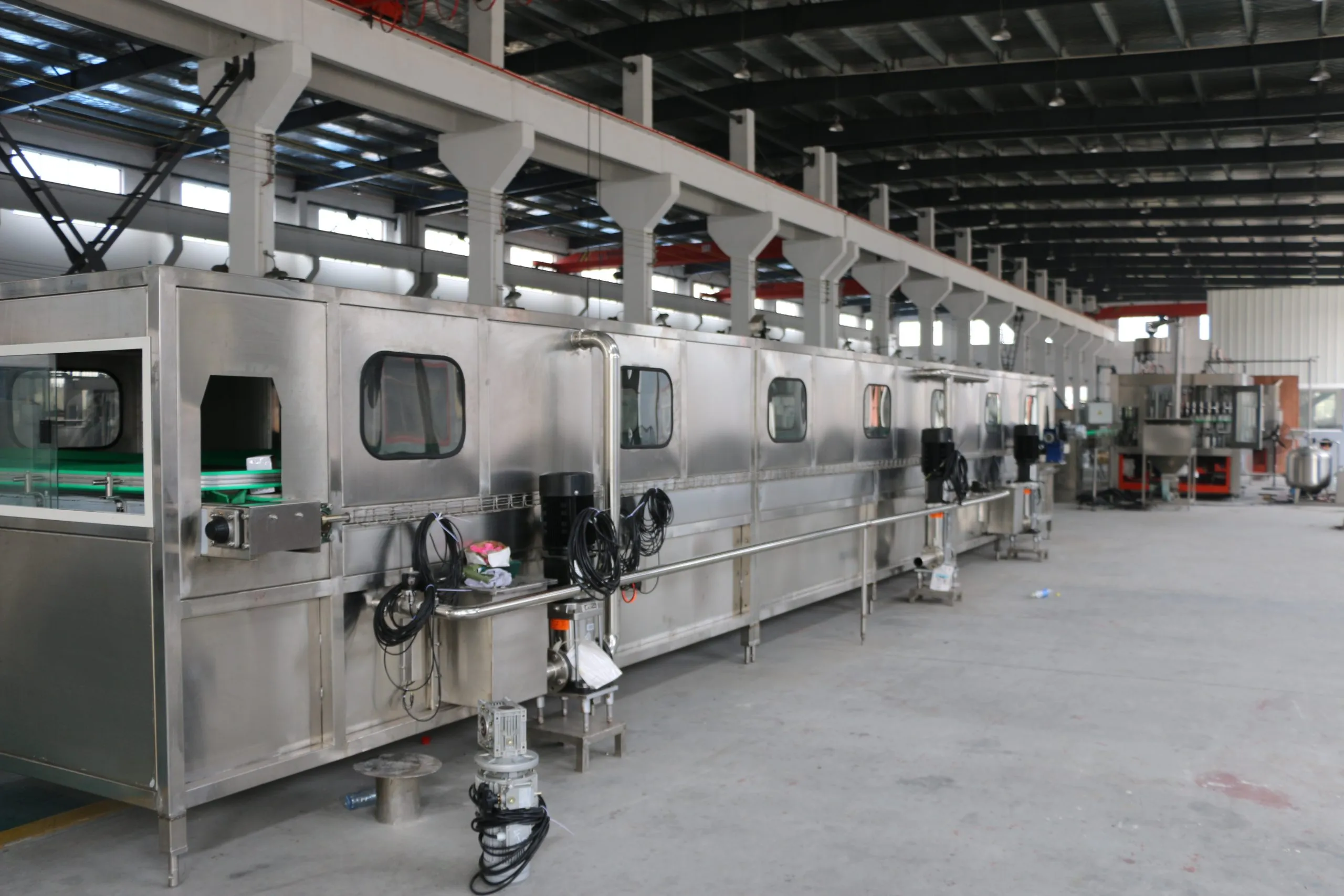

Bottle Spray Warmer
It is equipped with the temperature control system.
The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 40 degrees.
37-45
Heating temperature(°C)
12-15
Cooling time(min)
100-550
Conveying belt linear speed(mm/min)
0.3-0.4
Steam pressure(Mpa)
MACHINE SELECTION GUIDE
Which Model To Choose
Steam consumption is adjusted according to the temperature.
SELECTION FACTOR
VALUE
Model
WP-4000
Model
WP-6000
Model
WP-12000
Model
WP-16000
Output capacity(B/H)
3000-5000 / 6000-9000 / 10000-15000 / 24000-36000
Width of chain(m)
1.22
Water consumption(m3/h)
6 / 9 / 15 / 28
Motor power(kw)
6 / 7.55 / 8.6 / 18
Pump
Hangzhou Nanfang
Find the Right Machine
Get a Machine Recommendation
TECHNICAL DATA
Machine Parameters
Main features :
Model
WP-4000
WP-6000
WP-12000
WP-16000
Output capacity(B/H)
3000-5000
6000-9000
10000-15000
24000-36000
Heating temperature(°C)
37-45
37-45
37-45
37-45
Cooling time(min)
12-15
12-15
12-15
12-15
Conveying belt linear speed(mm/min)
100-550
100-550
100-550
100-550
Width of chain(m)
1.22
1.22
1.22
1.22
Steam pressure(Mpa)
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Water consumption(m3/h)
6
9
15
28
Steam consumption(kg/h)
80
120
250
280
Motor power(kw)
6
7.55
8.6
18
Overall dimension(mm)
6200*1500*1700
15800*1500*1700
15800*1800*1700
22000*800*1700
Weight(kg)
2500
3200
4300
5500
FEATURE
VALUE
Pump
Hangzhou Nanfang
Electrical-Magnetic, Air components
Taiwan AIRTAC
HOW IT WORKS
How It Works
The spray tunnel has a spray cooling recycling water pump and steam adjustment valve
01
Heating
The conveyor is frequency controlled.
Users can fix the temperature according to need.
02
Spraying
the water spraying water temperature shall be controlled around 40 degrees
03
Cooling
After the bottle go out, the temperature will be around the 25 degrees.
MATERIAL
Machine Parameters
Main features :
NOZZLE AND SPRAY TUBES
All nozzle and spray tubes are made of stainless steel and spray evenly
CATCHMENT FLUME
The catchment flume is made of stainless steel and equipped with a level alarm device
SPRAY TUNNEL
The spray tunnel has a spray cooling recycling water pump and steam adjustment valve
WHY SINOPAK
Why Choose US
All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
Direct manufacturer
We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
Exporting team
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
Custom manufacturing
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Tested before loading
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
BEYOND THE WARMER
Complete Production Line
All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle.
