Carton Box Packaging Machinie

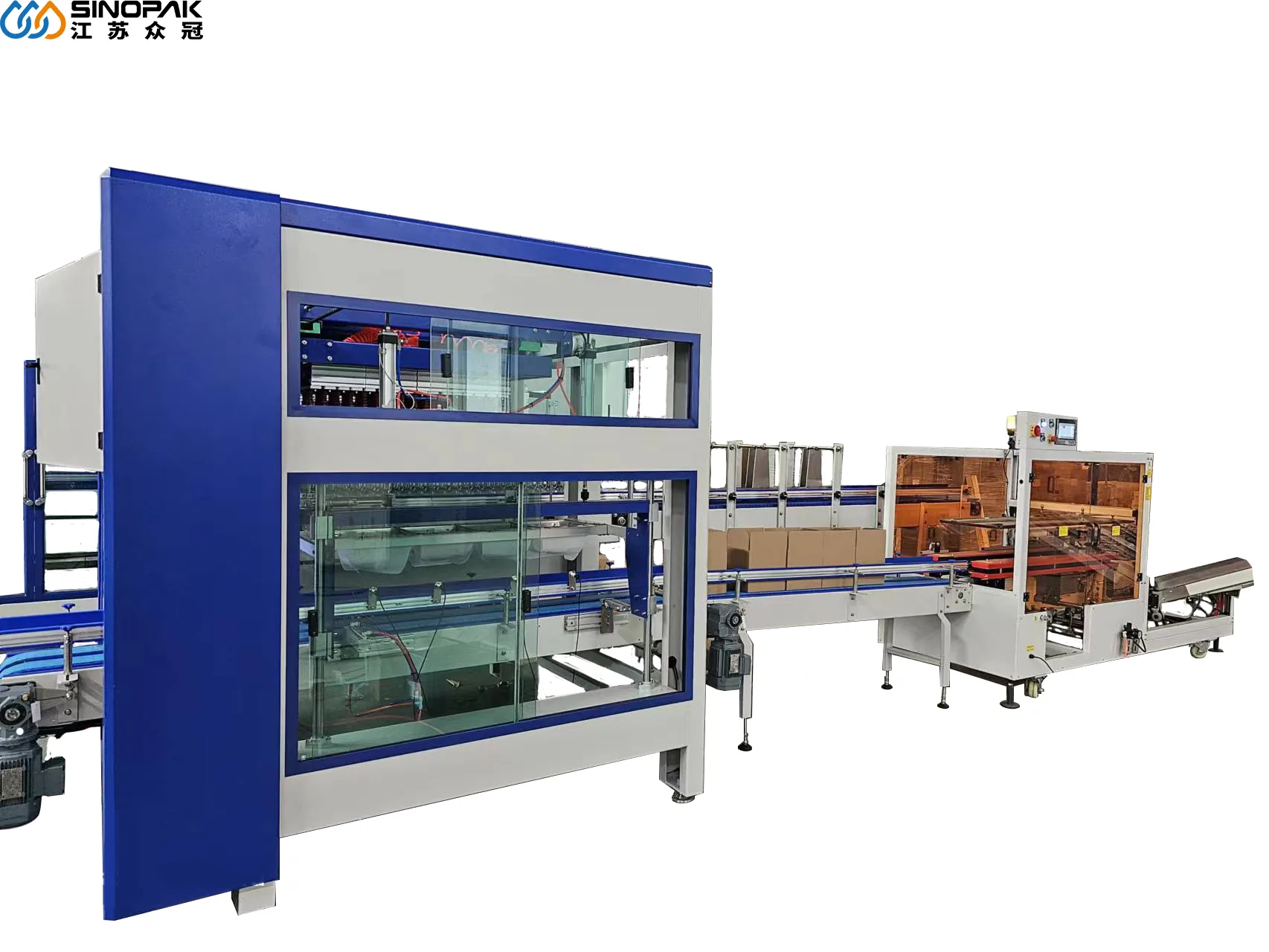

Carton box packaging machine 10,000 boxes per hour

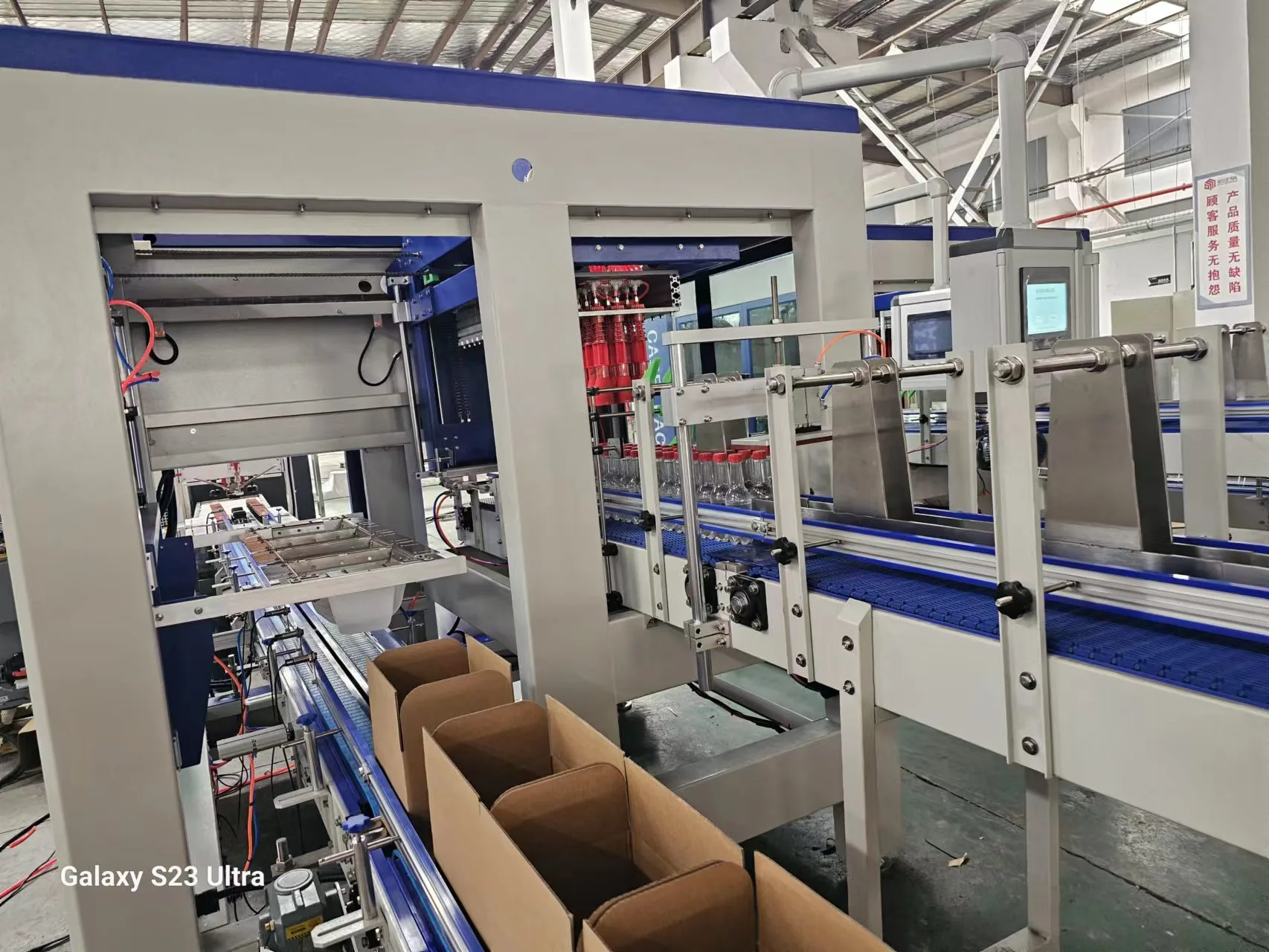

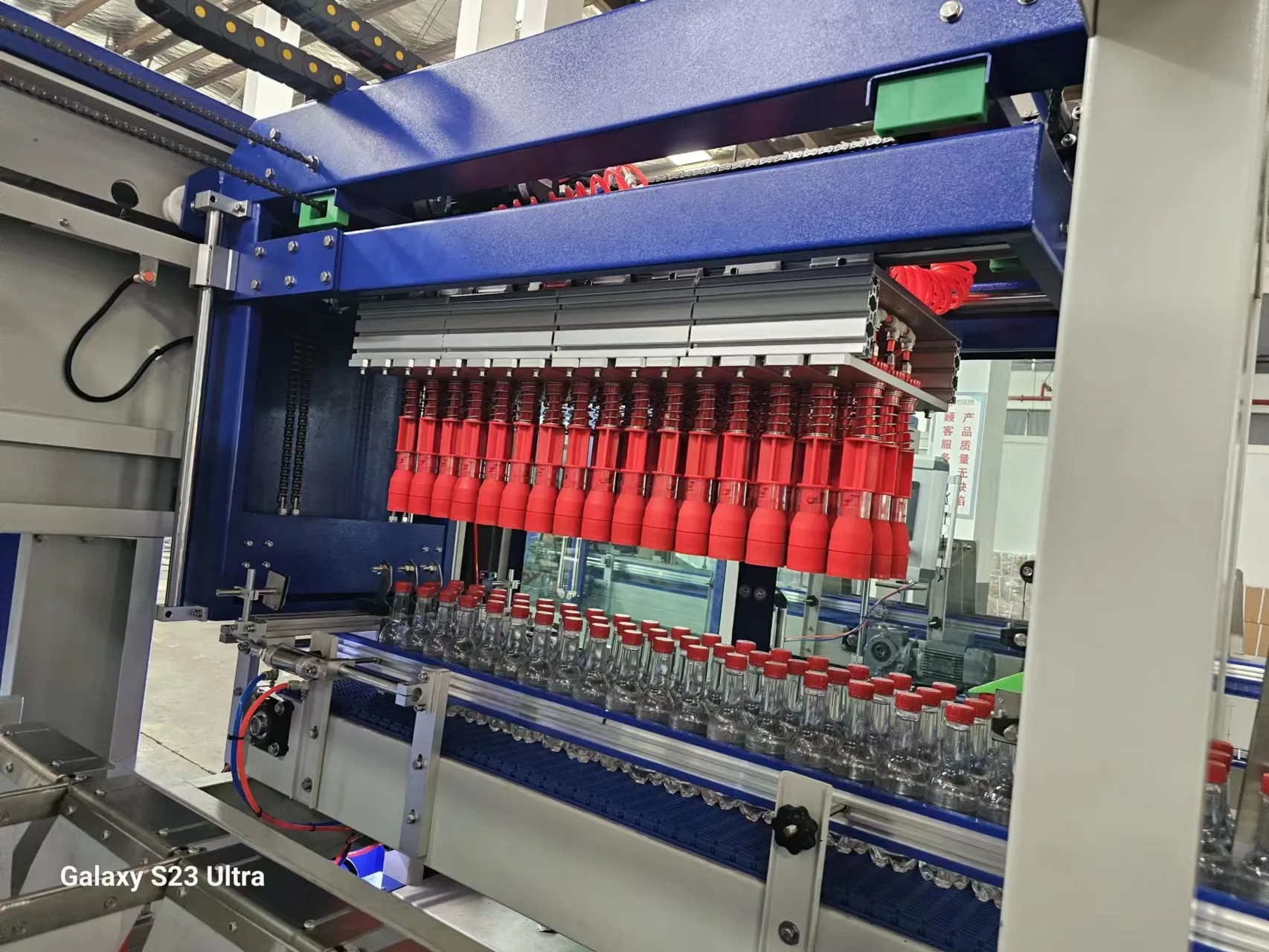

According to customer requirements for product packaging, the product feed for accurate whole column grouping, while underlying pre-sync to the product carton boxes preset position, and then by the lifting mechanism rear jacking good product grouping randomly fall into cartons, lifting mechanism automatically drops to a horizontal position and the outlet conveyor, cartons output by the transport section; each part of the linkage is adjusted by the electric air control to simultaneously ensure that each group of products can be accurate and effective automatic packing and output.
TECHNICAL DATA
Technical Specifications
Model:
SKT-12
SKT-25
SKT-35
Speed:
10~15cartons/min
21~28cartons/min
30~35cartons/min
Applicable Products:
Various Bottles, Cans, Cups etc Products
Main Supply Power:
About 3.5KW
About 4.5KW
About 7KW
Voltage:
220V/380V,3Phase, 50Hz/60Hz
Air Consumption:
0.9m3/h
1.2m3/h
1.5m3/h
Air Pressure:
0.5-0.8Mpa
0.5-0.8Mpa
0.5-0.8Mpa
Working Noise:
≤75db
≤75db
≤80db
Machine Weight:
About 1250KG
About 1550KG
About 1750KG
Machine Dimension:
2200*1700*2250mm
2500*1800*2300mm
2800*1800*2300mm
MAIN FEATURES :
1.
Adopt international advanced technology, use imported components and parts, electric components.
2.
According to carton’s size, automatically adjust the different cartons’ height and width.
3.

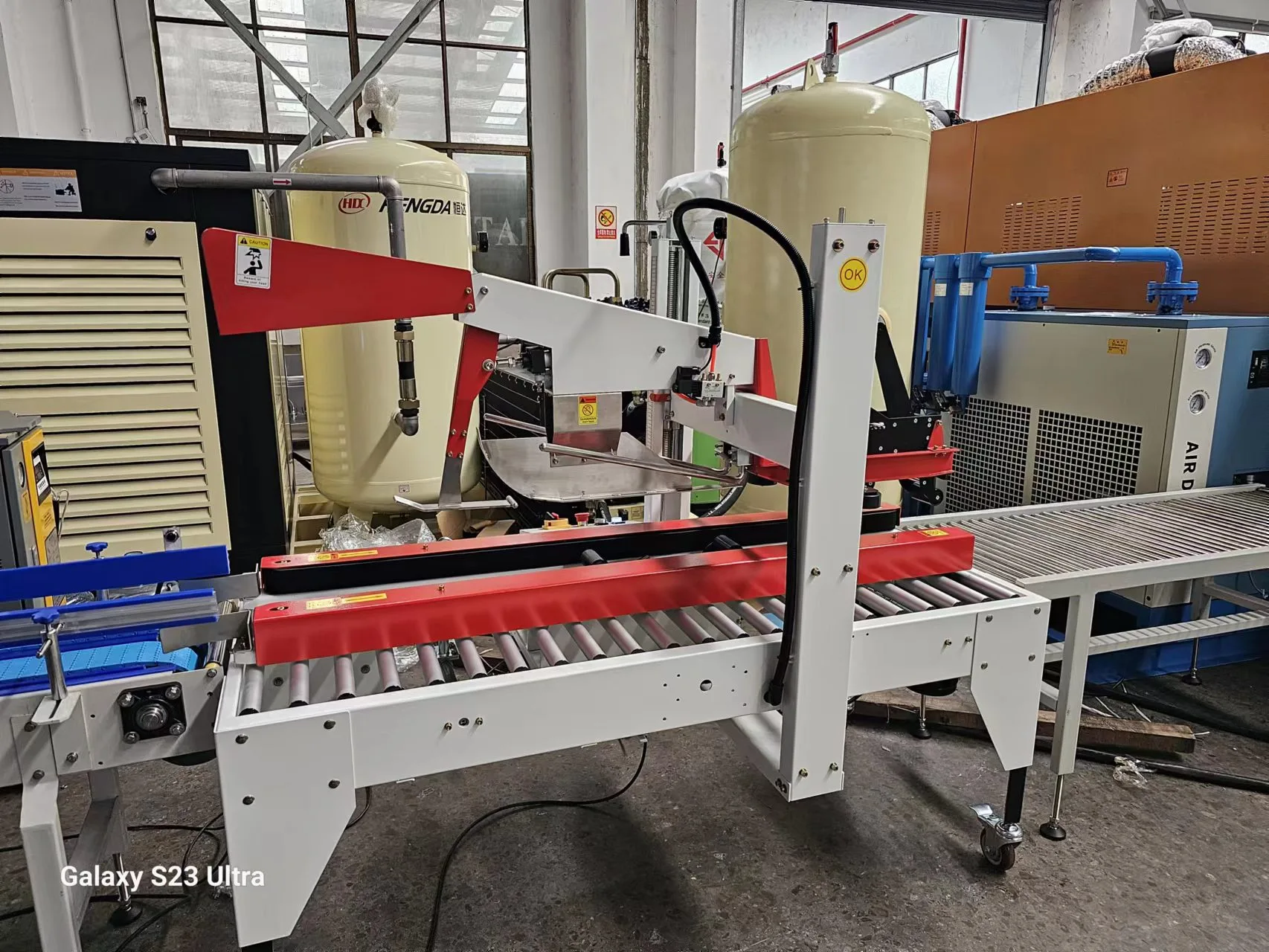

Automatically fold carton up cover, up and down automatically paste adhesive tape, economic and fast and smooth and steady.
4.
Add the knife protection device,avoid the accident if operate error.
5.
Operate easy and convenient, can run separately and can also connect with the automatic packaging line.
