Carton Box Packaging Machinie

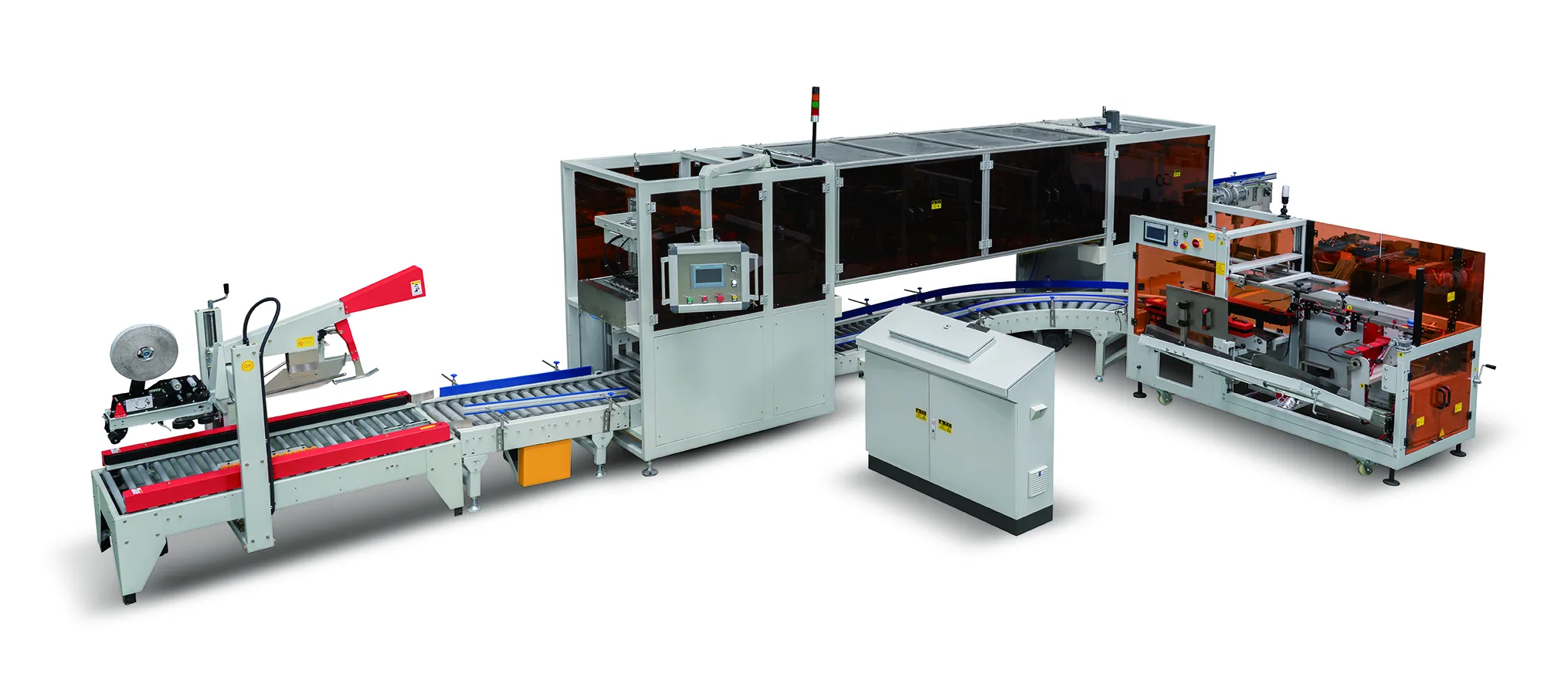

Erector and packing and taping machine 3-in-1 carton box packaging machine 15,000 boxes per hour
It can automatically carry out carton, open carton, bottom folding leaf folding, carton bottom tape sealed, and output. After automatic palletizing of carton, push empty box to box. Can automatically fold the upper part of the carton, tape paste seal box.
L200-600*W150-500*H120-500mm
Carton dimension
680-800mm
Working plat height
L1700×W800×H1180mm
Machine Dimension L×W×H（mm）
220V/50HZ
Power Supply
TECHNICAL DATA
Technical Specifications
CARTON DIMENSION
L200-600*W150-500*H120-500MM
Working plat height
680-800mm
Machine Dimension L×W×H（mm）
L1700×W800×H1180mm
Weight
180kg
Total Power:
0.5Kw
Power Supply
220V/50HZ
MAIN FEATURES :
1.
The Whole packing line automatically complete the open-packing-sealingprocess which effectively reduce labor coste
2.
Side push packing, neat palletizing block object stable and reliable.Easyand accurate adjustment can be made.
3.
Easy to adjust palletizing specifications and carton specificationse
4.
Independent debugging and production control of single machine, controlscreen interface show: output count speed of machine running Degreeadjustment / equipment failure and other digital,Optional language
5.
Has carton quality and carton reserves detection and monitoring, faultalarm, fault shutdown and emergency shutdown and other safety protectionfunctionsu
6.
Packing smooth, do not damage the appearance of cartons, finished cartonappearance intact, neat,appearance qualified.
