FLAT CONVEYOR

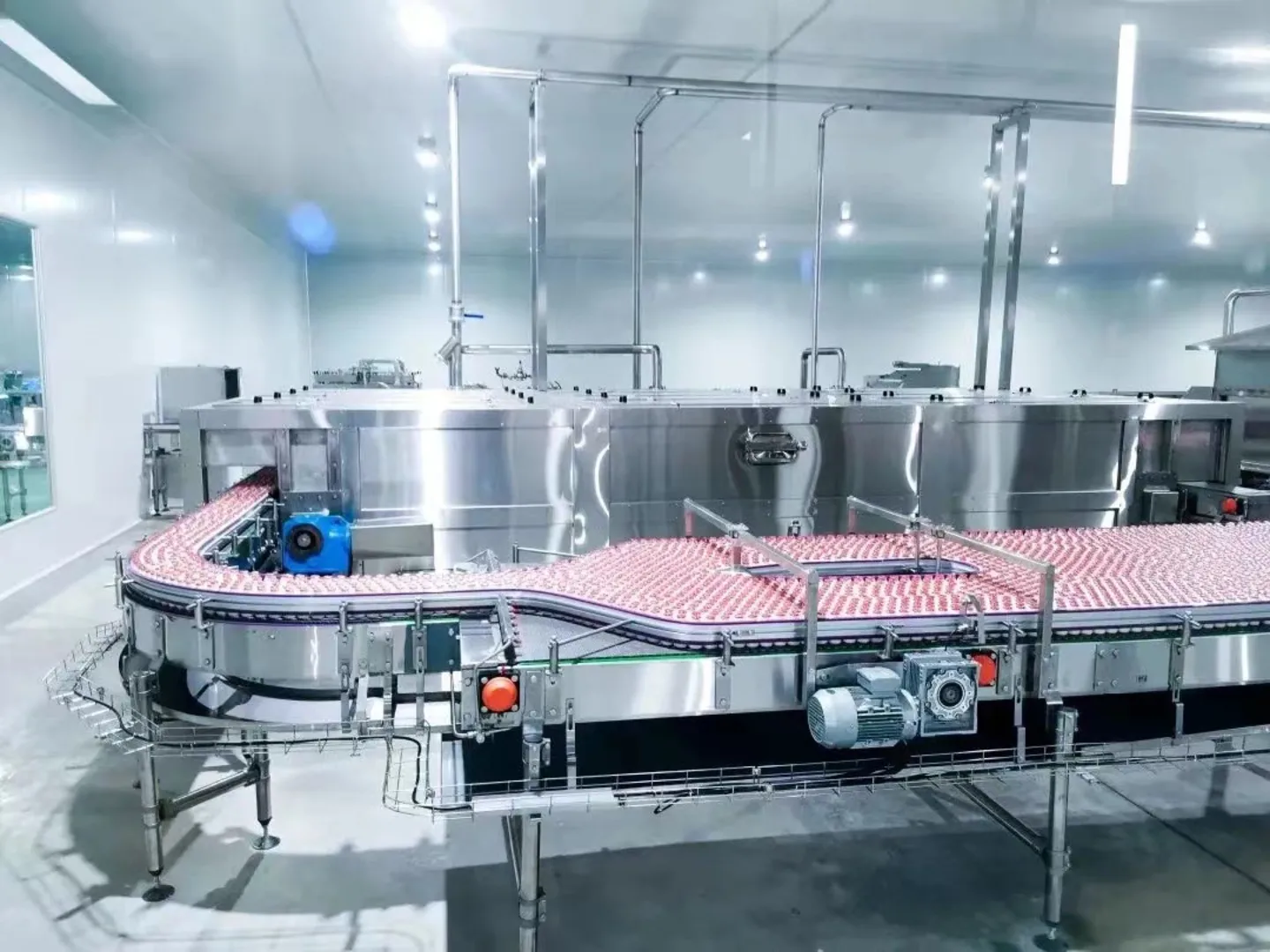

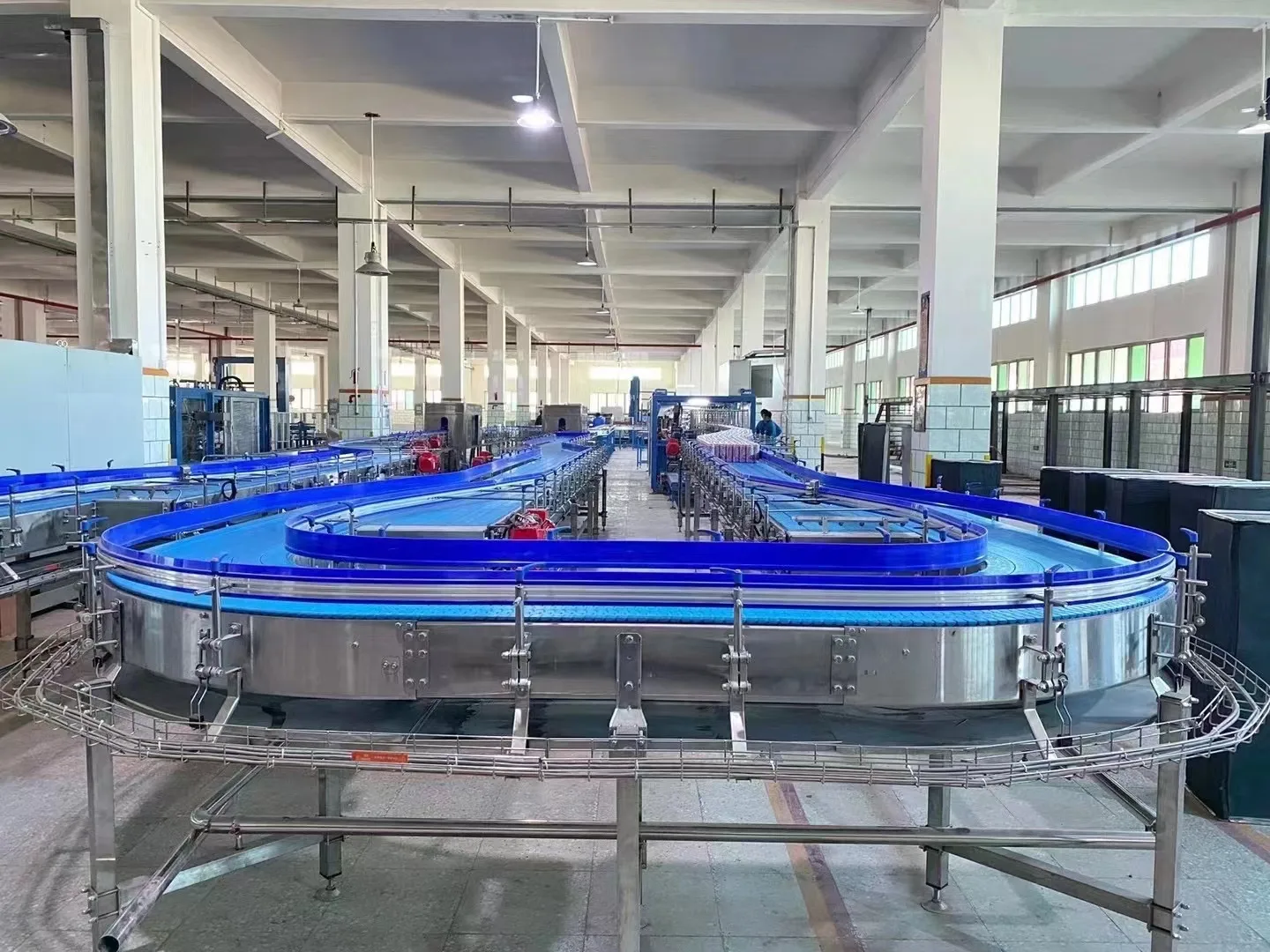

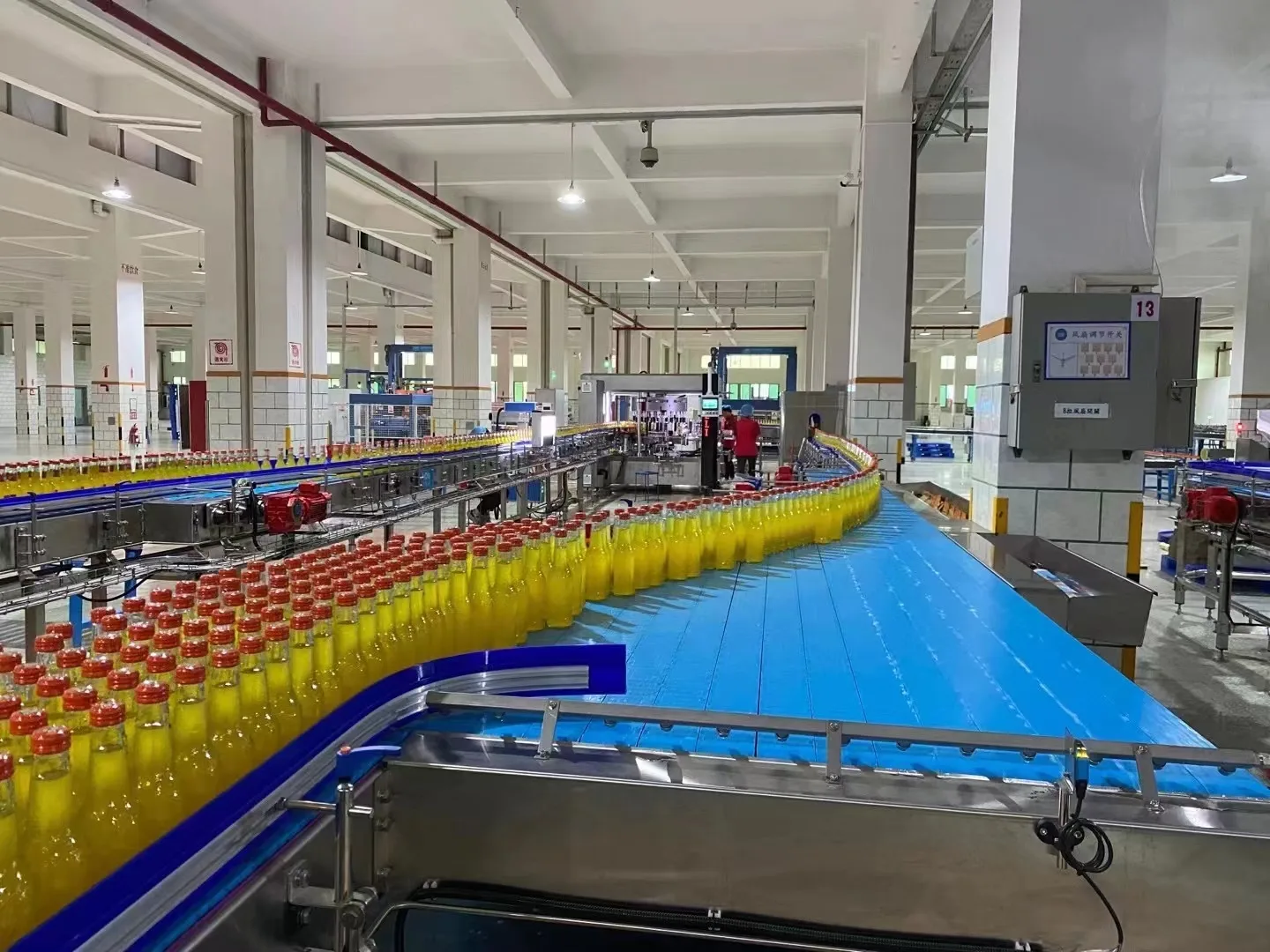

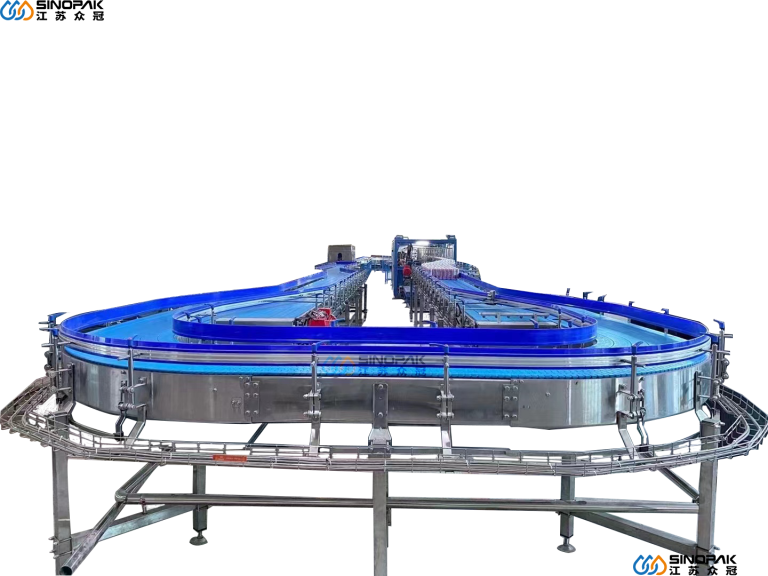

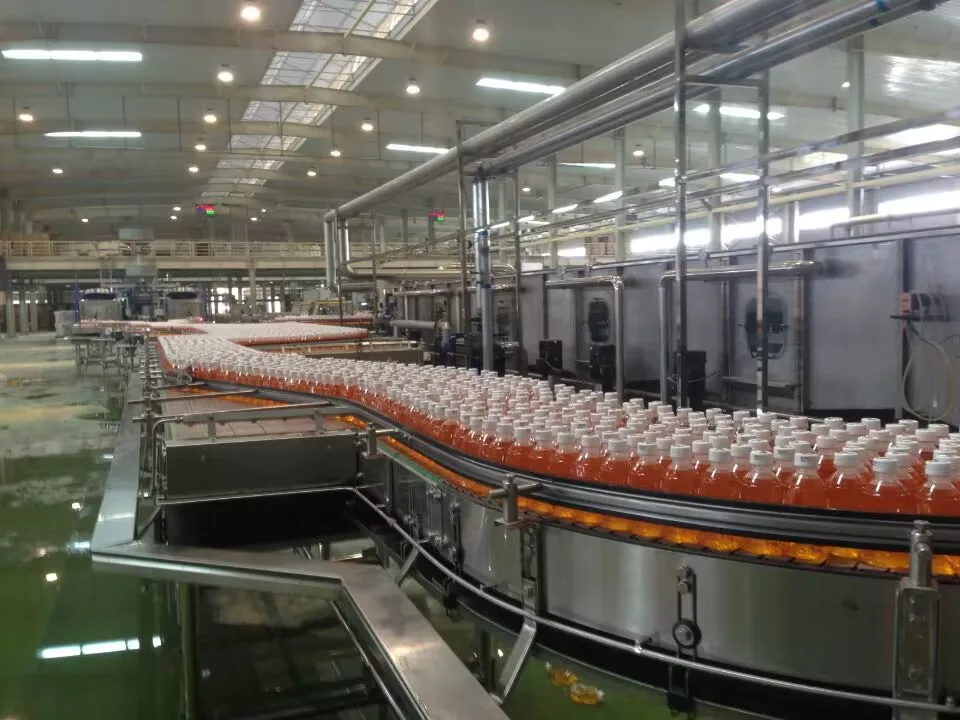

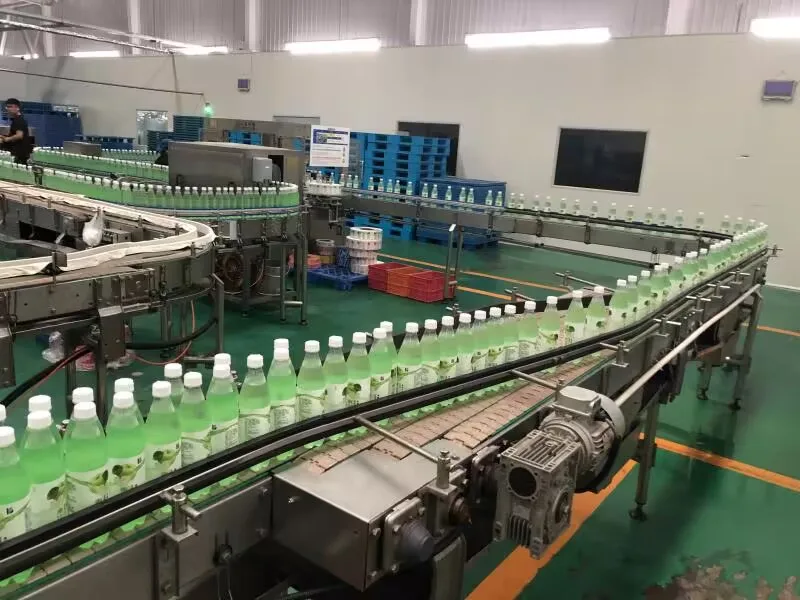

Flat Conveyor
Energy saving. High efficient. Adapt to customer factory layout
The transport surface is flat and smooth, low frictiomn. The transition between lines is stable.
≤45
Speed (m/min)
90-500 (Other to be customized)
Conveyor Width W (mm)
≤30000
Conveyor Length L (mm)
AL、CS、SUS
Frame Material
START WITH YOUR CHAIN
Chain type
Convey flexibley, easy to turn and climb. Different types of chain boards can be selected according to the conveying products to complete horizontal, turning and inclined conveying;
MACHINE SELECTION GUIDE
What to decide first
Good and flexible designs can guarantee the movement of the product complying with key machine conditions.
SELECTION FACTOR
VALUE
Applications
food, beverage, pharmaceutical, cosmetic, daily commodity etc industry
Chain type
Tabletop chain, Anti-slip chain, SUS chain, etc
Frame Material
AL、CS、SUS
Chain Material
POM、SUS
Conveyor Width W (mm)
90-500 (Other to be customized)
Speed (m/min)
≤45
Design
Simple design, easy to assemble and install. Making the two chain plate conveyor lines into a mixed chain with overlapping head and tail can make the containers in a dynamic transition state, and no bottles are left on the conveyor line, which can satisfy the pressure-free conveying of empty bottles and filllled bottles Conveyor
Find the Right Machine
Get a Machine Recommendation
TECHNICAL DATA
Main Technical Parameters
Main features :
FEATURE
VALUE
① Power
AC 220V/sph、 AC 330V/sph
② Output (KW)
0.12、0.18、0.25、0.37、0.55、Gear Motor
③ Frame Material
AL、CS、SUS
③ Chain Material
POM、SUS
④ Chain type
Tabletop chain, Anti-slip chain, SUS chain, etc
④ Chain width W2 (mm)
63.5、82.6、114.3、152.4、190.5、254、304.8
⑤ Conveyor Width W (mm)
90-500 (Other to be customized)
⑤ Conveyor Length L (mm)
≤30000
⑤ Conveyor Height H (mm)
700 (Other to be customized)
⑥ Speed (m/min)
≤45
⑥ Load (kg)
≤50 (Horizontal)、≤25 (Vertical)
⑥ Working tension (N)
≤1250
⑥ Working temperature (℃）
-20~+60
⑥ Radius (mm)
≥610
⑥ Accessories
Side plate, Roller plate, Nylon plate
Note: The above data are for reference only. For details, please contact the project engineer.
1
Side panels
SUS304
2
Outrigger
SUS304
3
transmission shaft
SUS304
4
Plastic chain plate
Polyacetal
Shanghai Li Lai
5
guardrail
High molecular polyethylene + aluminum alloy
Shanghai Li Lai
6
Anchor plate
Reinforced nylon + stainless steel screw
Shanghai Li Lai
7
pad rail
High molecular polyethylene + aluminum alloy
Shanghai Li Lai
8
Turning guide
Polyethylene
Shanghai Li Lai
9
sprocket
Nylon PA6 machining
Shanghai Li Lai
10
Geared motor
helical gear
Omate
11
Frequency converter
FC051 series
Danfoss
12
Low voltage electrical components
Schneider
13
PLC controller
Siemens
14
Touch screen
HMI
Note: The above data are for reference only. For details, please contact the project engineer.
MATERIAL
Conveyor Configuration
Main features :
Frame Material
The material is generally A.L, C.S. or S.S, can be washed or immersed in water to clean, widly used in food, beverage, pharmaceutical, cosmetic, daily commodity etc industry.
Side panels
SUS304
Plastic chain plate
Polyacetal
WHY SINOPAK
Why Choose US
All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
Direct manufacturer
We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
Exporting team
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
Custom manufacturing
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Tested before loading
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
BEYOND THE CONVEYOR
Complete Production Line
Combine/diverter equipment are applied at high speed , without damaging or dropping the product movement.
