BDXGF Series Glass Bottle Carbonated Beverage Machine

Glass Bottle Soft Drink Filling Machine (3 in 1)

3-in-1 Rinsing, Isobaric Filling & Capping for Glass Bottled Carbonated Beverages

SinoPAK integrates rinsing, isobaric filling and capping in one continuous BDXGF system for cola, soda, sparkling water and other glass bottled carbonated beverages.

Back to CSD Filling Machines

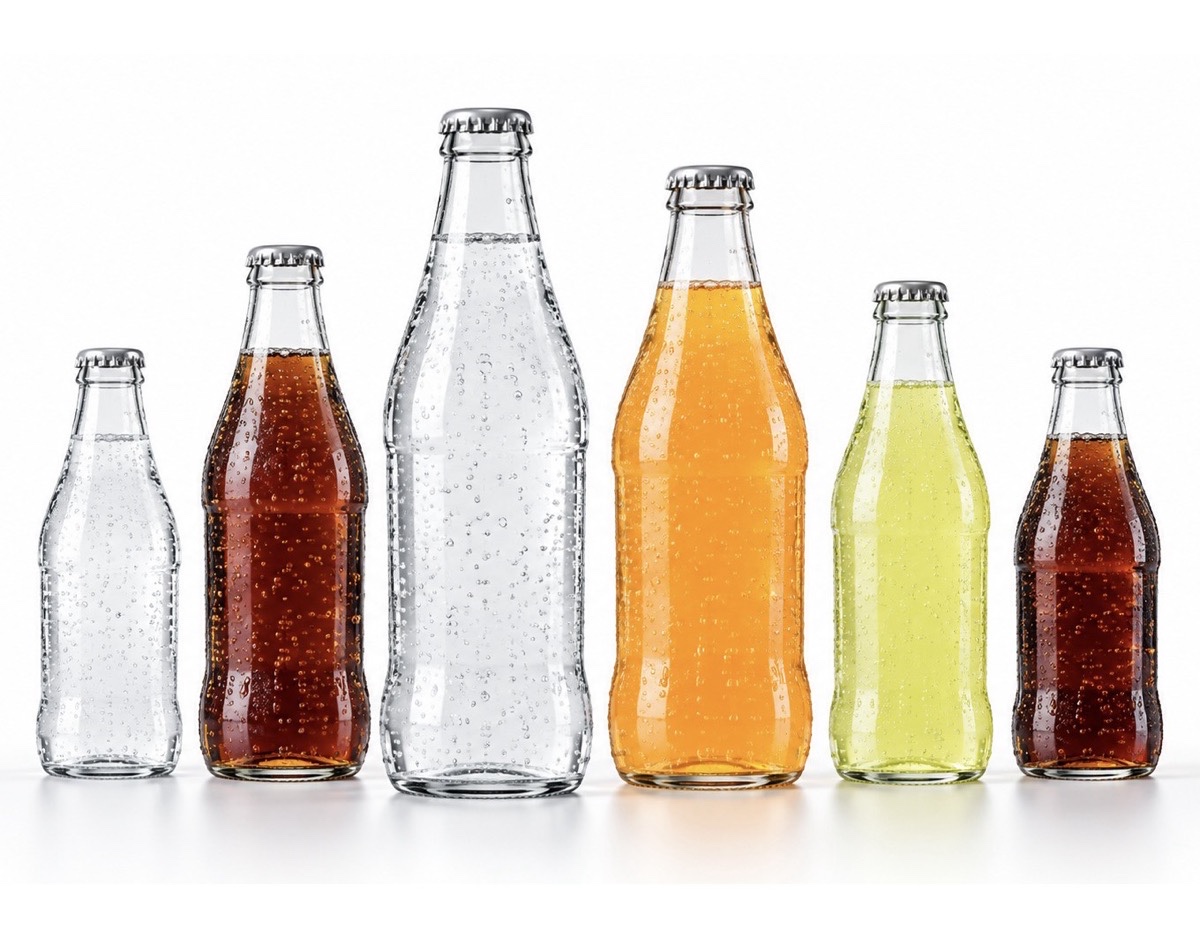

SinoPAK glass bottle soft drink filling machine with stainless steel 3-in-1 rinsing, filling and crown capping structure Integrated glass bottle carbonated soft drink filling machine on the production line Glass bottles with crown caps for cola soda sparkling water and carbonated beverages
BDXGF8 – BDXGF60 MODEL RANGE
800 – 16,800 BPH CAPACITY RANGE
3-in-1 RINSING · FILLING · CAPPING
Isobaric + Crown Cap FILLING & CAPPING
SEE IT IN PRODUCTION

See It in Production

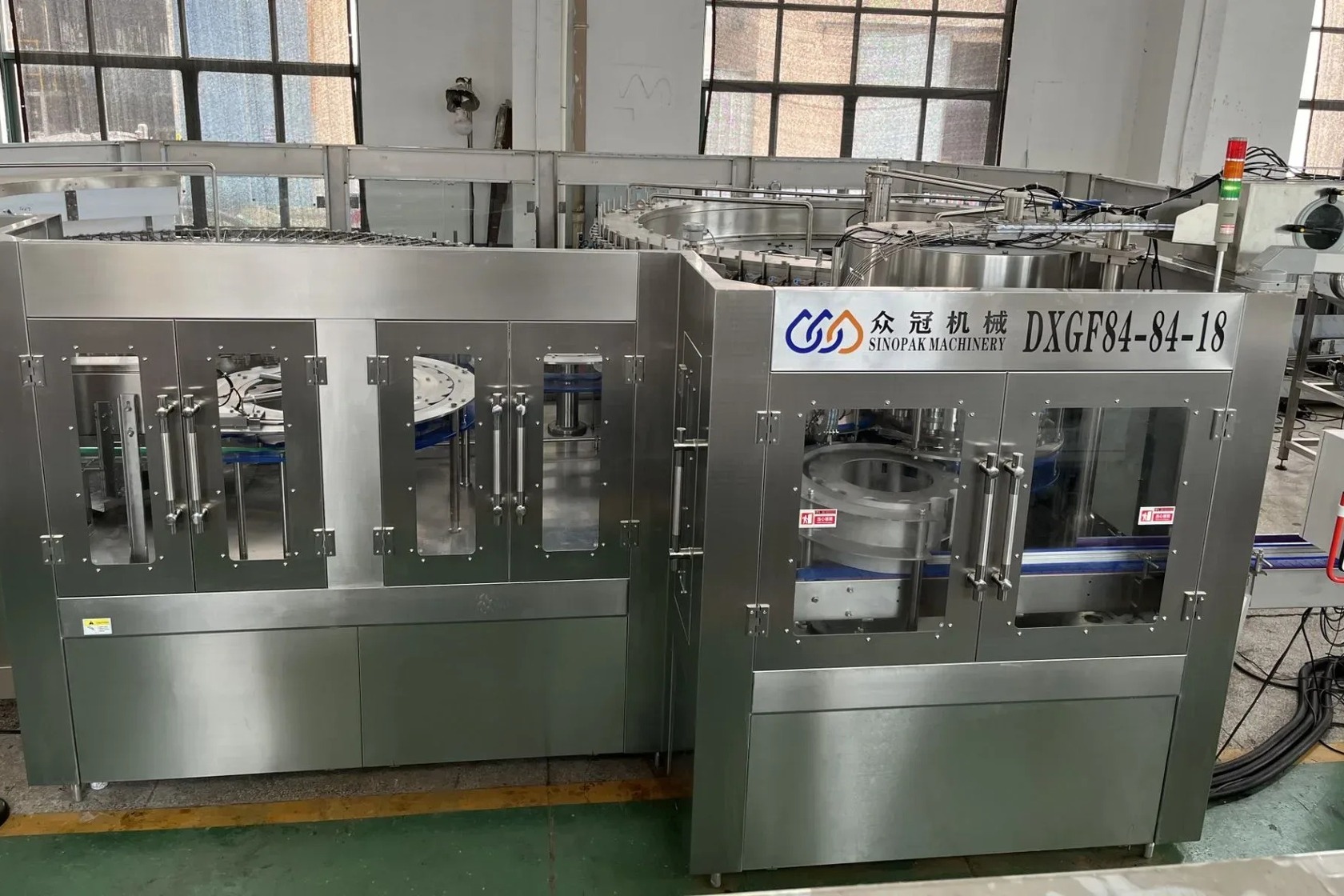

Watch a real glass bottle soft drink filling machine running under actual production conditions.

BDXGF8 – BDXGF60 800 – 16,800 BPH 3-in-1 Rinsing · Isobaric Filling · Crown Capping Glass Bottle CSD Filling Machine
HOW TO SELECT THE RIGHT BDXGF MODEL

How to Select the Right BDXGF Model

You do not need to select the BDXGF model yourself. Share your glass bottle size and required output with SinoPAK, and the appropriate configuration can be recommended according to your production requirements.

FACTOR
QUESTION
Bottle Size
What bottle volume and dimensions will you use?
Target Capacity
How many bottles per hour do you need to produce?
Cap Type
What closure is used for the glass bottle?
Beverage Requirement
What carbonated beverage will you produce?
Not sure which configuration fits your project?
Models & Specifications

Compare BDXGF Glass Bottle Configurations in One Table

Select the appropriate BDXGF configuration according to your target output and production requirements. All models use an integrated rinsing, isobaric filling and crown capping structure for glass bottled carbonated beverages.

MODEL
WASHING NOS
FILLING NOS
CAPPING NOS
CAPACITY
MEASUREMENT
POWER
BDXGF8/8/3
8
8
3
800 BPH
2000 x 1500 x 2500 mm
1.5 kW
BDXGF14/12/5
14
12
5
2,800 BPH
2360 x 1770 x 2700 mm
2 kW
BDXGF16/16/5
16
16
5
4,000 BPH
2760 x 2060 x 2700 mm
2.2 kW
BDXGF24/24/8
24
24
8
6,400 BPH
2800 x 2230 x 2700 mm
3 kW
BDXGF32/32/8
32
32
8
9,600 BPH
4215 x 2960 x 2700 mm
4 kW
BDXGF40/40/10
40
40
10
12,000 BPH
4360 x 3300 x 2700 mm
7.5 kW
BDXGF50/50/12
50
50
12
14,400 BPH
5900 x 3300 x 2700 mm
7.5 kW
BDXGF60/60/15
60
60
15
16,800 BPH
5770 x 5288 x 2700 mm
11 kW

Actual output may vary according to bottle size, beverage characteristics and production conditions.

HOW THE 3-IN-1 FILLING MACHINE WORKS

How the 3-in-1 Filling Machine Works

The machine integrates three main production operations into one continuous system for glass bottled carbonated beverages.

01 BOTTLE RINSING
Inlet Screw & Star Wheel Transfer
Internal Rinsing
Drain
02 ISOBARIC FILLING
Mechanical Lifting Platform
Isobaric Filling Valve
Controlled-Pressure Filling
03 CROWN CAPPING
Bottle Descent & Transfer
Crown Cap Placement
Sealing
RINSING → ISOBARIC FILLING → CROWN CAPPING Watch the 3-in-1 Filling Process →
KEY MACHINE DETAILS

Built for Glass Bottled Carbonated Beverages

Review the functional areas that matter most when evaluating a glass bottle CSD filling machine.

Glass bottle rinsing section of a 3-in-1 filling machine
Stainless-Steel Rinsing Components Rinsing heads, grippers and pumps are stainless steel, with food-standard rubber at the bottle gripping position.

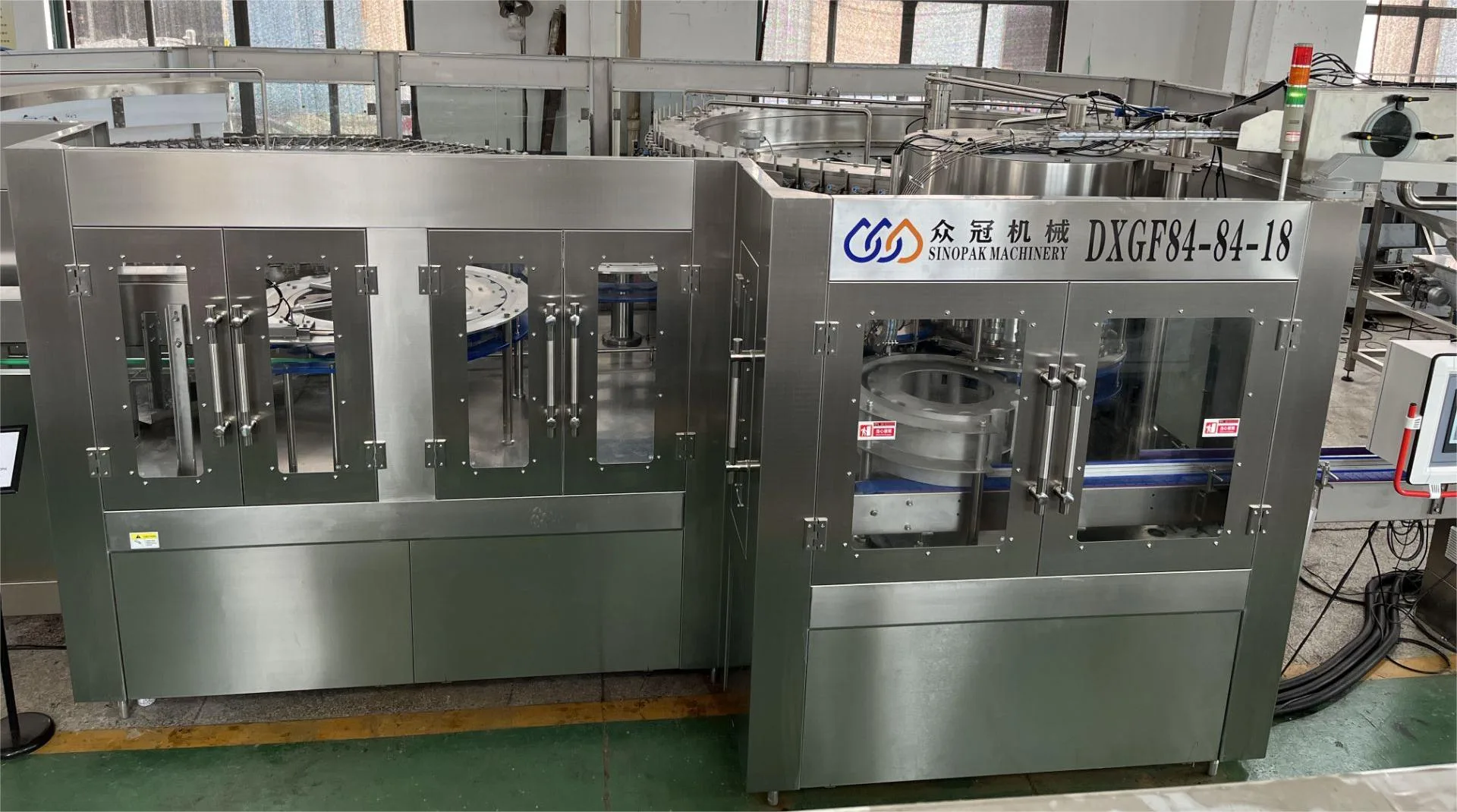

Isobaric filling valve area for carbonated beverage filling
Mechanical Lifting with Controlled-Pressure Filling Bottles are raised by a spring-type mechanical lifting device, then filled under isobaric pressure.
Integrated crown cap closure section
Integrated Crown Cap Closure The capping section completes crown cap closure immediately after filling, before carbonation loss.

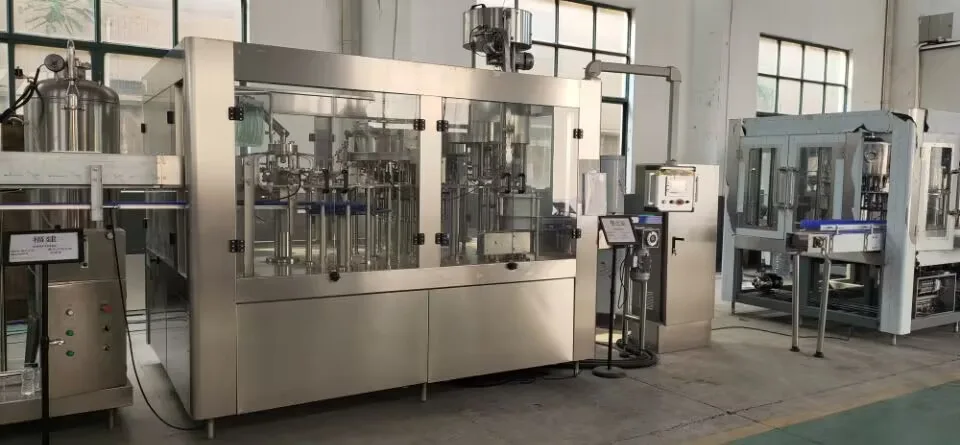

Glass bottle CSD filling machine
Built for Continuous Production Contact parts are stainless steel with an anti-corrosive finish, and key control components are imported.
WHY SINOPAK

More Than a Glass Bottle Soft Drink Filling Machine

SinoPAK combines filling equipment, line engineering and project integration to help you build a reliable carbonated beverage production system around your actual production requirements.

Factory Planning Machine placement and production layout based on your available space.
Line Engineering Equipment selection and line configuration around bottle, capacity and process requirements.
Integration Connect filling with carbonation system, labeling, packaging and conveying systems.
Installation & Commissioning Technical support from equipment delivery through production start-up.
BEYOND THE MACHINE

From One Machine to a Complete CSD Production Line

Need more than a filler? SinoPAK can integrate your glass bottle soft drink filling machine into a complete carbonated soft drink production line.
