COOKING OIL FILLING MACHINES

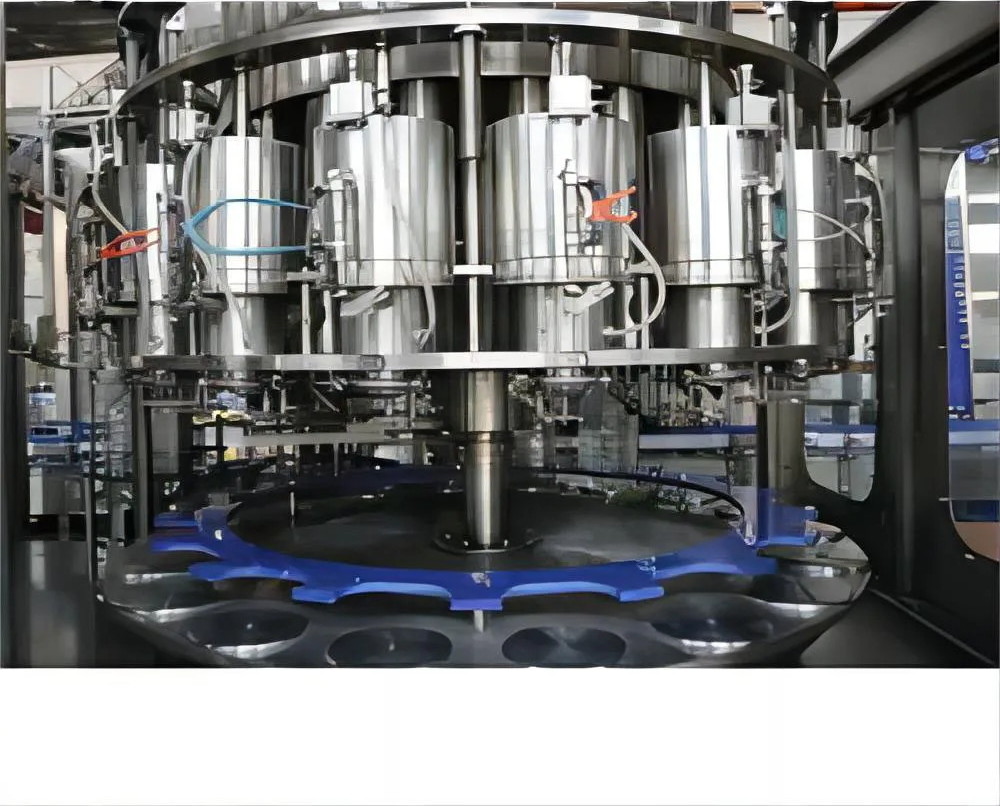

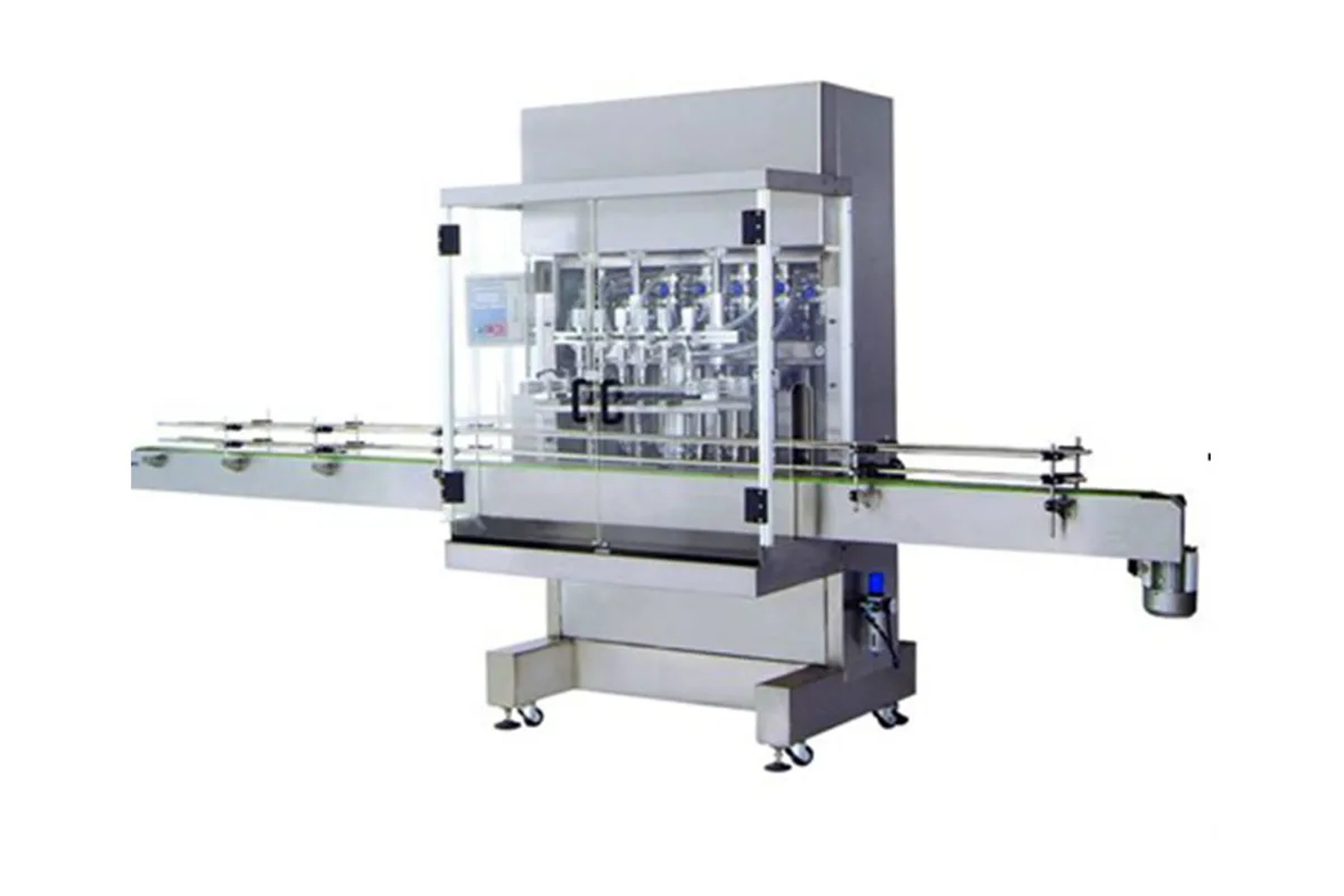

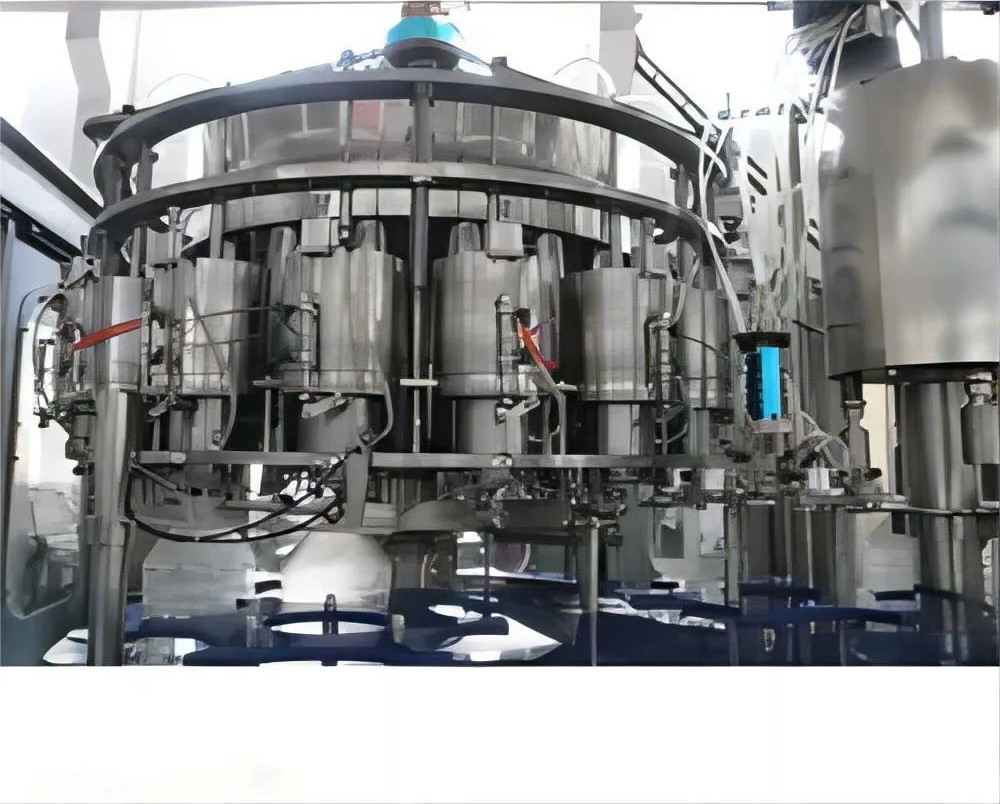

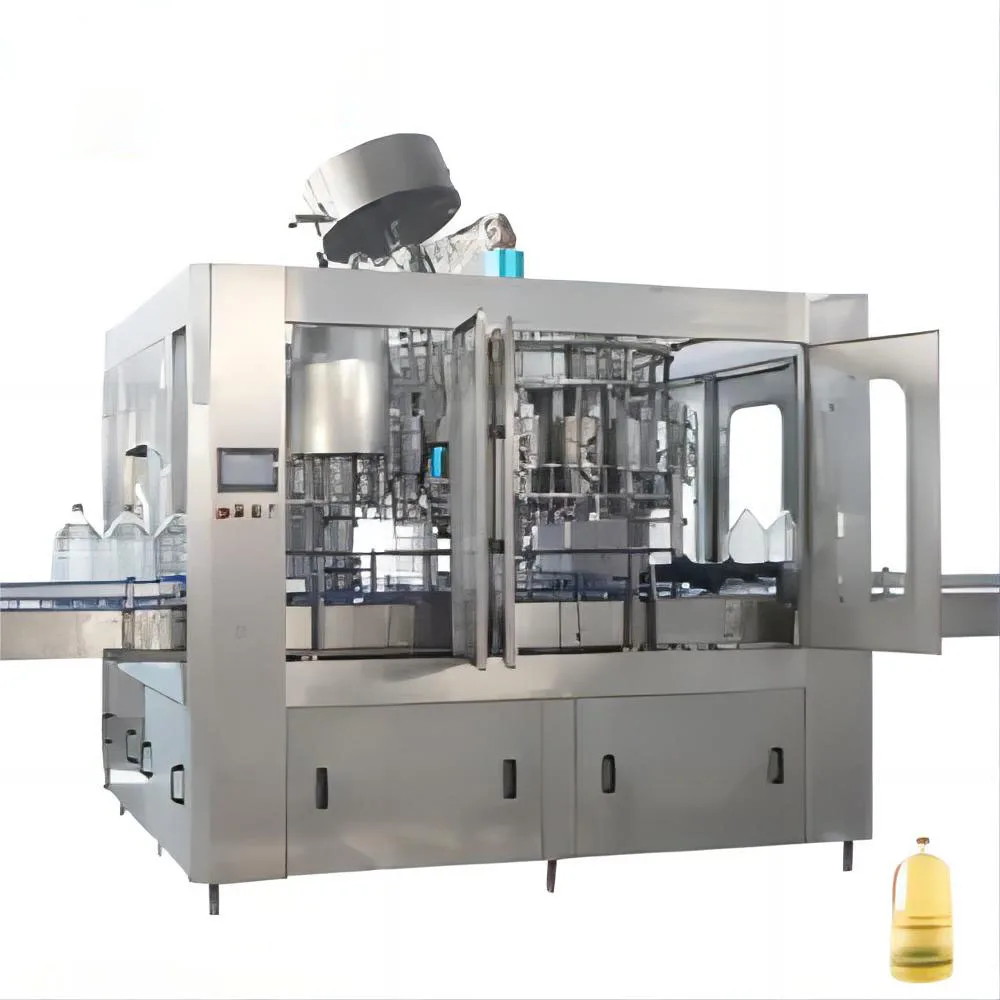

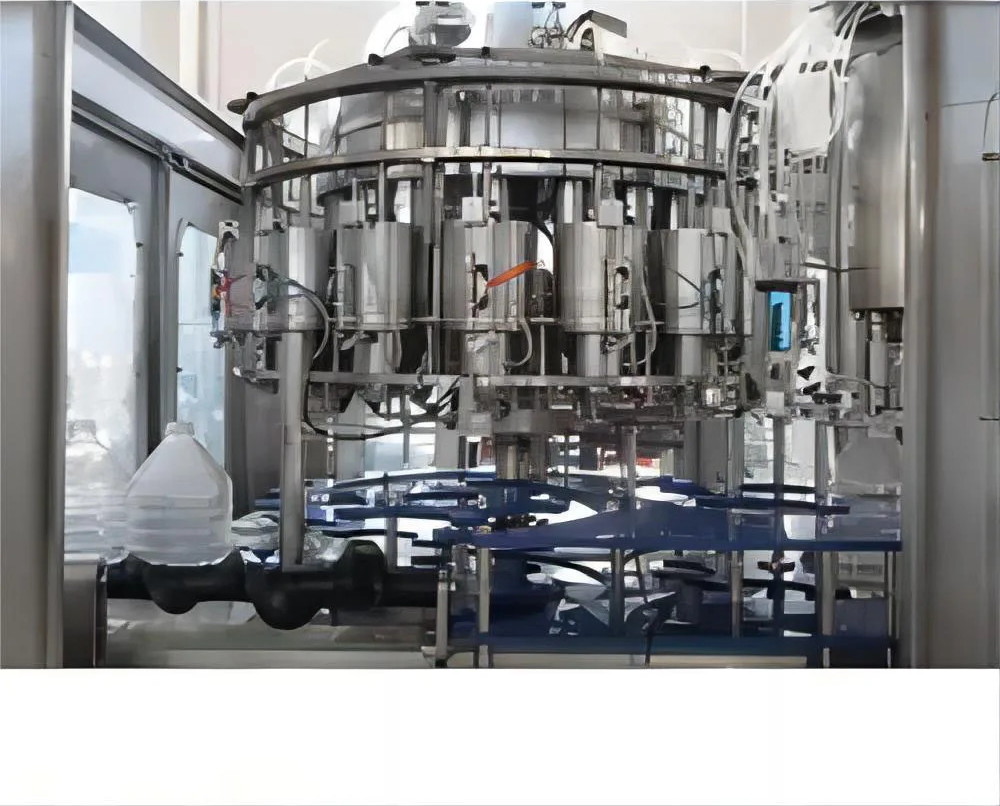

Oil Filling Machine
This machine adopts 2-in-1 technology.
Suitable material: Oil, jams, daily chemicals, and something that very viscous.
PLC
PROGRAMMABLE CONTROL
Servo Piston
CONSTANT-POSITION MEASUREMENT
Anti Drop
SLOW-FILL NEAR TARGET
Touch Screen
PARAMETER ADJUSTMENT
TECHNICAL DATA
Machine Parameters
Parameters as published for this machine series.
MODEL
FILLING VOLUME
THE NUMBER OF FILLING NOZZLES
AIR CONSUMPTION（Unit：L/min）
DIMENSIONS（Unit：mm，without conveyor）
TCL6-500
50-500ml
6
500
L1200*W1095*H2100
TCL 8-500
50-500ml
8
600
L1500*W1095*H2100
TCL 10-500
50-500ml
10
700
L1800*W1095*H2100
TCL 6-1000
100-1000ml
6
700
L1200*W1095*H2211
TCL 8-1000
100-1000ml
8
800
L1500*W1095*H2211
TCL10-1000
100-1000ml
10
1000
L1800*W1095*H2211
#
FEATURE
1

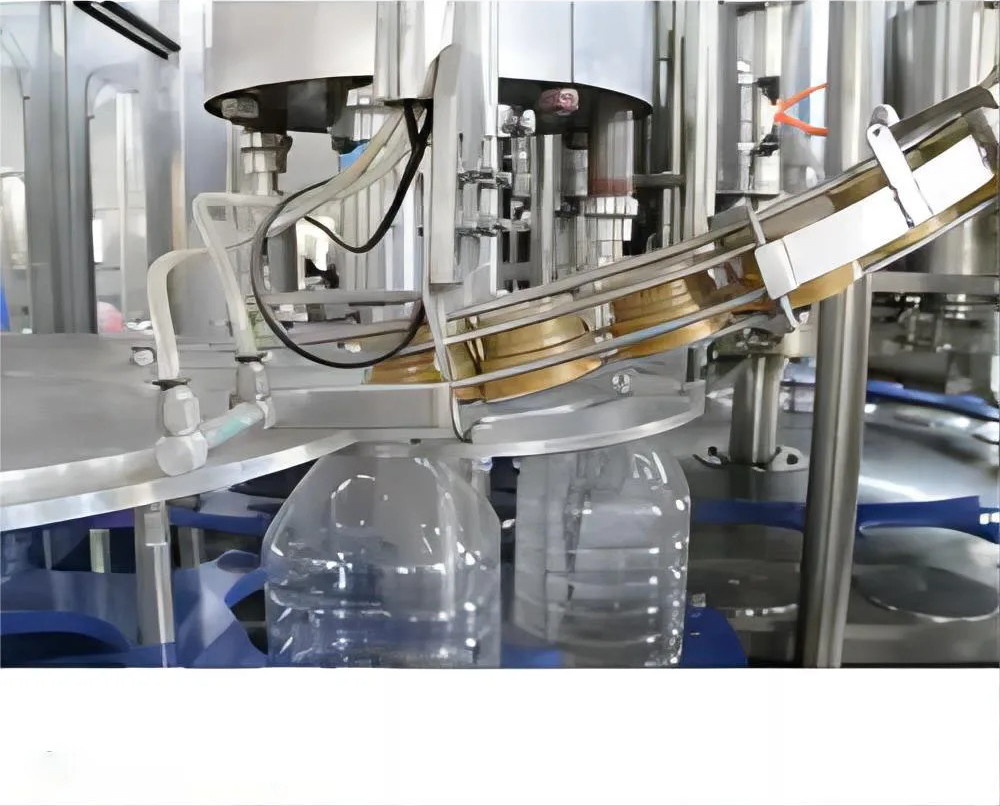

Equipped with a bottle mouth localizer to make the machine suitable for different shapes of bottles including irregular bottles
2
“No drip” filling nozzle can assure that dripping and stringing will not happen.
3
This machine has functions of “no bottle no fill”, “malfunction check and malfunction scan automatically”, “security alarm system for abnormal liquid level”.
4
The parts are connected with clamps, which makes the machine easy and quick to disassemble & assemble and clean.
5
The series of machine has compact, reasonable configuration and nice, simple appearance.
6
Filling mouth with anti-drip function, can be changed to lift for high foam products.
7
Material feeding device control box on the feeding, so that material is always kept at a certain range to ensure the accuracy of filling volume.
8
Rapid adjustment to achieve the overall filling volume, with counter display; the amount of each filling head can be individually fine-tuned, convenient.
9
With PLC programming control, touch-type man-machine interface, convenient parameter setting. Fault self-diagnosis function, clear failure display.
10
Filling head is an option, easy maintenance without affecting the other single head when filling.
