BOTTLE UNSCRAMBLER

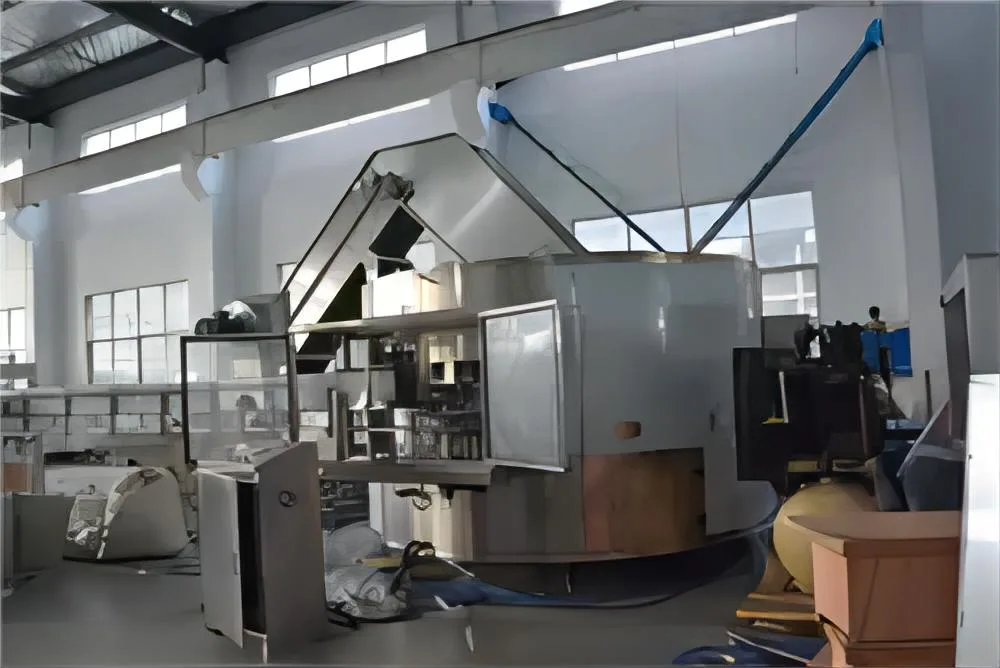

The Full Automatic 20000BPH Plastic Bottle Unscrambler
Capacity: 20,000b/h
The machine is used for ordering disordered bottles, bottles are carried into the storing bottle section of the ordering bottle machine.
LPN-400
Model
20,000b/h
Capacity
4.7kw
Total Power
D3000*2200mm
Machine Dimension
MACHINE SELECTION GUIDE
Which Model To Choose
Applicable bottle type:any bottle all can be customized
SELECTION FACTOR
VALUE
Model
LPN-400
Capacity
20,000b/h
Suitable to bottles
￠28*120
Total Power
4.7kw
Machine Weight
2400kg
Machine Dimension
D3000*2200mm
Applicable bottle type
any bottle all can be customized
Find the Right Machine
Get a Machine Recommendation
TECHNICAL DATA
Machine Parameters
Main features :
FEATURE
VALUE
Model
LPN-400
Capacity
20,000b/h
Suitable to bottles
￠28*120
Total Power
4.7kw
Machine Weight
2400kg
Machine Dimension
D3000*2200mm
NO.
MAIN FEATURES
1
This machine’s electric control system applies advanced PLC programmable control and use Mitsubishi brand frequency speed regulator as main drive. Manual operator, manual and automatic triplicated control, multi-auto detection, auto control and alarming functions can be fulfilled.
2
At air convey way’s input bottle end, there is block bottle treatment device that is driven by cylinder. When bottle is blocked, the device removes it automatically to prevent damage of unscrambler because of bottle’s squeezing.
7
The air pipeline system has pressure switch and gate valve, if compressed air can’t be put through, the machine can’t start too. The gate valve and the machine are interlocked and save air consumption.
HOW IT WORKS
How It Works

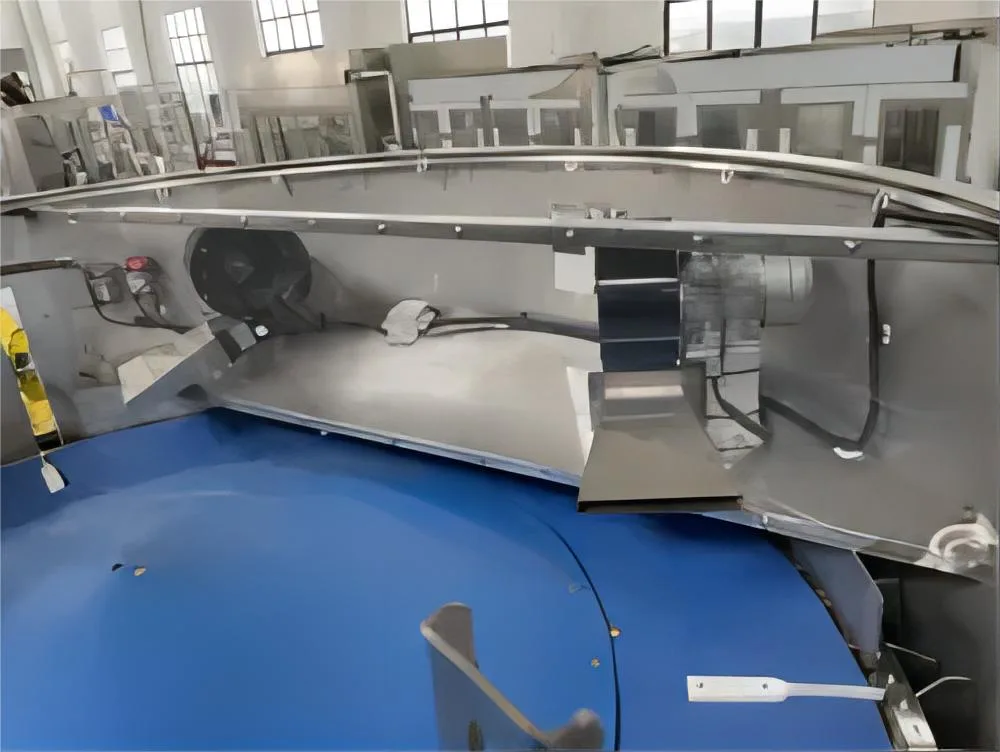

With help of the pushing force of the rotating disk, bottles enter their position.
01
STORING BOTTLE SECTION
bottles are carried into the storing bottle section of the ordering bottle machine
02

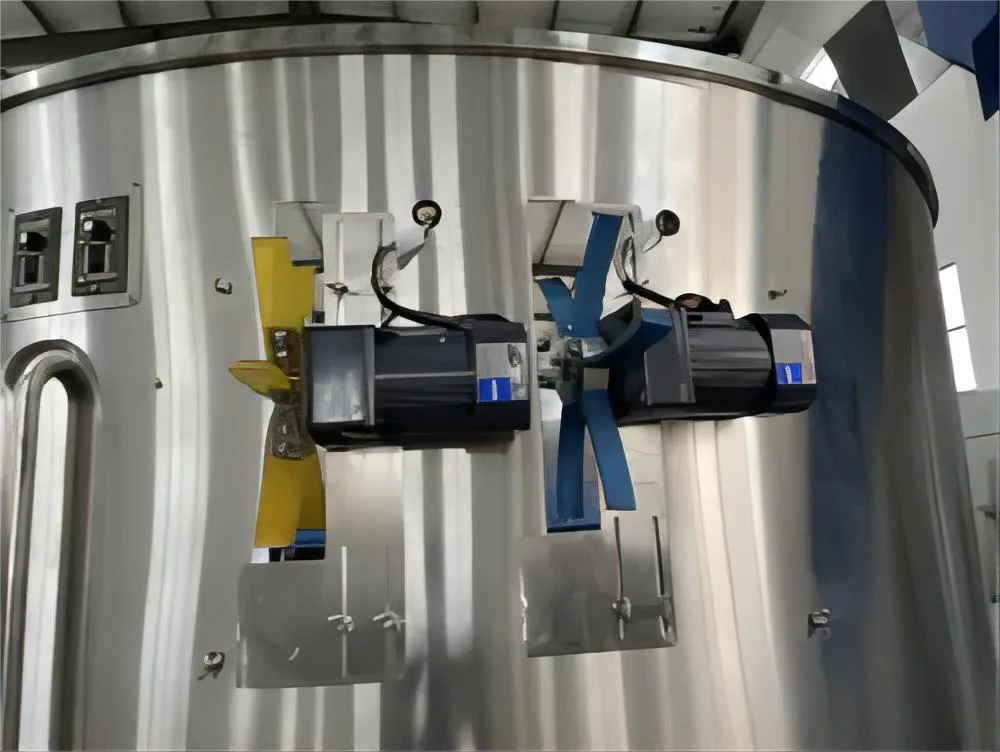

TURNING BOTTLE DEVICE
With the function of the turning bottle device and the air-flow, bottles are ordered into bottle mouth-up-position
03
AIR CONVEYING
It can automatically screen out non-standard bottles.
MATERIAL
Machine Parameters
Main features :
ELECTRIC CABINET
Stainless steel made electric cabinet controls unscrambler, lifting machine and air convey way’s works through PLC.
KEY ELECTRIC COMPONENTS
Key electric components (frequency converter, PLC, photoelectric switch, relay) apply MITSUBISHI, OMRON, SIEMENS brands.
AIR PIPELINE SYSTEM
Air pipeline system applies SMC products.
WHY SINOPAK
Why Choose US
All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
Direct manufacturer
We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
Exporting team
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
Custom manufacturing
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Tested before loading
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
BEYOND THE UNSCRAMBLER
Complete Production Line
carried into the next process with the air-transferring type conveying bottle system.
