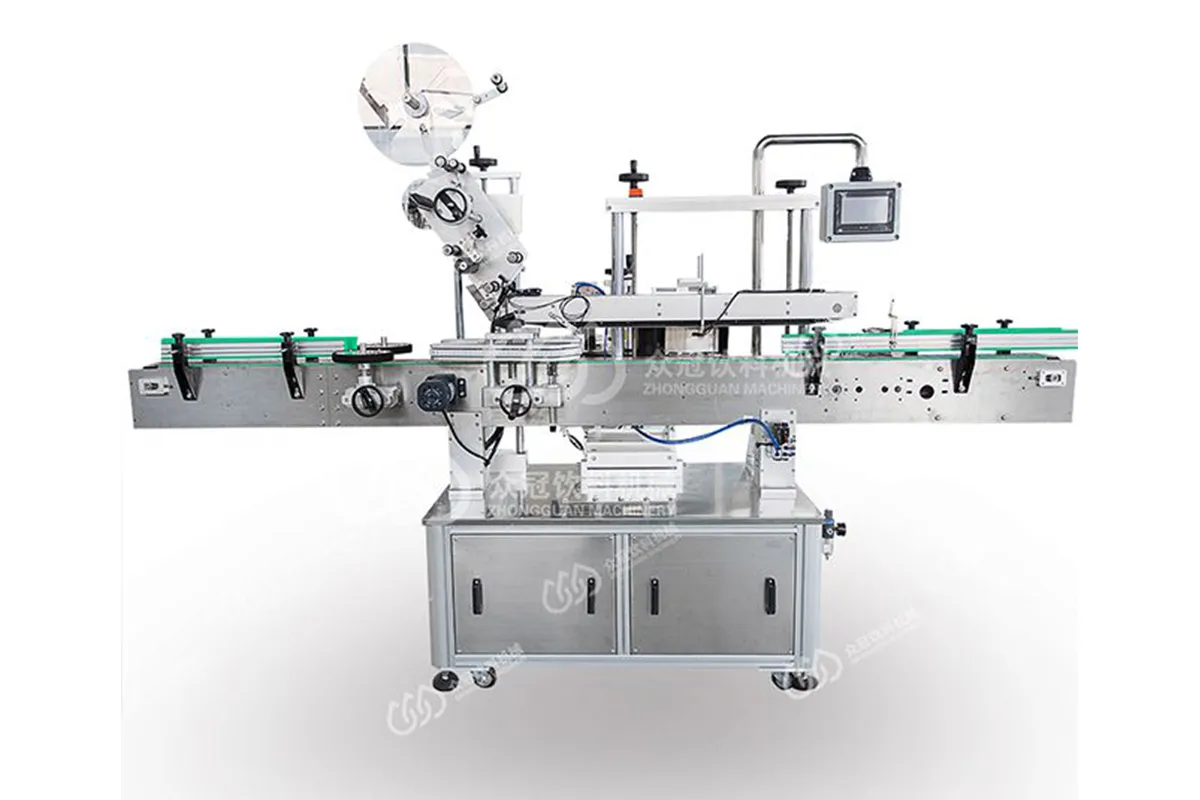

Automatic Linear type Self-Adhesive Labeling Machine

For Low speed labeling use.The machine features to satisfy the flat bottles, square bottles,Big volume of bottles,and bottle label single-sided,double side labeling(front and back), three labels (front back and neck) and even top of cap label. Widely used cosmetics industry, drinking production line,various food, paper box packaging and other fields.

Video

Detailed Images

Machine Parameters

The entire machine is made of 304 stainless steel and aluminum alloy materials, and the components are standardized in design with interchangeability, fully meeting GMP requirements.

The labeling mechanism adopts an aluminum alloy structure, surface sandblasting treatment, bright cleaning, and easy maintenance. The conveyor chain plate is made of imported parts, with good toughness, wear resistance, durability, and easy cleaning without deformation.

Name Linear type adhesive labeling machine
Labeling and labeling speed 3000BPH;6000BPH;9000BPH;12000BPH;15000BPH
Diameter of the object to be pasted 30-100mm (if exceeding this range, it can be customized separately)
Maximum diameter of label 350 mm
Paper core diameter 76.2 mm
Label precision ±1mm
Bottle diameter 50-200mm
Maximum width of label 130mm

Panasonic frequency converter, Taiwan variable speed motor,
Siemens programmable logic controller (PLC) from Germany, Taiwan produced color human-machine interface (bilingual operation interface in Chinese and English),
Germany’s SICK label sensor, Japan’s KEYENCE inspection eye.

Conveying mechanism: Taiwan AC motor, frequency converter speed regulation.
Bottle guide mechanism: Double coordinate adjustable anti scratch stop strip.
Bottle splitting mechanism: Taiwan made motor, variable frequency speed regulation.
Round bottle mechanism: adopts a belt rolling label mechanism.

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
