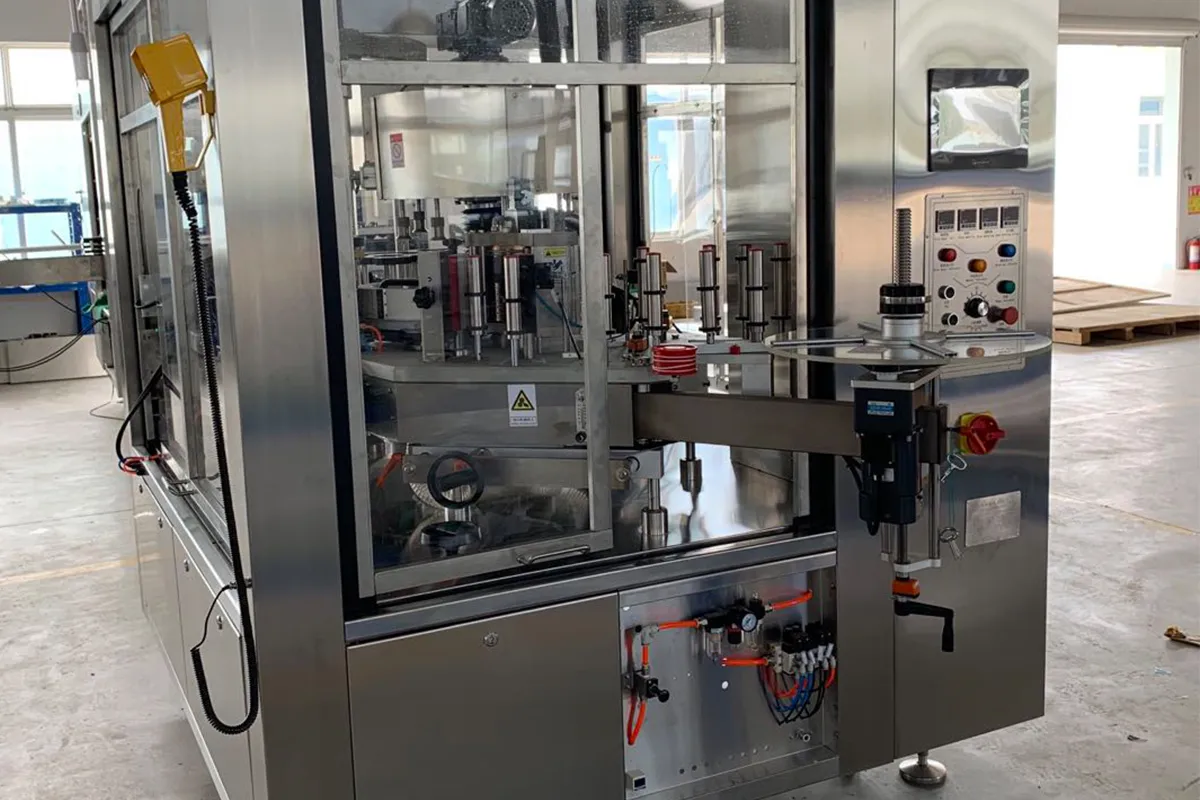

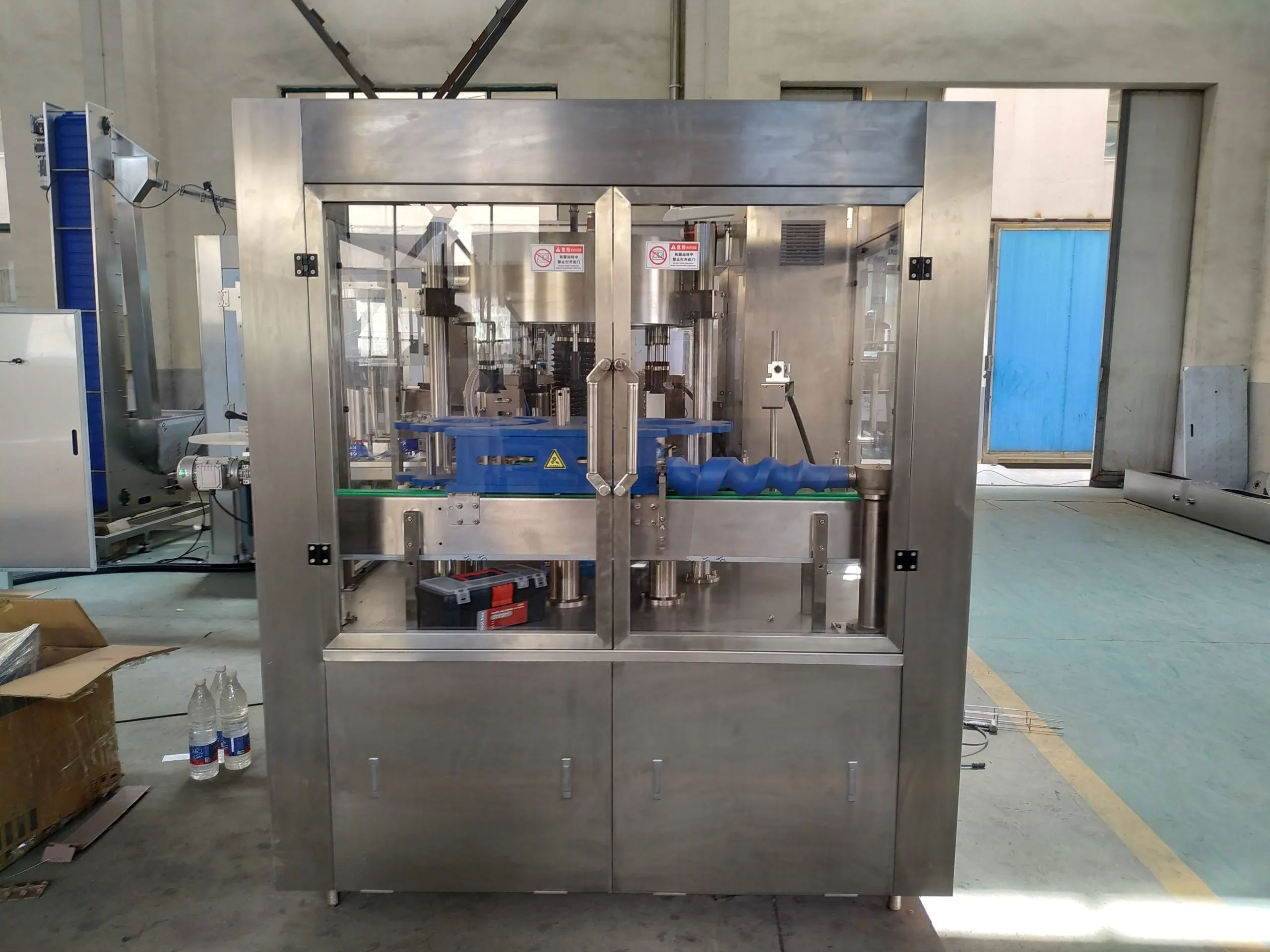

Linear Automatic OPP Hot Melt Glue Label Automatic Labeling Machine Round Bottle

Linear OPP hot melt glue adhesive labeling machine is the newest continuous operation of the labeling machine.

The mainly used for container labeling cylindrical shape of detergents, beverages, mineral water, food etc. The material of label is using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent.

Labeling machine is control by PLC touch screen, all electric eye is using imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance.

Video

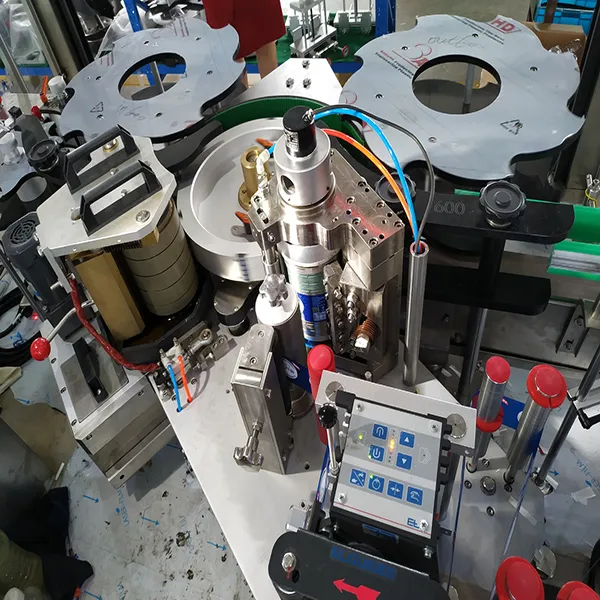

Detailed Images

Machine Parameters

Main features :

  • Body is built with stainless steel, steel construction stable and not rust.
  • The whole machine used quick release type of construction. In order to change and adjustment easier.
  • Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
  • With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines.
  • Used stable and reasonable of compiling program. It can be suitable for operation 24 hours.
  • The bottle working mode is linear Input and output type.
  • Equipped with the Torque limiter would control the torsion range abnormal situation of machine. It will reduce the accident for operate.
  • Roller coating, gluing balance and glue saving.
  • Alarm system: Caution light & buzzer for out of label, Label break and door open!
  • Cut label system: Used multiple cure of cut system organization. (It is not quick-wear part)
  • The machine production speed is control by the machine input bottle signal. It is automatic transmission. If input bottle stock, then the machine will be increase speed. If input bottle did not have bottle the machine will transmission speed slow.
  • The machine production speed is control by the machine input bottle signal. It is automatic transmission. When the machine output bottle stock then the machine will be transmission speed to slow. If output bottle is smooth the machine will be increase the speed.
Model LOPP-100 LOPP-150 LOPP-200 LOPP-250
Speed of labeling 6000BPH 9000BPH 12000BPH 12000BPH
Power AC 3ψ380V50Hz
Efficiency ≥99.5 ≥99.5 ≥99.5 ≥99.5
Accuracy of labeling ±1mm ±1mm ±1mm ±1mm
Diameter of bottle 40-110mm 40-100mm 40-100mm 40-100mm
Material of bottle Glass, Metal, Plastic Glass, Metal, Plastic Glass, Metal, Plastic Glass, Metal, Plastic
Shape Round Round Round Round
Label material OPP,BOPP,PAPER OPP,BOPP,PAPER OPP,BOPP,PAPER OPP,BOPP,PAPER
Label thickness 0.035-0.05mm 0.035-0.05mm 0.035-0.05mm 0.035-0.05mm
Label height 40mm-180mm 40mm-150mm 40mm-180mm 40mm-150mm
Inside diameter of paper tube 6inch 6inch 6inch 6inch
Air source 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa
Rated power 10KW 10KW 12kw 12kw
Machine size 3176L*1500W*2050H(mm) 5000L*1600W*2000H(mm)
Weight 1800kg 2000kg 3000kg 3200kg

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.

Related Cases

Delivery&Install

Inquire

* We respect your privacy. When you submit your contact information, we agree to only contact you in accordance with our Privacy Policy.

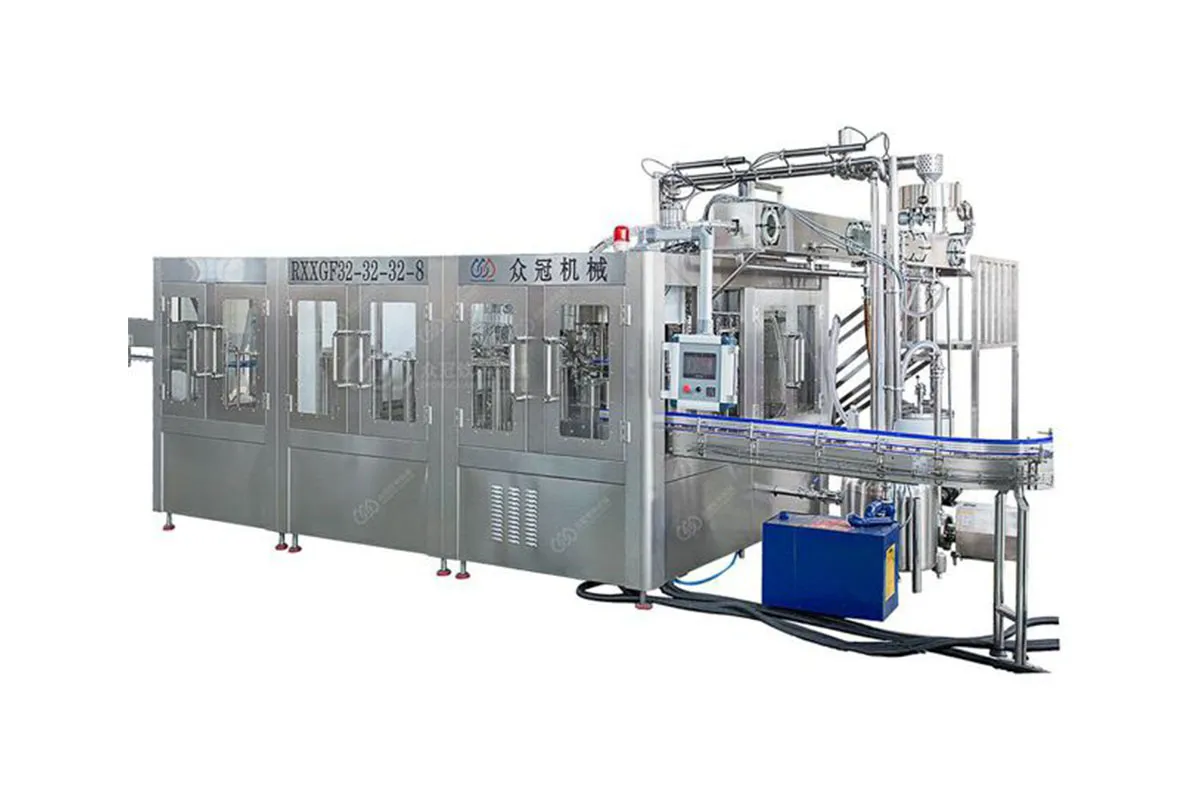

Related Products
