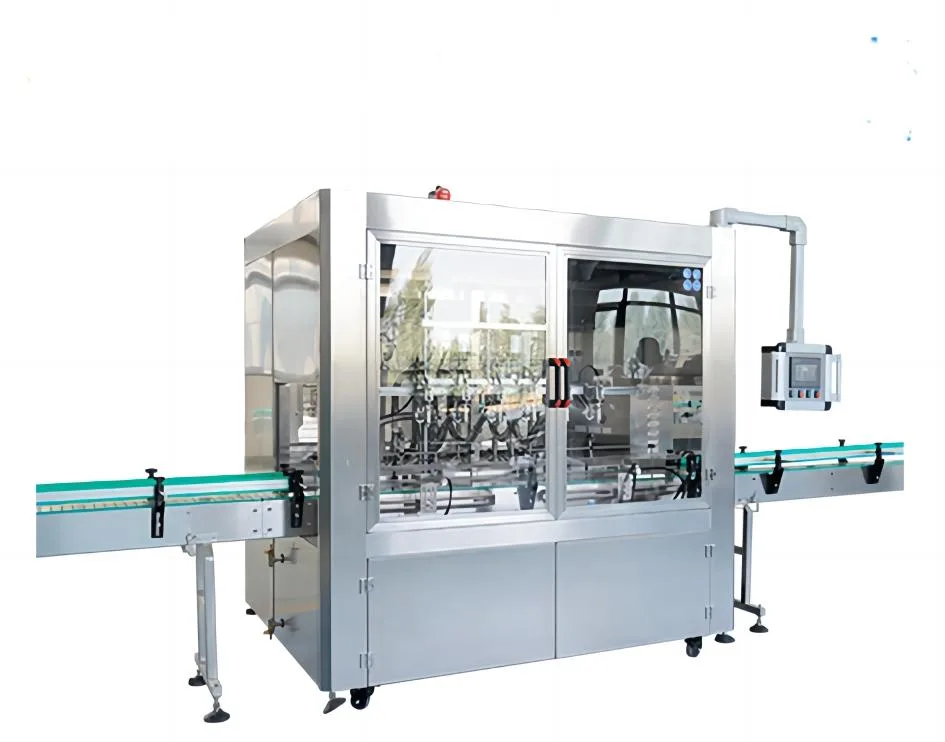

Oil Filling machine

This machine adopts 2-in-1 technology.

Filling speed : 2000-18000BPH ,Packaging Material:Plastic, Glass
Applicable bottle type:50ml-30L

*Suitable material: Oil, jams, daily chemicals, and something that very viscous.
* PLC control :This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
*Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
*Anti drop function :When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid
spill bottle mouth cause pollution.
* Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.



Video

Detailed Images

Machine Parameters

Main features :

1 Equipped with a bottle mouth localizer to make the machine suitable for different shapes of bottles including irregular bottles

2 “No drip” filling nozzle can assure that dripping and stringing will not happen.

3 This machine has functions of “no bottle no fill”, “malfunction check and malfunction scan automatically”, “security alarm system for abnormal liquid level”.

4 The parts are connected with clamps, which makes the machine easy and quick to disassemble & assemble and clean.

5 The series of machine has compact, reasonable configuration and nice, simple appearance.

6 Filling mouth with anti-drip function, can be changed to lift for high foam products.

7 Material feeding device control box on the feeding, so that material is always kept at a certain range to ensure the accuracy of filling volume.

8 Rapid adjustment to achieve the overall filling volume, with counter display; the amount of each filling head can be individually fine-tuned, convenient.

9 With PLC programming control, touch-type man-machine interface, convenient parameter setting. Fault self-diagnosis function, clear failure display.

10 Filling head is an option, easy maintenance without affecting the other single head when filling.

Model Filling Volume The Number of Filling Nozzles Air Consumption

UnitL/min

Dimensions

Unitmmwithout conveyor

TCL6-500     50-500ml            6          500 L1200*W1095*H2100
TCL 8-500            8          600 L1500*W1095*H2100
TCL 10-500           10          700 L1800*W1095*H2100
TCL 6-1000    100-1000ml            6          700 L1200*W1095*H2211
TCL 8-1000            8          800 L1500*W1095*H2211
TCL10-1000           10         1000 L1800*W1095*H2211

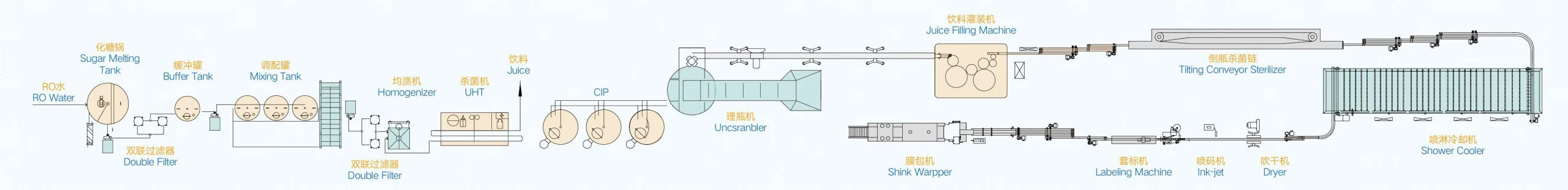

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
