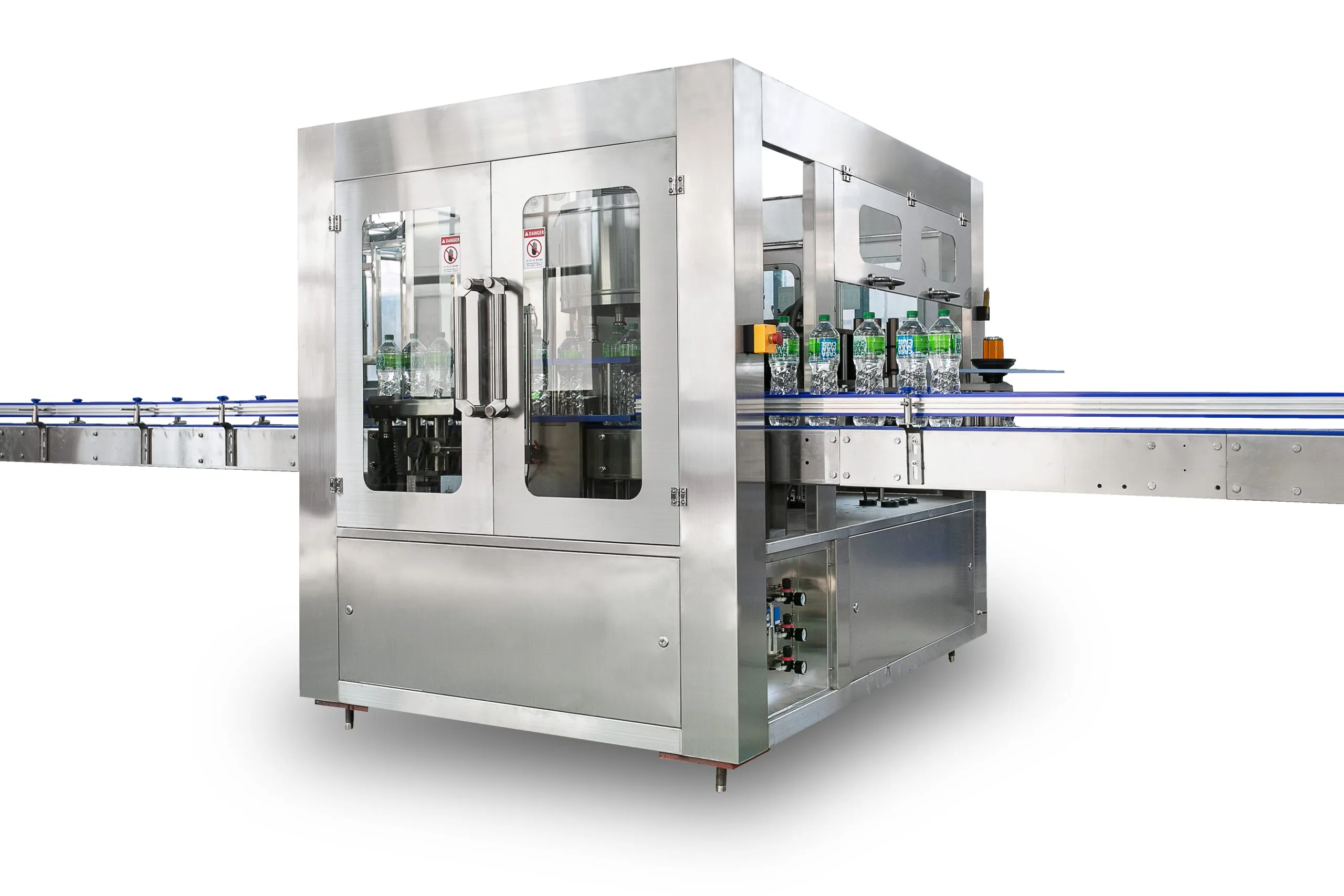

Rotary type OPP Labeling Machine PET Bottle Labeling

Rotary OPP hot melt glue adhesive labeling machine is the newest continuous operation of the labeling machine.

The mainly used for container labeling cylindrical shape of detergents, beverages, mineral water, food etc. The material of label is using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent.

Labeling machine is control by PLC touch screen, all electric eye is using imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance.

Video

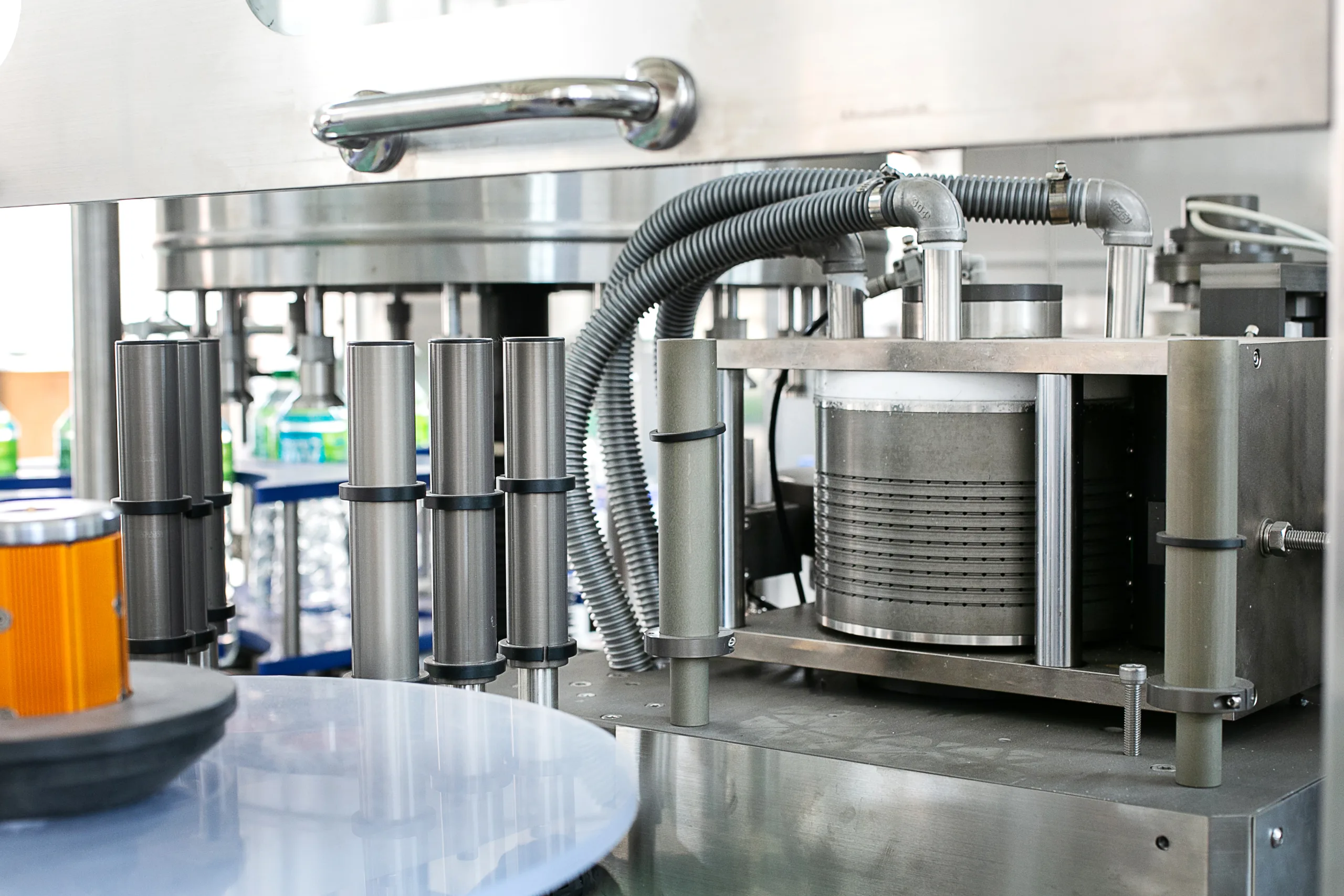

Detailed Images

Machine Parameters

Model OPP-100 OPP-200 OPP-300 OPP-400
Speed of labeling 12000-16000BPH 18000BPH-24000BPH 25000BPH-30000BPH 32000BPH-36000BPH
Power AC 3ψ380V50Hz
Efficiency ≥99.5 ≥99.5 ≥99.5 ≥99.5
Accuracy of labeling ±1mm ±1mm ±1mm ±1mm
Diameter of bottle 40-110mm 40-100mm 40-100mm 40-100mm
Material of bottle Glass, Metal, Plastic Glass, Metal, Plastic Glass, Metal, Plastic Glass, Metal, Plastic
Shape Round Round Round Round
Label material OPP,BOPP,PAPER OPP,BOPP,PAPER OPP,BOPP,PAPER OPP,BOPP,PAPER
Label thickness 0.035-0.05mm 0.035-0.05mm 0.035-0.05mm 0.035-0.05mm
Label height 40mm-180mm 40mm-150mm 40mm-180mm 40mm-150mm
Inside diameter of paper tube 6inch 6inch 6inch 6inch
Air source 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa
Rated power 10KW 10KW 12kw 12kw
Machine size 3176L*1500W*2050H(mm) 5000L*1600W*2000H(mm)
Weight 2000kg 2500kg 3200kg 3500kg

Machine Configuration:

Fully enclosed Host Door stop
send bottles Screw or star wheel
Feeding bottle cylinder
Separate bottle Stars Wheel
Sending label servo encoder control
Illumination LED, top + bottom access operation lamp lights + electrical control box overhaul lights
Fixed feeding shelf Removable standard planar fast. (Optional double frame)
Touch screen single touch
Cabinet work Column cabinet manually unscrew the formula
Corrective devices Germany E + L
Alarm system warning light & buzzer, lack of material, marked off, open the door
Label system Physical adjustable friction brake feed
Transmission systems machine connections, independent label transmission

Production Lines Flow Chart
