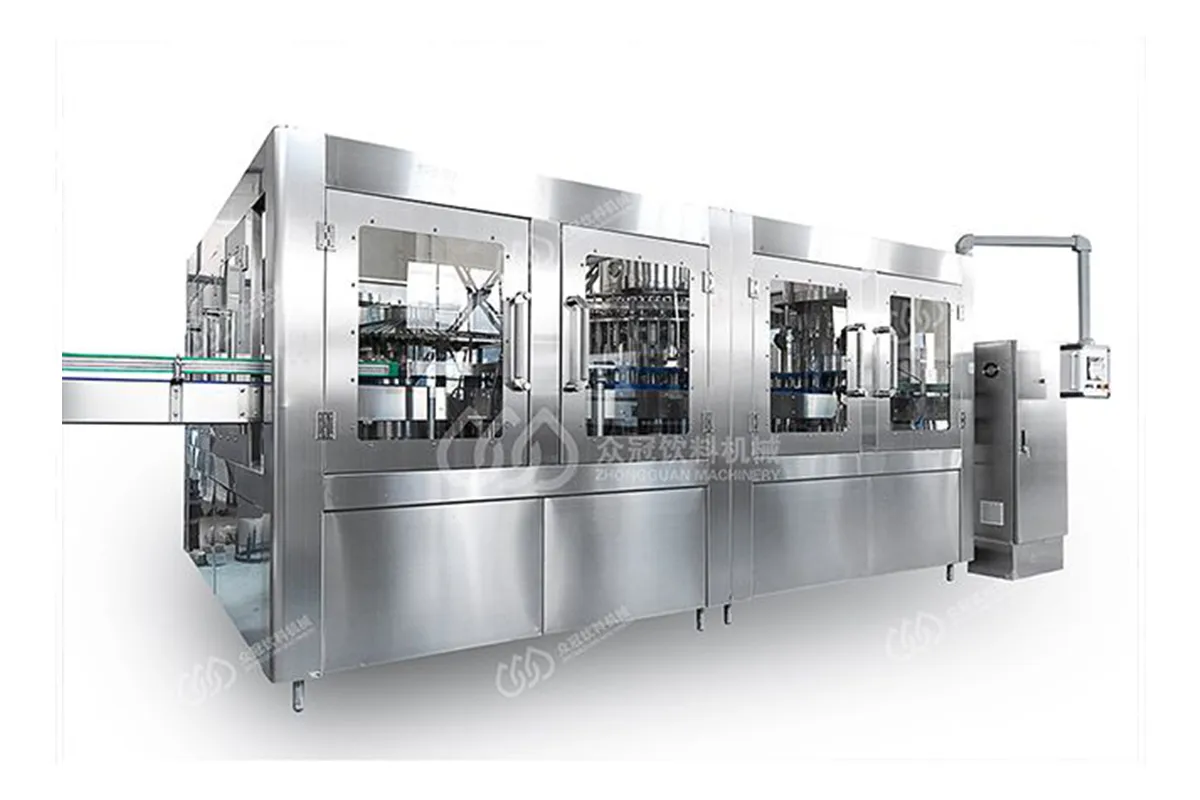

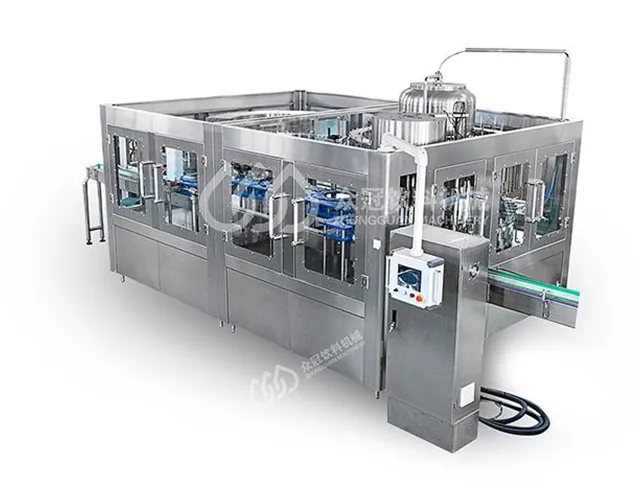

40-40-10 Complete Glass Bottle Alcohol Production Lineglass Bottle Alcohol Filling Line

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process. This machine is used to fill still water into pet bottle and with screw caps capping function. This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles.

Video

Detailed Images

Machine Parameters

Project Name: Drinking Water Filling Machine
Model	XGF8-8-3	XGF14-12-5	XGF16-16-5	XGF24-24-8		XGF32-32-8	XGF40-40-10	XGF50-50-15
Washing Nos	8	14	16	24		32	40	50
Filling Nos	8	12	16	24		32	40	50
Capping Nos	3	5	5	8		8	10	15
Capacity(BPH)	2000	5500	8000	12000		15000	18000	24000
Suitable bottle and cap	PET circular or square with screw cap
Bottle Volume	150ml to 2.5Ltr (Customized)
Bottle diameter(mm)	Dia50-Dia115mm
Bottle heighter	160-320mm
Compress air pressure(Mpa)	0.3-0.4Mpa
Washing medium	Aspetic water
Rinsing pressure(Mpa)	>0.06Mpa<0.2Mpa
Filling temperature	Room temperature
Filling theory	By gravity
Total powder	1.5KW	2KW	2.2KW		2.2KW	3KW	7.5KW	7.5KW
Dimension (meter)	21.52.5	2.41.82.7	2.92.22.8		2.92.22.8	3.42.62.8	4.43.32.8	4.73.62.8
Weight

Configuration List
No	Name	Brand
1	Main motor	ABB
2	Cap unscrambler motor	FEITUO(China)
3	Conveyor motor	FEITUO(China)
4	Rinsing pump	CNP (China)
5	Solenoid valve	FESTO
6	Cylinder	FESTO
7	Air-T contactor	FESTO
8	Pressure adjust valve	FESTO
9	Inverter	MITSUBISHI
10	Power switch	MIWE(TAIWAN)
11	Contactor	SIEMENS
12	Relay	MITSUBISHI
13	Transformer	MIWE(TAIWAN)
14	Approx switch	TURCK
17	PLC	MITSUBISHI
18	Touch screen	Pro-face
19	Air components	FESTO
20	AC Contactor	Schneider
21	Micro relay	MITSUBISHI

Production Lines Flow Chart

No production lines found.

Why Choose US

We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
We will supply the spare parts fast and with cost price.
