Production Reliability – anytime and anywhere
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
| Model | Capacity(BPH) | Bottle Volume | Compress air pressure(Mpa) | Total powder | Dimension (meter) |
| XGF 32-32-8 | 15000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 3.38*2.58*2.75M |
| XGF 24-24-8 | 12000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 8-8-3 | 8000 | 150ml to 2Ltr (Customized) | 0.3-0.4Mpa | 1.5KW | 2.0*1.5*2.5M |
| XGF 14-12-5 | 5500 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2KW | 2.36*1.77*2.75M |
| XGF 16-16-5 | 8000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 80-80-22 | 42000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 19KW | 7.8*6.38*2.75M |
| XGF 72-72-18 | 36000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.5*4.68*2.75M |
| XGF 60-60-15 | 30000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.00*4.68*2.75M |
| XGF 50-50-15 | 24000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.72*3.55*2.75M |
| XGF 40-40-10 | 18000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.43*3.28*2.75M |
Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties, cosmetic and oil bottles etc.
It is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottles, mineral water, carbonated drink bottle, pesticide bottles oil bottles cosmetics,wide-mouth bottles, etc. Adopting double crank to adjust mold, heavy locking mold, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

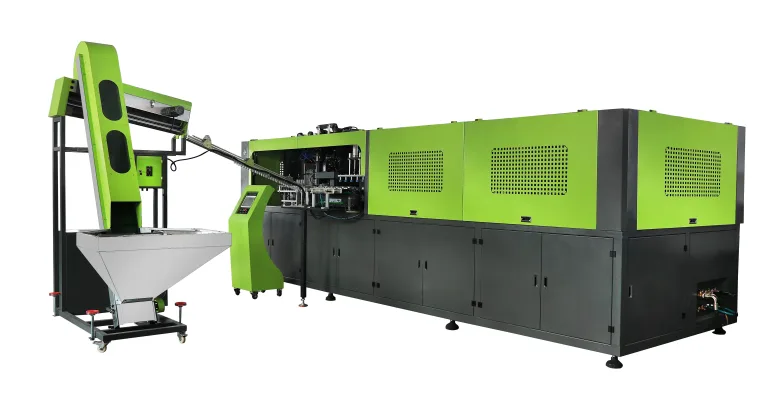

Automatic PET Bottle Blowing Machine Bottle is suitable for producing PET bottles and containers in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic PET Bottle Blowing Machine Bottle is suitable for producing PET bottles and containers in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Model: BL-Z4S
Capacity(BPH): 4000
Bottle volume: 100ml-2L(customized)
Body Diameter: <100mm; Max Bottle Height: <310mm; Powder: 49KW
Hp air compressor：4m³/min； LP air compressor： 1.6m³/min； Weight：3600kg

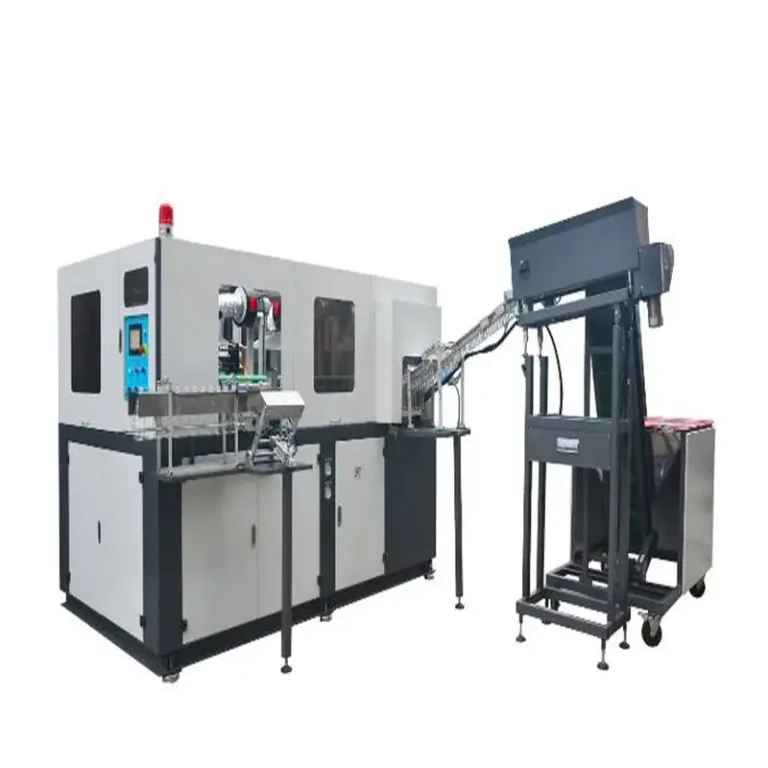

Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

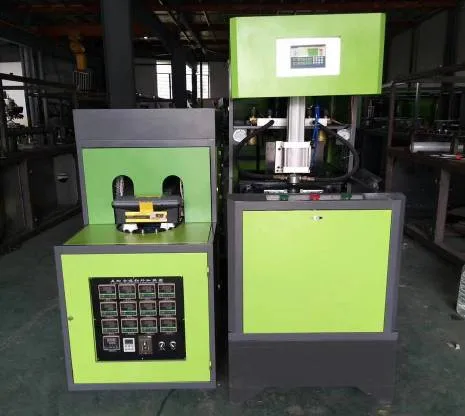

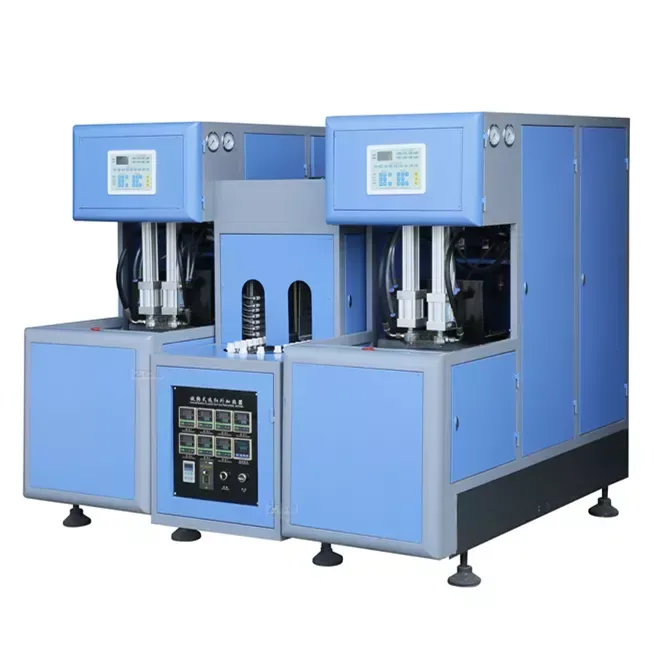

It is suitable for producing PET plastic containers and bottles. Semi auto blowing machine is small with low investment, easy, and safe to operate.
Blowing Machines, also known as PET Bottle Blowers, are crucial equipment in the packaging industry, specifically engineered to produce PET bottles of various shapes and sizes for beverages, personal care products, household chemicals, and more. These machines utilize the stretch blow molding process to transform PET preforms into finished bottles with precision and efficiency.
Blowing Machines offer flexibility in bottle design, allowing for the production of bottles in different shapes, sizes, and neck finishes to meet diverse packaging requirements.
By producing bottles on-site, Blowing Machines reduce transportation costs associated with pre-formed bottles, offering a cost-effective solution for packaging production.
Automated processes and high-speed production capabilities enable Blowing Machines to produce bottles at a rapid pace, ensuring efficient throughput and meeting production demands.
Adjustable parameters allow for customization of bottle specifications, including wall thickness, bottle weight, and volume, providing versatility for various packaging needs.
Advanced technology and energy-saving features minimize energy consumption, reducing operational costs and environmental impact.
Blowing Machines utilize stretch blow molding technology to stretch and blow heated PET preforms into bottles, ensuring uniformity and consistency in bottle quality.
Some models feature multiple cavities, allowing for simultaneous production of multiple bottles in each molding cycle, increasing efficiency and throughput.
Integrated temperature control systems ensure precise heating and cooling of PET preforms, optimizing the stretching and blowing process for consistent bottle quality.
Intuitive touchscreen interfaces enable easy operation, monitoring, and adjustment of machine parameters, facilitating efficient production and troubleshooting.
Built-in quality control mechanisms detect and reject defective bottles, ensuring only high-quality bottles are released for further processing and packaging.
Blowing Machines are essential equipment for beverage manufacturers, producing PET bottles for carbonated drinks, juices, water, sports drinks, and other beverages.
Manufacturers of personal care products such as shampoos, lotions, and liquid soaps utilize Blowing Machines to produce PET bottles for packaging their products.
Blowing Machines are used in the production of PET bottles for household chemicals, including cleaning agents, detergents, and automotive fluids.
Blowing Machines can produce PET bottles of various shapes, sizes, and neck finishes, catering to the diverse packaging needs of different industries.
The machine utilizes stretch blow molding technology and integrated quality control mechanisms to ensure uniformity and consistency in bottle quality, detecting and rejecting defective bottles during production.
Yes, Blowing Machines are designed for high-speed production, with some models featuring multiple cavities to increase throughput and accommodate high-volume production demands.
Regular maintenance and cleaning are essential to ensure optimal performance and longevity of the machine. We provide comprehensive maintenance guidelines and support services to assist with upkeep and troubleshooting.
Yes, we offer extensive after-sales support, including installation, training, maintenance services, and access to spare parts to ensure the continued performance and reliability of our Blowing Machines.
In summary, Blowing Machines are indispensable equipment in the packaging industry, offering versatility, efficiency, and precision in the production of PET bottles for various applications. Whether you’re a beverage manufacturer producing millions of bottles per day or a personal care product manufacturer requiring custom bottle designs, our Blowing Machines are equipped to meet your production needs with excellence and reliability.
