5000BPH Juice Filling Machine/Whole Juice Filling Line/Great Juice Production Plant For Energy Drinks Filling Equipments

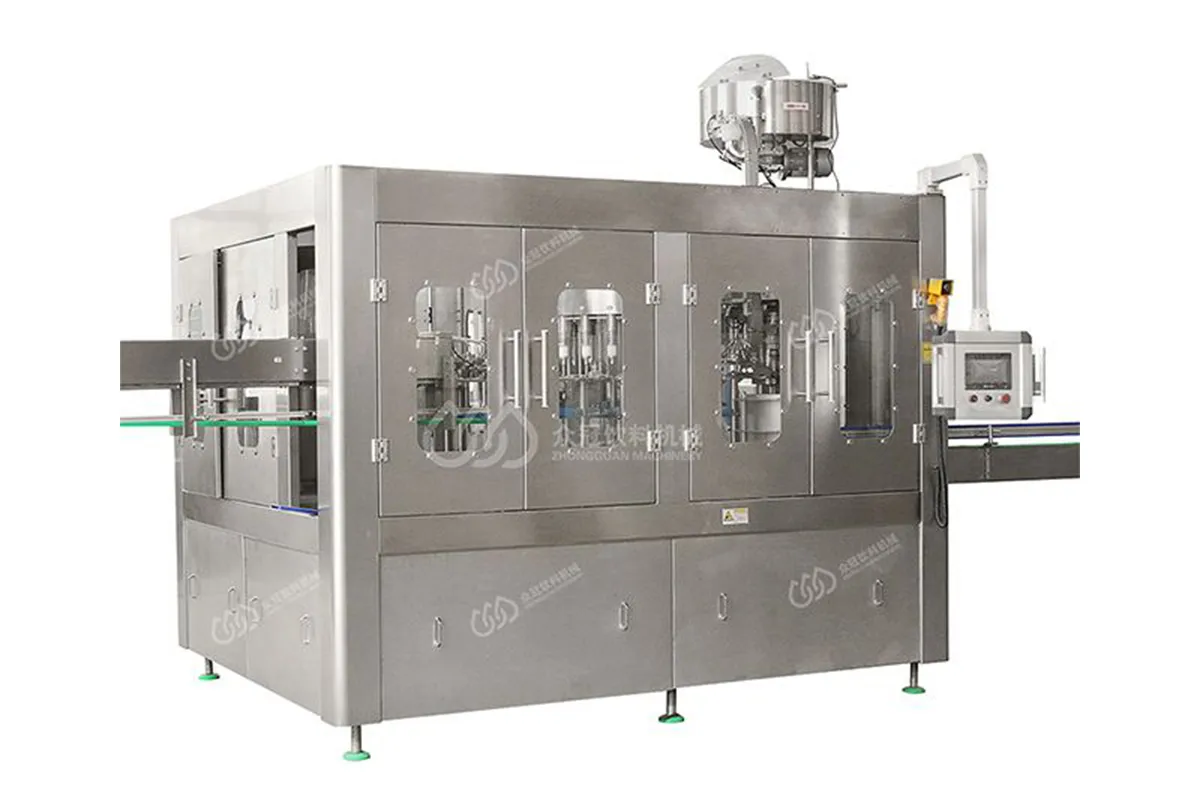

This Fruit Juice Hot Filling Machine Wash-filling-capping 3-in-1 unit is used to produce glass/PET bottled drinking juice. The RXGF Wash-filling-capping 3-in-1 unit:juice Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Detailed Images





Machine Parameters
Output Capacity | 2000BPH |
Rinsing /Filling / Capping heads Quantity | 14pcs / 12pcs / 5pcs |
Suitable glass bottle size | Bottle Diameter Φ50~Φ90mm Bottle Highness:80~300mm, Bottle neck: 28mm, for Bottle Volume 200-2000l |
Suitable to fill | Carbonated drink & Non-carbonated drink |
Washing Water Required | 800 liter per hour |
Washing Pressure Required | 0.4Mpa |
Working Power | 380V AC 50HZ 3-phase, (other power supply is available) |
Control Panel Power | 24V DC |
Compressed Air Pressure (for caps arranger) | 0.7MPa |
Compressed Air Consumption (for caps arranger) | 0.7m3/min |
Filling Pressure | 0.2-0.35MPA |
Filling Temperature | 2~6°C |
Machine Dimension | 2360X1650X2500 |
Gross Weight | 2800kg approximately |
Model | Capacity/500ml | Bottle size | Weight(KG) | Dimensions(mm) |
RXGF 8- 8-3 | 1000-2000bph | 200-1500ml | 2500 | 2300*1550*2500 |
RXGF 14-12-5 | 3000-4000bph | 200-2000ml | 3500 | 2516*2016*2700 |
RXGF 16-16-5 | 5000-6000bph | 200-2000ml | 5500 | 3000*2200*2800 |

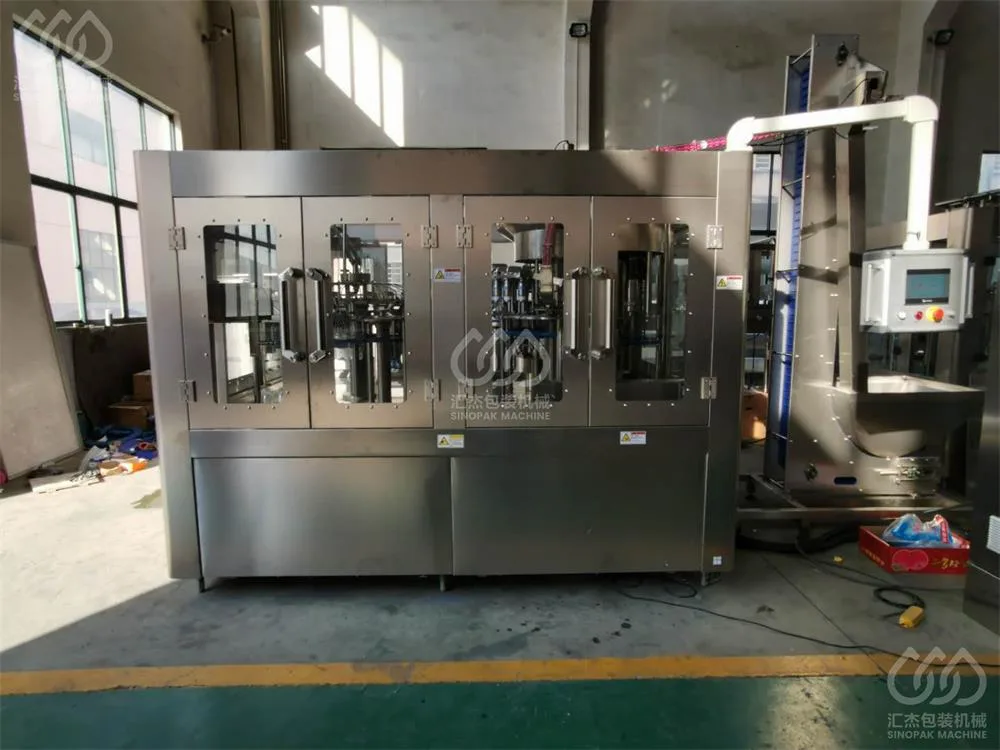

RXGF R24-24-8 | 8000-10000bph | 200-2000ml | 8000 | 4150*2600*2900 |
RXGF 32-32-8 | 10000-12000bph | 200-2000ml | 10000 | 4550*2750*2900 |
RXGF 40-40-10 | 13000-15000bph | 200-2000ml | 12000 | 5450*3300*2900 |
RXGF 50-50-15 | 15000-18000bph | 200-2000ml | 14000 | 6500*3800*3200 |
Production Lines Flow Chart


Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.


Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.

Applications
RXGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml. Different models can satisfy the various output requirements from 1500B/H to 25000B/H.this machine incorporates rinsing, filling, and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperate by the primary motor’s frequency converter. It makes the process more stable and reliable. The photoelectric sensor is used to detect each section’s operating conditions, which makes the operation of this equipment highly automatic and convenient.
