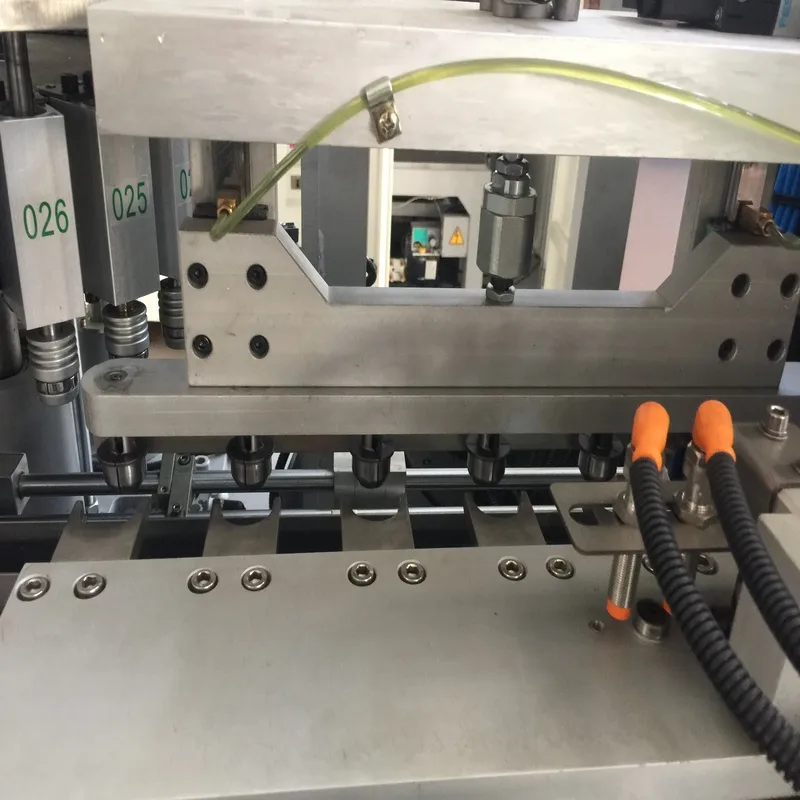

Energy blowing machine

Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties, cosmetic and oil bottles etc.

Video

Detailed Images

Machine Parameters

Equipment Feature:

Controller system

PLC, full-automatic working

Touch screen, easy operate. Each of error operates will automatic display and alarm.

Lack of pet perform, it will be alarm, and then stop to work in automatic.

Each of the heater have independence temperature controller.

Preform Feeder
The preform stocked in the hopper are transported by conveyor and are sorted neck upwards for the feed ramp in to the perform oven automatically, the performs are now read to enter the oven equipped with its infra-lamps.

Linear transport oven
The heating of the performs is optimized by the new modular oven with 6 layers of heating lamps. It guarantees the ideal temperature for quality blowing.

The preforms self rotated by high quality heat resistant and wear-resistant silica gel during the continuous movement.

Due to the small gaps between the preforms, it requires less electric costs. So it can save the electronic. It is economic running.

Each lamp’s horizontal position is adjustable to keep the machine flexible.

Clamp Unit
The clamp unit is the key to guarantee the flexibility and steady work. We adopt double cylinder, so it is steadier.

Sensor system

Adopts high quality imported sensor & switch system including proximity switch, photoelectric switch, and electronic magnet switch to keep production process going step by step and avoid any possible damage on machine.

Model SPB-2000 SPB-4000 SPB-6000 SPB-8000
Cavity 2 4 6 8
Output(BPH) 500ML 2,000 pcs 4,000 pcs 6,000 pcs 8000pcs
Bottle size range Up to 1.5 L
Air consumption(m3/minute) 2 cube 4cube 6cube 8 cube
Blowing pressure

3.5-4.0Mpa

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
