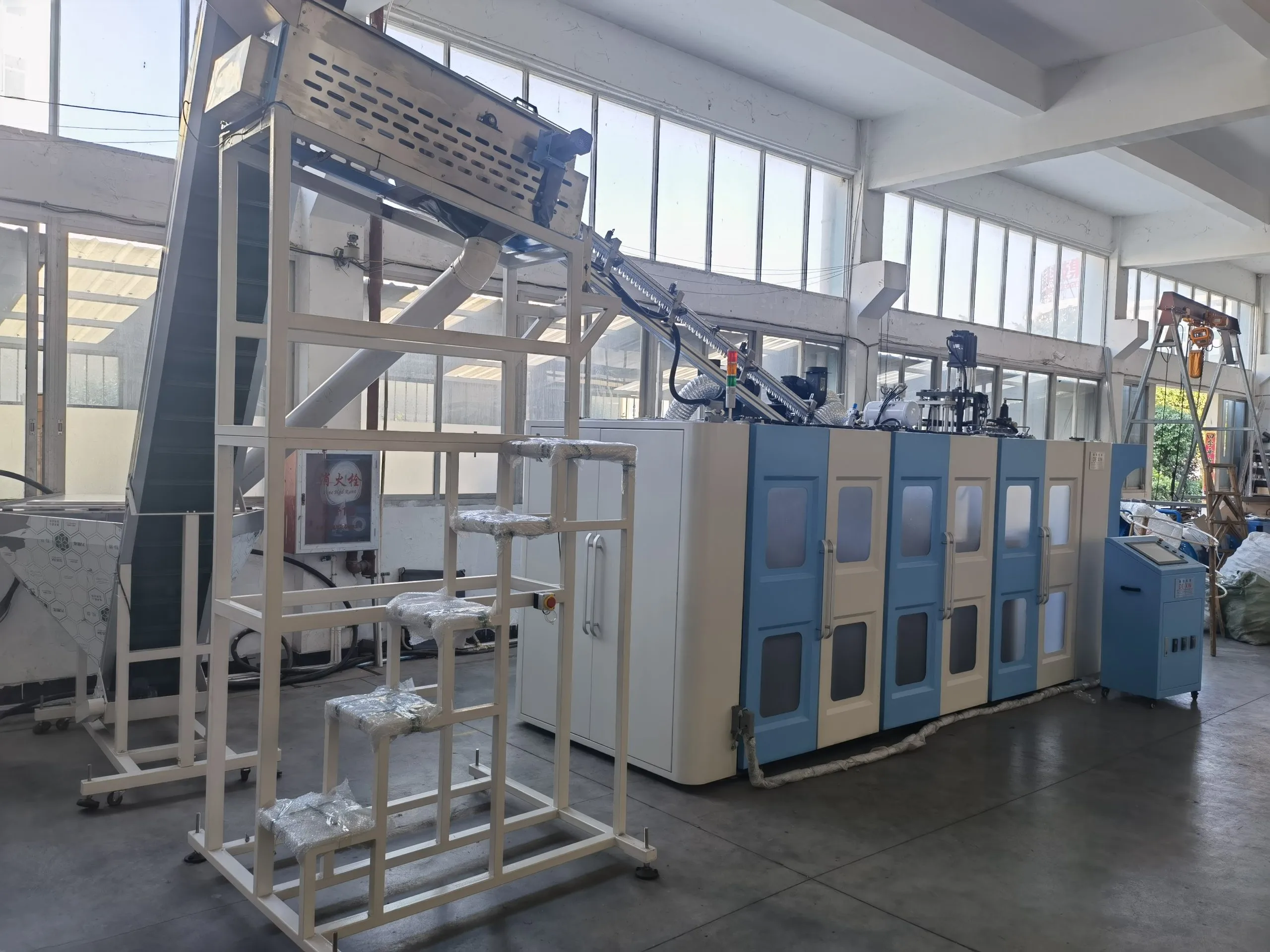

High speed blowing machine

Automatic PET Bottle Blowing Machine Bottle is suitable for producing PET bottles and containers in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Machine with high speed, 50% energy saving comparing to common automatic blowing machines.

Machine suitable for bottle volume: 10ml to 2500ml.

Video

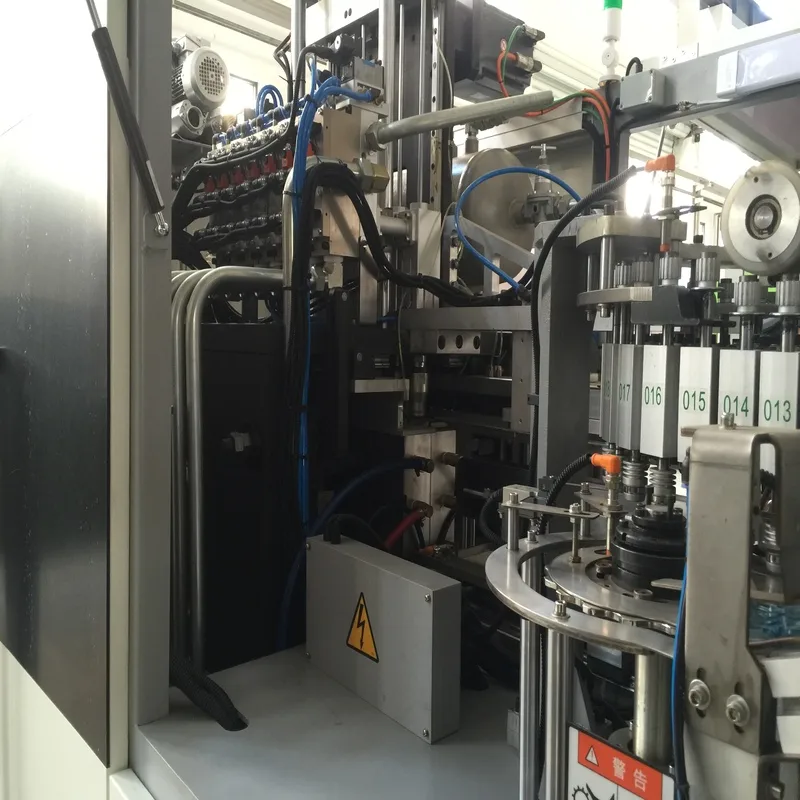

Detailed Images

Machine Parameters

Main features :

1.Features

  • Man-machine Interface control, easy to operate
  • Automatic preform loading and unscrambling
  • Preform hopper
  • Stable preform alignment, loading preforms according to capacity
  • Close structure, low contamination
  • Well preform heating system
  • Stable rotating system
  • Preforms are evenly heated, and easy to blow
  • Low energy consumption, heating capacity is adjustable
  • Recycling air cooling system in oven (option)
  • Heating system is a mutual feedback and closed loop system, can works in a constant power output, without being affected by voltage fluctuation.

2.Preform loading, bottle fetching and outputting

All the preform loading and bottle fetching and out putting movements are finished by mechanical transfer arms, which avoid contamination.

3.Change moulds

The whole moulds changing takes only one hour.

4.Highautomation, low contamination

Fully enclosed design, finished bottle is transferred by mechanical arms and conveying belt, the whole production process avoids human contact, thus ensuring a healthy and cleaning environment which meets national health standards.

5.Stableand reliable performance

All the important parts, such as electric and pneumatic components, seals, bearings, and reducers, etc., are European orJapanese brands, ensuring a high qualified machine and reliable performance.

6.Human-machine Interface

HMI, with a variety of parameters setting function, is easy to operate. Operators can modify the parameters while the machine is running, such as the pre-blowing, second blowing, blowing time, etc.

7.Easy maintenance

PLC communicates with machine through a specific cable connection. User can control every movement of the machine through this PLC. Once there is a failure, machine will alarm and display the problem. Operator can easily find the reason and solve the problem.

Model SPB-4000S SPB-6000S SPB-8000S SPB-10000S
Cavity 4 6 8 10
Output(BPH) 500ML 6,000 pcs 12,000 pcs 16,000 pcs 18000pcs
Bottle size range Up to 1.5 L
Air consumption 6 cube 8 cube 10 cube 12
Blowing pressure 3.5-4.0Mpa
Dimensions (mm) 3280×1750×2200 4000 x 2150 x 2500 5280×2150×2800 5690 x 2250 x 3200
Weight 5000kg 6500kg 10000kg 13000kg

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
