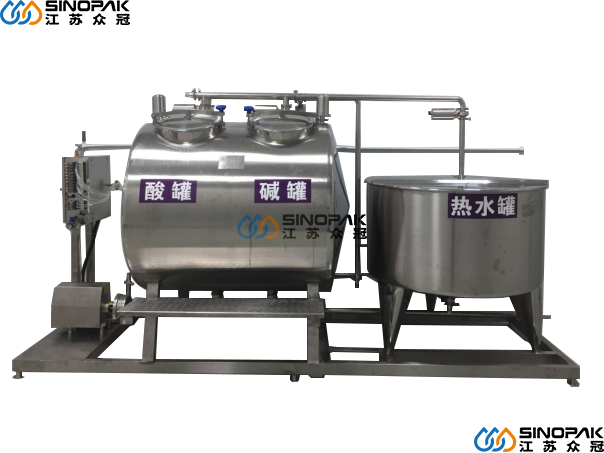

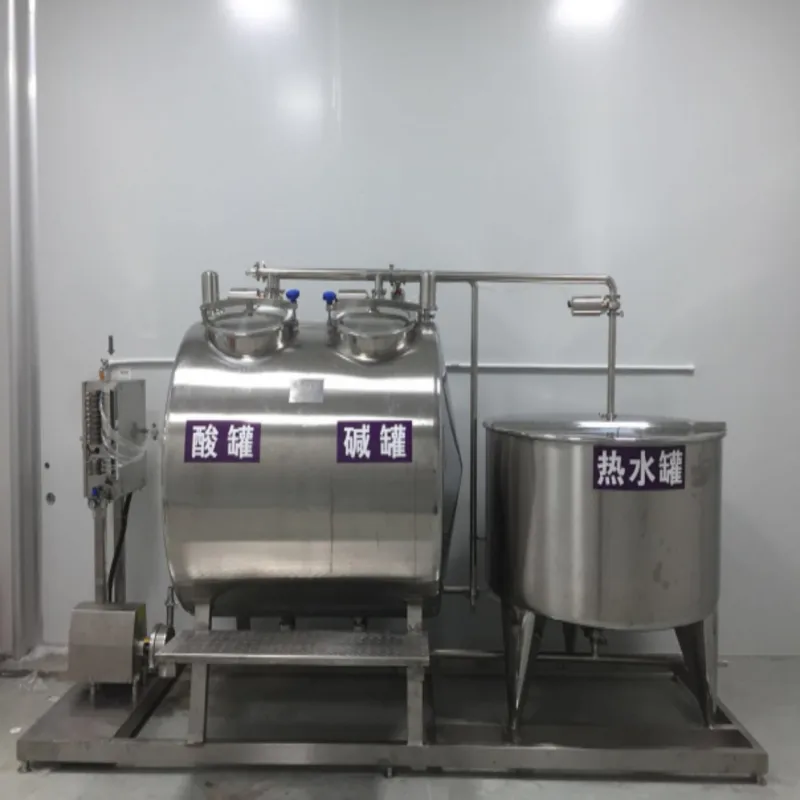

CIP system
Cleaning in place (CIP) is a set of procedures used to properly clean processing equipment without removing piping or equipment.
System compose by tanks, valve, pump, heat exchange , steam control, PLC control
Structure: 3-1 monoblock for small flow, separate tank for each acid/alkali/water
Widely apply for dairy, beer, beverage etc food industry
Detailed Images
Machine Parameters
Main features :
◆100% TIG welding with pure argon gas shield；
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,no material residue and
easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers know tank from different angles
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
