Complete Coconut Milk/Soy Milk Bottling Filling Machine /Line Factory Machinery Price

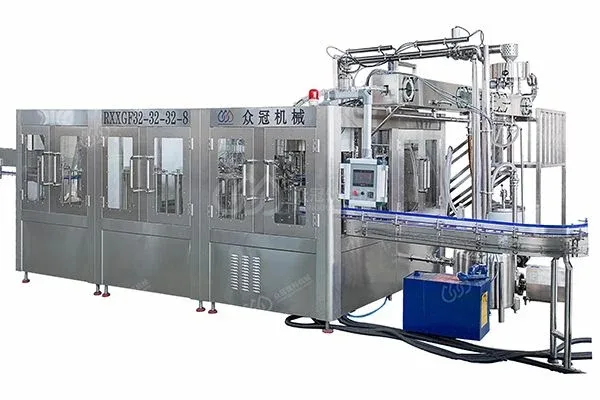

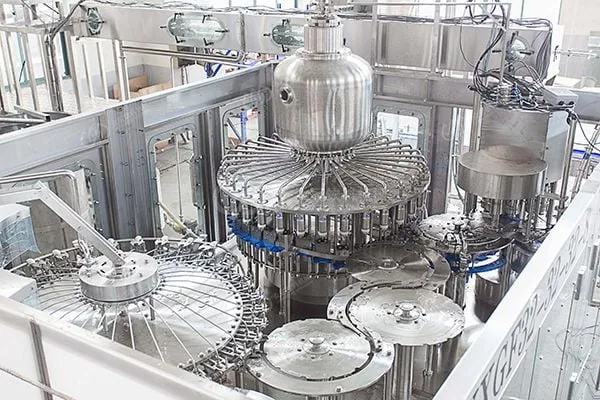

This Fruit Juice Hot Filling Machine Wash-filling-capping 3-in-1 unit and washing-fruit pulps filling- liquid juice filling-capping 4-in-1 machine are used to produce glass/PET bottled drinking juice. The RXGF Wash-filling-capping 3-in-1 unit: juice Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Detailed Images
Machine Parameters
Main features :

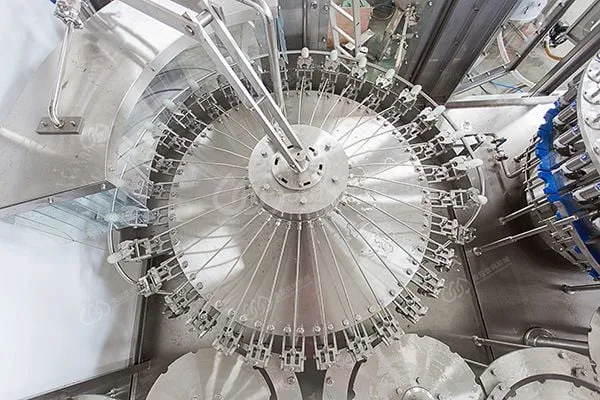

1. Washing Part
Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
Rinsing time can be guaranteed for 4 seconds.

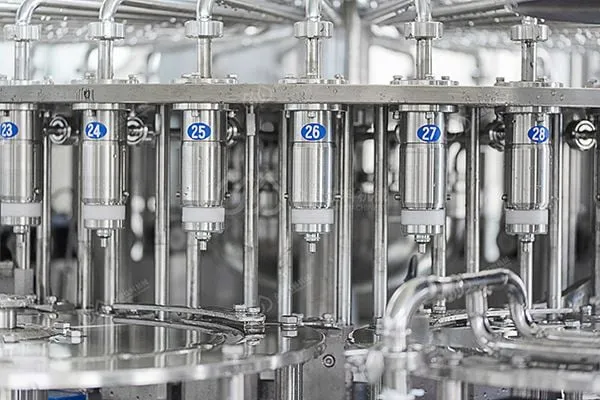

2. Filling part
The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling .
Butterfly type liquid bowl, with automatic water level controller.
The hot filling temperature 85-90 degrees, if the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
3. Capping part:
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Use waterfall or centrifugal cap cover machine.
Project Name:Fruit Juice Hot Filling Machine | ||||||
Model | RXGF 14-12-5 | RXGF 16-16-5 | RXGF 24-24-8 | RXGF 32-32-8 | RXGF 40-40-10 | RXGF 50-50-12 |
Washing Nos | 14 | 16 | 24 | 32 | 40 | 50 |
Filling Nos | 12 | 16 | 24 | 32 | 40 | 50 |
Capping Nos | 5 | 5 | 8 | 8 | 10 | 12 |
Capacity(BPH) | 3500 | 5000
| 8000 | 12000 | 15000 | 18000 |
Suitable bottle | Glass bottle and PET bottle | |||||
Bottle Volume | 150ml to 2.5Ltr (Customized) | |||||
Bottle diameter(mm) | Dia50-Dia115 | |||||
Bottle height | 160-320mm | |||||
Compress air pressure(Mpa) | 0.3-0.4 | |||||
Washing medium | Aspetic water | |||||
Rinsing pressure(Mpa) | >0.06 <0.2 | |||||
Filling temperature (℃） | 85～90℃ | |||||
Filling theory | Micro negative pressure filling | |||||
Application | Fruit juice hot filling machine | |||||
Total powder | 2KW | 2.2KW | 3KW | 4KW | 7.5KW | 7.5KW |
Measurement (mm) | 2360*1770*2700 | 2760*2060*2700 | 2800*2330*2700 | 4215*2960*2700 | 4360*3300*2700 | 5900*3300*2700 |
Weight | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg | 9500kg |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
RXGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml. Different models can satisfy the various output requirements from 1500B/H to 25000B/H.this machine incorporates rinsing, filling, and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperate by the primary motor’s frequency converter. It makes the process more stable and reliable. The photoelectric sensor is used to detect each section’s operating conditions, which makes the operation of this equipment highly automatic and convenient.
