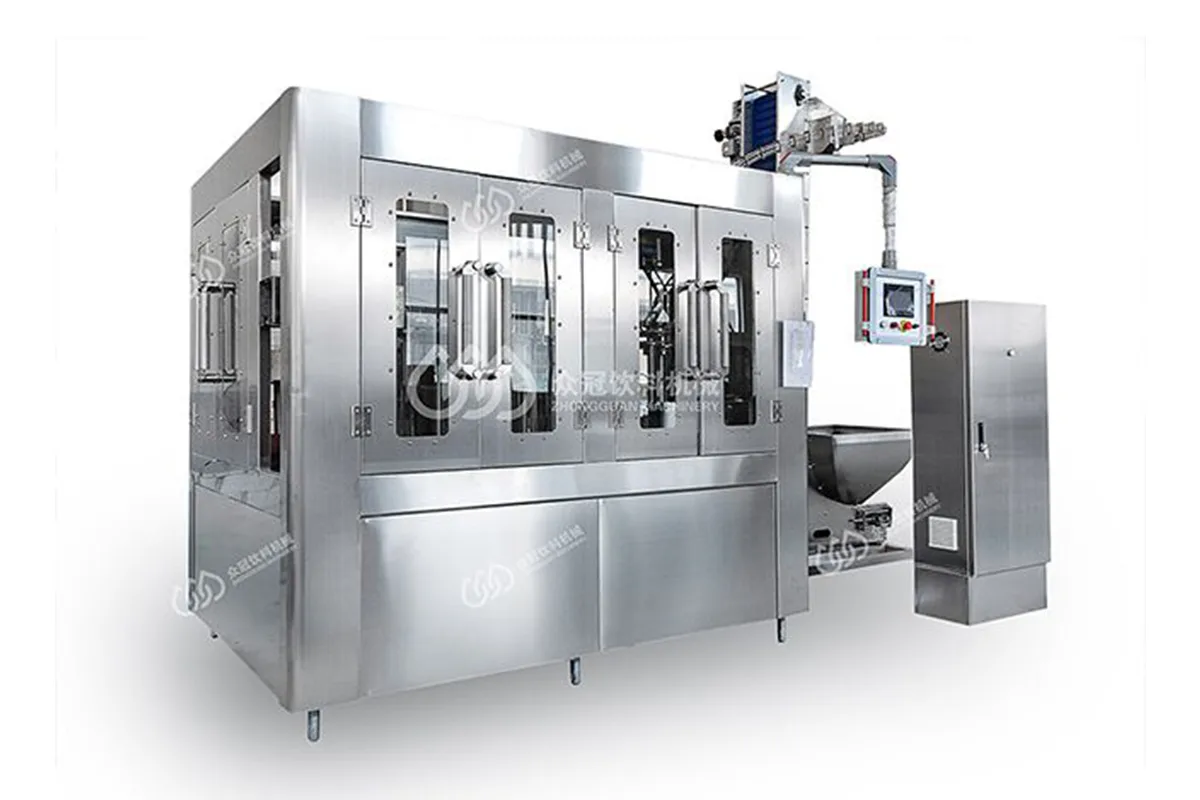

DXGF8-8-3 PET/Glass Bottle Carbonated Soft Drinks Beer Filling Machine/Machine To Make Carbonated Soft Drinks
The DXGF carbonated drink filling monoblock is used to fill carbonated drinks into plastic or glass bottles.Washing,filling,sealing can be carried out on the same machine.The design of the machine is scientific and reasonable.
Carbonated soft drink plastic bottle filling machine

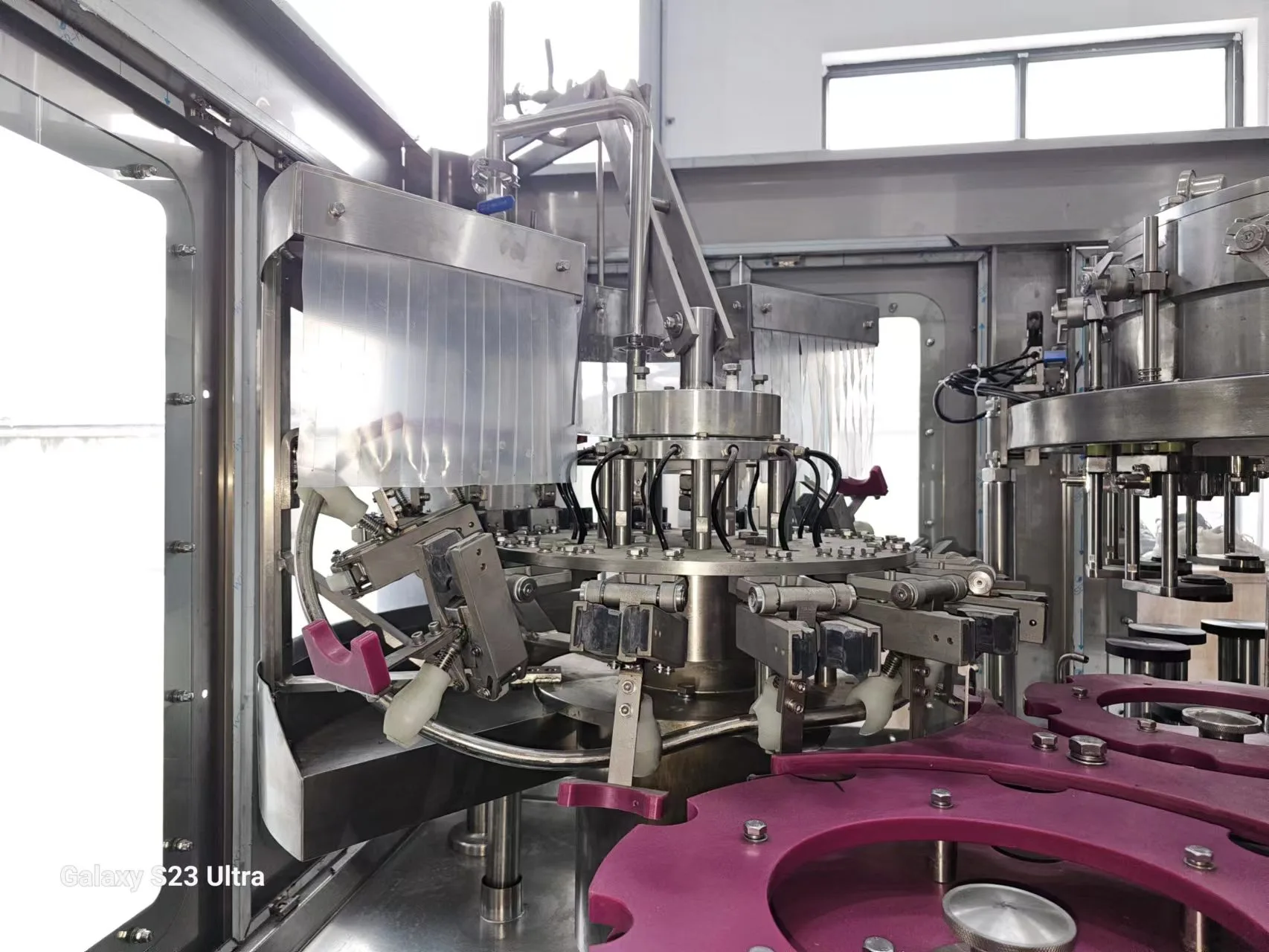

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps
The centering oriented adopts guide rod with special bottle neck holding
All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean
Isobaric filling , & filling smoothly & steadily
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304 stainless steel construction
No bottle no capping and Automatic stop when lack of bottle
Bear filling machine

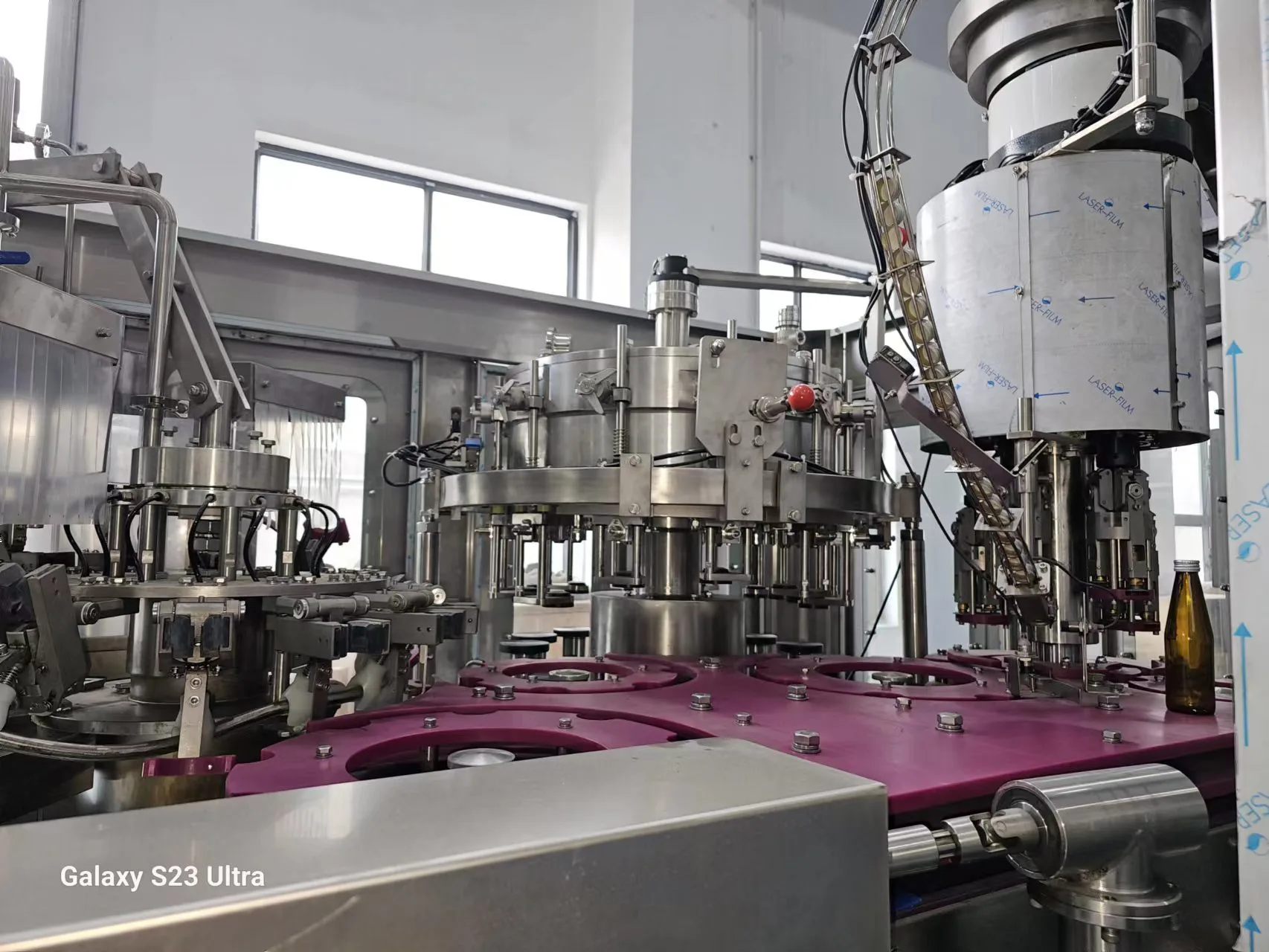

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BXGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
Rinsing time can be guaranteed for 4 seconds.
Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps
Project Name:Beer Filling Machine
Suitable bottle and cap
Glass bottle with crown cover
vacuum & isobaric filling
Beer filling machine
The Can beverage filling machine
Electric Part & Safe Device & Automation:
When accident system automatic stop & alarm
Emergency switch when accident
PLC control full-automatic working, inverter in-build, speed adjustable
Touch-screen Control Panel, easy operate
Famous Omron brand sensor & other electric parts adopted, ensure system heavy duty running
Machine Base & Machine Construction:
304 stainless steel frame
Excellent start wheel design, easy change over parts
Machine Base with anti-rust process, ensure the forever antirust
All seal where liquid may Leakage & base neck come with rubber, water proof
Manual lubrication system
High precision filling nozzle , ensure high filling precision & filling smoothly & steadily,
Isobar Pressure filling nozzles which ensure minimal loss of CO2 from the drink
All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean
Electromagnetic sealing heads
All 304stainless steel construction
No cans no sealing and Automatic stop when lack of sealer
PET Can,Aluminum Can ,Iron Can and so on
This carbonated beverage filling machine combines washing, filling, and rotary capping functions in one unit. It is fully automatic and high-efficiency liquid packing equipment. 2. carbonated beverage filling machine is suitable for packing beverages containing gas. Carbonated beverage filling machine’s performance follows all parts, such as filling valve, which directly contacts mediums made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber to meet users’ technique requirements to sterilize at high temperatures.
