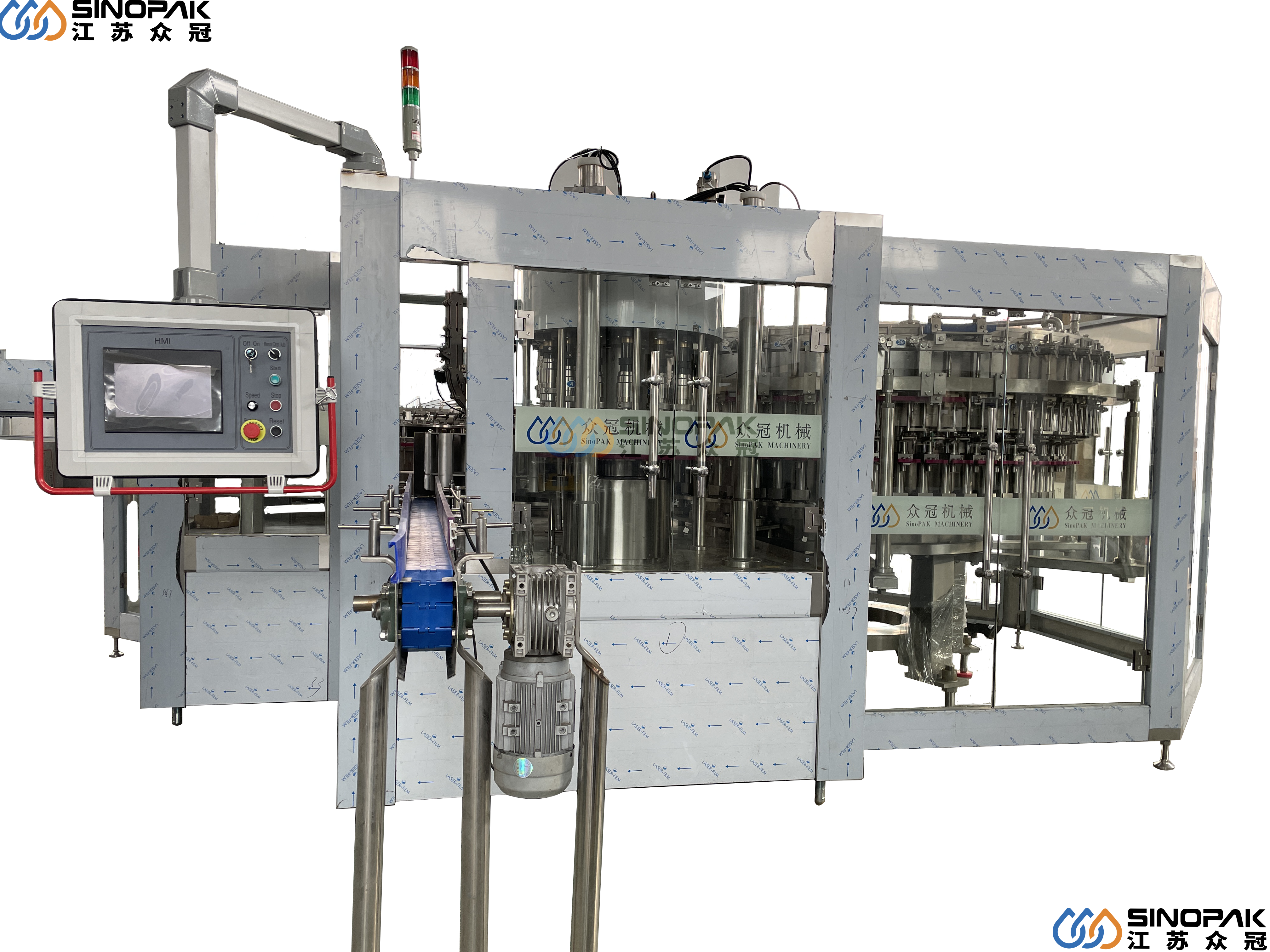

This machine is one cost-effective machine suitable for washing, filling and sealing bottled carbonated soft drinks.It is equipped the advanced device, electrical equipment, and pneumatic control technology. It is the first choice for customers who are just starting this business!
Main features :
1.Washing Part
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean, 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing, 304 stainless steel washing pumps
2.Filling part
Isobaric filling , & filling smoothly & steadily
The centering oriented adopts guide rod with special bottle neck holding
Filling temperature：0～４℃
All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean
3. Capping part:
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304 stainless steel construction
No bottle no capping and Automatic stop when lack of bottle
| Project Name: Carbonated Soft Drink Filling Machine | ||||||||
| Model | DXGF 14-12-5 | |||||||
| Washing Nos | 14 | |||||||
| Filling Nos | 12 | |||||||
| Capping Nos | 5 | |||||||
| Capacity(BPH) | 3500 | |||||||
| Suitable bottle and cap | PET circular or square with screw cap | |||||||
| Bottle Volume | 150ml to 2.5Ltr (Customized) | |||||||
| Bottle diameter(mm) | Dia50-Dia115mm | |||||||
| Bottle heighter | 160-320mm | |||||||
| Compress air pressure(Mpa) | 0.3-0.4Mpa | |||||||
| Washing medium | Aspetic water | |||||||
| Rinsing pressure(Mpa) | >0.06Mpa<0.2Mpa | |||||||
| Filling temperature | 0～４℃ | |||||||
| Filling theory | Isobaric filling | |||||||
| Total powder3 | 2.2KW | |||||||
| Dimension (meter) | 2.36*1.77*2.65M | |||||||
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
With our automatic blow molding machine, you can effortlessly create PET plastic containers and bottles in various shapes. It is widely utilized in the production of carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles.
This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine’s structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Designed for mass production packaging lines, the Pet Bottle Shrink Wrapping Machine is an automatic L-type sealing and cutting system. It can accommodate products of different widths and heights and features a contact function for efficient small product packaging.
Beverage CO2 mixer, used in the production of acidification and mixing of various gas contained beverages(water, syrup,Carbon dioxide), such as citric drink, coke, juice etc. aerated water, is the main equipment in a drink production line(especially the key equipment in the middle and high grade of drink production).
