Factory Price 3-in-1 Sparkling Gas Mineral Water Bottling Machine /Carbonated Drink Filling Equipment / Beer Filling Machine

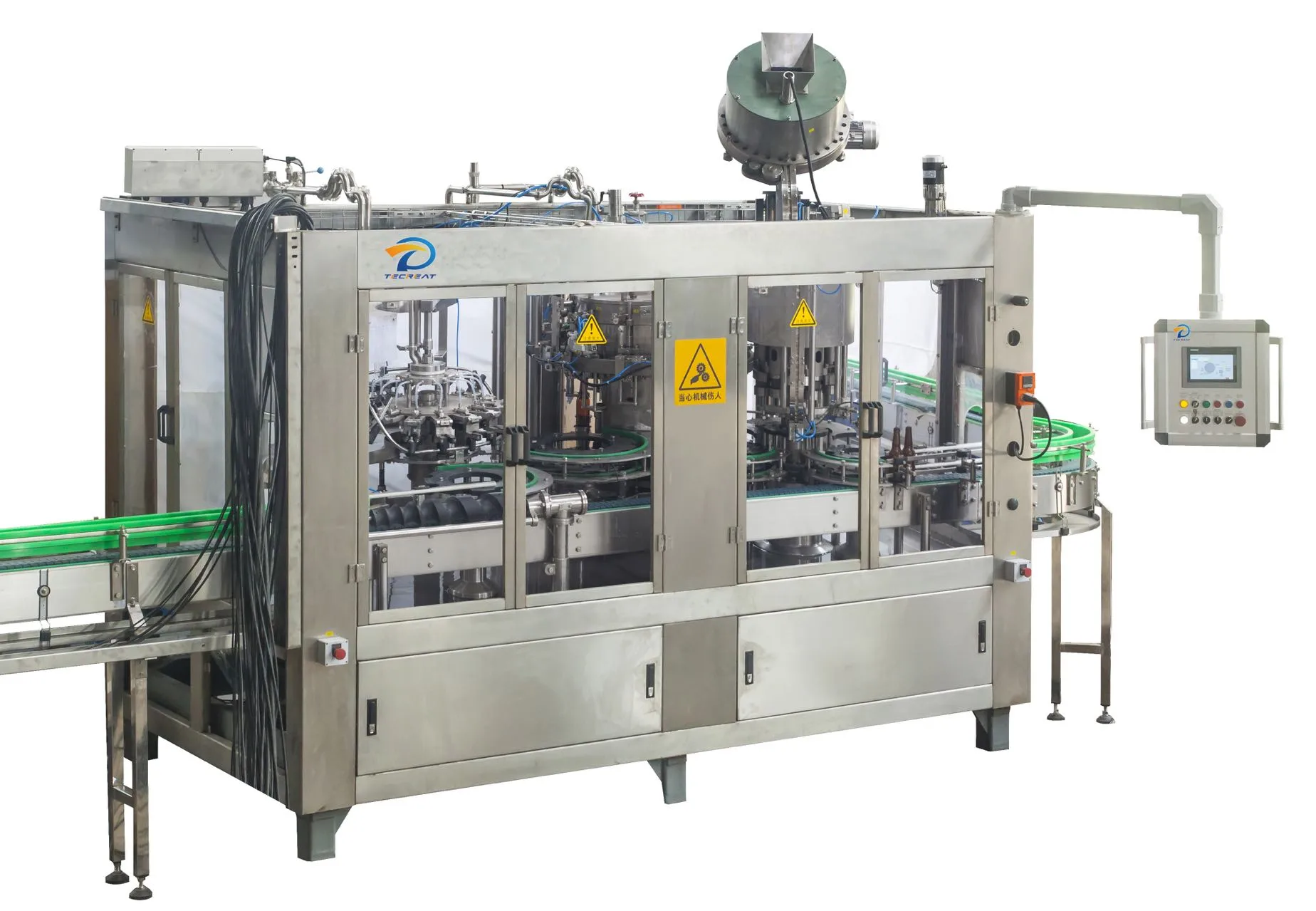

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BXGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Detailed Images
Machine Parameters
Main features :
- Washing Part
Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
Rinsing time can be guaranteed for 4 seconds.
- .Filling part
Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
Filler & Capping Machine drive system mainly consists of:
- Filling valve
Internal isobar filling valve
Working flowchart
- Capping part:
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
BXGF SERIES TRIBLOC RINSER FILLER CROWNER
- Suitable to filling: beer bottles filling, crown caps
- Container: 150ml to 1000ml glass bottles
- Filling Capacity: 1,000~12,000 bottler per hour
- Filling Style: isobar filling
- Filling Temperature: 0-4°C （cold filling ）
- Adopted 2 times deoxygenating system
- Crown Caps Capping System
- PLC control, full-automatic working
- Inverter adjustor, filling speed adjustable
- No bottles no filling, clash bottles auto remove, no bottle no capping
Model | Washing Heads | Filling Nozzle | Capping Heads | Dimension mm | Power kw | Capacity BPH |
BXGF 6-6-1 | 6 | 6 | 1 | 1750*1600*2350 | 1.2 | 500 |
BXGF 16-12-6 | 16 | 12 | 6 | 2450*1800*2350 | 2 | 3000 |
BXGF 24-24-6 | 24 | 24 | 6 | 2780*2200*2350 | 3 | 6000 |
BXGF 32-32-10 | 32 | 32 | 10 | 3600*2650*2350 | 4.7 | 8000 |
BXGF 40-40-10 | 40 | 40 | 10 | 3800*2950*2350 | 7.5 | 12000 |
BXGF 50-50-12 | 50 | 50 | 12 | 5900*3300*2350 | 9 | 15000 |
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications

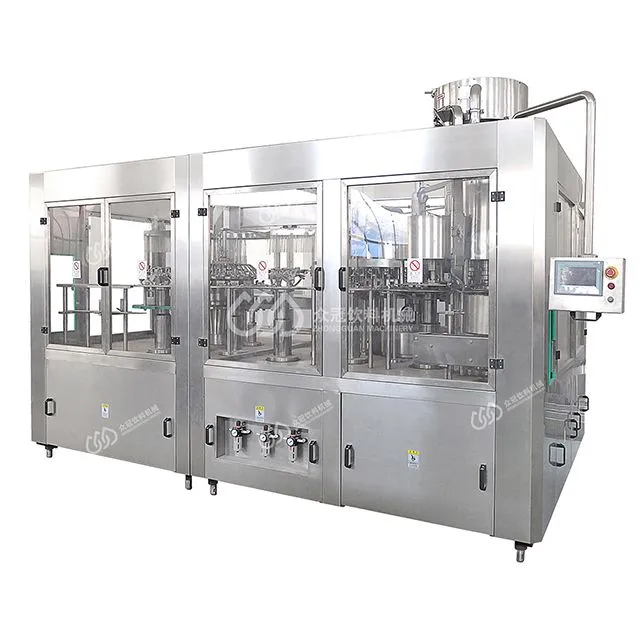

This carbonated beverage filling machine combines washing, filling, and rotary capping functions in one unit. It is fully automatic and high-efficiency liquid packing equipment. 2. carbonated beverage filling machine is suitable for packing beverages containing gas. Carbonated beverage filling machine’s performance follows all parts, such as filling valve, which directly contacts mediums made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber to meet users’ technique requirements to sterilize at high temperatures.
