XGF16-16-5 8000BPH Automatic Plastic Bottle Water Washing Filling Capping 3-in-1 Machine Drinking Water Production Complete Line

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L.

Video

Detailed Images

Machine Parameters

Filler Station :

1.High precision filling nozzle, PLC variable signal control, ensure high filling precision

2.Gravity filling, & filling smoothly & steadily

3.All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

4.No bottle no filling

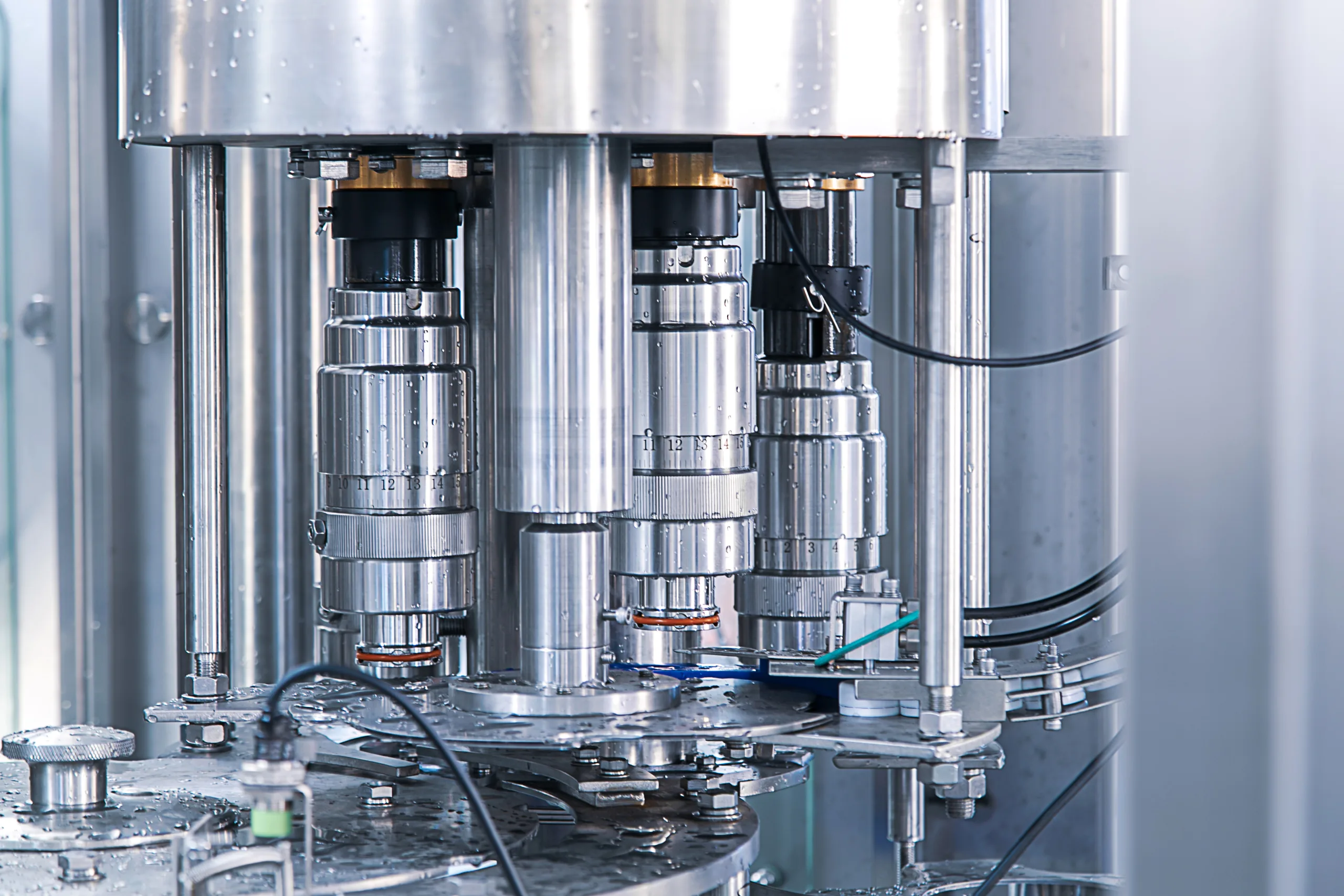

Capper station :

1.Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2.All 304 stainless steel construction

3.No bottle no capping and Automatic stop when lack of bottle

Project Name: Drinking Water Filling Machine
Model XGF 16-16-5
Washing Nos 16
Filling Nos 16
Capping Nos 5
Capacity(BPH) 8000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 2.2KW
Dimension  (meter) 3.38*2.58*2.75M

Production Lines Flow Chart

Water treatment system

Water treatment system

By utilizing our water purification machine, we efficiently treat fresh water, resulting in the production of high-quality pure, drinking, and mineral water. Our state-of-the-art manufacturing facility is equipped to produce various types of water, including drinking water, mineral water, pure water, and potable water. We source water from a diverse range of bodies, including groundwater, mountain springs, rivers, wells, brackish water, and lakes. The primary focus of our water treatment operations lies in working with raw water sources such as boreholes, rivers, wells, mountain springs, lakes, and more. These sources form the core of our water treatment processes.

View Details
Blow molding system

Blow molding system

Designed to accommodate PET plastic bottles of all shapes, our system provides a comprehensive bottle molding solution tailored to meet various capacity and shape requirements, complemented by a complimentary design service. Our capabilities span bottle sizes ranging from 100ml to 20L, with the flexibility to handle capacities ranging from 1000 to 20,000 bottles per hour.

View Details

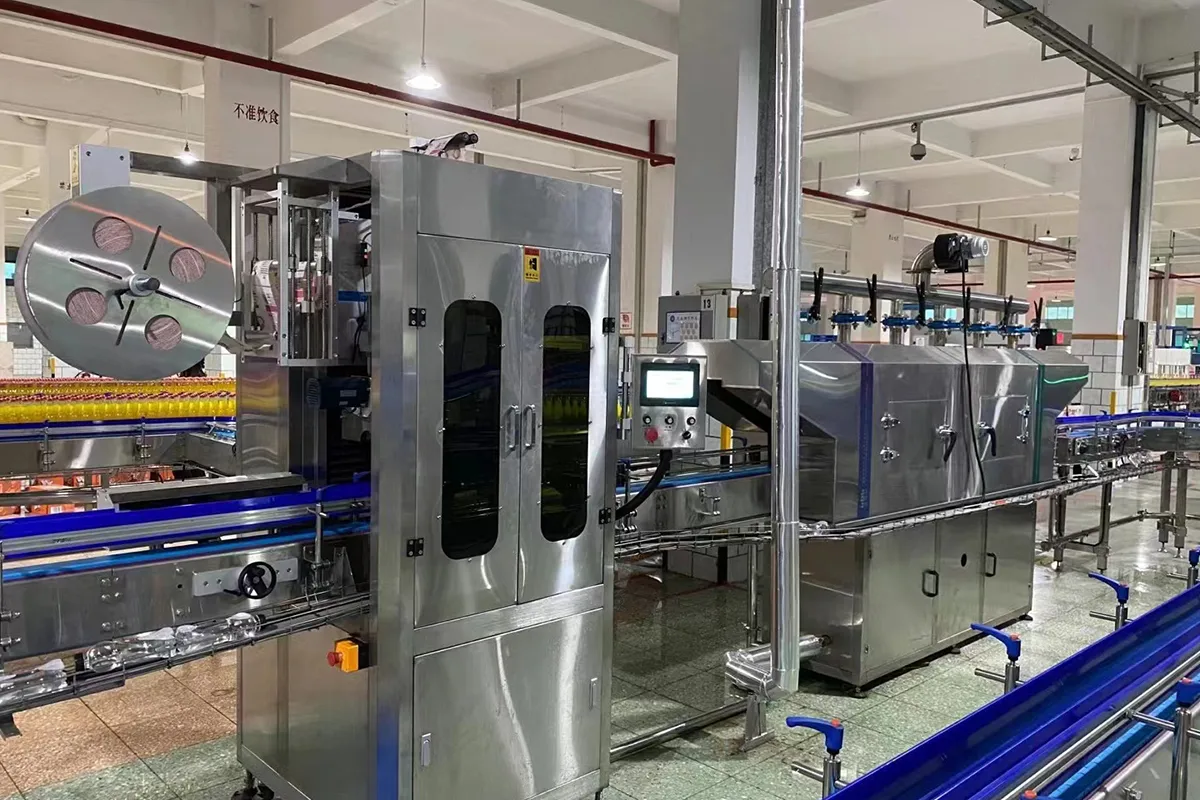

Automatic labeling machine

Automatic labeling machine

This recently launched series of automatic tunica-shrinkage labeling machines represents an innovation incorporating international advanced technology. The machines are constructed using high-quality stainless steel and abundant aluminum alloys to streamline the structure for easy handling. The user-friendly touch screens integrated into the control circuits are easy to learn and operate. Thanks to a novel design concept and outstanding circuit design, adjustments on numerous equipment components are minimized, resulting in a significant enhancement of production speed and label cutting precision.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for mass production packaging lines, this system is designed to accommodate products of varying widths and heights. Additionally, it incorporates a contact function specifically designed to enhance the efficiency of packaging smaller products.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
