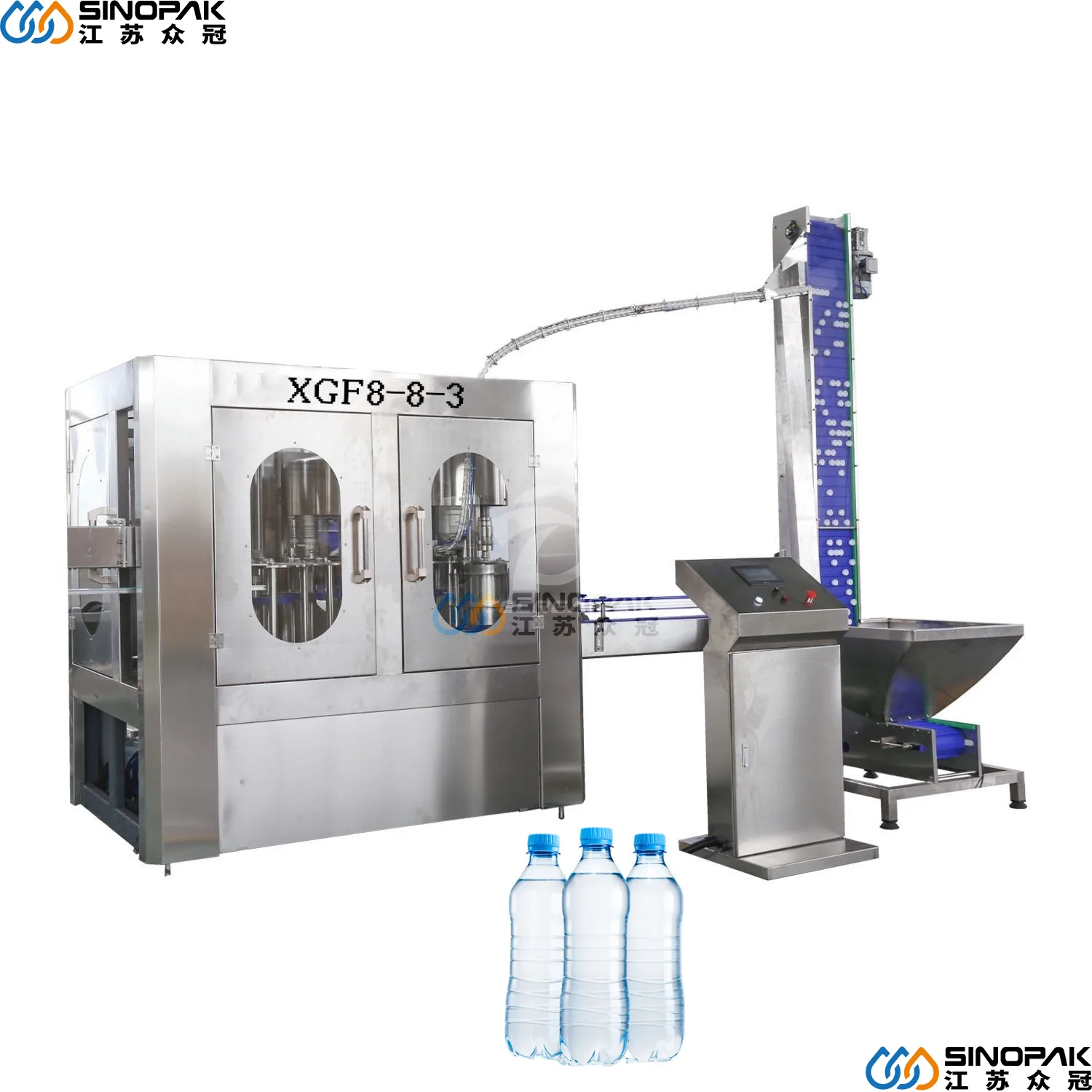

XGF8-8-3 2000BPH Complete Automatic Pure Bottled Water Filling Bottling Production Line

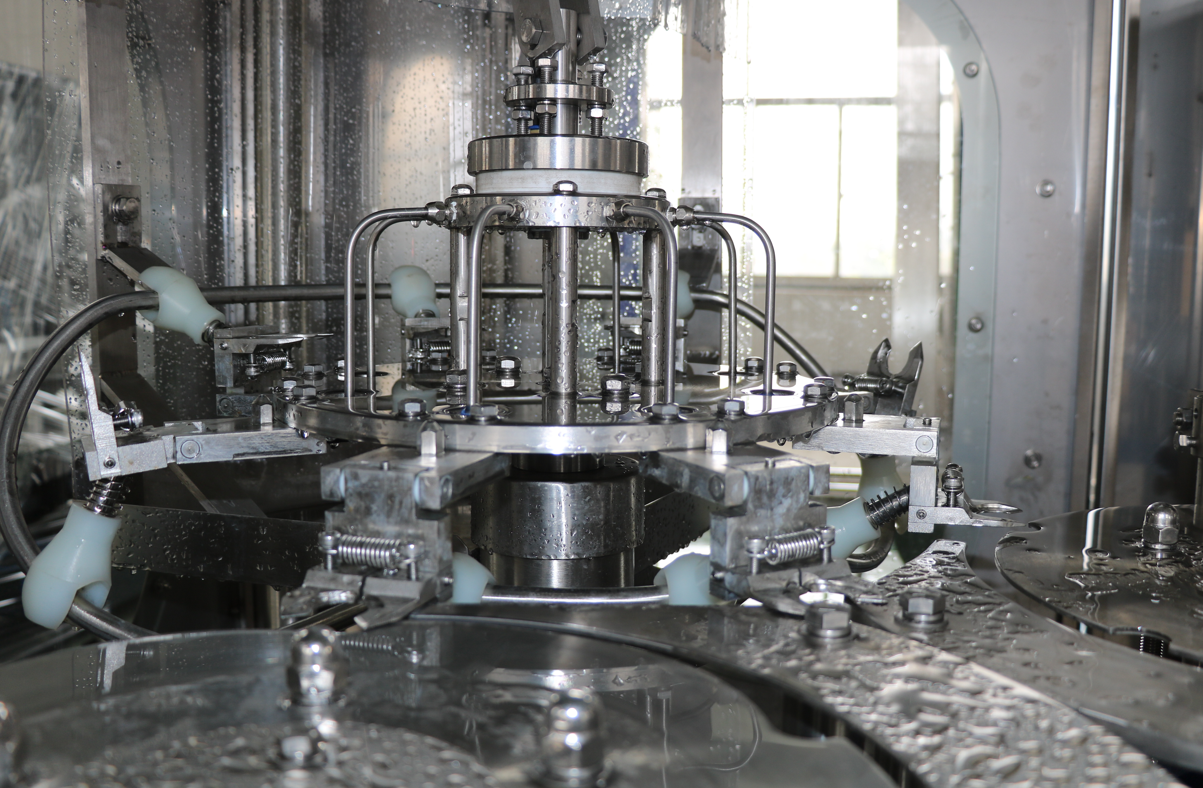

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process. This machine is used to fill still water into pet bottle and with screw caps capping function. This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles.

Video

Detailed Images

Machine Parameters

Filler Station :

1.High precision filling nozzle, PLC variable signal control, ensure high filling precision

2.Gravity filling, & filling smoothly & steadily

3.All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

4.No bottle no filling



Capper station :

1.Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2.All 304 stainless steel construction

3.No bottle no capping and Automatic stop when lack of bottle

Project Name: Drinking Water Filling Machine
Model XGF 8-8-3
Washing Nos 8
Filling Nos 8
Capping Nos 3
Capacity(BPH) 8000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 1.5KW
Dimension  (meter) 2.0*1.5*2.5M

Production Lines Flow Chart

Water treatment system

Water treatment system

With our water purification system, we have the capability to efficiently treat fresh water, producing high-quality drinking water with essential minerals. Our production facility is equipped to create potable water, mineral water, pure water, and drinkable water, sourced from diverse water bodies such as groundwater, mountain springs, rivers, wells, brackish water, and lakes. Our water treatment operations revolve around various raw water sources, including boreholes, rivers, wells, mountain springs, lakes, and more.

View Details
Blow molding system

Blow molding system

The equipment offers the flexibility of operating in both step-by-step mode and semi-auto mode. The semi-auto blowing machine, characterized by its compact size, requires minimal investment, and is user-friendly and safe to operate.

View Details
Automatic labeling machine

Automatic labeling machine

This latest line of automatic tunica-shrink labeling machines represents a recent introduction incorporating cutting-edge international technology. These machines feature a construction optimized through the extensive use of high-quality stainless steel and aluminum alloys, resulting in a streamlined structure that is easy to handle. The user-friendly touch screens integrated into the control circuits are easy to understand and operate. With a fresh design approach and superior circuit design, adjustments on various components are minimized, leading to a significant enhancement in label cutting precision and production speed.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for high-volume packaging lines, this system is engineered to handle a diverse range of products with varying widths and heights. Additionally, it incorporates a contact function, optimizing the efficiency of packaging for smaller-sized products.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
