XGF10-8-4 Plastic Barrel Washing Filling Capping Machine For 5 To 20 L
As a professional China barrel filling machine,10L water filling machine expert, we provide rotary type barrel filling machine washer filler caper machine.
- The whole filling speed ranges from 100BPH to 2000BPH.
- Filling the pure water or the mineral water in 3 or 5 gallons.
- The series of machine integrate rinsing, contain rinser-filler-capper monoblock, automatic loading machine, bottle outside washer, bottle inside washer, decapper, heating shrink tunnel, conveyor system, complete line control system.
- The one unit main machine includes the washer, dryer, filler and capper for the production of 3-5 gallon barreled drinking water. The washing process includes alkaline liquid inside and outside washing by dirty remover! inside and outside washing by disinfecting water inside and outside washing by pure water, the alkaline and disinfecting water can be used cyclically. The whole Washing, filling and sealing price is controlled by PC, and has the safe device for interlock, signal and self-detection.

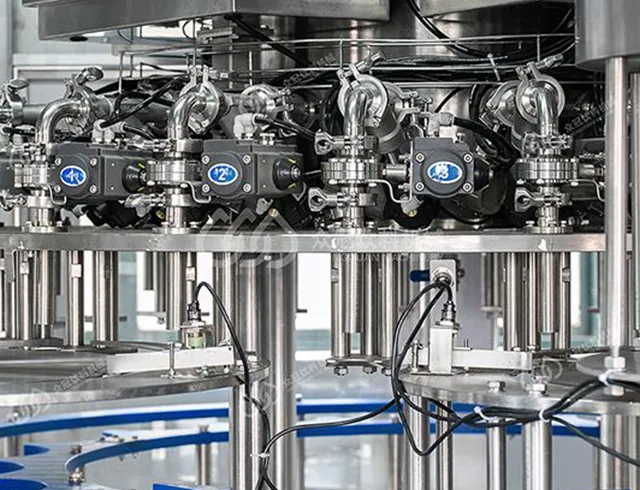

Detailed Images
Machine Parameters
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 6 | 12 | 14 |
Volume(Gallon) |
From 3 to 5 gallon | ||||||
Barrel size(mm) |
Dia270*490 | ||||||
Capacity(BPH) | 100 | 300 | 450 | 600 | 900 | 1200 | 2000 |
Gas consumption(m3/hr) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 | 1.8 |
Powder(KW) | 1.4 | 4 | 4 | 7.5 | 10 | 16 | 16 |
Weight(kg) | 500 | 1500 | 2100 | 3000 | 4300 | 6000 | 6000 |
Filling part :
- The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
- High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
- Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling .
- Butterfly type liquid bowl, with automatic water level controller.
- If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.
Filling part :
- The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
- High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
- Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling .
- Butterfly type liquid bowl, with automatic water level controller.
- If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.
Our Services
RXGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml. Different models can satisfy the various output requirements from 1500B/H to 25000B/H.this machine incorporates rinsing, filling, and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperate by the primary motor’s frequency converter. It makes the process more stable and reliable. The photoelectric sensor is used to detect each section’s operating conditions, which makes the operation of this equipment highly automatic and convenient.
