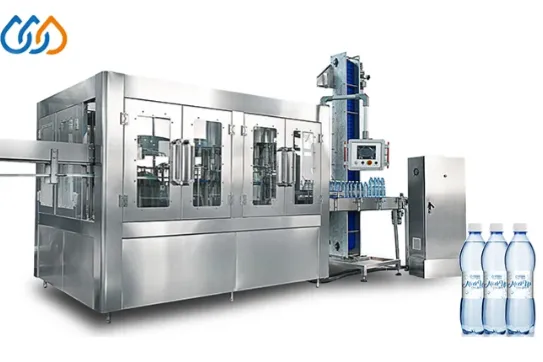

2000BPH PET Bottle Mineral Water Filling / Bottling Plant / Production Line Turnkey Project Factory Supplier

The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.

Video

Detailed Images

Machine Parameters

Filler Station :

1.High precision filling nozzle, PLC variable signal control, ensure high filling precision

2.Gravity filling, & filling smoothly & steadily

3.All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

4.No bottle no filling



Capper station :

1.Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2.All 304 stainless steel construction

3.No bottle no capping and Automatic stop when lack of bottle

Project Name: Drinking Water Filling Machine
Model XGF 8-8-3
Washing Nos 8
Filling Nos 8
Capping Nos 3
Capacity(BPH) 8000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 1.5KW
Dimension  (meter) 2.0*1.5*2.5M



Production Lines Flow Chart

Water treatment system

Water treatment system

In our water purification system, we have the capability to efficiently treat fresh water, producing clean, potable, and mineral-rich water. Our state-of-the-art manufacturing facility is equipped to produce a variety of water types, including drinking water, mineral water, pure water, and potable water. We source water from diverse bodies such as groundwater, mountain springs, rivers, wells, brackish water, and lakes. Our water treatment operations encompass a wide range of raw water sources, including boreholes, rivers, wells, mountain springs, lakes, and more. This comprehensive approach forms the foundation of our commitment to delivering high-quality purified water across various specifications.

View Details
Blow molding system

Blow molding system

The equipment offers versatile operation modes, allowing users to choose between the step-by-step mode and the semi-auto mode. The semi-automatic blowing machine is characterized by its compact size, making it a cost-effective option with low initial investment requirements. Operating this machine is both easy and safe, providing a user-friendly experience for efficient production.

View Details
Automatic labeling machine

Automatic labeling machine

These state-of-the-art tunica-shrinkage labeling machines represent a new generation incorporating cutting-edge international technology. The machines feature a robust construction using high-quality stainless steel and aluminum alloys, ensuring structural rationalization and easy handling. The user-friendly touch screens implemented in the control circuits are designed for easy learning and operation. With innovative design concepts and superior circuit design, these machines minimize adjustments on various components, resulting in significantly improved production speed and precision in label cutting.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for high-volume packaging operations, this machine is versatile, capable of handling products with varying widths and heights. Additionally, it incorporates a contact function, optimizing the efficiency of packaging smaller products.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
