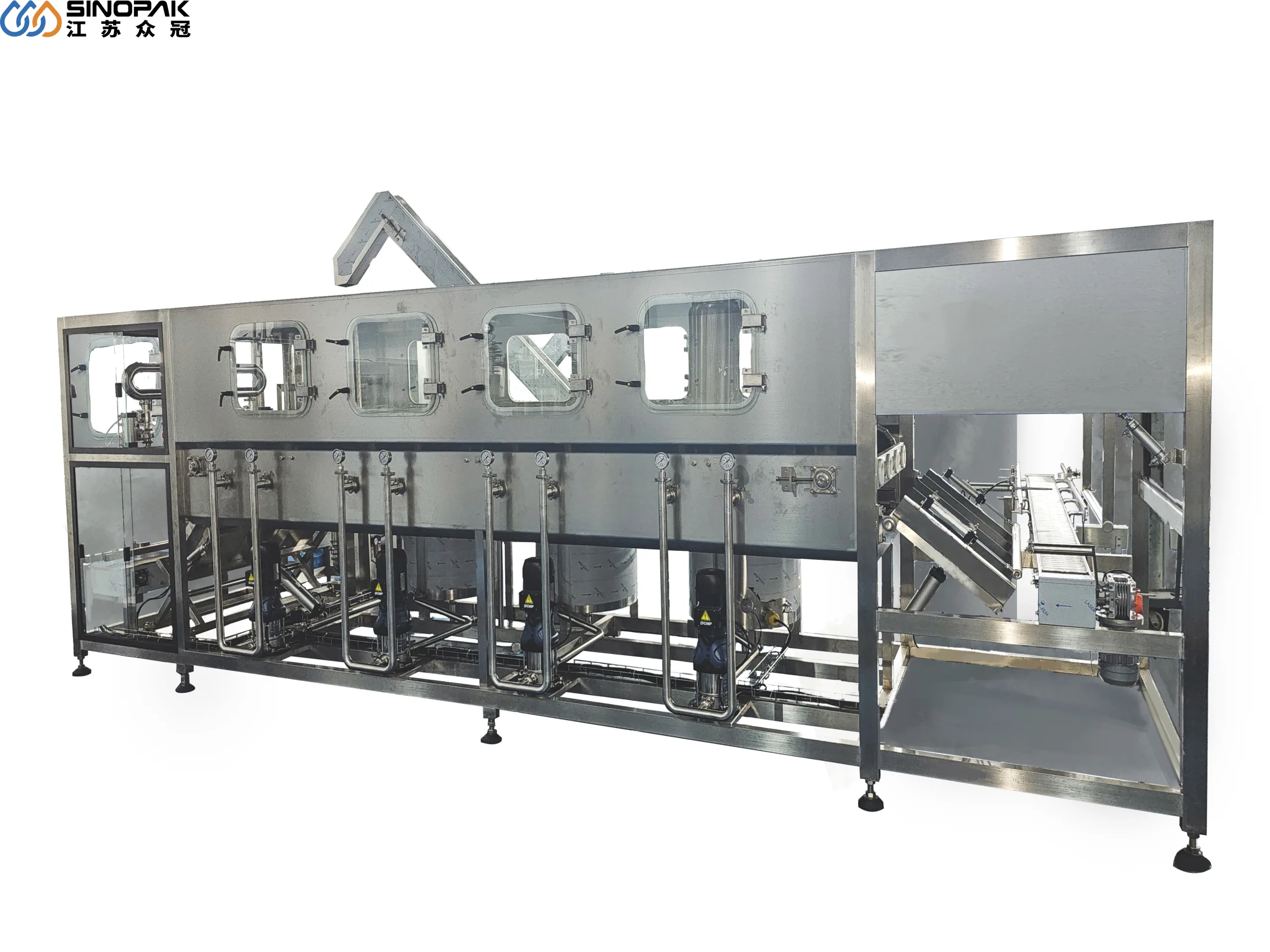

3-5 Gallon water filling machine

This machine series is a comprehensive solution that seamlessly integrates a range of essential functions. It includes rinsing, a rinser-filler-capper monoblock, an automatic loading machine, exterior bottle washing, interior bottle washing, decapping, a heating shrink tunnel, a conveyor system, and a complete line control system.

The primary machine unit combines the key processes of washing, drying, filling, and capping to produce 3-5 gallon barrels of drinking water. The washing sequence consists of multiple stages: first, an alkaline solution is used for both interior and exterior washing to remove contaminants. Then, the bottles undergo disinfection with treated water, followed by a final rinse with pure water. The alkaline and disinfecting water are reused in a closed-loop system for efficiency. The entire process of washing, filling, and sealing is meticulously controlled by a PC and incorporates safety features for interlocking, signaling, and self-detection.

Video

Detailed Images

Machine Parameters

Main features :

  1. The whole process is controlled by a computer or PLC with a high degree of automation.
  2. Optional Internet-ready smart plant management software collects, transmits, stores, counts and analyzes real-time data, making remote control and digital production management easy.
  3. Optimized technology reduces operating costs by reducing the consumption of water, electricity, and chemical materials.
  4. The entire line is designed to fully comply with food safety quality regulations, avoiding dead spots, dead ends, static liquids, threaded joints, etc.
  5. Extensive use of adapters, manholes, valves, etc. ensures the safety and easy maintenance.
  6. The combination of proven technology and constant innovation ensures stability and reliability.
Technical parameter :3 -5gallon water filling machine
Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Capacity (for 5 gallon) 60-150bph 300bph 450bph 600bph 900bph 1200bph
Bottle volume 3 & 5 Gallon
Compressor air 0.3-0.7Mpa
Air consumption 0.37 m3/min
Rinsing pressure >0.06Mpa <0.2Mpa
Application 3 gallon water filling machine
Total power (KW) 1.5kw 3.8kw 4.5kw 5.2kw 6.2kw 7.8kw
Overall dimensions 2.3*1.9m 2.5*1.9m 2.8*2.15m 3.1*2.5m 3.8*2.8m 4.5*3.3m
   Height 1.8m 2m 2.2m 2.3m 2.5m 2.6m
Weight(kg) 800kg 1500kg 2000kg 2500kg 2800kg 3500kg

Production Lines Flow Chart

Automatic De-capping Machine Barrel Cap Puller For 5 Gallons Barrel

Automatic De-capping Machine Barrel Cap Puller For 5 Gallons Barrel

Automatic de-capper is the professional equipment for 5 gallon water filling line, especially the filling line that use recycle barrel. It enhances work efficiency remarkably, reduce secondary pollution from manual de-capping greatly and lower labor intensity. The machine is made of stainless steel which is corrosion resistant and easy cleaning. The pneumatic parts are from the famous brand AIRTAC

View Details
Barrel Outside Washer Machine Suit For Recyclable Plastic Barrel Of Water

Barrel Outside Washer Machine Suit For Recyclable Plastic Barrel Of Water

Full Automatic out side Brushing Machine is affiliated production facility for three & five gallons barrel packing production line. For 5 gallons barrel opening and the body of barrel can be brushed. It is especially suitable for producing mineral water, it can effectively eliminate sediment and alga caused by mineral. This machine brushes the bottom, outside surface and inside surface of the barrel, so washing and cleaning effect can be obviously increased. It can greatly reduce second pollution caused by manual brushing and can reduce works labor stress.

View Details
Palletizer machine

Palletizer machine

This machine is auxiliary machine for the final step packaging in 3-5 gallong water production line ,It reduces labor costs.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
