Carton box packaging machine 10,000 boxes per hour

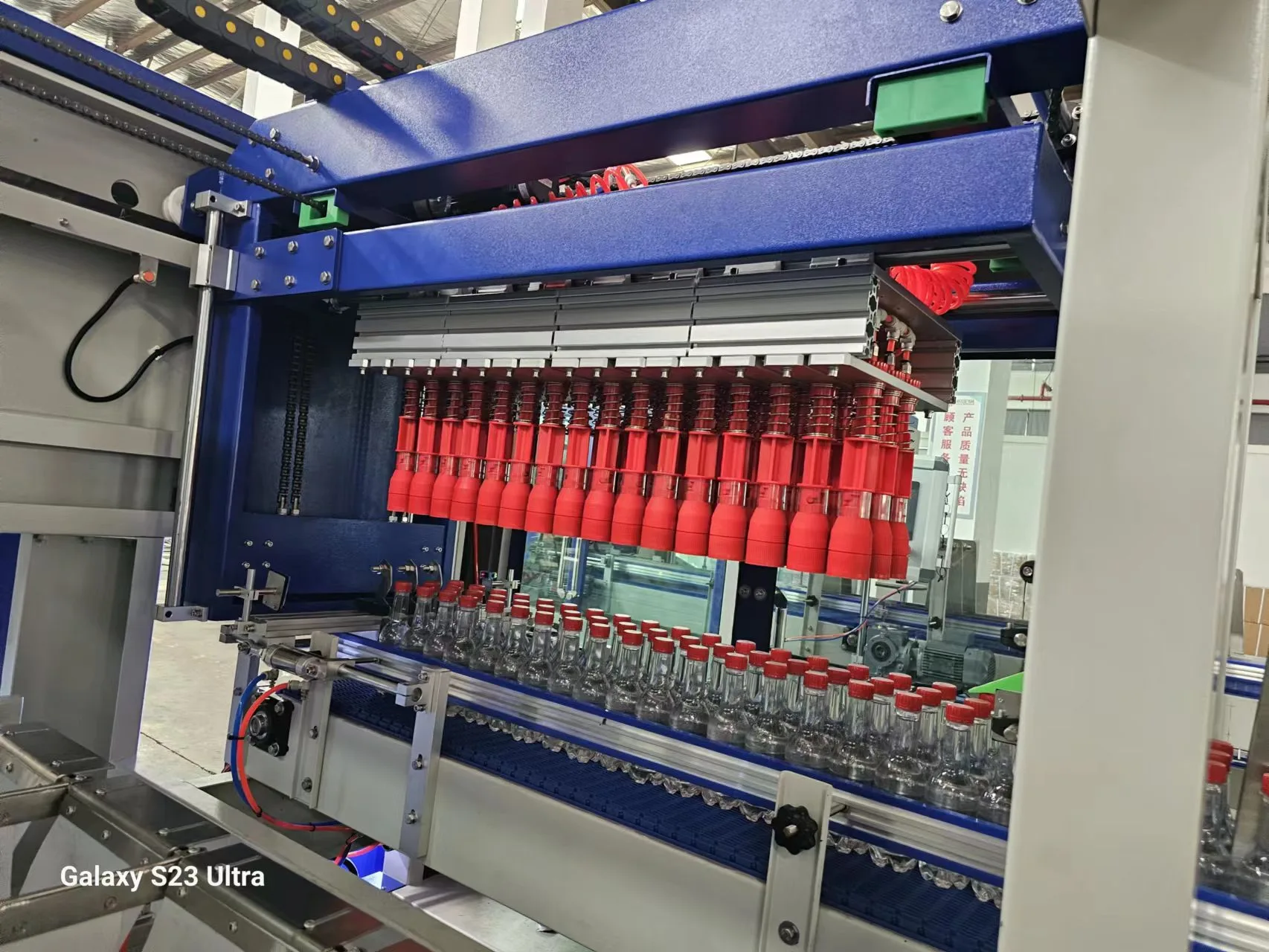

This series pick-place carton packing machine is used for grasping and placing bottles by air inflation and deflation. Through the mechanical operation, pneumatic and electric control, the bottles are accurately and steadily loaded into the carton from the conveyor belt.

Video

Detailed Images

Machine Parameters

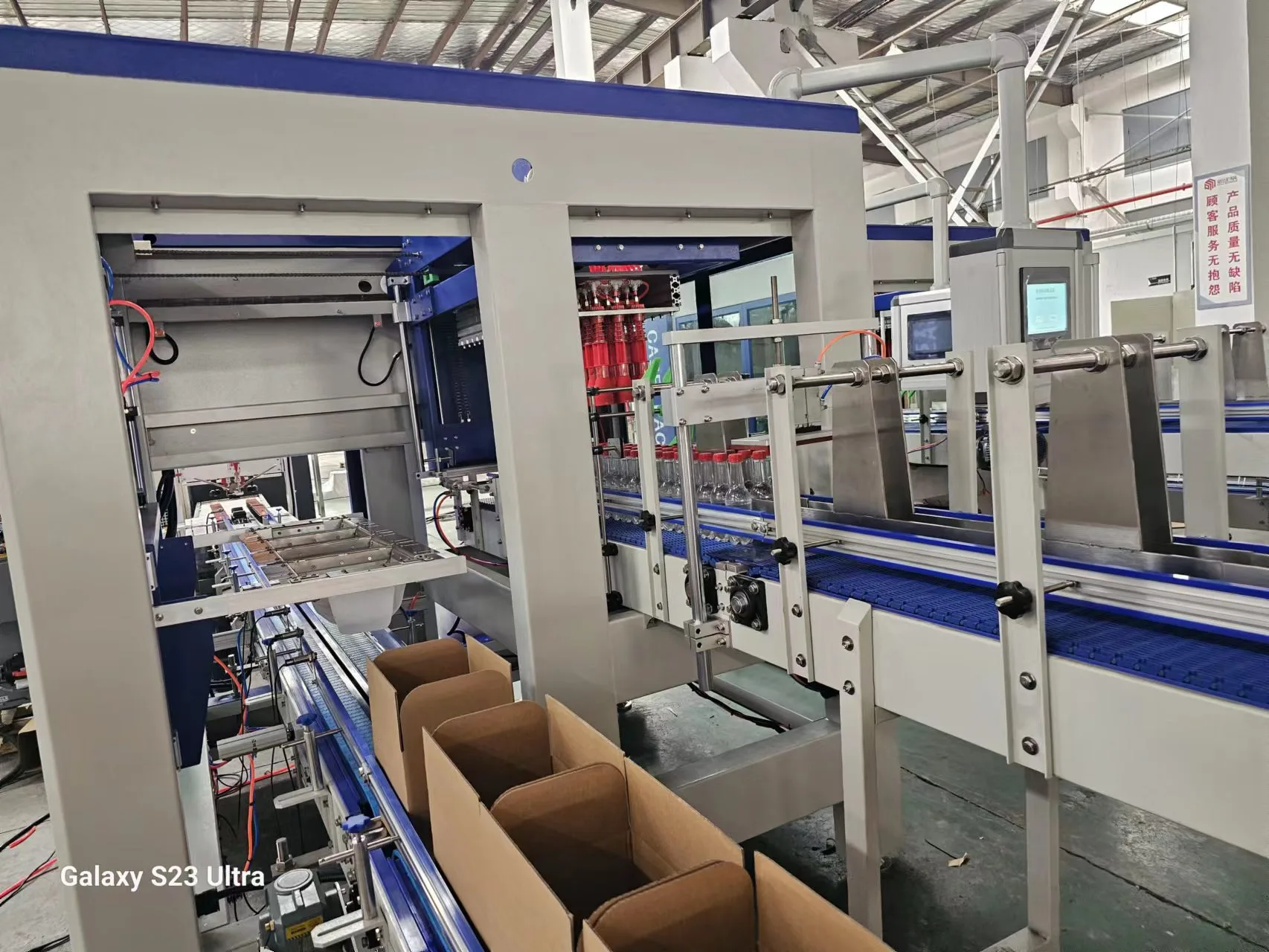

According to customer requirements for product packaging, the product feed for accurate whole column grouping, while underlying pre-sync to the product carton boxes preset position, and then by the lifting mechanism rear jacking good product grouping randomly fall into cartons, lifting mechanism automatically drops to a horizontal position and the outlet conveyor, cartons output by the transport section; each part of the linkage is adjusted by the electric air control to simultaneously ensure that each group of products can be accurate and effective automatic packing and output. Application: Fields of food, beverage, pharmaceutical, cosmetic, chemical, and other. Common to all types of PET bottles, cans, Pak packaging.

Main features :

1. Adopt international advanced technology, use imported components and parts, electric components.

2. According to carton’s size, automatically adjust the different cartons’ height and width.

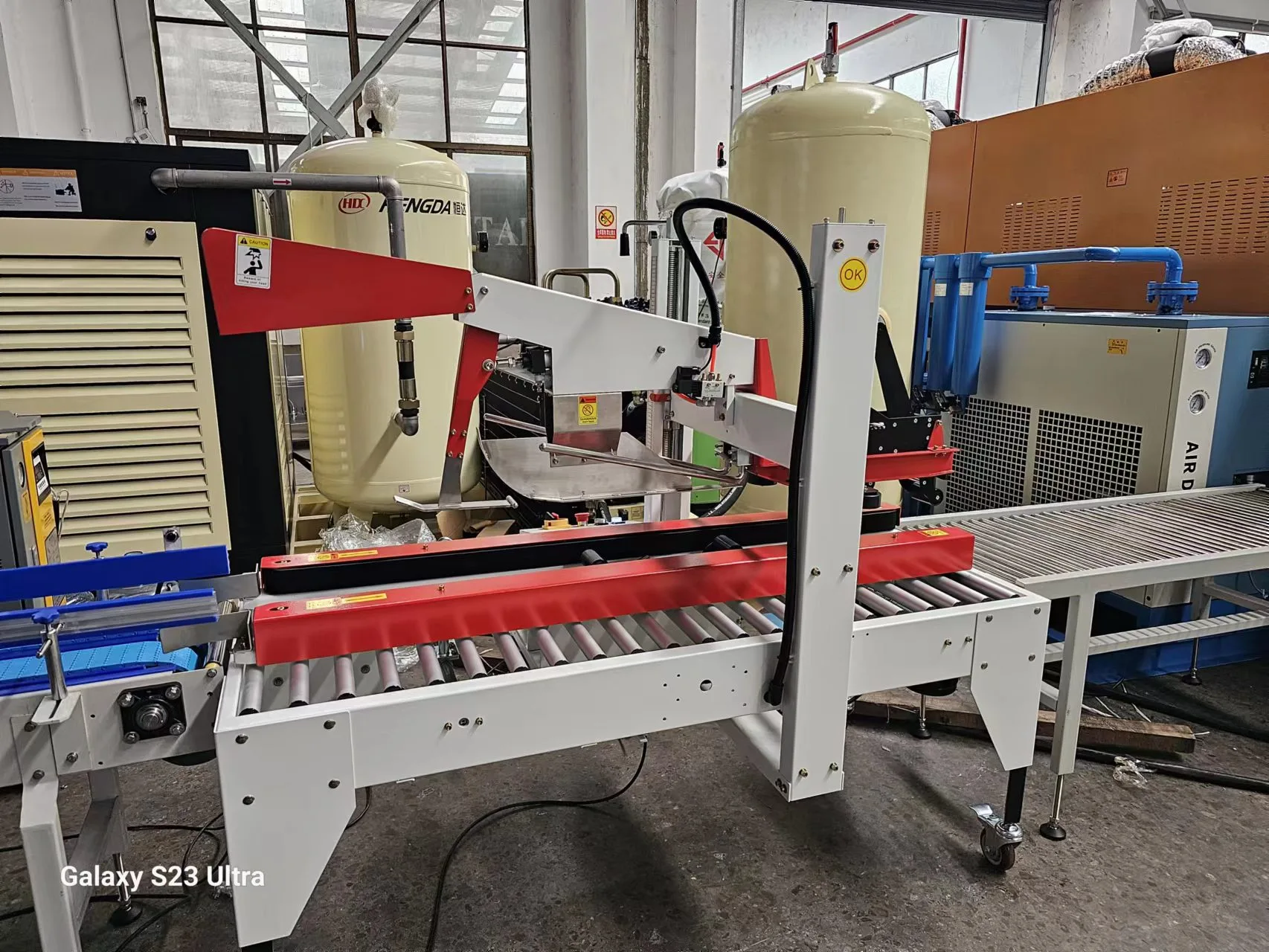

3. Automatically fold carton up cover, up and down automatically paste adhesive tape, economic and fast and smooth and steady.

4. Add the knife protection device,avoid the accident if operate error.

5. Operate easy and convenient, can run separately and can also connect with the automatic packaging line.

Model: SKT-12 SKT-25 SKT-35
Speed: 10~15cartons/min 21~28cartons/min 30~35cartons/min
Applicable Products: Various Bottles, Cans, Cups etc Products
Main Supply Power: About 3.5KW About 4.5KW About 7KW
Voltage: 220V/380V,3Phase, 50Hz/60Hz
Air Consumption: 0.9m3/h 1.2m3/h 1.5m3/h
Air Pressure: 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa
Working Noise: ≤75db ≤75db ≤80db
Machine Weight: About 1250KG About 1550KG About 1750KG
Machine Dimension: 2200*1700*2250mm 2500*1800*2300mm 2800*1800*2300mm

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
