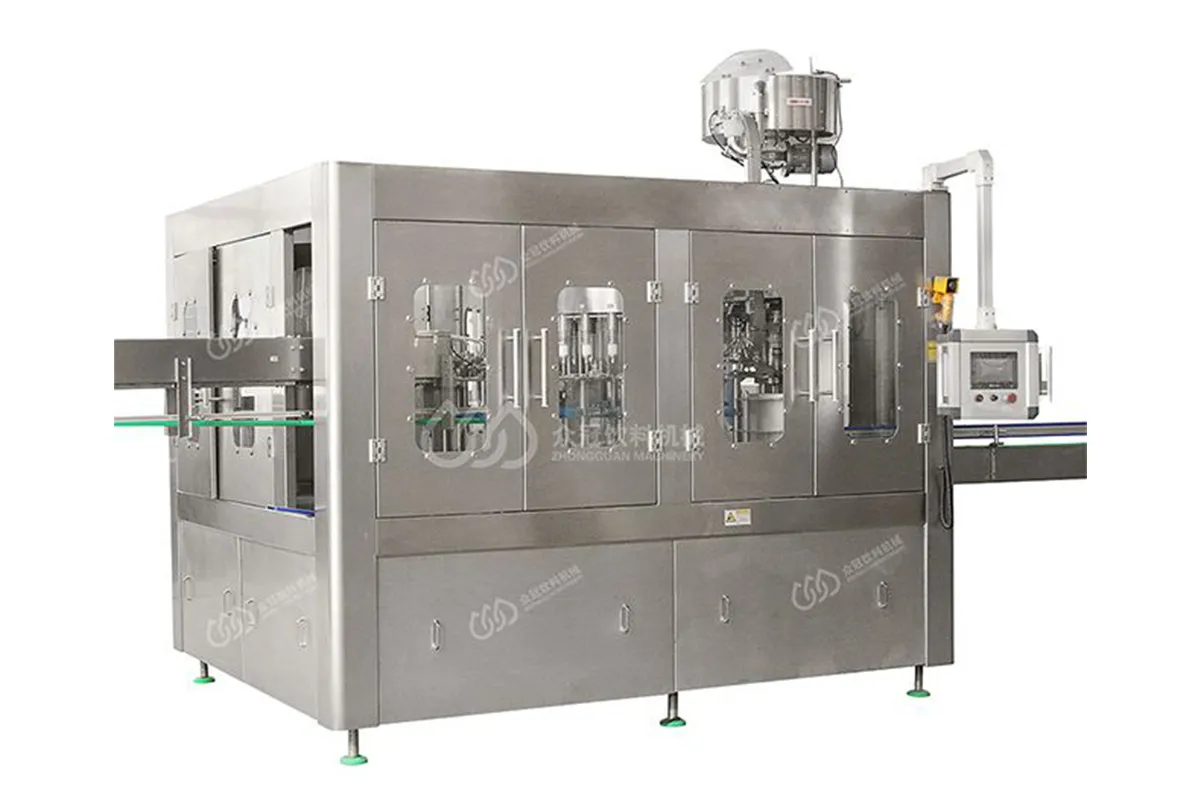

Bear filling machine:

This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled beer. The BXGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Washing Part:

Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
Rinsing time can be guaranteed for 4 seconds.

Filling part:

Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

Capping part:

Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps
