Competitive Price Full Automatic Bottle Blow Molding Machine Blowing PET with New Technology

Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

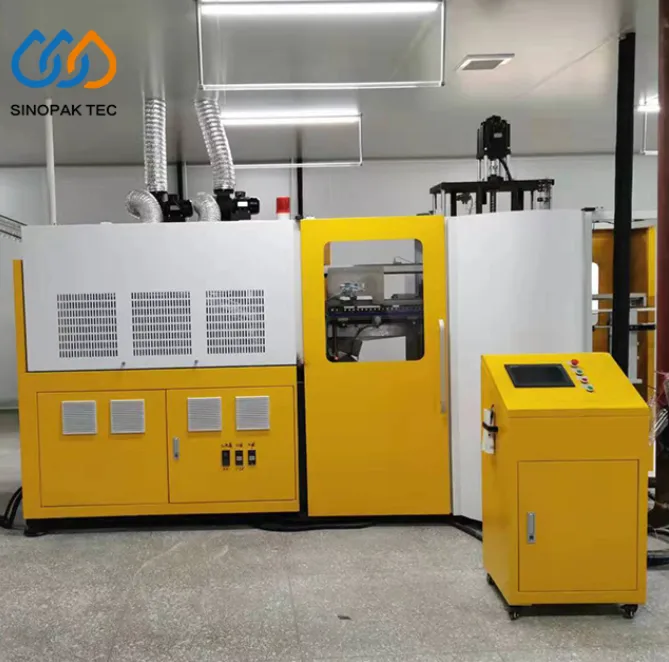

Detailed Images

Machine Parameters

Main features :

1.Easy to operate, just need feeding preform, other work is automatic.

2.Suitable for hot filling, PP, PET bottle blowing

3.Suitable for different preform neck size, it can change preform jigs very easily.

4.Mold replacement very easily.

5.Oven design in reasonable, adopt blowing-type, water cooling, air cooling all have. Suitable for hot environment to work, the preform neck can’t distortion.

6.The heating lamp adopt infrared quartz lamp, not easy to damager, it is different than semi-auto blowing machine lamp. So it no needs frequently to change lamp. The lamp life is long, even it is broken, it can use also.

7.Our hand feeding stretch blow molding machine can add autoloader+manipulator to became fully automatic.

8.Our machine is more safety and stabilization.

9.Our clamping unit adopts clooked arm configuration self-lubricating system. So very stabilization and no noise.

Model

BL-Z2

BL-Z4S

BL-Z6S

BL-Z8S

Cavities

2

4

6

8

Capacity(BPH)

2000

4000

6000

8000

Bottle volume

100ml-2L(customized)

Body Diameter

<100mm

Max Bottle Height

<310mm

Powder

25KW

49KW

73KW

85KW

Hp air compressor

2.0m³/min

4m³/min

6m³/min

8m³/min

LP air compressor

1.0m³/min

1.6m³/min

2.0m³/min

2.0m³/min

Weight

2000kg

3600kg

3800kg

4500kg

Production Lines Flow Chart

Water treatment system

Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc

Blow molding system

Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Shrink wrapping machine

This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.

Applications

Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Features of main body:

  1. Stable performance with advanced PLC.
  2. Automatic preform conveyer to save human cost.
  3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
  4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
  5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
  6. Introduce the FESTO air cylinder to avoid contamination and noise.
  7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
  8. Strong clamping force with high pressure and double crank links to lock the mould.
  9. Two ways of operating: automatic and manual.
  10. Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
  11. Ideal cooling system make the finished bottles without any flaws.

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
