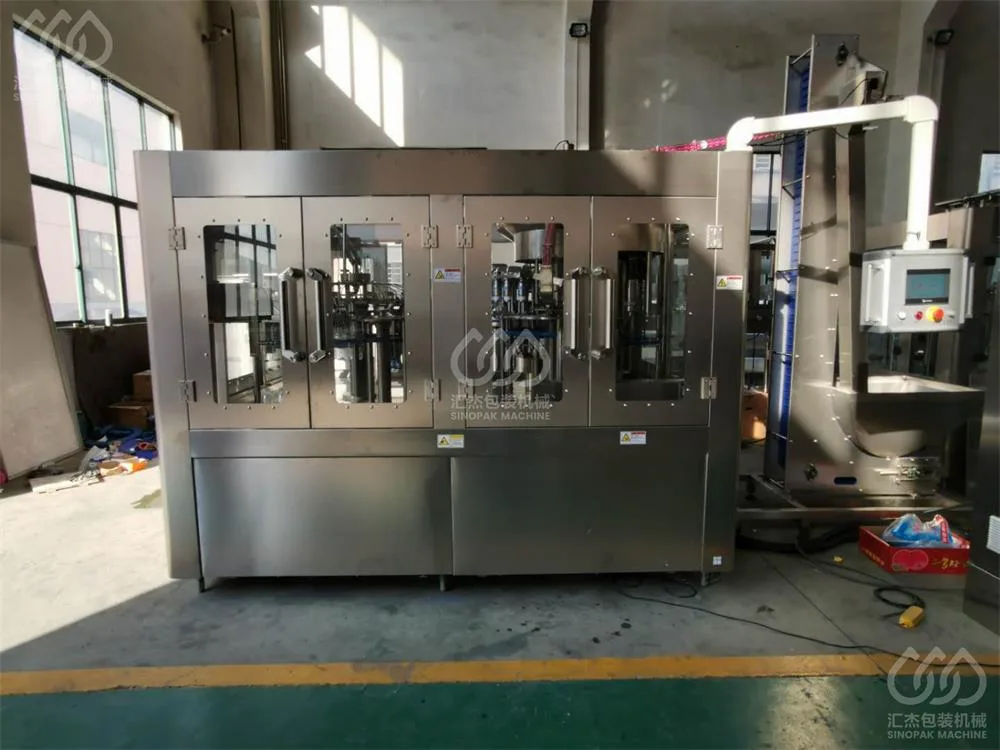

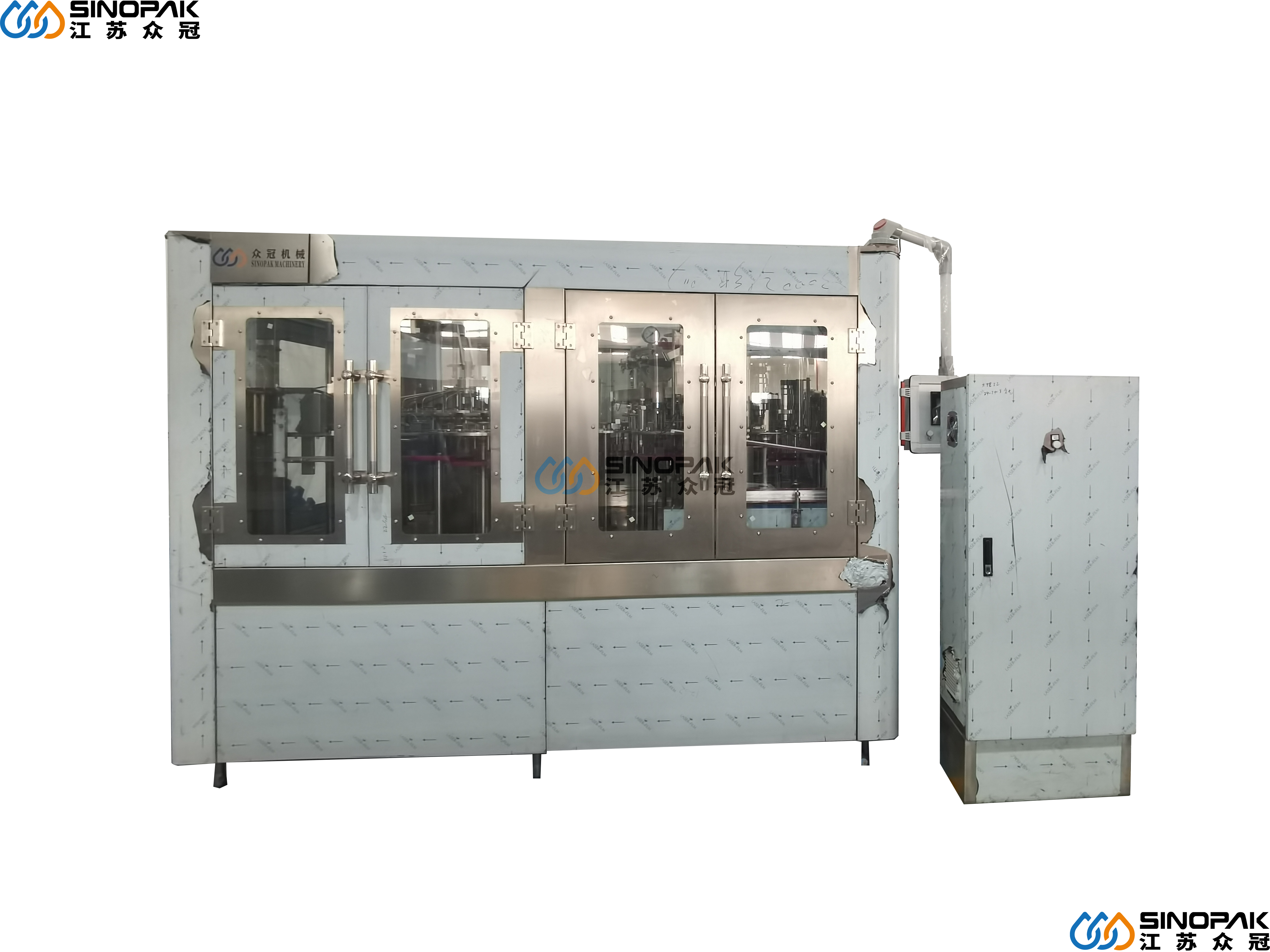

RXGF 24-24-8 8000BPH Complete Juice Production Line Fruit Juice Production Line Juicer Production Line Processing Machine

The Fruit Juice Hot Filling Machine equipped with the Wash-filling-capping 3-in-1 unit is designed for the production of glass or PET bottled drinking juice. The use of vacuum pumping function ensures the filling speed of viscous liquid while also ensuring the control of liquid level. Suitable for filling various viscous liquids such as oil, vinegar, soy sauce, fruit juice, etc

Video

Detailed Images

Machine Parameters

Washing part :

  1. The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
  2. High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
  3. Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling .
  4. Butterfly type liquid bowl, with automatic water level controller.
  5. If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.

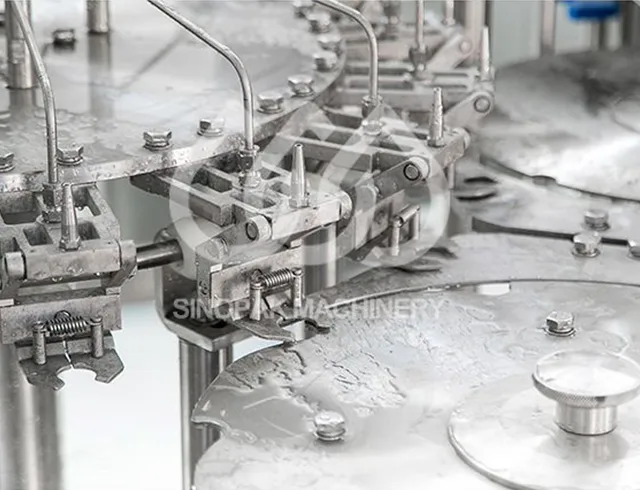

Filling part :

  1. The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
  2. High accurate SUS304 construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
  3. Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling
  4. Butterfly type liquid bowl, with automatic water level controller.
  5. If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.

Capping part :

  1. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
  2. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

  3. The capper is equipped with inlet bottle detection switch.

  4. Use waterfall or centrifugal cap cover machine.



    Project Name:Fruit Juice Hot Filling Machine
    Model RXGF RXGF RXGF RXGF RXGF RXGF
    14/12/5 16-16-5 24-24-8 32-32-8 40-40-10 50-50-12
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 12
    Capacity(BPH) 3500 5000 8000 12000 15000 18000
    Suitable bottle Glass bottle and PET bottle
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06  <0.2
    Filling temperature 85~90℃
    (℃)
    Filling theory Micro negative pressure filling
    Application Fruit juice hot filling machine
    Total powder 2KW 2.2KW 3KW 4KW 7.5KW 7.5KW
    Measurement 2360*1770*2700 2760*2060*2700 2800*2330*2700 4215*2960*2700 4360*3300*2700 5900*3300*2700
    (mm)
    Weight 3200kg 4000kg 4500kg 6500kg 8000kg 9500kg

Production Lines Flow Chart

Water treatment system

Water treatment system

Through our water purification machine, we can effectively process fresh water, resulting in pure, drinking, and mineral water. Our manufacturing facility is equipped to manufacture drinking water, mineral water, pure water, and potable water, sourced from a wide range of water bodies including groundwater, mountain springs, rivers, wells, brackish water, and lakes. The raw water sources we work with include boreholes, rivers, wells, mountain springs, lakes, and more, forming the core of our water treatment operations.

View Details
Juice preparing system

Juice preparing system

Use squeezing, peeling, centrifugation, etc. to obtain juice from fresh fruits. Using sugar, mixing, UHT sterilization, homogenization, etc. to obtain blended fruit juice.

View Details
Blow molding system

Blow molding system

With our automatic blow molding machine, you can effortlessly create PET plastic containers and bottles in various shapes. It is widely utilized in the production of carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles.

View Details
Automatic labeling machine

Automatic labeling machine

For high speed labeling use.The machine features to satisfy the flat bottles, square bottles,special shape of bottles,and bottle label single-sided,double side labeling(front and back), three labels (front back and neck) and even top of cap label. Widely used cosmetics industry, drinking production line,various food, paper box packaging and other fields.

View Details
Bottle Carton Box Packaging Machine

Bottle Carton Box Packaging Machine

It can open vertical cardboard and correct the right-angle automatically. Automatic carton opening machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.

View Details
 Palletizer machine

Palletizer machine

According to a certain order, palletizer stacks the packed products(in box, bag, bucket) to the corresponding empty pallets through a series of mechanical actions so as to facilitate handling and transporting batches of products to improve production efficiency. Meanwhile it can use stack layer pad to improve the stability of each stack layer. Various forms designed to meet different palletizing requirements.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
