10000BPH 500ML Drinking Mineral Pure Water Filling Machinery/Production Line Factory Cheap Price

The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.anges from 200ml-2L, and capacity from 2000-24000BPH.

Video

Detailed Images

Machine Parameters

Main features :

This machine stands out for its compact structure, flawless control system, user-friendly operation, and high level of automation.

The use of top-quality imported stainless steel for components in contact with materials ensures a seamless design with no process dead angles, making cleaning a breeze.

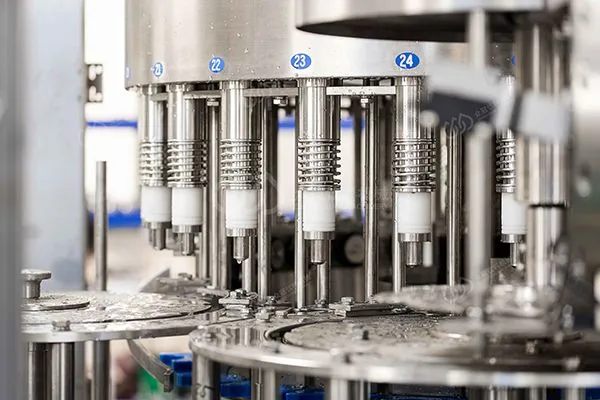

Thanks to a high-precision and high-speed quantitative filling valve, you can count on accurate liquid levels without any loss, ensuring top-notch filling quality.

The capping head features a constant torque device, ensuring consistent capping quality, and it’s complemented by an efficient capping management system with advanced cap-loading technology and protective features.

When it comes to changing bottle sizes, it’s a straightforward process that doesn’t require adjusting the equipment’s height; just swap out the star wheel, and you’re good to go.

To maintain product purity, the filling system adopts a bottle-to-bottle technology, avoiding any secondary bottle mouth contamination.

The control system offers functionalities like automatic water level control, missing cap detection, automatic bottle stop during flushing, and accurate output counting.

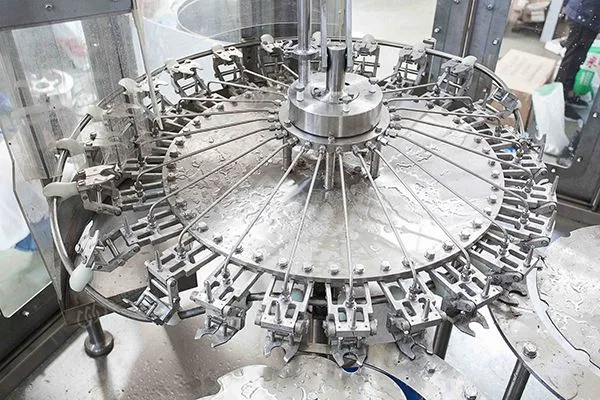

The bottle washing system employs efficient cleaning spray nozzles produced by the American Spray Company, ensuring comprehensive bottle cleanliness.

The machine’s performance is further elevated with the use of imported high-quality electrical components, electronic control valves, frequency converters, and internationally acclaimed pneumatic system components.

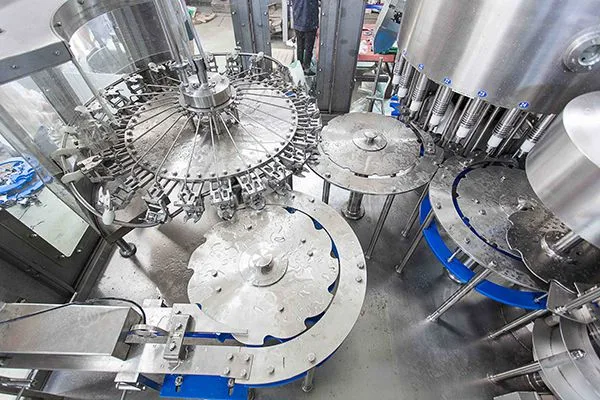

In a single, integrated system, this machine excels at three vital functions: rinsing empty PET bottles, filling the rinsed bottles, and capping the filled bottles.

Project Name: Drinking Water Filling Machine

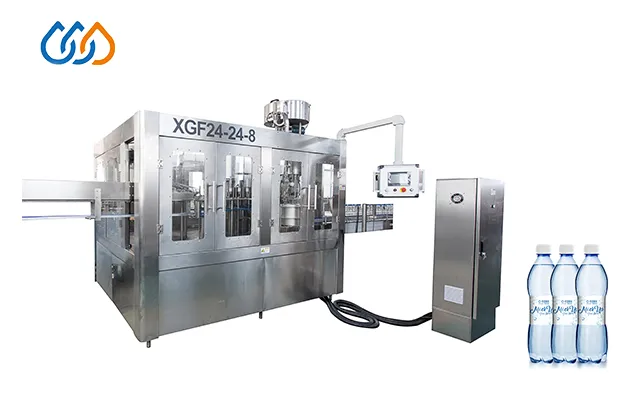

Model XGF 24-24-8
Washing Nos 24
Filling Nos 24
Capping Nos 8
Capacity(BPH) 12000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 2.2KW
Dimension  (meter) 3.38*2.58*2.75M

Production Lines Flow Chart

Water treatment system

Water treatment system

  1. Incorporating the forefront of Reverse Osmosis technology, this system boasts optimized design and meticulous production techniques.
  2. Its compact, all-in-one design is crafted from carefully selected materials.
  3. Achieving an impressive salt rejection rate exceeding 99%, it ensures exceptional purity.
  4. With stable performance, reliability, and an innovative, contemporary design, the system operates with low cleaning frequency.
  5. Featuring online conductivity monitoring, it guarantees high-quality water output.
  6. The automatic control system facilitates easy installation, operation, and maintenance, all within a compact size.
  7. Meticulously designed with precision engineering and carefully chosen materials.
  8. Offering an extended lifetime, it operates with low energy consumption and minimal maintenance costs.
View Details
Blow molding system

Blow molding system

Our high-speed automatic linear blow molding machines are versatile, catering to a broad spectrum of PET packaging needs, including beverages, edible oil, food, pharmaceutical products, and cosmetics. Drawing on over a decade of experience in the development and production of blow molding machines, coupled with the assimilation of advanced technologies from both domestic and international sources, we have innovated continuously. This has led to the creation of dozens of high-speed, high-precision machines that have garnered top-tier recognition in the industry.

View Details
Automatic labeling machine

Automatic labeling machine

The recently introduced tunica-shrinkage labeling machines in this series incorporate cutting-edge international technology. These machines feature a robust construction, utilizing high-quality stainless steel and aluminum alloys to streamline the structure and enhance ease of handling. The user-friendly touch screens on the control circuits facilitate easy learning and operation. With a brand-new design concept and superior circuit design, these machines have significantly reduced the need for adjustments on various components. This results in a substantial improvement in both production speed and the precision of label cutting.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for high-volume production lines, this machine is versatile, accommodating products of varying widths and heights. Its design incorporates a contact function specifically geared towards efficient packaging of smaller products.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
