HDPE film L type linear shrink packaging machine 10-15 packages per minute
As the latest upgraded packaging equipment, our equipment is a brand new packaging equipment designed and manufactured based on the characteristics of heating shrinkage of packaging film. It can arrange single product (such as PET bottle) automatically, assemble into groups, push bottle servo, wrap film servo, and finally form a set package after heating, shrinking, cooling and finalizing. After packaging, the products are bound firmly, the appearance is regular and beautiful, and the packaging cost is saved.The production just like following picture.

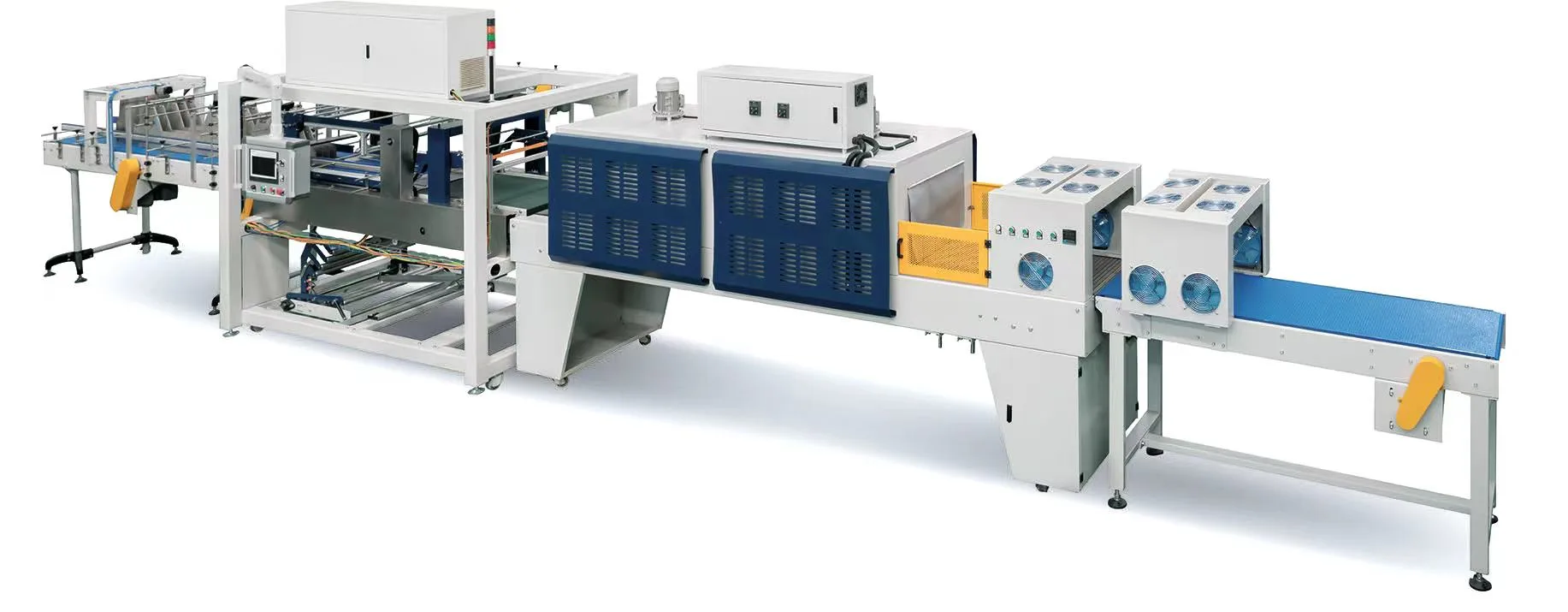

Detailed Images
Machine Parameters
Main features :
*The sealing adopts the advanced structure of hot sealing and hot cutting, with firm sealing, neat edge, good sewing performance and no flash.
*Linear bottle feeding, small space occupation, convenient layout, stable transportation and high efficiency.
*Comprehensive protection function: when there is an obstacle at the sealing and cutting place, the equipment will be protected and an alarm will be given at the same time to prevent the package from being damaged.
*Adopt plastic steel chain conveyor belt, long-term use, no deformation, small jump, stable transportation.
*Unique patent subcontracting mechanism, accurate and stable subcontracting, convenient adjustment.
*Precise PID temperature controller, precise temperature control.
*The shrinking machine adopts a unique patented hot air diversion and circulation system, with adjustable air flow and natural heat recovery. The patented furnace structure not only achieves good packaging effect, but also plays the best role in energy saving. *The shrinkage furnace adopts special heat preservation structure, which can not only reduce energy consumption, but also ensure the safety of workers’ operation.
Project Name: Shrink Wrap Packing Machine | |||||
Degree Of Automation | Semi Automatic | Full Automatic | |||
Model | TSP-10A | TSP-15A | TSP-25A | TSP-30A | TSP-40A |
Power Supply | 3PH 380V/50HZ | ||||
Gas Source | ≥0.5MPa | 0.6~0.8MPa | |||
Overall Dimension Of Equipment (mm) | L5850 *W1200 *H1900 | L5850 *W4000 *H1900 | L9000 *W1100 *H1900 | L13200 *W1100 *H2000 | L13240 *W1260 *H2030 |
Maximum Package Size(mm) | L450 *W400 *H390 | L450 *W300 *H390 | L450 *W450 *H350 | L500 *W450 *H350 | L500 *W450 *H350 |
Packing Efficiency (bag/minute) | 6-12 | 10-15 | 15-20 | 20-25 | 25-36 |
Maximum Sealing Length(mm) | 620 | 650 | 700 | 700 | 700 |
Power(Kw) | 23.8-29.8 | 24.2-30.2 | 35 | 26-32 | 35 |
Working Surface Height(mm) | 850±30 | 900±30 | 900±30 | 900±30 | 900±30 |
Applicable Film | PE | ||||
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
