15000BPH Filling 3-in-1 Full Automatic Mineral Water Filling Production Plant Price

Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

Video

Detailed Images

Machine Parameters

Main features :

1)The machine has compact structure, perfect control system, convenient operation and high automation .

2)Parts in contact with materials are made of imported high quality stainless steel, no process dead Angle, easy to clean.

3)High precision, high speed quantitative filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality.

4)The capping head adopts constant torque device to ensure the capping quality.

5)Adopt efficient capping management system, with perfect cap loading  technology and protection device.

6)It is not necessary to adjust the height of the equipment to change the bottle size. It can be realized by replacing the star wheel of the bottle, which is simple and convenient to operate.

7)The filling system adopts the bottle – bottling technology to avoid the secondary pollution of the bottle mouth.

8)The control system has the functions of automatic water level control, missing cap detection, automatic stop of bottle flushing and output counting.

9)The bottle washing system adopts the efficient cleaning spray nozzle produced by American spray Company technology, which can be cleaned to every place in the bottle.

10)The main electrical components, electronic control valves, frequency converters and so on are imported parts to ensure the excellent performance of the whole machine.

11)All components of pneumatic system adopt international famous products.

This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

Model XGF 32-32-8
Washing Nos 32
Filling Nos 32
Capping Nos 8
Capacity(BPH) 15000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 7.5KW
Dimension  (meter) 3.38*2.58*2.75M



Production Lines Flow Chart

Water treatment system

Water treatment system

  1. Utilizing the forefront of Reverse Osmosis technology, incorporating optimized design and meticulous production techniques.
  2. Compact, all-in-one design with carefully selected materials.
  3. Achieves a high salt rejection rate of over 99%.
  4. Demonstrates stable performance, ensuring safety and reliability, featuring a contemporary and innovative design with low cleaning frequency.
  5. Implements online conductivity monitoring to guarantee the quality of water output.
  6. Equipped with an automatic control system for easy installation, operation, and maintenance, all within a compact size.
  7. Precision in design and the use of well-selected materials.
  8. Boasts a long lifetime, low energy consumption, and minimal maintenance costs.
View Details
Blow molding system

Blow molding system

The full automatic blow molding machine is designed for the production of PET plastic containers and bottles in various shapes. It is versatile and commonly used for manufacturing carbonated bottles, mineral water bottles, pesticide bottles, oil bottles, cosmetics containers, wide-mouth bottles, and hot-fill bottles, among other applications.

View Details
Automatic labeling machine

Automatic labeling machine

The OPP hot melt glue labeling machine represents the latest advancement in continuous labeling operations. Primarily designed for labeling containers with a cylindrical shape, it is well-suited for products such as detergents, beverages, mineral water, and food items. The labels are crafted from environmentally friendly OPP films, undergoing automatic oxidative decomposition to reduce production costs by over 30 percent. The machine is controlled by a PLC touch screen, and its electric eye components feature imported advanced configurations. With attributes like high speed, precision, stability, ease of operation, and an elegant appearance, this labeling machine stands out in the industry.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for high-volume packaging lines, this machine is versatile, capable of handling products with varying widths and heights. Its design includes a contact function specifically optimized for the efficient packaging of smaller products. This makes it an ideal choice for mass production, offering adaptability to different product dimensions and ensuring an efficient and streamlined packaging process.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.

Related Cases

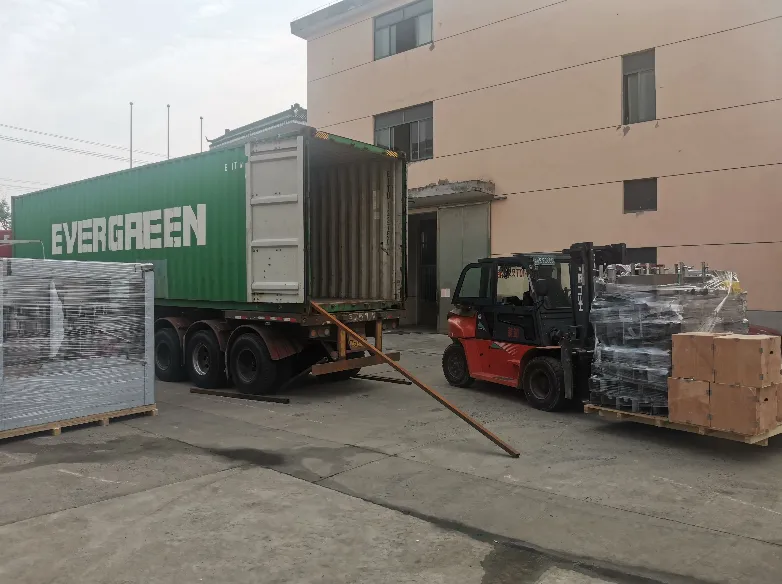

Delivery&Install
