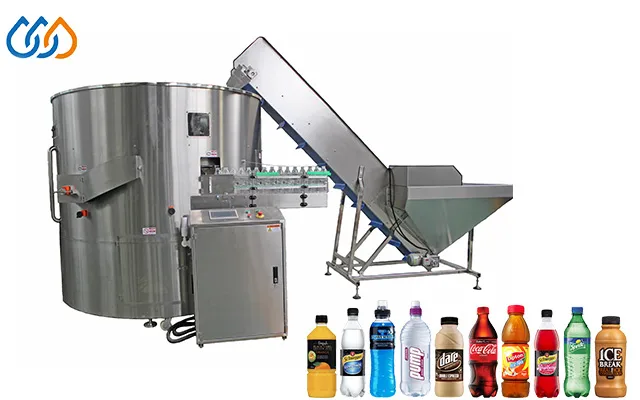

15000BPH New Plastic Bottle Unscrambling Machine

LP-16 Model Push type unscrambler are national advanced bottle unscrambling equipment, which are based on world advanced technology, designed and developed according to our country’s developing trend of high speed and automation of drink’s filling equipment.

The main machine has cylinder appearance with adjustable feet at the bottom for changing machine’s height and level. In the cylinder, there is a rotating cylinder, and outside of rotating cylinder, there is the dropping bottle slot, the inner side is equipped with lifting device, which the amount is the same with dropping bottle slots. At the center of machine, there is a fixed umbrella shape tower. When the lifting device send out short of bottle message according to the bottle detecting device on the tower, bottle will drop onto umbrella shape tower from top center of the machine, then enter lifting device from the edge of tower. Under the action of cam, the lifting device pushes bottle into the bottle slot. After unscrambling in the slot, the bottle rotates along with bottle slot to the exit of unscrambler. The poking bottle starwheel at the exit will push the bottle into air convey way. The starwheel joins shaft of main motor through time geared belt.

Video

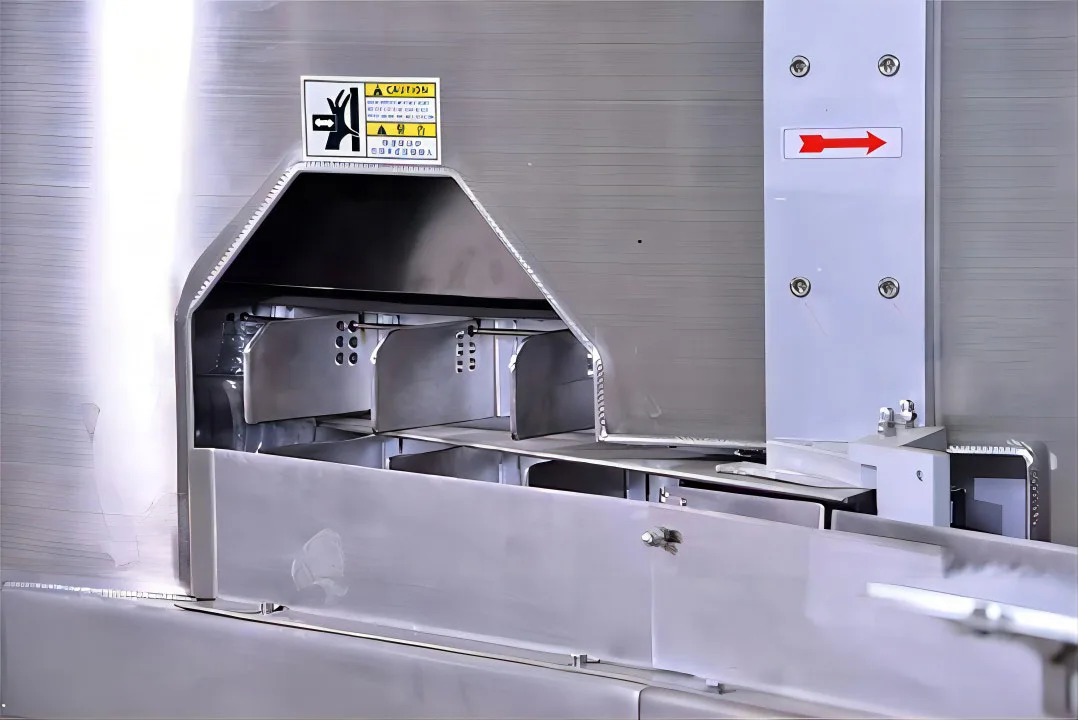

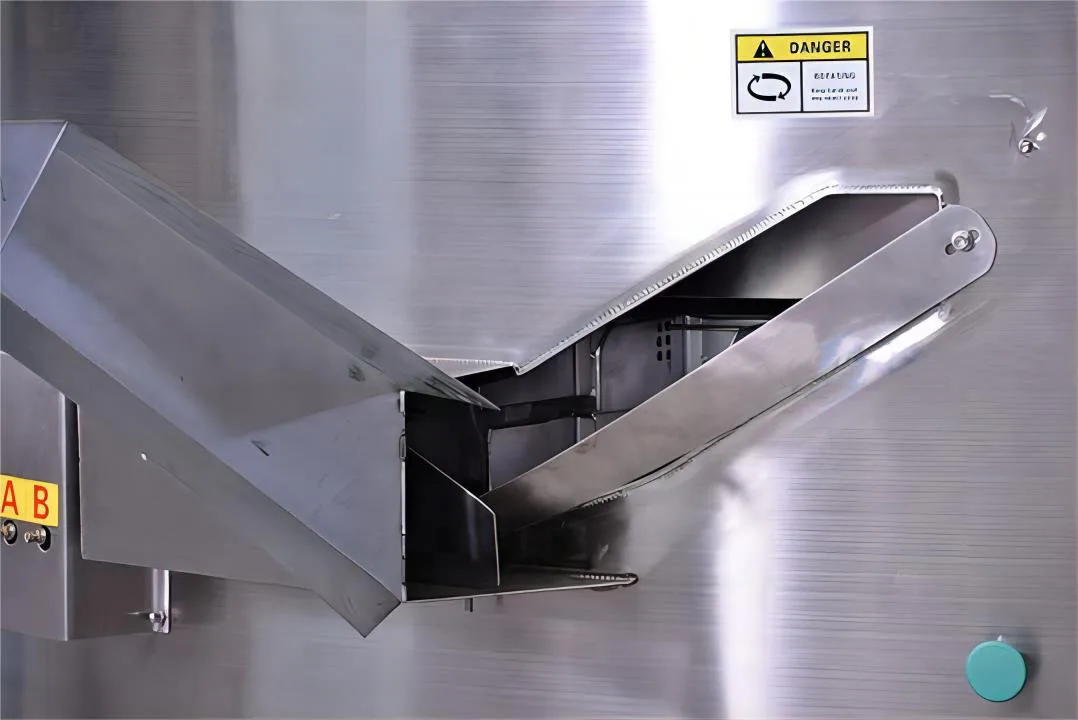

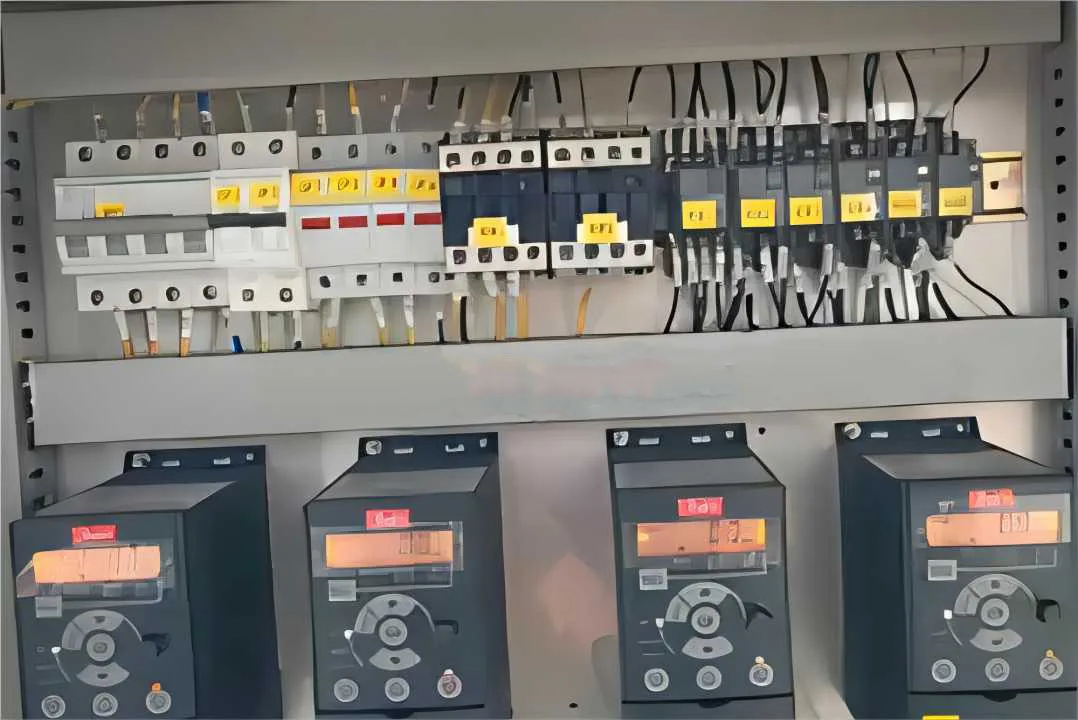

Detailed Images

Machine Parameters

Main features :

  • Main motor is the frequency speed changing method.
  • Applying two-time pushing and unscrambling device will reduce amount of empty working position and improve efficiency of output bottle.
  • Special designed dropping bottle slot can suit bottles with different length. It needn’t change bottle slot and just adjust slot properly.
  • The middle of cylinder has a door for mould exchange, this makes it convenient disassemble and assemble bottle slot and treat clog.
  • The bottom of cylinder has a door for maintenance, this makes it convenient for workers entering bottom of machine.
  • This machine is equipped with manual operator for easy maintenance.
  • It has complete safety measure. When maintenance door and mould exchange door are open, machine can’t start, then you can use manual operator to control machine.
  • The outputbottle poking wheel of unscrambler is equipped with block bottle detector that can protect machine effectively.
  • On the umbrella shape tower at the center of unscrambler, there is a bottle detector to control stop and start of lifting machine that supplies bottle.
  • The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.
    Item LP-16
    Amount of working position 16
    productivity 8000~15000 bottle/hour
    Air source Pressure 0.7MPa,air consumption,1500 L/min
    Power 380V,50Hz
    Main motor’s power 1.5KW
    Bottle size Diameter 50-90,height 65-290
    Lifting device’s power 0.75KW
    Dimension φ2240(D)×2200(H)
    Total weight 3500Kg



Production Lines Flow Chart
