5 Gallon Water Bottle Filling Machine Line Price

This machine series is a comprehensive system that seamlessly integrates several functions, encompassing rinsing, a rinser-filler-capper monoblock, an automatic loading machine, exterior bottle washer, interior bottle washer, decapper, heating shrink tunnel, conveyor system, and a complete line control system.

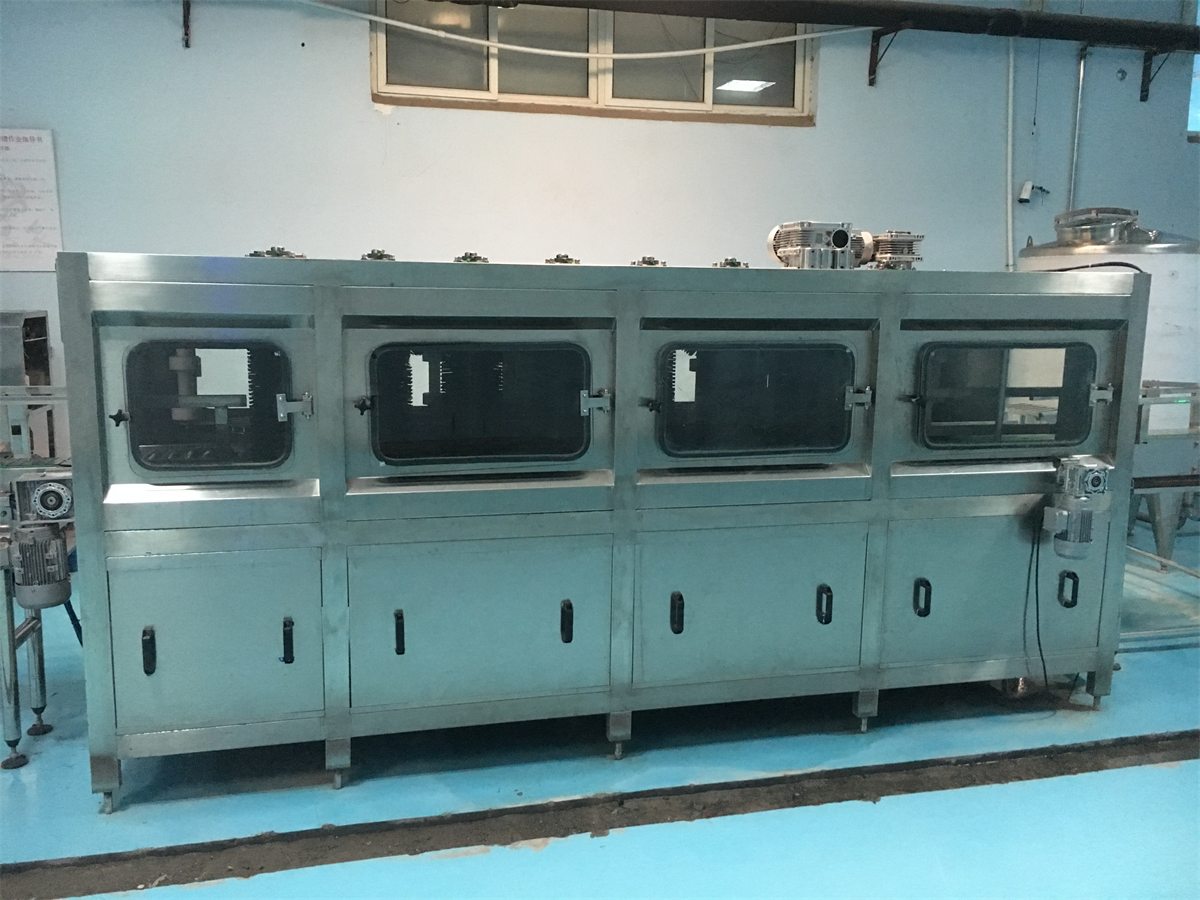

The primary machine unit is an all-in-one solution that combines the functions of washing, drying, filling, and capping for the production of 3-5 gallon barrels of drinking water. The washing process involves a series of steps, including initial washing with alkaline solution for both the interior and exterior to remove contaminants. Subsequently, disinfecting water is used for both interior and exterior washing, followed by a final rinse with pure water. The alkaline and disinfecting water are efficiently recycled in a closed-loop system. The entire process of washing, filling, and sealing is precisely controlled by a PC and incorporates safety features for interlocking, signaling, and self-detection.

Video

Detailed Images

Machine Parameters

Main features :

  1. The whole process is controlled by a computer or PLC with a high degree of automation.
  2. Optional Internet-ready smart plant management software collects, transmits, stores, counts and analyzes real-time data, making remote control and digital production management easy.
  3. Optimized technology reduces operating costs by reducing the consumption of water, electricity, and chemical materials.
  4. The entire line is designed to fully comply with food safety quality regulations, avoiding dead spots, dead ends, static liquids, threaded joints, etc.
  5. Extensive use of adapters, manholes, valves, etc. ensures the safety and easy maintenance.
  6. The combination of proven technology and constant innovation ensures stability and reliability.
Technical parameter :3 -5gallon water filling machine
Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Capacity (for 5 gallon) 60-100bph 300bph 450bph 600bph 900bph 1200bph
Suitable bottle shapes PET circular or square
Bottle volume 3 & 5 Gallon
Compressor air 0.3-0.7Mpa
Air consumption 0.37 m3/min
Rinsing pressure >0.06Mpa <0.2Mpa
Application 3 gallon water filling machine
Total power (KW) 1.5kw 3.8kw 4.5kw 5.2kw 6.2kw 7.8kw
Overall dimensions 2.3*1.9m 2.5*1.9m 2.8*2.15m 3.1*2.5m 3.8*2.8m 4.5*3.3m
   Height 1.8m 2m 2.2m 2.3m 2.5m 2.6m
Weight(kg) 800kg 1500kg 2000kg 2500kg 2800kg 3500kg

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
