5000BPH Factory Soft Carbonated Drink Bottling Filling Equipment Machine Plant/Cola Sparkling Water Bottling Line

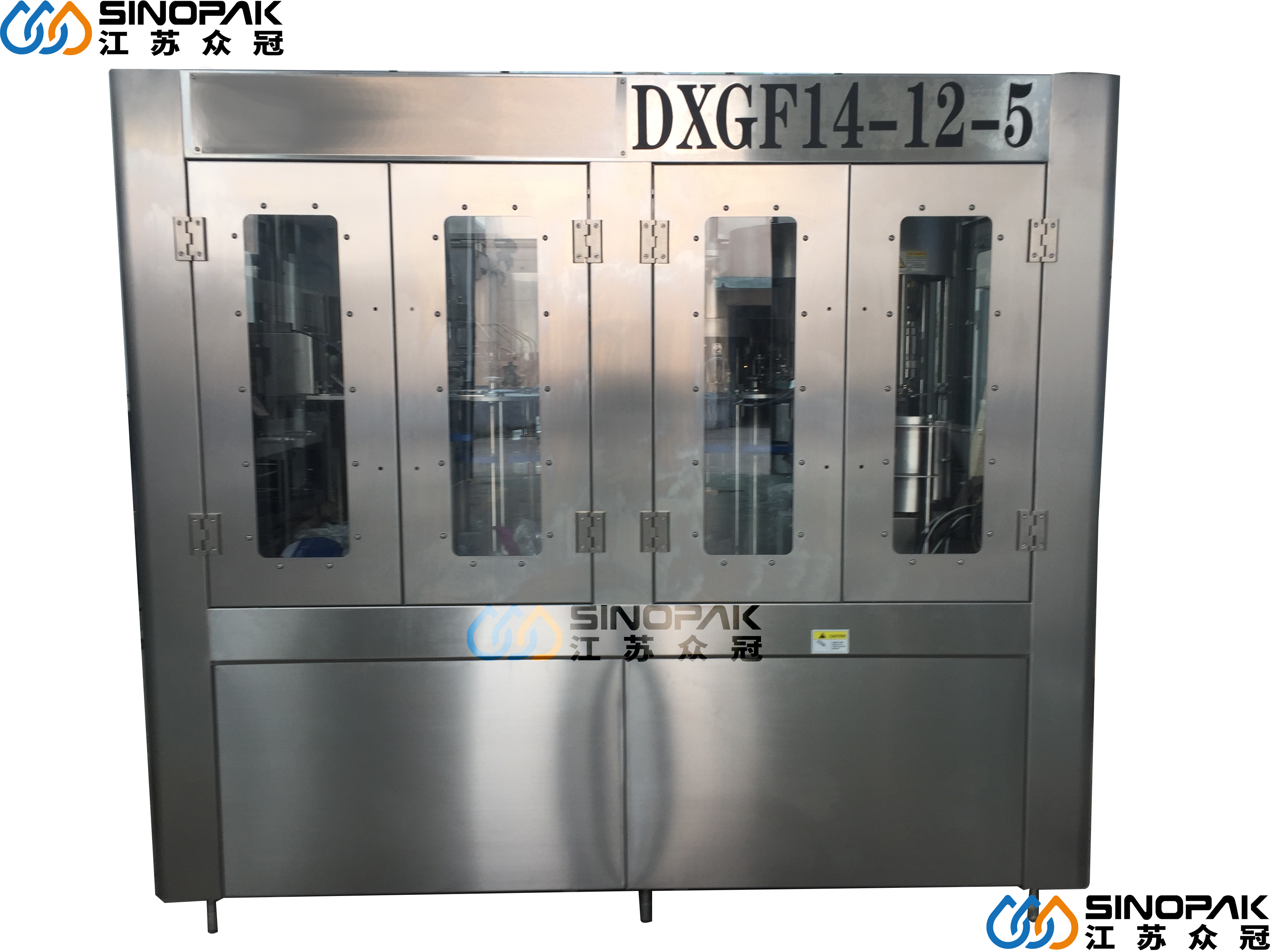

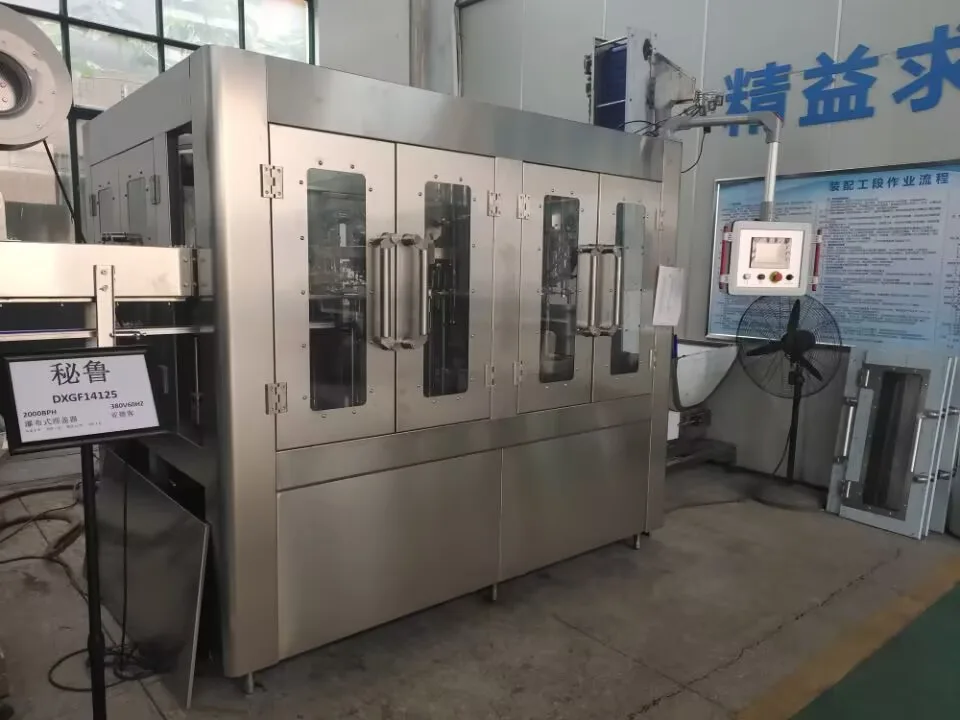

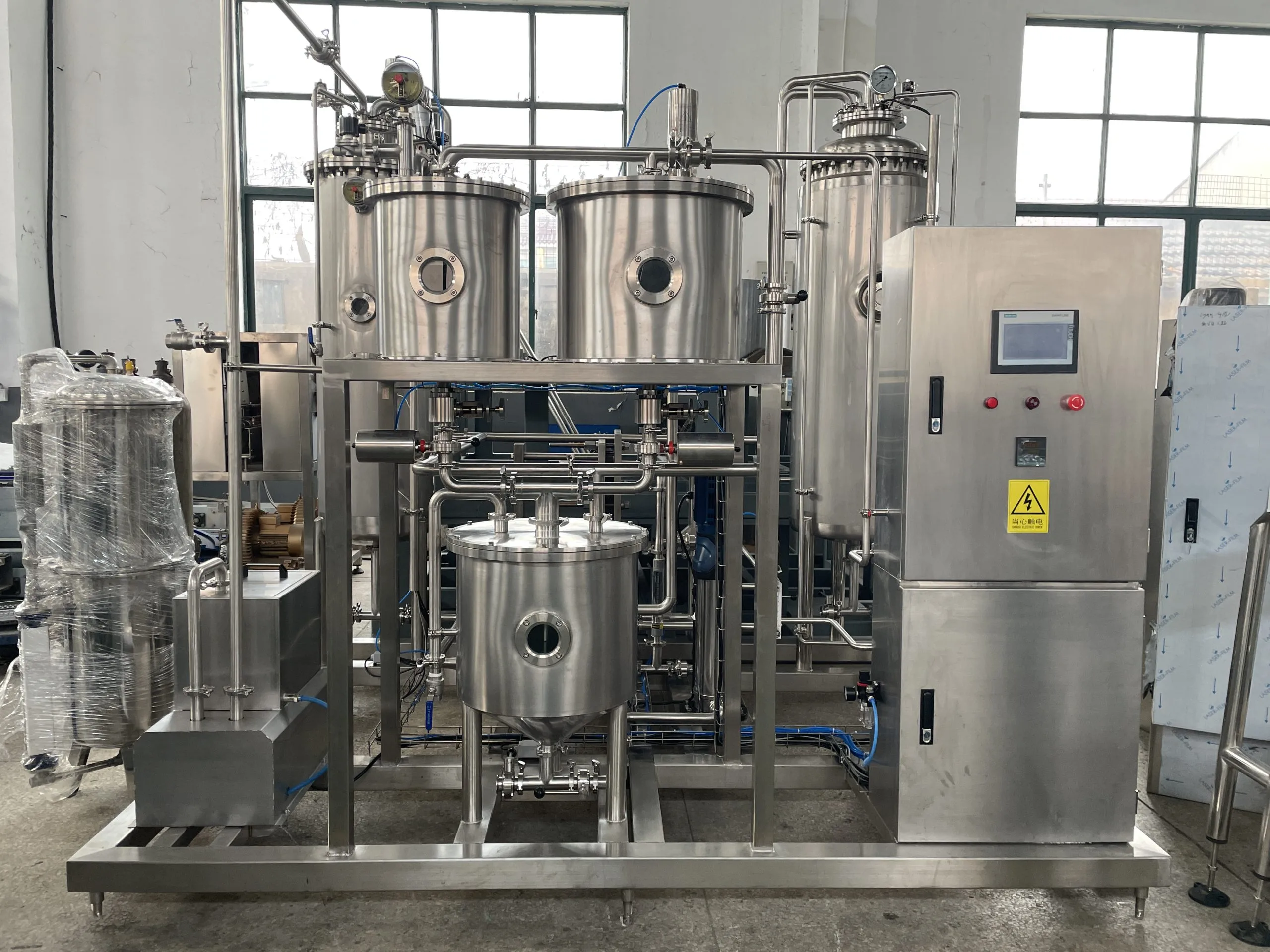

The DXGF carbonated drink filling monoblock is used to fill carbonated drinks into plastic or glass bottles.Washing,filling,sealing can be carried out on the same machine.The design of the machine is scientific and reasonable.

Detailed Images

Machine Parameters
Main features :

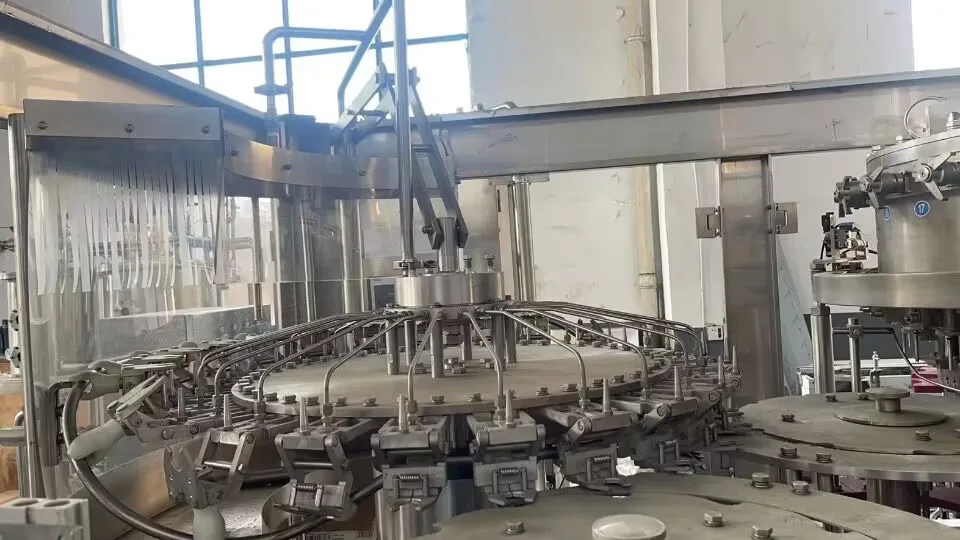

- Washing Part
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean, 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing, 304 stainless steel washing pumps

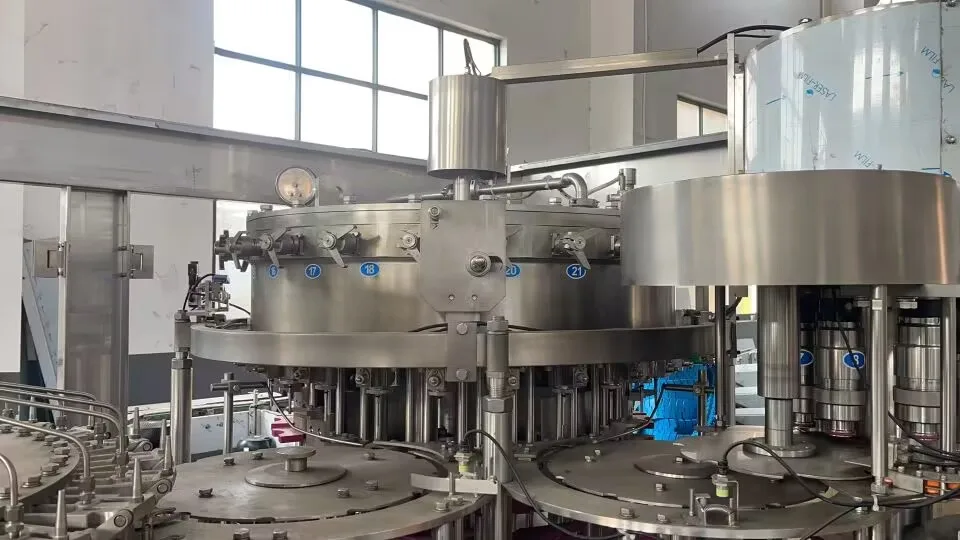

- .Filling part
- Isobaric filling , & filling smoothly & steadily
The centering oriented adopts guide rod with special bottle neck holding
Filling temperature:0~4℃
All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean

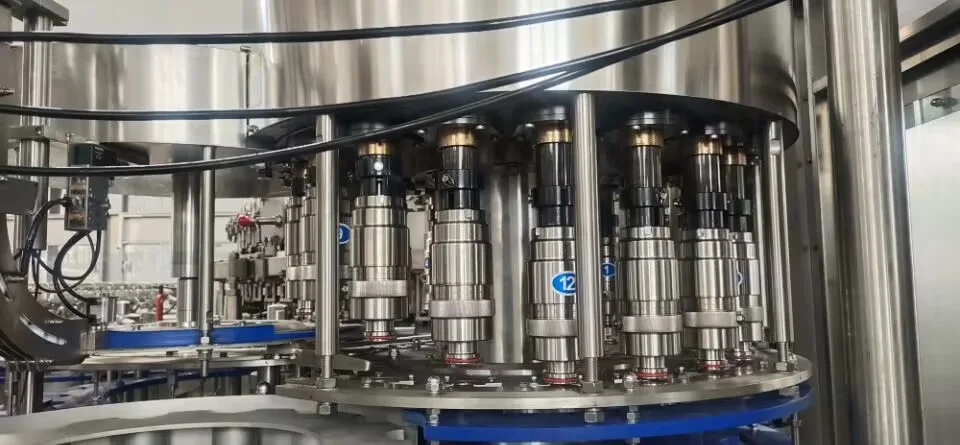

3. Capping part:
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304 stainless steel construction
No bottle no capping and Automatic stop when lack of bottle
Project Name:Carbonated Soft Drink Filling Machine | |||||||
Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 | |
Washing Nos | 14 | 16 | 24 | 32 | 40 | 50 | |
Filling Nos | 12 | 16 | 24 | 32 | 40 | 50 | |
Capping Nos | 5 | 5 | 8 | 8 | 10 | 15 | |
Capacity(BPH) | 3000 | 5000
| 8000 | 12000 | 15000 | 18000 | |
Suitable bottle and cap | PET circular or square with screw cap | ||||||
Bottle Volume | 150ml to 2.5Ltr (Customized) | ||||||
Bottle diameter(mm) | Dia50-Dia115mm | ||||||
Bottle height | 160-320mm | ||||||
Compress air pressure(Mpa) | 0.3-0.4Mpa | ||||||
Washing medium | Aspetic water | ||||||
Rinsing pressure(Mpa) | >0.06Mpa<0.2Mpa | ||||||
Filling temperature(℃) | 0~4℃ | ||||||
Filling theory | Isobaric filling | ||||||
Application | Carbonated soft drink filling machine | ||||||
Total powder | 1.5KW | 2.2KW | 3KW | 3KW | 5.5KW | 7.5KW | |
Measurement(mm) | 2360*1770*2700 | 2760*2060*2700 | 2800*2330*2700 | 3550*2650*2700 | 4360*3300*2700 | 4720*3545*2700 | |
Weight | 3000kg | 4000kg | 4800kg | 5500kg | 6500kg | 10000kg |
Production Lines Flow Chart

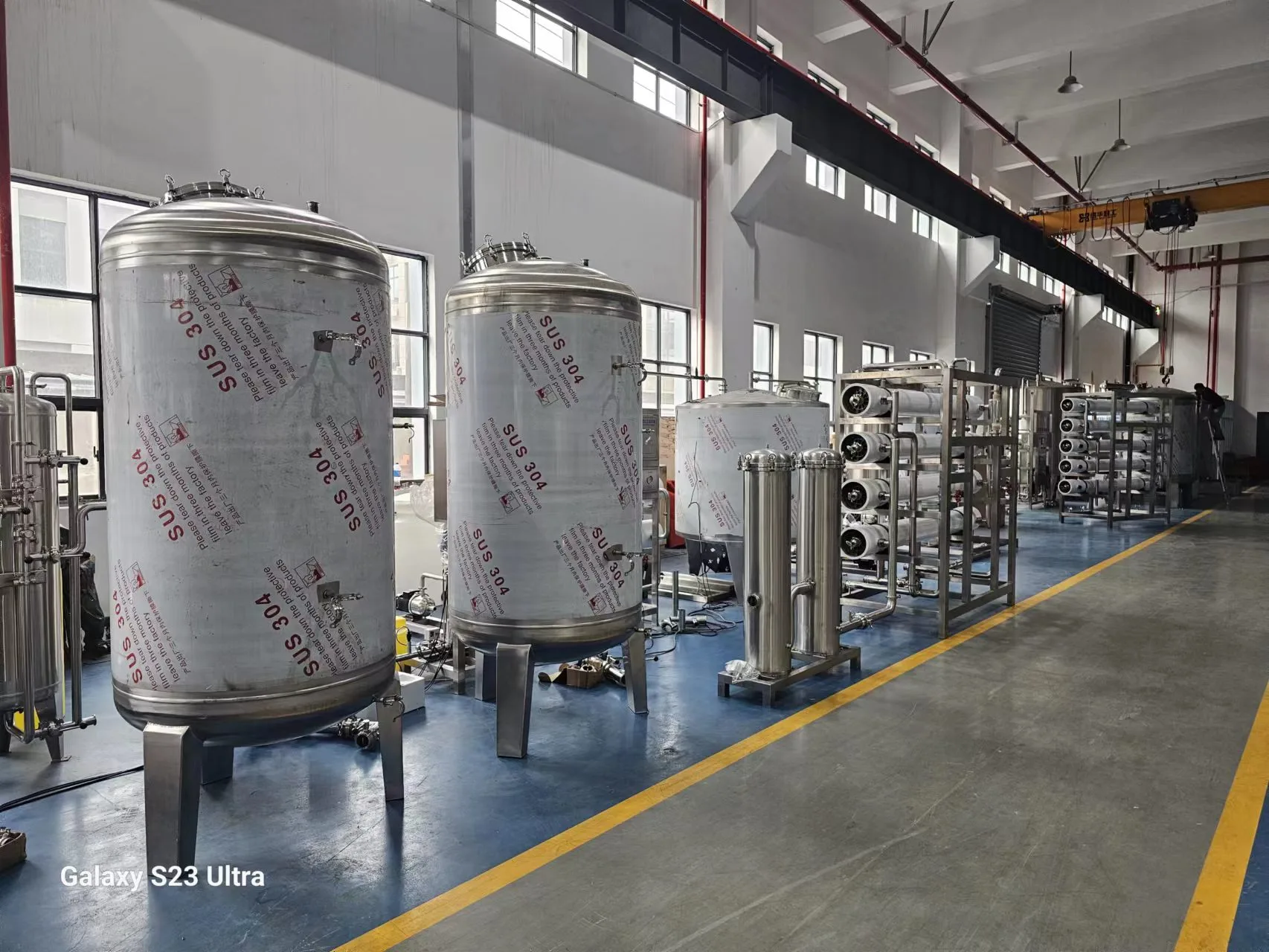

Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.


Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.

Applications
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.
- Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
- High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
- High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
- Introduce the FESTO air cylinder to avoid contamination and noise.
- Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
- Strong clamping force with high pressure and double crank links to lock the mould.
- Two ways of operating: automatic and manual.
- Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
- Ideal cooling system make the finished bottles without any flaws.
