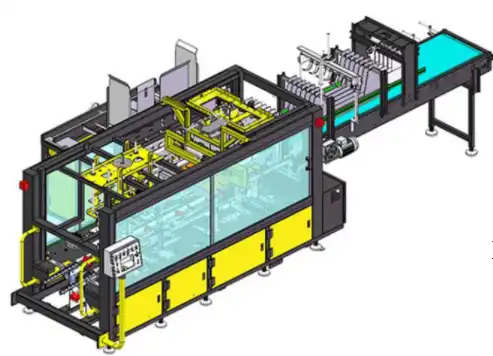

Automatic PE Film Wrapping Machine Sealing Shrink Wrapper With Tray 60 packages per minute
Paper tray packaging is widely used in the beverage industry. It is used in bottled water, beverages, beer, and condiments. Adding paper tray packaging not only improves the packaging grade, but also performs secondary packaging for the product, which is convenient for transportation and prevents product wear and tear. ,damaged.
Paper-supported film packs, compared with film packs for post-packing, can effectively save costs.
In order to save costs and protect products, some products use cardboard film packs, which should be widely used in the field of beverage packaging.
Product Description
It is suitable for cluster packaging with bottom support for beer, beverages, fruit juices, bottled water, dairy products, condiments, etc.
In the process of product forwarding and conveying, it is automatically assembled into packages, saving time and improving efficiency.
LCD color screen, friendly operation interface, quick parameter setting, convenient for man-machine communication and control.
The shrinking chamber adopts self-developed circulating air technology, which has reasonable structure, heat insulation, high temperature control accuracy and better packaging effect.
It is suitable for different bottle diameters and different combinations of paper tray + film packaging.
This machine can add a color film packaging system, and can add a cardboard + film package solution.

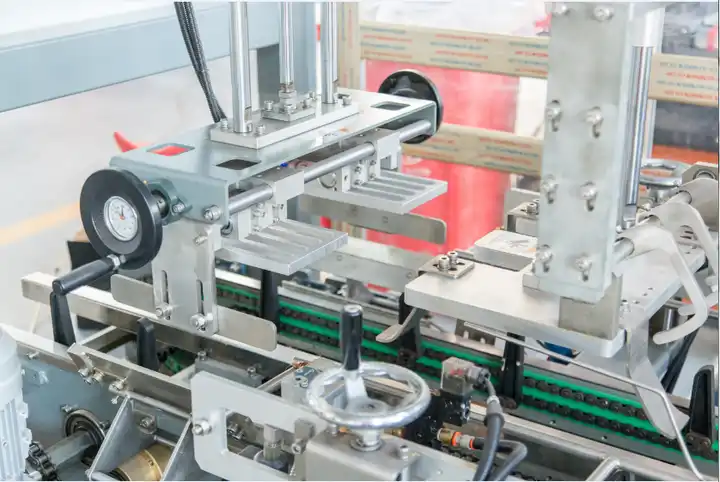

Detailed Images
Machine Parameters
Project Name: Shrink Wrap Packing Machine | |||||
Degree Of Automation | Semi Automatic | Full Automatic | |||
Model | ZG-A400-I | ZG-A400-II | ZG-A500-II | ZG-A500-III | ZG-A500-30B |
Power Supply | 3PH 380V/50HZ | ||||
Gas Source | ≥0.5MPa | 0.6~0.8MPa | |||
Overall Dimension Of Equipment (mm) | L5850 *W1200 *H1900 | L5850 *W4000 *H1900 | L9000 *W1100 *H1900 | L13200 *W1100 *H2000 | L13240 *W1260 *H2030 |
Maximum Package Size(mm) | L450 *W400 *H390 | L450 *W300 *H390 | L450 *W450 *H350 | L500 *W450 *H350 | L500 *W450 *H350 |
Packing Efficiency (bag/minute) | 6-12 | 10-15 | 15-20 | 20-25 | 25-36 |
Maximum Sealing Length(mm) | 620 | 650 | 700 | 700 | 700 |
Power(Kw) | 23.8-29.8 | 24.2-30.2 | 35 | 26-32 | 35 |
Working Surface Height(mm) | 850±30 | 900±30 | 900±30 | 900±30 | 900±30 |
Applicable Film | PE | ||||
Packaging
As usual, we adopt wooden case as package type. It’s suitable for long-distance transport.According to customers’ special demand, we could adopt sheet iron case and so on.
Shipping
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Our Services
1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
6. We will supply the spare parts fast and with cost price
