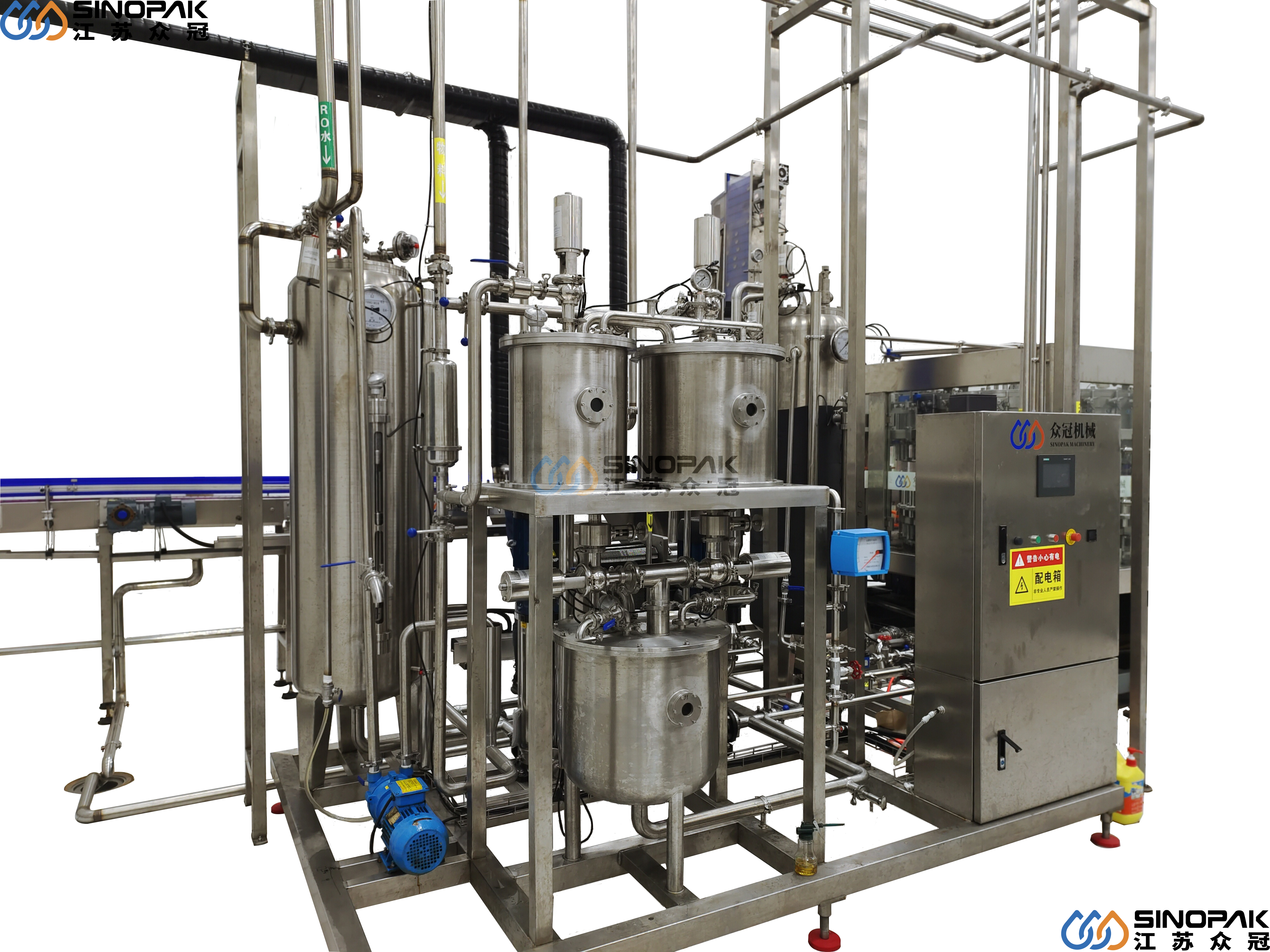

Carbonated soft drinks mixing system
It widely used in candy, pharmacy, dairy food, pastry, drink, can ect, also can be used in large restaurant or dining room to boil soup, cook, stew, boil congee, etc.. it is a good equipment of the food processing to improve quality, shorten the time, improve working conditions
Detailed Images
Machine Parameters
Main features :
Blend tank/ Mix tank
Stir, mix, blend, and homogenize the materials. The design structure and configuration can be standardized according to the requirements of the production process. Stirred tank during agitation can be achieved feed control, the feed control, stirring and other manual controls automatic control

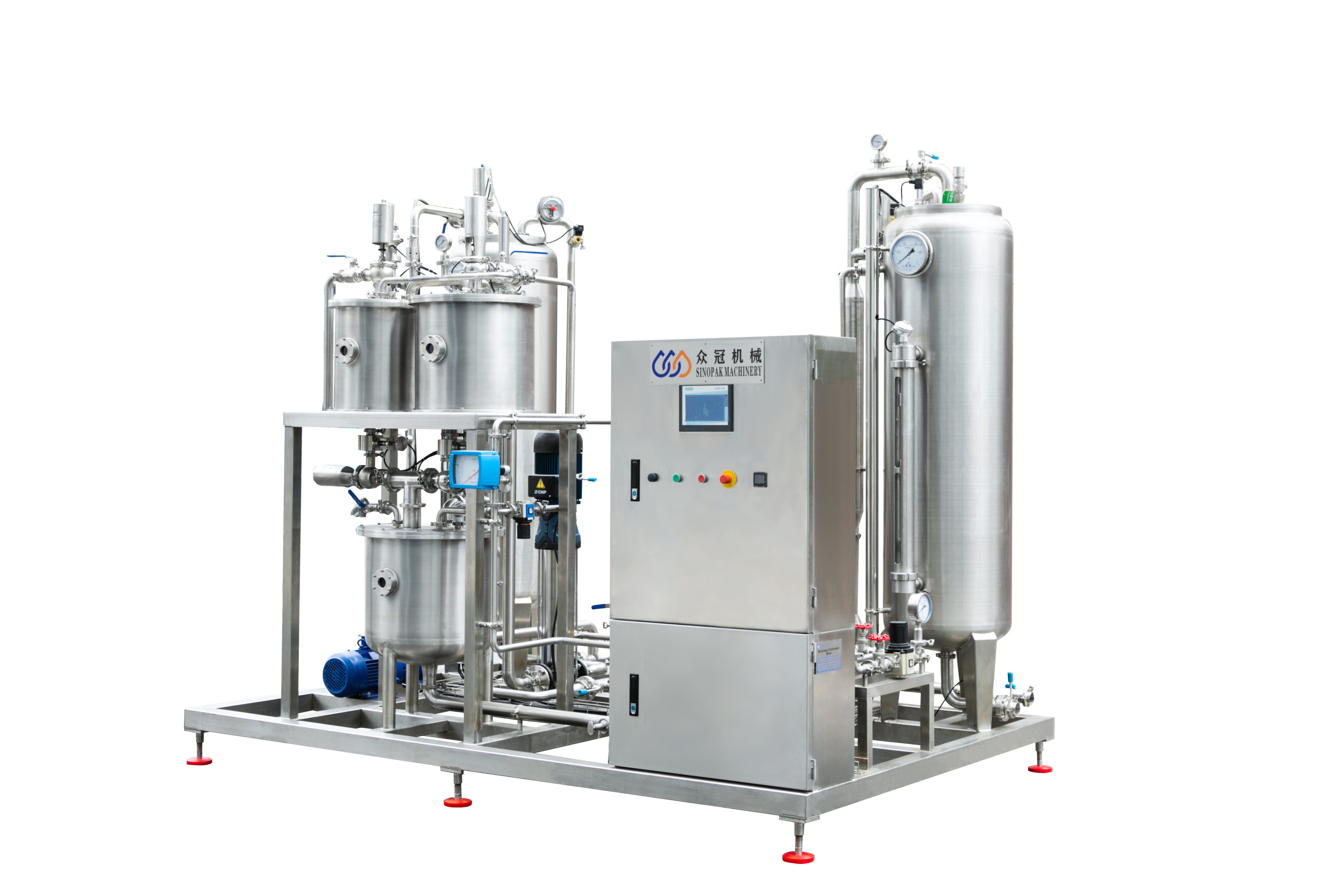

CO2 Mixer
Beverage Mixing Machine is used to mix CO2 with beverage, it is suitable for all types of carbonated drink processing. It is the necessary and important beverage mixing machine for carbonated drink processingThe beverage carbonator is used for mixing all kinds of carbonated drink with high gas ration.
It mixes the water, sugar, gas together for high quality gas drink, adopts the newest technology.
Chiller
Drinking Water Chiller, Carbonated Drink Mixer Chiller, Wort Chiller for Beverage Processing.
The chillers are special designed for beverage processing, maintain temperature at 4 deg. c. The heat exchange unit is made up of stainless steel 304 food grade Hygienic step tubes.
| Model | QHS-2500 | QHS-5000 | QHS-7000 | QHS-10000 | QHS-15000 |
| Production Capacity(B/H) | 3000 | 5000 | 7000 | 10000 | 15000 |
| Water suger radio | 3:1-6:1 | ||||
| CO2 content | 3:08 | ||||
| Mixing temperature | <4℃ | ||||
| Power consumption(Kw) | 4.45 | 5.9 | 7.2 | 10.2 | 13.6 |
| Over all Dimension(L*X*H)(mm) | 2900*1500*2600 | 3000*2000*3000 | 3500*2300*3200 | 3500*2300*3200 | 3800*3600*3200 |
| Weight(KG) | 2500 | 3000 | 3500 | 4000 | 4500 |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
