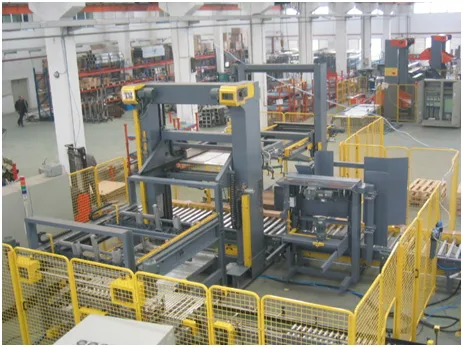

Palletizer machine 10-80 pieces per minute

Gantry Palletizer Machine could divide into Single Working Tunnel Type (Standard Speed Type) and Double Working Tunnel type (High Speed Type).

Gantry Palletizer Machine could independent finish products feeding,grouping arrange,empty pallet feeding, whole layer palletizing and full pallet feeding out works in continuously and automatically.

Video

Detailed Images

Machine Parameters

Main features :

  1. Adopt intelligent HMI to control & display machine running action status and with alarm function in real time.
  2.  Through multiple buffer design to realize running smoothly, and minimize the possibility of injury to the products.
  3.  Packing speed is adjustable (controlled by frequency converter).
  4.  Equipped with the safety protection function of accidental door opening. When the machine under running state , the machine stops and gives an alarm, and the indicator light flashes if accidental open the door.

Full Automatic Gantry Palletizer Machine’s Main Tech Data:

Model: SGP-30 SGP-45 SGP-60
Palletizing Speed: 28~32Cartons/min 30~45Cartons/min 45~60Cartons/min
Applicable: Various Carton Box, PE Film Wrap Cases, Bags, etc
Power Rate: About 15.0KW About 20.0KW About 25.0KW
Voltage: 220V/380V,3Phase, 50Hz/60Hz
Air Consumption: 0.6m3/h 0.7m3/h 0.85m3/h
Air Pressure: 0.5-0.8Mpa
Working db: ≤75db ≤75db ≤80db
Machine Weight: About 8000KG About 9000KG About 10000KG
Dimensions: At least need W6000mm*7000mm Space (As Fact Design)

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
