One piece roll colorful Wrapping Shrink Machine Packing Machine 30 packages per minute

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

Video

Detailed Images

Machine Parameters

Main features :

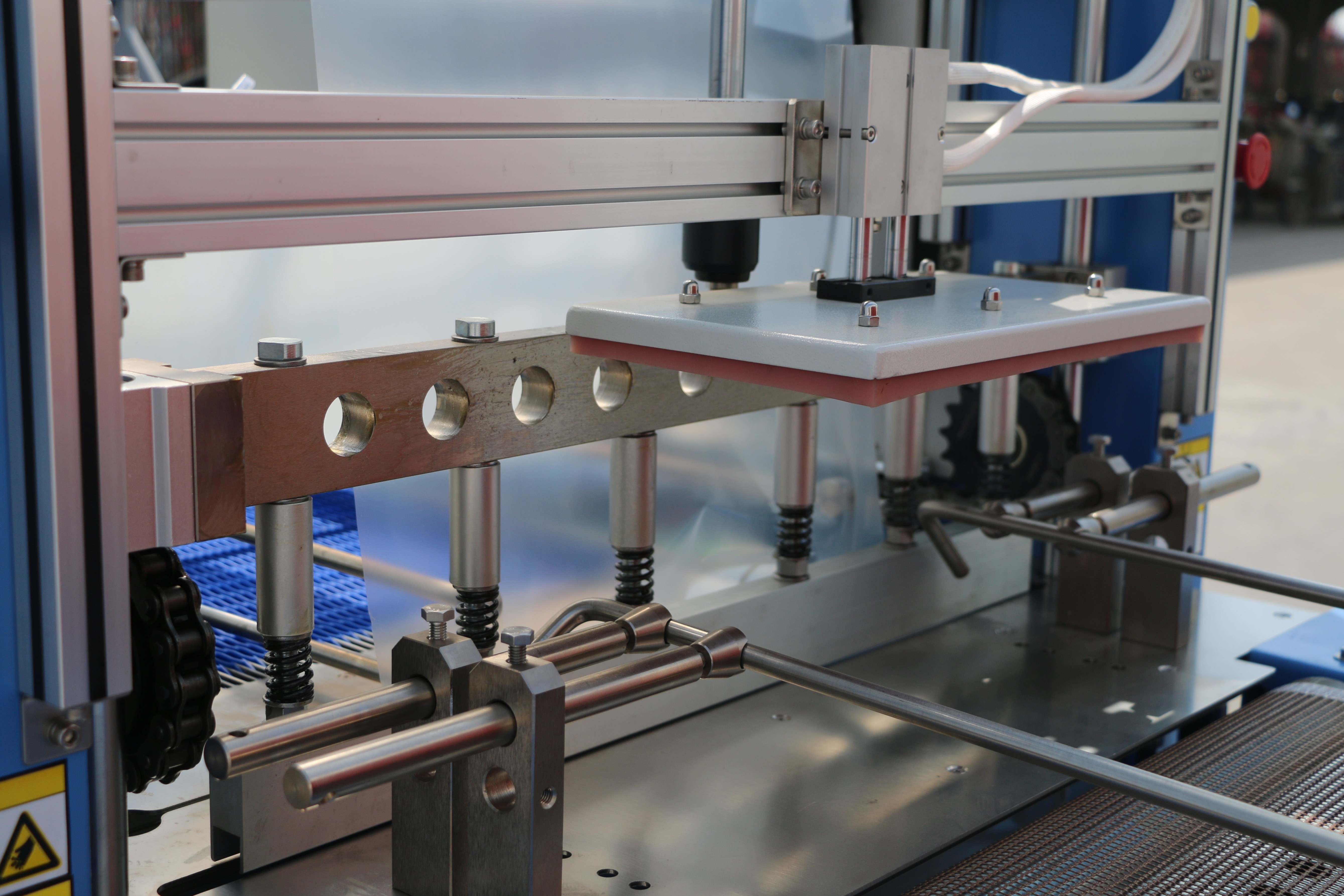

*The sealing adopts the advanced structure of hot sealing and hot cutting, with firm sealing, neat edge, good sewing performance and no flash.

*Linear bottle feeding, colorful film wrapping,small space occupation, convenient layout, stable transportation and high efficiency.

*Comprehensive protection function: when there is an obstacle at the sealing and cutting place, the equipment will be protected and an alarm will be given at the same time to prevent the package from being damaged.

*Adopt plastic steel chain conveyor belt, long-term use, no deformation, small jump, stable transportation.

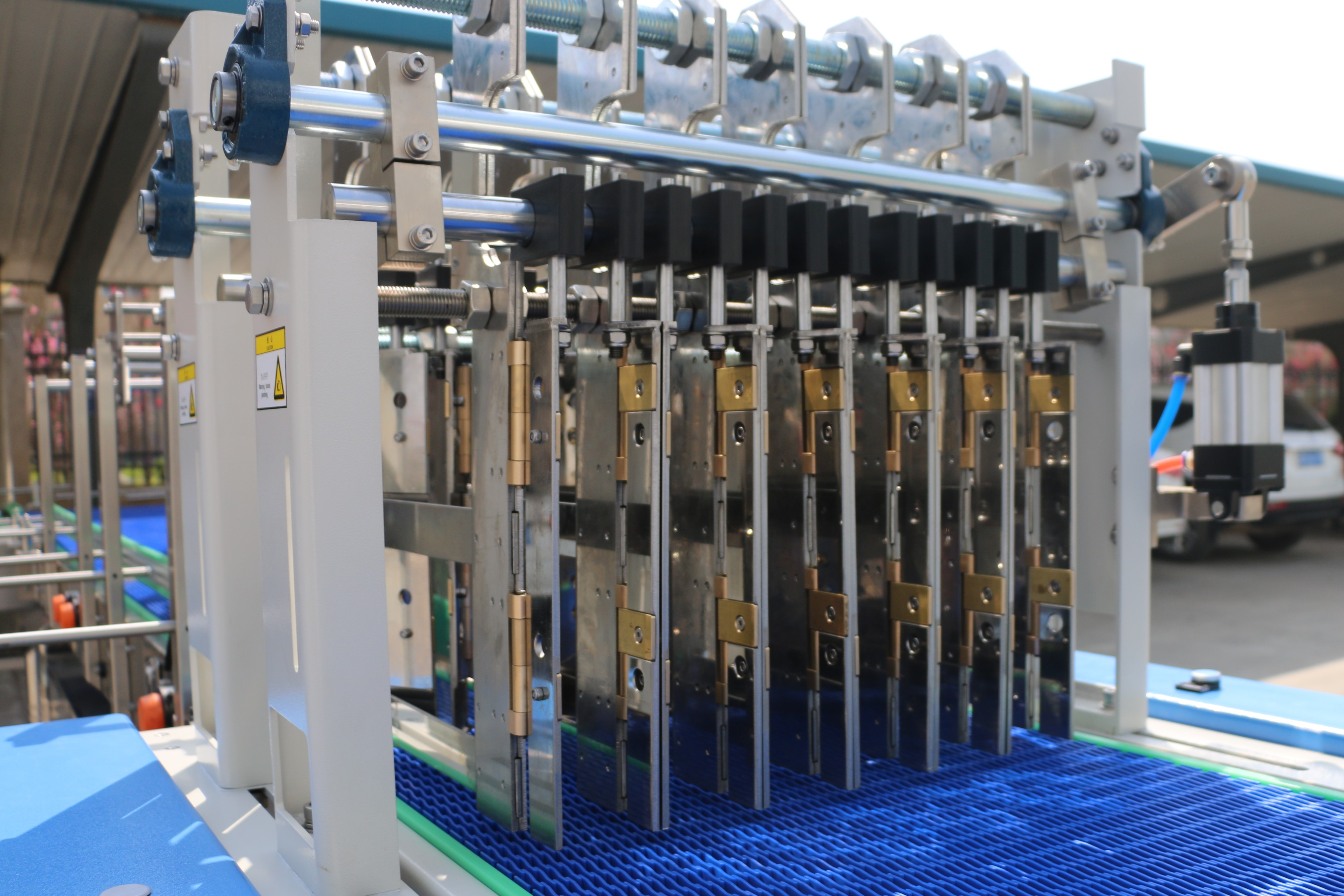

*Unique patent subcontracting mechanism, accurate and stable subcontracting, convenient adjustment.

*Precise PID temperature controller, precise temperature control.

*The shrinking machine adopts a unique patented hot air diversion and circulation system, with adjustable air flow and natural heat recovery. The patented furnace structure not only achieves good packaging effect, but also plays the best role in energy saving. *The shrinkage furnace adopts special heat preservation structure, which can not only reduce energy consumption, but also ensure the safety of workers’ operation.



Technical Parameters

Project Name: Shrink Wrap Packing Machine
Model TSP-30A
Gas Source ≥0.5MPa
Overall Dimension Of Equipment (mm) L13200*W1100*H2000
Maximum Package Size(mm) L500*W450*H350
Packing Efficiency(bag/minute) 20-25
Maximum Sealing Length(mm) 700
Power(Kw) 26-32
Working Surface Height(mm) 900±30
Applicable Film PE







Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
