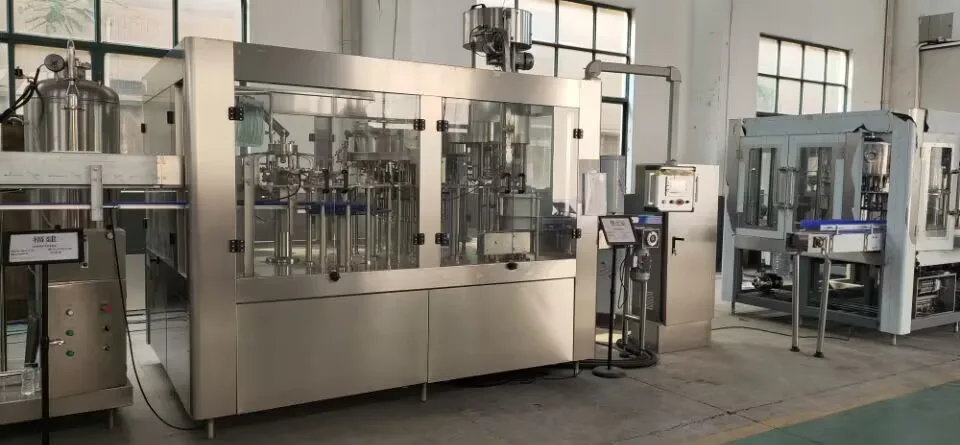

Glass Bottle Soft Drink Filling Machine (3 in 1)
This carbonated soft drink glass bottle Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled carbonated soft drink. The GXGF Wash-filling-capping 3-in-1unit: Filler Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

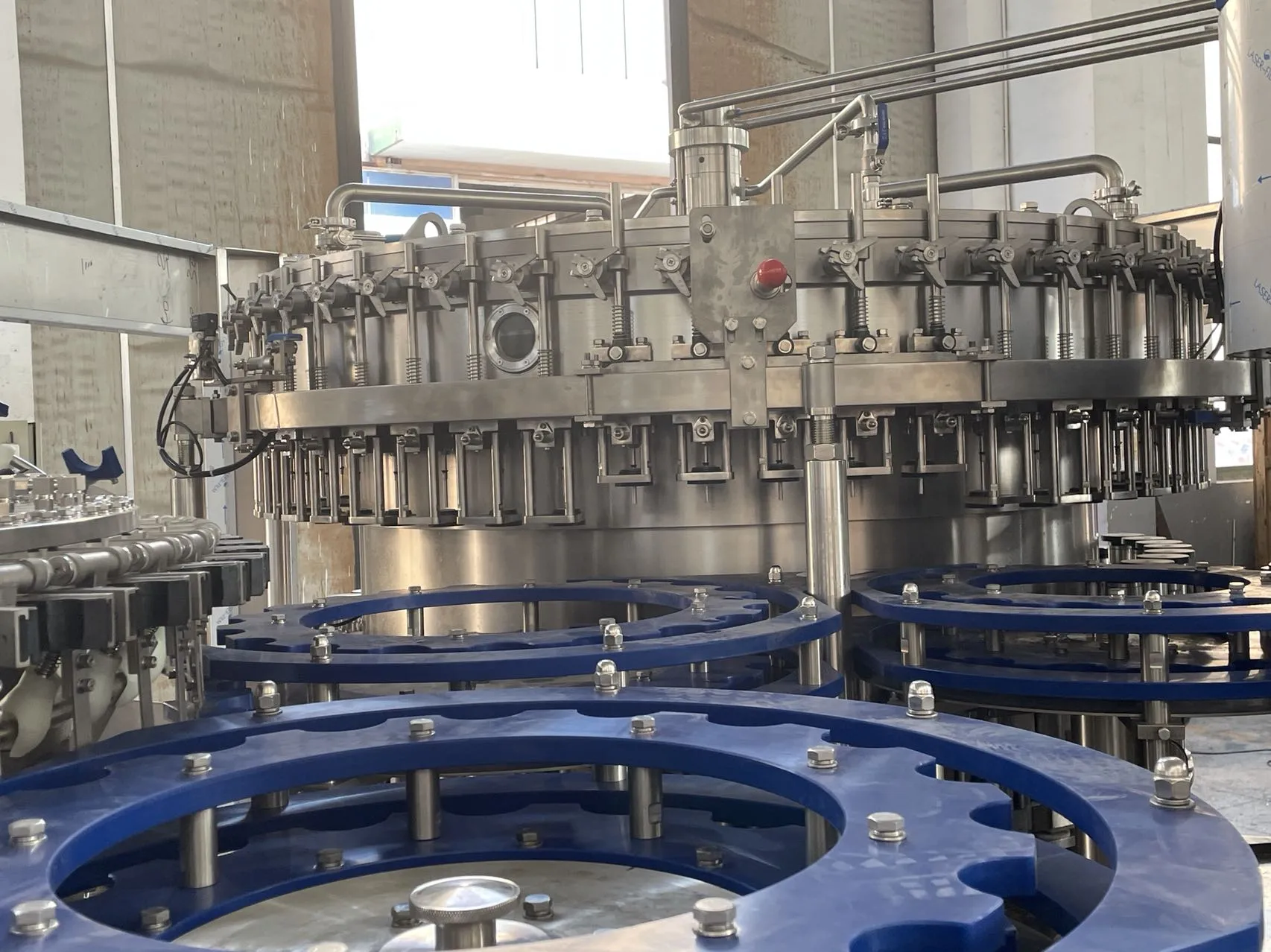

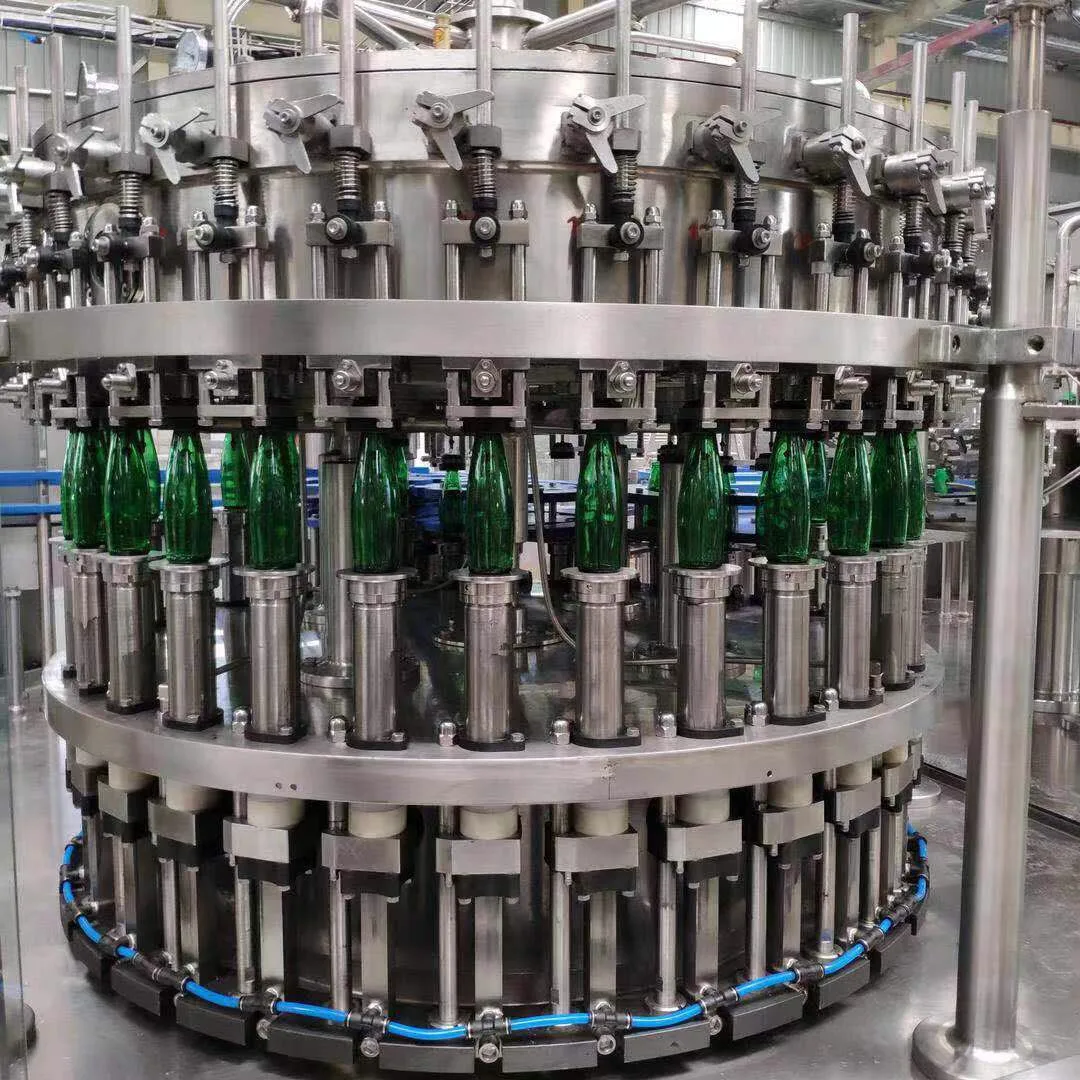

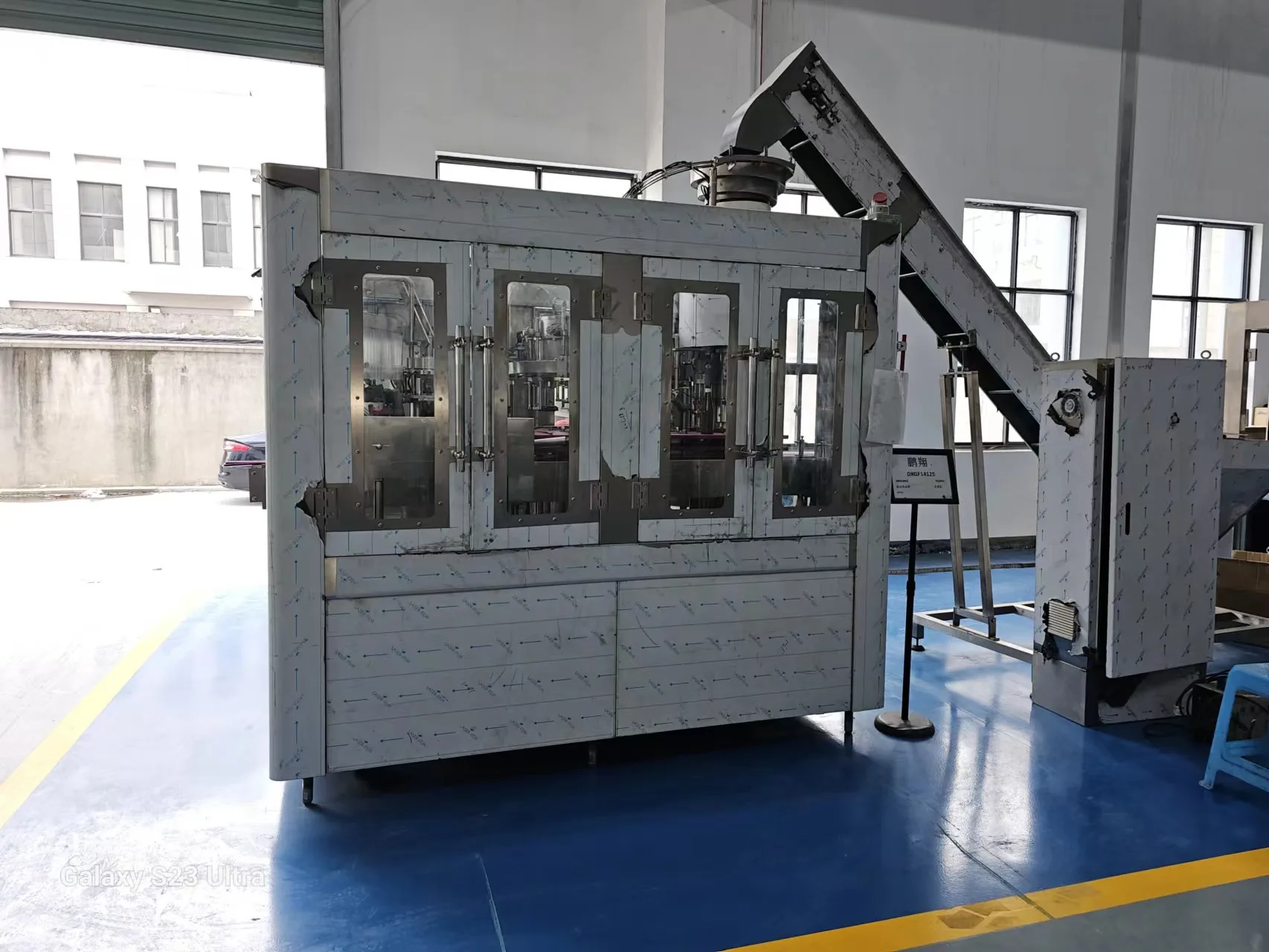

Detailed Images
Machine Parameters
Main features :
- Washing Part
Except the down framework, the transmission parts and some parts that must be made of special materials. Other parts are all made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is made of food standard rubber;
Rinsing time can be guaranteed for 4 seconds.
- .Filling part
Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles,with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time
- Capping part:
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps
Remarks: Filler–Capper Monobloc Systems are available
Project Name:Beer Filling Machine | |||||||
Model | BXGF6-6-1 | BXGF16-12-6 | BXGF18-18-6 | BXGF24-24–6 | BXGF32-32-8 | BXGF40-40-10 | |
Washing Nos | 6 | 16 | 18 | 24 | 32 | 40 | |
Filling Nos | 6 | 12 | 18 | 24 | 32 | 40 | |
Capping Nos | 1 | 6 | 6 | 6 | 8 | 10 | |
Capacity(BPH) | 500 | 2000
| 4000 | 6000 | 8000 | 10000 | |
Suitable bottle and cap | Glass bottle with crown cap | ||||||
Bottle Volume | 150ml to 2.5Ltr (Customized) | ||||||
Bottle diameter(mm) | Dia50-Dia115mm | ||||||
Bottle height | 160-320mm | ||||||
Compress air pressure(Mpa) | 0.3-0.4Mpa | ||||||
Washing medium | Aspetic water | ||||||
Rinsing pressure(Mpa) | >0.06Mpa<0.2Mpa | ||||||
Filling temperature(℃） | 0～４℃ | ||||||
Filling theory | vacuum & isobaric filling | ||||||
Application | Beer filling machine | ||||||
Total powder | 1.2KW | 2.2KW | 2.2KW | 3.7KW | 5.5KW | 7.5KW | |
Measurement(mm) | 2360*1770*2700 | 2760*2060*2700 | 2800*2330*2700 | 3550*2650*2700 | 4360*3300*2700 | 4720*3545*2700 | |
Weight | 2200kg | 3500kg | 4800kg | 6500kg | 9000kg | 10500kg | |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

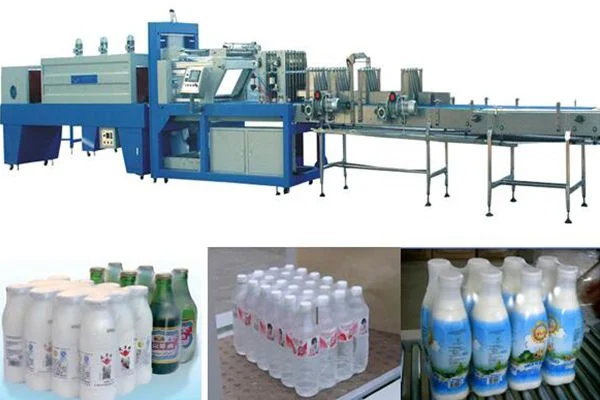

Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.
- Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
- High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
- High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
- Introduce the FESTO air cylinder to avoid contamination and noise.
- Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
- Strong clamping force with high pressure and double crank links to lock the mould.
- Two ways of operating: automatic and manual.
- Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
- Ideal cooling system make the finished bottles without any flaws.
