XGF 12-12-4 5-15 Liter PET Water Bottle Manufacturing Machine/ Water Bottle Filling Machine
This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process. This machine is used to fill still water into pet bottle and with screw caps capping function. This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

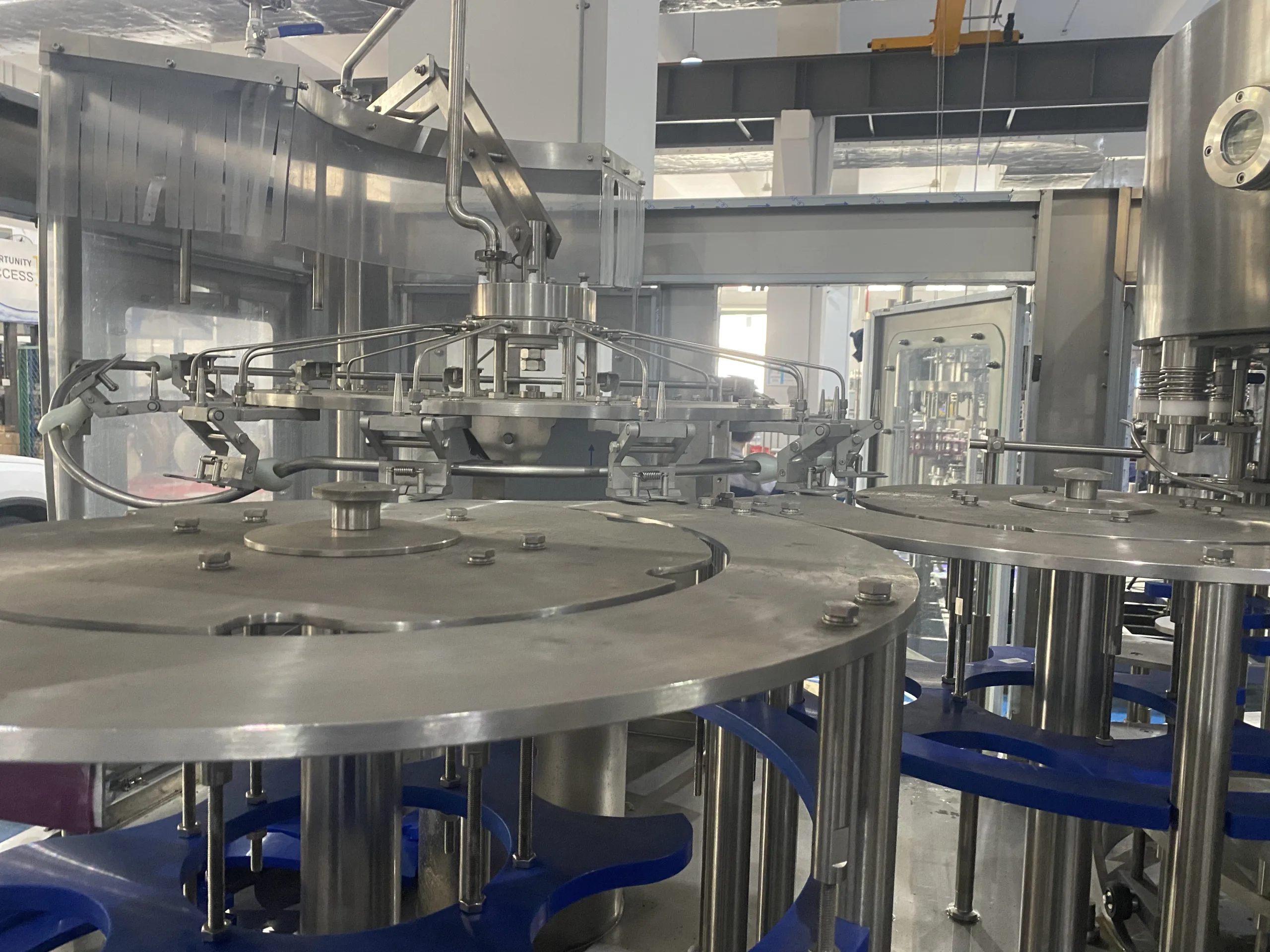

Detailed Images
Machine Parameters
Item | Technical Parameter |
| Model | XGF12-12-4 |
Production Output | 5000 ML CAPACITY 1,500BPH |
Rinsing heads | 12pcs |
Filling nozzles | 12pcs |
Capping heads | 4pcs |
Suitable to PET bottle Size | Bottle volume from 2000 to 20000ml
|
Washing Water Required | 1500 liter per hour |
Washing Pressure Required | 0.25Mpa |
Working Power | 380V AC 3-phase |
Compressed Air Pressure (for caps arranger) | 0.7MPa |
Compressed Air Consumption (for caps arranger) | 0.8m3/min |
Control Panel Power | 24V DC |
Filling Pressure | Normal pressure (gravity) |
Machine Size | 2850 x 2150x2700mm |
Gross Weight | 4200kg approximately |
Total Power | 3.8KW |
Model | Capacity/500ml | Bottle size | Weight(KG) | Dimensions(mm) |
XGF 8- 8-3 | 1000-3000bph | 200-1500ml | 2500 | 2300*1550*2500 |
XGF 14-12-5 | 3500-4500bph | 200-2000ml | 3500 | 2516*2016*2700 |
XGF 16-16-5 | 7000-8000bph | 200-2000ml | 5500 | 3000*2200*2800 |
XGF 24-24-8 | 10000-14000bph | 200-2000ml | 8000 | 4150*2600*2900 |
XGF 32-32-8 | 15000-18000bph | 200-2000ml | 10000 | 4550*2750*2900 |
XGF 40-40-10 | 18000-20000bph | 200-2000ml | 12000 | 5450*3300*2900 |
XGF 50-50-15 | 20000-24000bph | 200-2000ml | 14000 | 6500*3800*3200 |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
