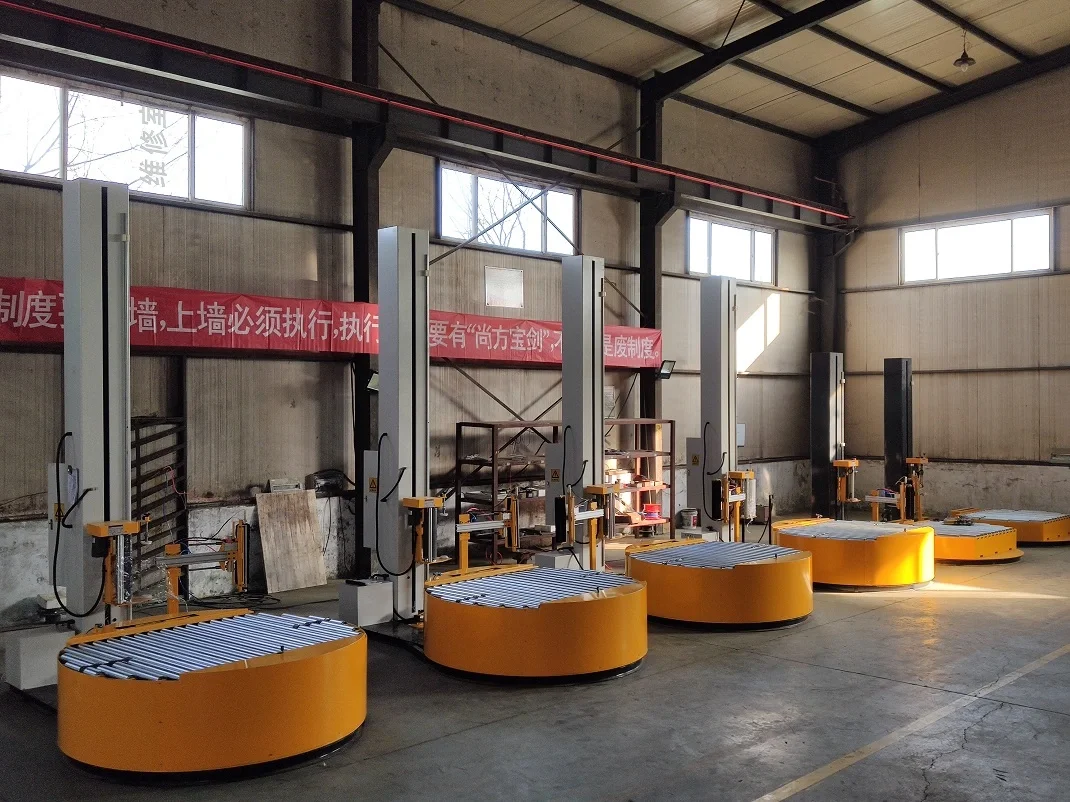

Pallet wrapper machine

Full Pallet Fim Wrapping Machine could divide into Off Line Semi-auto Type (Low Speed Type) and Online Full Automatic Type (High Speed Type).

Full Pallet Film Wrapping Machine could independent finish film feeding,film wrapping, cutting film and full pallet feeding out works in continuously and automatically.

Video

Detailed Images

Machine Parameters

Main features :

SW Series pallet types products film wrapping machine is mainly used for film wrapping  and fixing of all kinds of pallets types or similar pallet products. According to the preset procedure, the equipment continuously film winding the product. The equipment is mainly suitable for the post stacking and film wrapping packaging process of production lines in water, beverage, oil and other industries.

SW Series Full Pallet Fim Wrapping Machine could divide into Off Line Semi-auto Type (Low Speed Type) and Online Full Automatic Type (High Speed Type).

SW Series Full Pallet Film Wrapping Machine could independent finish film feeding,film wrapping, cutting film and full pallet feeding out works in continuously and automatically.

Model: SW-300Z SW-600H SW-600V
Machine Type: Off or Online Full-AutoType  Online Full Automatic Type Online Full Automatic Type
Wrapping Speed: 0~120Pcs/Hour 0~60Pallets/Hour 0~60Pallets/Hour
Belt Type: PP Belt, PET Belt, Steel Belt
Belt Width: 9-16mm (Recommend 12mm )
Belt Thickness: 0.6—0.8mm
Feeding speed

of the belt

2.5-4.5m/s
 Tension force, infinite regulation 200 ~ 2500N (As Fact To Match and Choice)
Applicable Products: Full Pallets,Pallet Shape Products, Column Shape type etc Products
Supply Power: About 1.0KW About 3.5KW About 6.0KW
Voltage, etc: 220V/380V,3Phase, 50Hz/60Hz (Accept Customize)
Air Pressure: 0.5-0.8Mpa
Working db: ≤75db ≤75db ≤80db
Machine Weight: About 300KG About 900KG About 1500KG
Machine Dimension: W650*D14200*H2300mm (As Fact Machine Model)

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
