300BPH 5 Gallon Water Bottle Filling Machine Line Price

The series of machine integrate rinsing, contain rinser-filler-capper monoblock, automatic loading machine, bottle outside washer, bottle inside washer, decapper, heating shrink tunnel, conveyor system, complete line control system.

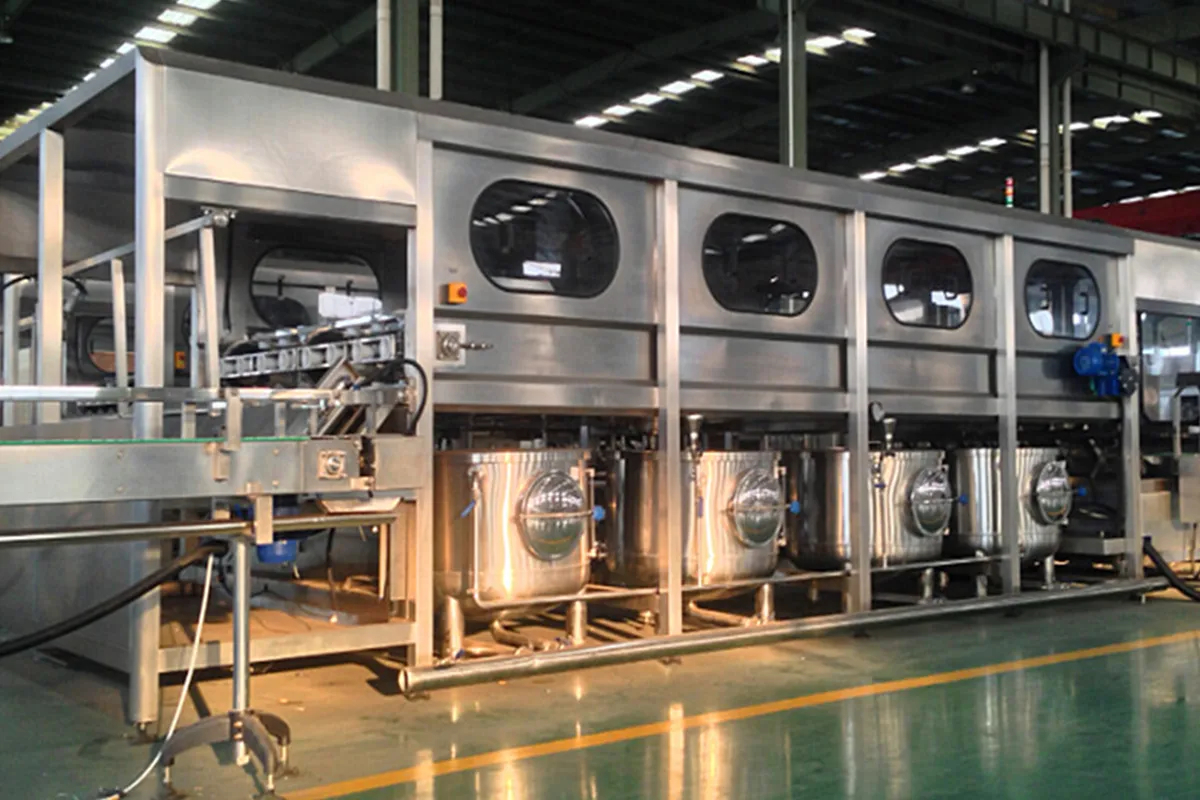

The one unit main machine includes the washer, dryer, filler and capper for the production of 3-5 gallon barreled drinking water. The washing process includes alkaline liquid inside and outside washing by dirty remover! inside and outside washing by disinfecting water inside and outside washing by pure water, the alkaline and disinfecting water can be used cyclically. The whole Washing, filling and sealing price is controlled by PC, and has the safe device for interlock, signal and self-detection.

Video

Detailed Images

Machine Parameters

Main features :

    1. The whole process is controlled by a computer or PLC with a high degree of automation.
    2. Optional Internet-ready smart plant management software collects, transmits, stores, counts and analyzes real-time data, making remote control and digital production management easy.
    3. Optimized technology reduces operating costs by reducing the consumption of water, electricity, and chemical materials.
    4. The entire line is designed to fully comply with food safety quality regulations, avoiding dead spots, dead ends, static liquids, threaded joints, etc.
    5. Extensive use of adapters, manholes, valves, etc. ensures the safety and easy maintenance.
    6. The combination of proven technology and constant innovation ensures stability and reliability.
Technical parameter :3 -5gallon water filling machine
Model QGF-300
Capacity (for 5 gallon) 300bph
Bottle volume 3 & 5 Gallon
Compressor air 0.3-0.7Mpa
Air consumption 0.37 m3/min
Rinsing pressure >0.06Mpa <0.2Mpa
Application 3 gallon water filling machine
Total power (KW) 3.8kw
Overall dimensions 2.5*1.9m
   Height 2m
Weight(kg) 1500kg

Production Lines Flow Chart

Automatic De-capping Machine Barrel Cap Puller For 5 Gallons Barrel

Automatic De-capping Machine Barrel Cap Puller For 5 Gallons Barrel

The automatic de-capper is a specialized equipment designed for 5-gallon water filling lines, particularly those utilizing recycled barrels. It significantly enhances work efficiency, reduces the risk of secondary pollution associated with manual de-capping, and lowers overall labor intensity. Constructed from stainless steel, the machine is corrosion-resistant and easy to clean. The pneumatic components used in the machine are sourced from the renowned brand AIRTAC, ensuring reliability and performance.

View Details
Barrel Outside Washer Machine Suit For Recyclable Plastic Barrel Of Water

Barrel Outside Washer Machine Suit For Recyclable Plastic Barrel Of Water

The Full Automatic Outside Brushing Machine is an integral production facility for three and five-gallon barrel packing production lines. Specifically designed for 5-gallon barrels used in mineral water production, this machine is capable of brushing the opening, exterior, and interior surfaces of the barrel. It effectively eliminates sediment and algae caused by minerals, enhancing the washing and cleaning effect. By automating the brushing process for the barrel’s bottom, outside, and inside surfaces, this machine significantly reduces the risk of secondary pollution that may occur with manual brushing. Additionally, it helps alleviate the labor stress associated with manual brushing.

View Details
Palletizer machine

Palletizer machine

This machine is auxiliary machine for the final step packaging in 3-5 gallong water production line ,It reduces labor costs.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
