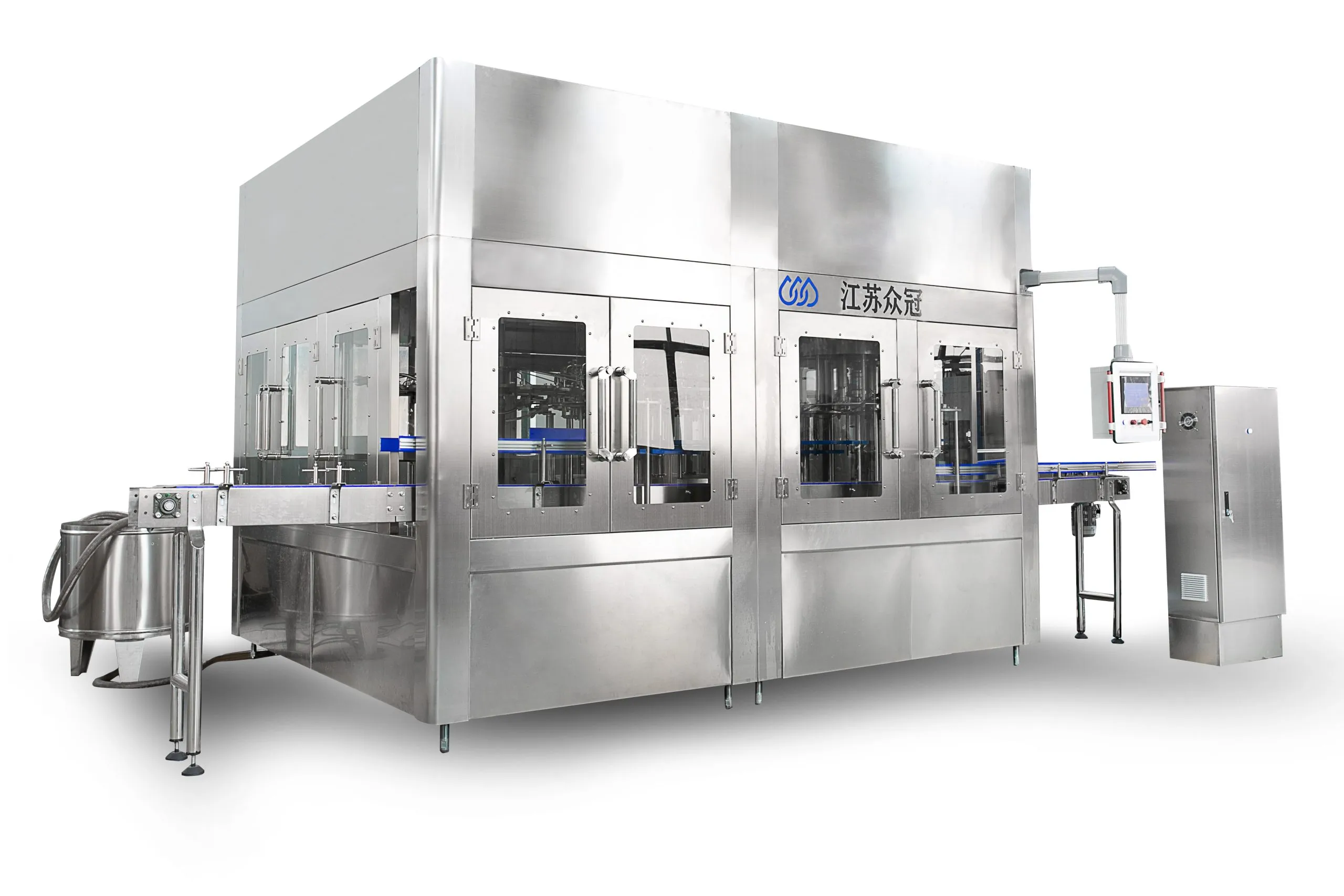

5 Liter 7 Liter 10 Liter 2000BPH PET Water Bottle Filling Machine Price

The 3-10L water filling machine is a fully automatic filling machine carefully designed by our company. The overall performance of the product is good. It adopts PLC and touch screen automatic control. It has accurate quantitative filling, advanced structure, stable operation, low noise and large adjustment range. , filling speed and other advantages. The measurement is digitally adjusted on the man-machine interface, and the required measurement such as 3L or 15L can be set, and the touch screen can be reached at a touch. All parts and material contact parts of the machine are made of high-quality stainless steel, the surface is polished, and the appearance is beautiful and generous It does not pollute the environment and meets the requirements of GMP standards.

Video

Detailed Images

Machine Parameters

Main features :

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
    3. The specially designed stainless steel bottle washing machine clip is solid and durable, with no touch with the screw location of the bottle mouth to avoid secondary pollution.
    4. High-speed large gravity flow valve filling valve, filling fast, filling accurately, and no liquid loss.
    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON.
Item Technical Parameter
Model XGF20-20-5
Production Output 5000 M20222 CAPACITY 2,000BPH
Rinsing heads 20pcs
Filling nozzles 20pcs
Capping heads 5pcs
Suitable to PET bottle Size Bottle volume from 2000 to 20000ml



Working Power 380V AC 3-phase
Control Panel Power 24V DC
Filling Pressure Normal pressure (gravity)
Machine Size 2850 x 2850x2700mm
Gross Weight 5100kg approximately
Total Power 4.5KW

Production Lines Flow Chart

Water treatment system

Water treatment system

By utilizing our water purification machine, we can efficiently process fresh water, producing high-quality pure, drinking, and mineral water. Our advanced manufacturing facility is equipped to produce various types of water, including drinking water, mineral water, pure water, and potable water. We source water from a diverse range of bodies, encompassing groundwater, mountain springs, rivers, wells, brackish water, and lakes. The core of our water treatment operations centers around raw water sources such as boreholes, rivers, wells, mountain springs, lakes, and more. These sources form the foundation of our water treatment processes.

View Details
Blow molding system

Blow molding system

Our services cater to all shapes of PET plastic bottles, offering a comprehensive bottle molding solution to meet various capacity and shape requirements. Additionally, we provide a complimentary design service, ensuring a customized approach to meet your specific needs. The supported bottle sizes range from 3L to 20L, providing flexibility to accommodate a diverse range of packaging requirements.
View Details
Automatic labeling machine

Automatic labeling machine

The OPP hot melt glue linear type labeling machine represents the latest in continuous labeling operations. Primarily designed for labeling cylindrical containers such as detergents, beverages, mineral water, and food products, this machine utilizes environmentally friendly OPP films as label material. Notably, it incorporates automatic oxidative decomposition, resulting in a reduction of production costs by more than 30 percent. Controlled by a PLC touch screen and equipped with imported advanced electric eye configurations, this labeling machine offers high speed, accuracy, stable performance, ease of operation, and an elegant appearance.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
